Description:

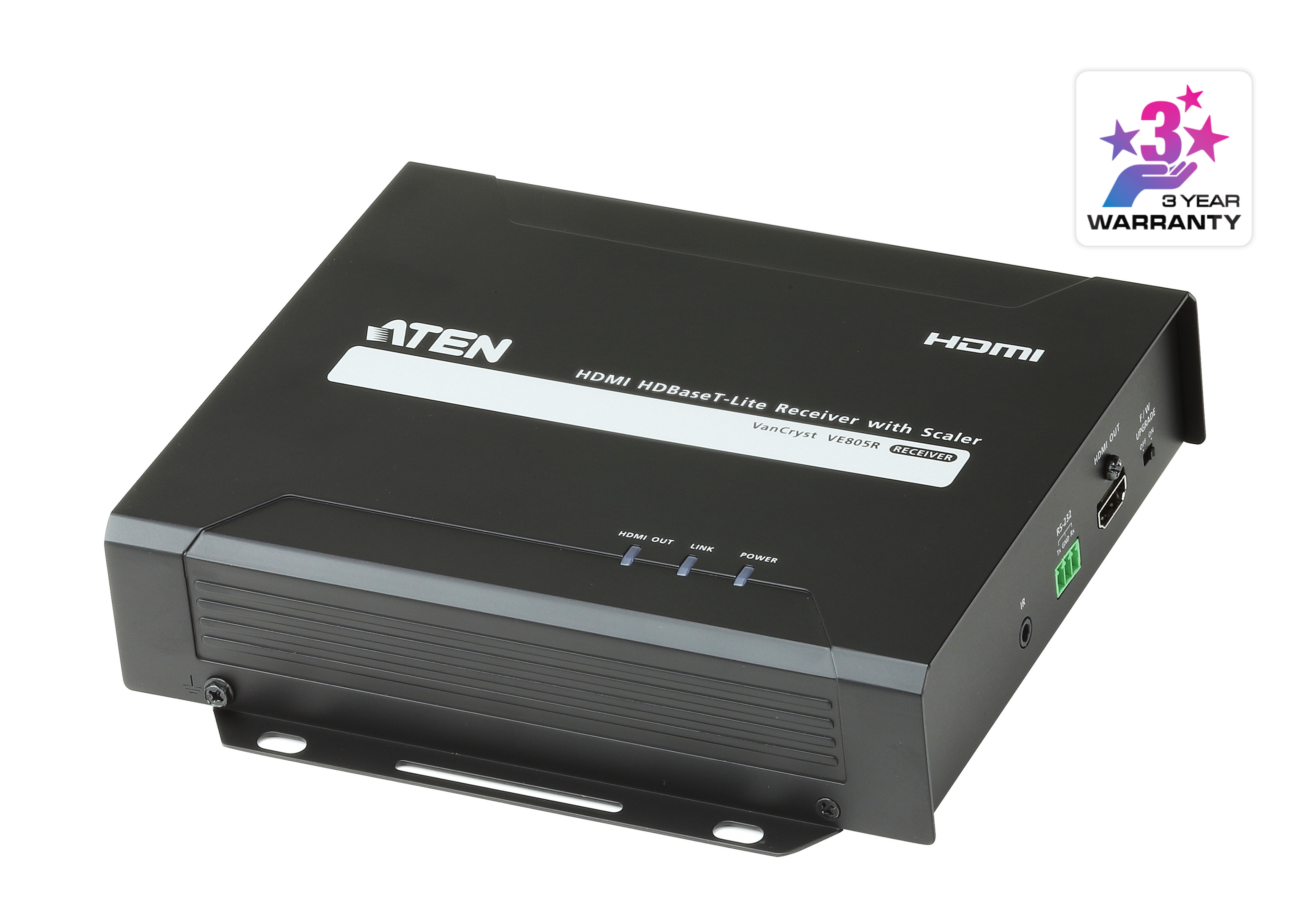

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device
Specifications:
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
196.85 ft |
| Number of Network (RJ-45) Ports: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE805R |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE805R |
| Product Name: |
VE805R HDMI HDBaseT-Lite Receiver with Scaler |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
1 |
| Network (RJ-45): |
Yes |
| Serial Port: |
Yes |
| Number of HDMI Outputs: |
1 |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- VE805R HDMI HDBaseT-Lite Receiver with Scaler
- 1 x Power Adapter
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x Terminal Block
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Transmitter Height: |
1.70" |
| Transmitter Width: |
6.70" |
| Transmitter Depth: |
7.20" |
| Transmitter Weight (Approximate): |
1.85 lb |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
196.85 ft |
| Number of Output Devices Supported: |
1 |
