Description:

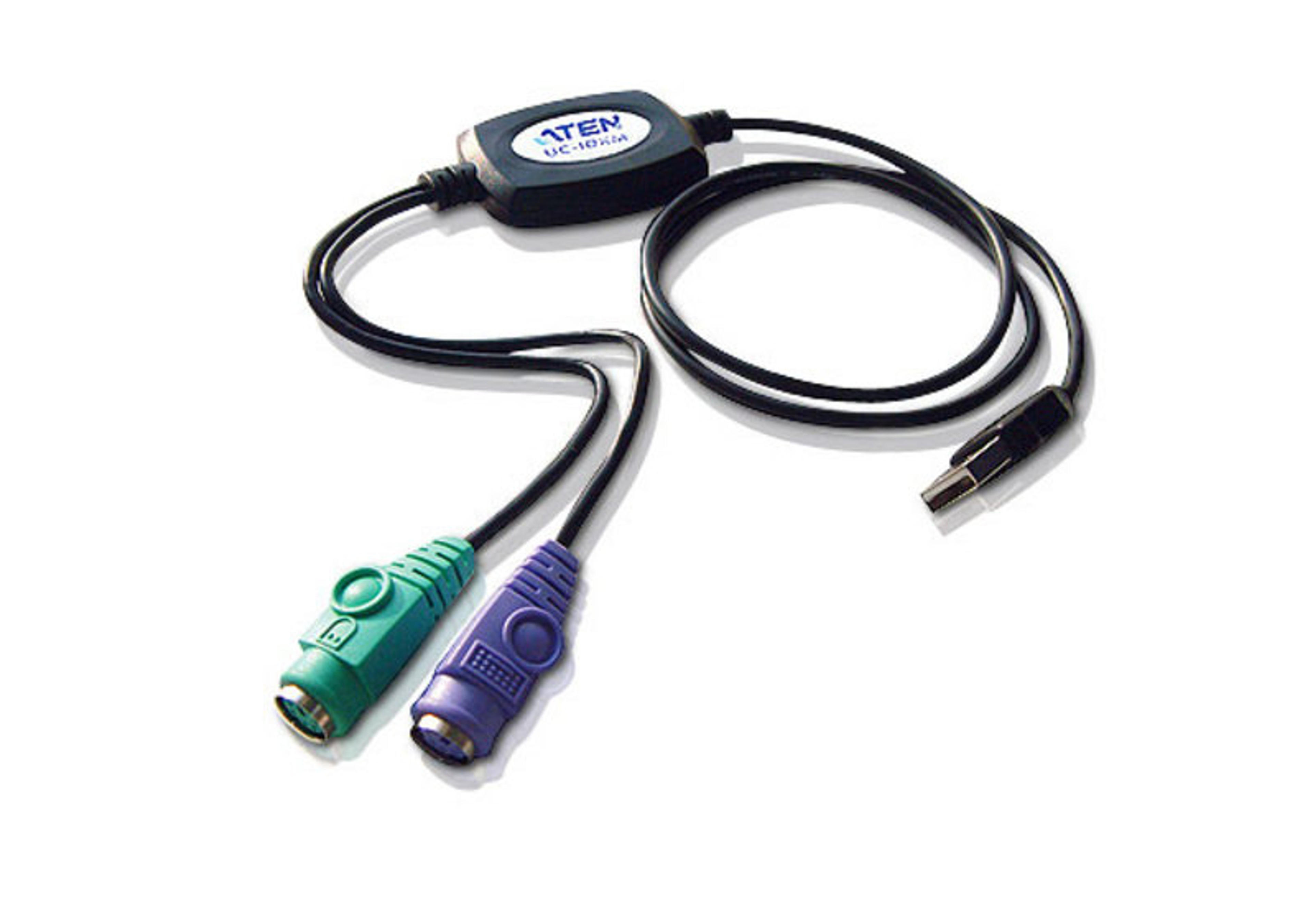

UC100KMA is a signal converter with a 30cm cable. It can convert signals of PS/2 devices (keyboard and mouse) into USB signals, and supports multiple operating systems to fulfill the needs of users.
Features:
- wo PS/2 devices (keyboard and mouse) to USB Interface converter
- Supports PS/2 mice and microsoft IntelliMouse
- Hotkey selection for OS and keyboard language supports
- Compatible with KVM Switches
- USB specification compliant
- External power adapter not required
- Easy installation - no software required
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
Specifications:
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| PS/2 Keyboard | 1 x 6-pin Mini-DIN Female (Purple) |
| PS/2 Mouse | 1 x 6-pin Mini-DIN Female (Green) |
| LEDs | |
| Link | 2 (Green) |
| Cable Length | 30 cm |
| Platforms | Windows 2000/XP/Vista/Linux Mac OS 8.6 or Higher SUN Solaris 8 |
| Data Rate | 12 Mbps |
| Power Mode | Bus Powered (via the USB cable) |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.08 kg ( 0.18 lb ) |
| Dimensions (L x W x H) | 9.15 x 4.70 x 2.50 cm (3.6 x 1.85 x 0.98 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
