Description:

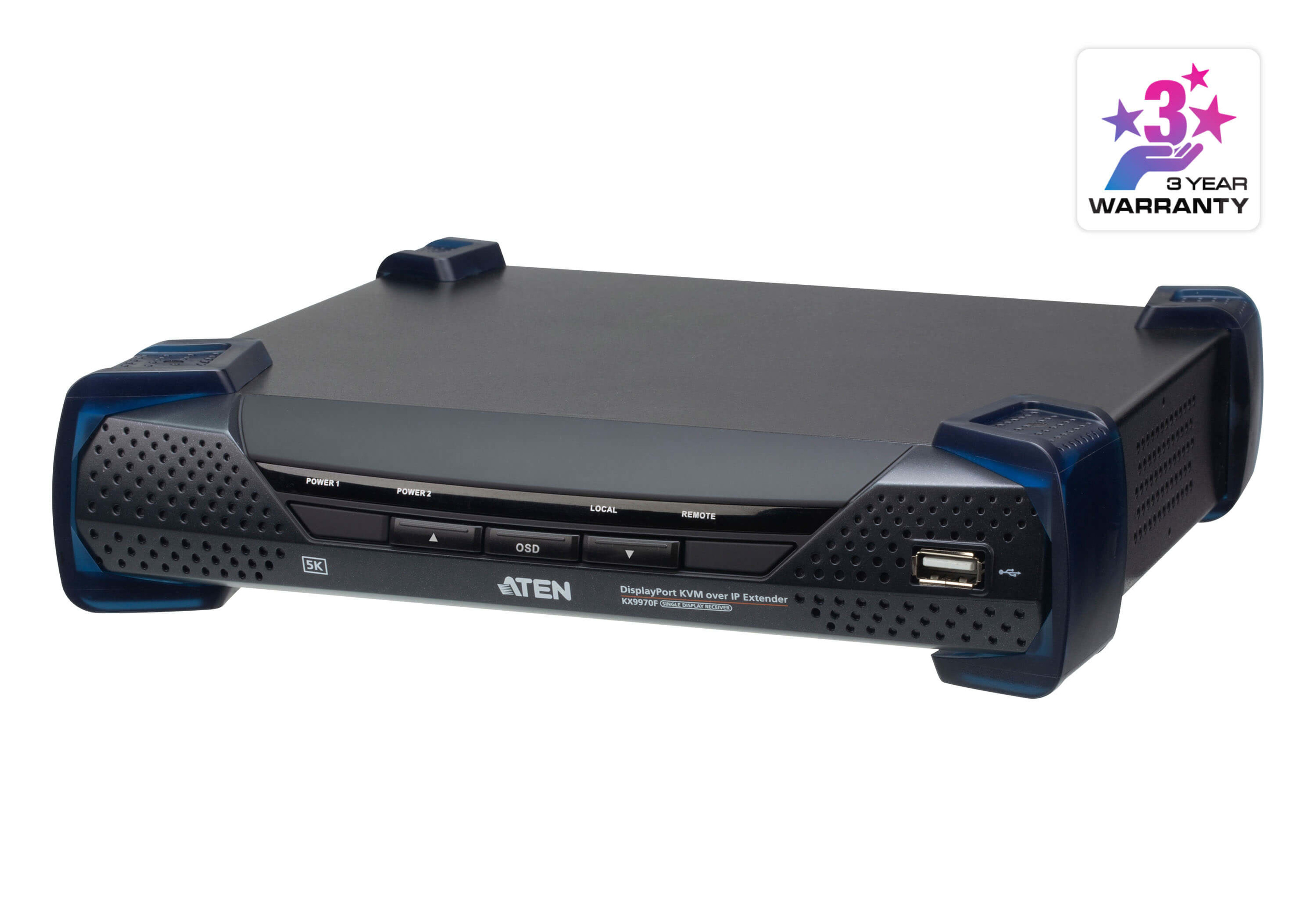

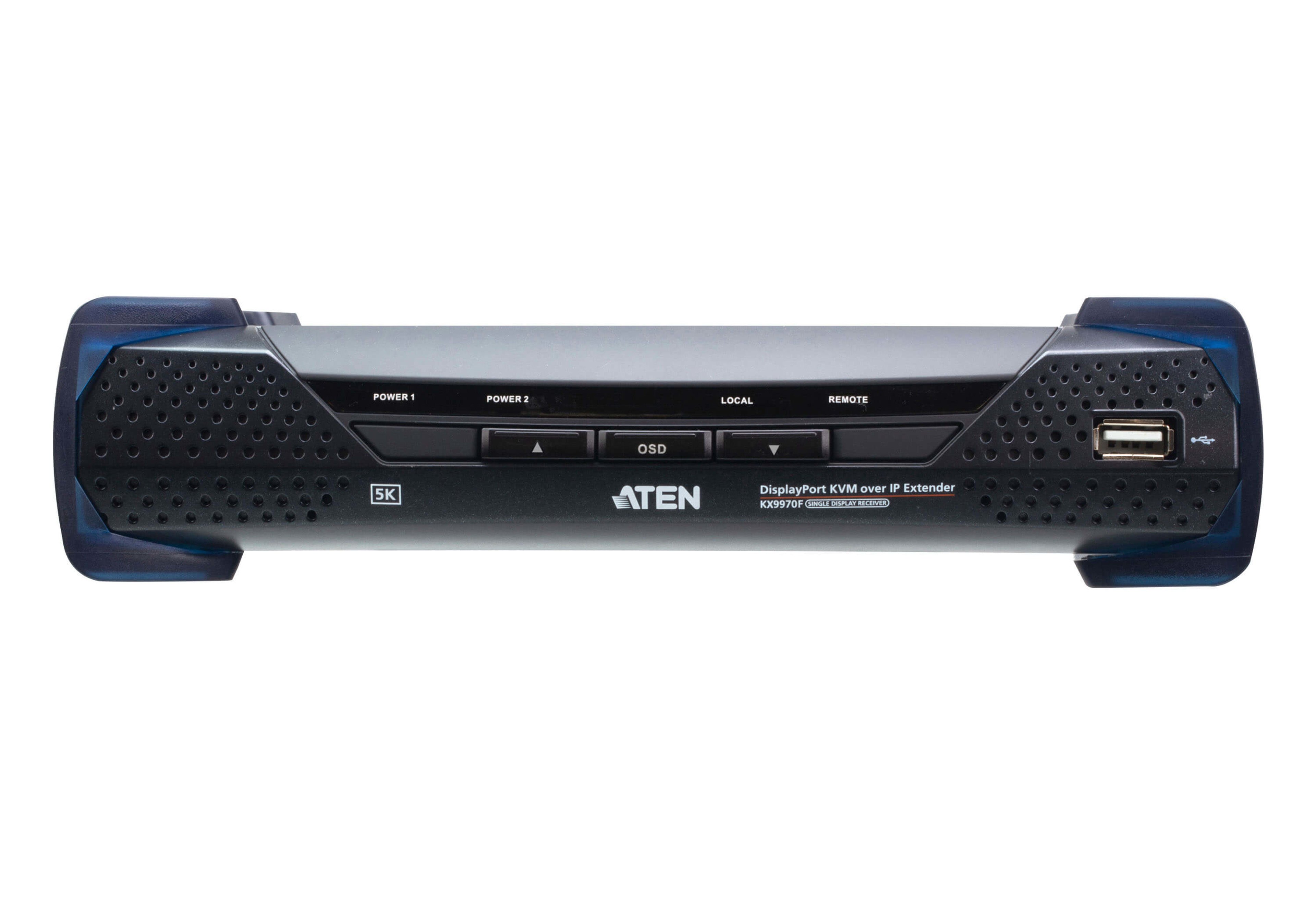

ATEN KX9970FR 5K DisplayPort KVM over IP Receiver - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 5K - 5120 x 2880 Maximum Video Resolution - 4 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - For PC
As workplaces face restructuring and decentralization is inevitably enforced, control room operations are being challenged to pivot effectively throughout these safety protocols in the new normal. Despite manpower shortages, managing escalations with secure, precise, and timely data from real-time monitoring and dynamic collaboration has become measurably more mission-critical than ever.

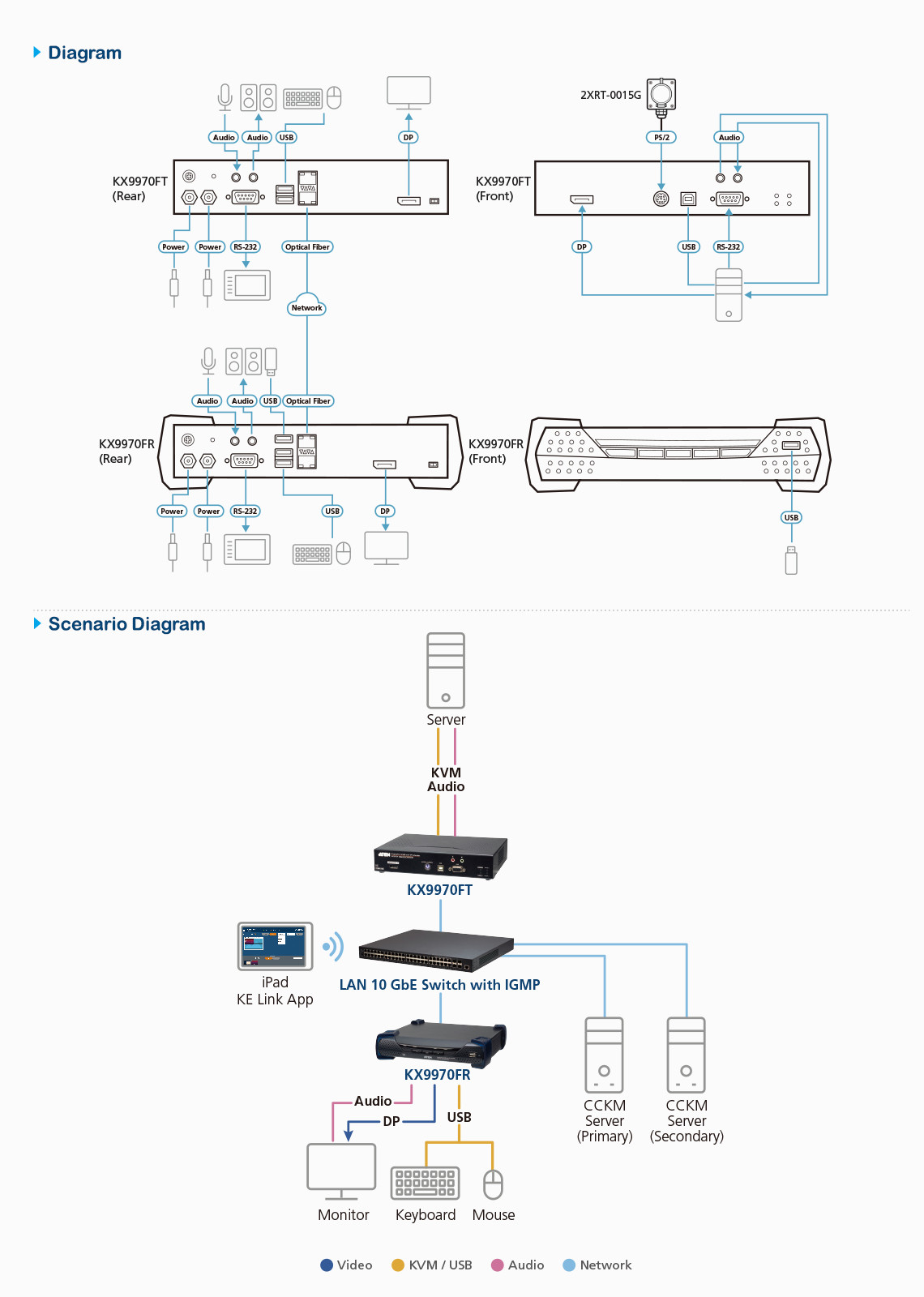

The KX9970FT is a high-performance KVM over IP transmitter that allows connection to a DisplayPort computer and enables secure, remote, and uninterrupted access to the computer from a 5K DisplayPort KVM console connected to a KX9970FR receiver over an Intranet or a dedicated LAN. With the receiver console installed at a separate location from the transmitter within a standard IP network, mission-critical control room operations become more ergonomic, user-centered, and task-oriented, while remaining separate from any adverse environmental interference.
The KX9970F expands on previous models with support for up to 10 Gbps optic fiber network connection, transcendent 5K audiovisual performance, speedy peripheral data sharing, and many other new features. This future-proof KVM over IP Matrix System solution, incorporating flexible extender connections, visual collaboration, and system control, aims to streamline control room workflows to jump start operators' productivity with KVM over IP agility.
- Native DP signal processing with color depth up to 12 bits and support for HDR 10
- Lossless video compression up to 5K with zero latency
- Superior video quality - up to 5120 x 1440 @ 60 Hz (4:4:4), 5120 x 2880 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:4:4), 1920 x 1080 @ 240 Hz (4:4:4), 2560 x 1440 @ 144 Hz (4:4:4)

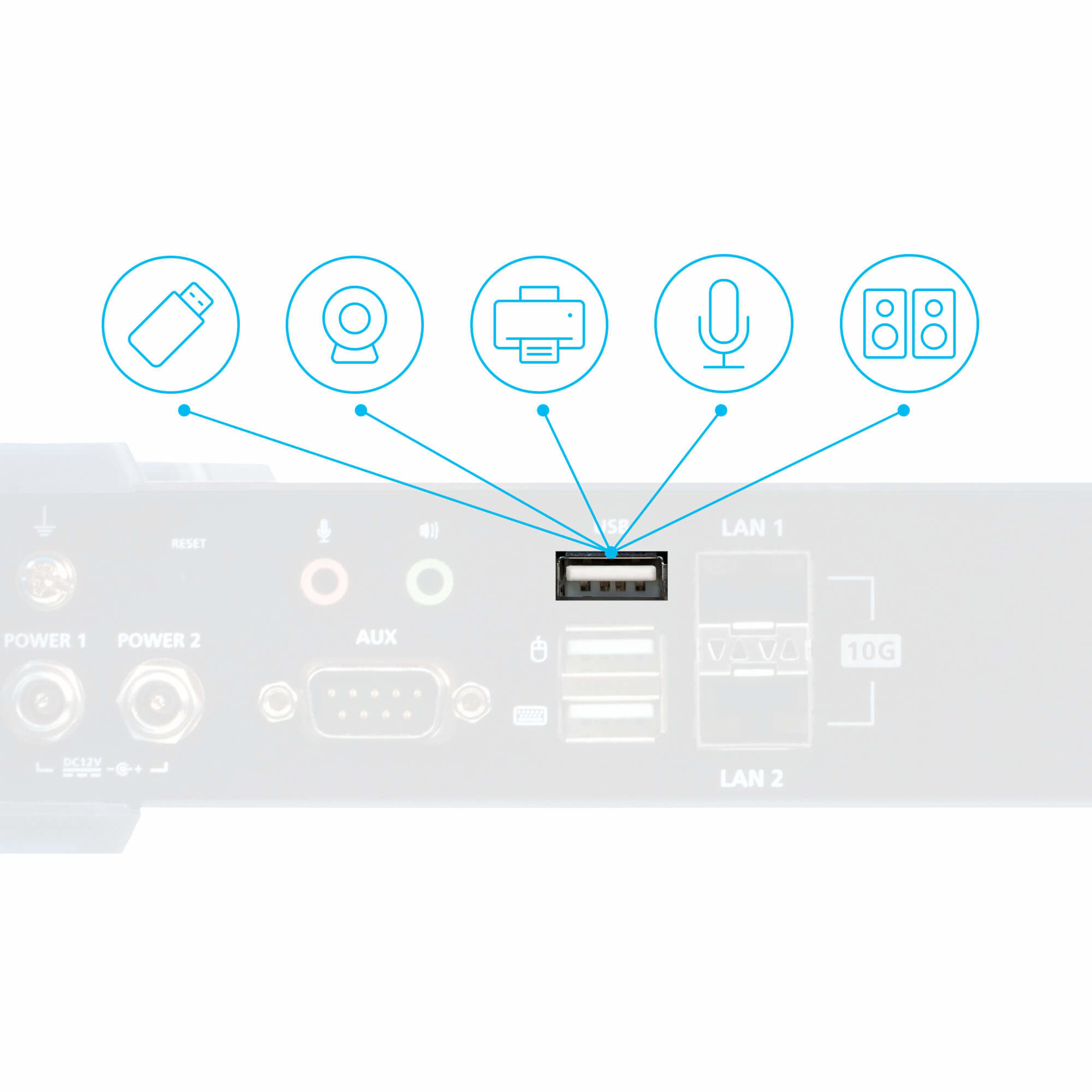

- USB isochronous transfer enables USB camera and USB speaker usage between transmitter and receiver
Specifications:
Package Contents |
|
Platform Supported | PC |
Maximum Video Resolution | 5120 x 2880 |
Graphic Mode | 5K |
USB | Yes |
Number of USB Ports | 4 |
DisplayPort | Yes |
Packaged Quantity | 1 |
Manufacturer | ATEN Technology, Inc |
Product Model | KX9970FR |
Product Name | KX9970FR 5K DisplayPort KVM over IP Receiver |
Brand Name | ATEN |
Input Voltage | 12 V DC |
12 V DC | |
Power Consumption | 17.71 W |
Form Factor | Rack-mountable |
Receiver Height | 2.09" |
Receiver Width | 8.82" |
Receiver Weight (Approximate) | 3.04 lb |
Receiver Length | 8.90" |
Connectivity Technology | Wired |
Maximum Operating Distance | 32808.40 ft |
Number of Computers Supported | 1 |
Number of Local Users Supported | 1 |
Device Type | KVM Extender |
