Description:
The KN8064VB KVM over IP switche provides local console and remote over IP access for users to monitor and access their entiredata centerover a network.The KN series offers superior FHD video resolution up to 1920 x 1200,virtual mediatransmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability ofremote accessto all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app -PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit thePadClientwebpage for more information.

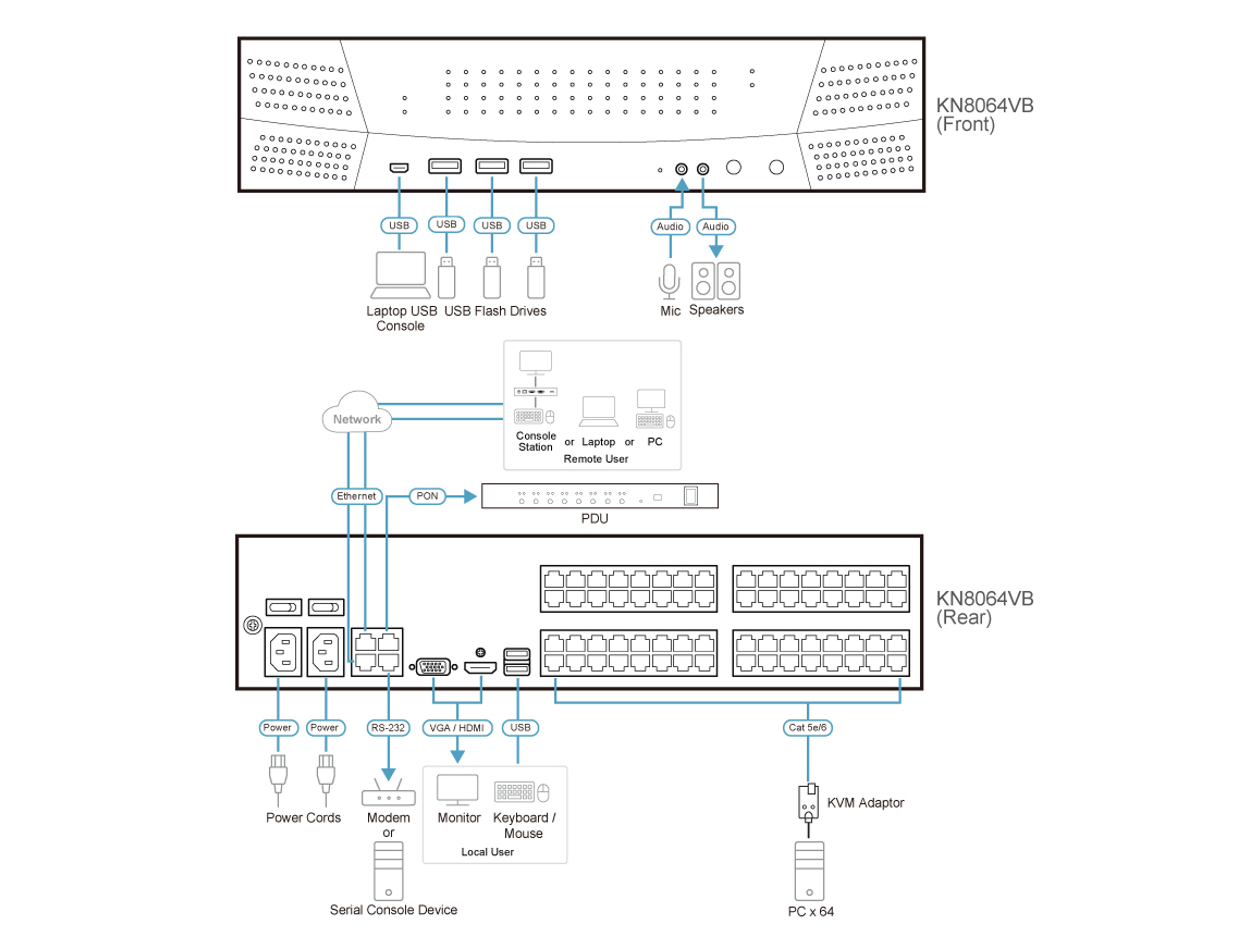

This KVM switch provides out-of- band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there's difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
The KN series can be integrated into ATEN'sCC2000Centralized Management Software. TheCC2000delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.
The KN series is compatible with ATEN's KVM over IP Console Station - the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN'sPDUremote power management systems from the KVM over IP switches' user interface.
Additional exclusive features of KN series include Message Board,Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user's time and money by allowing administrators to manage theirdata centers from practically anywhere - minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability fordata centerservices.

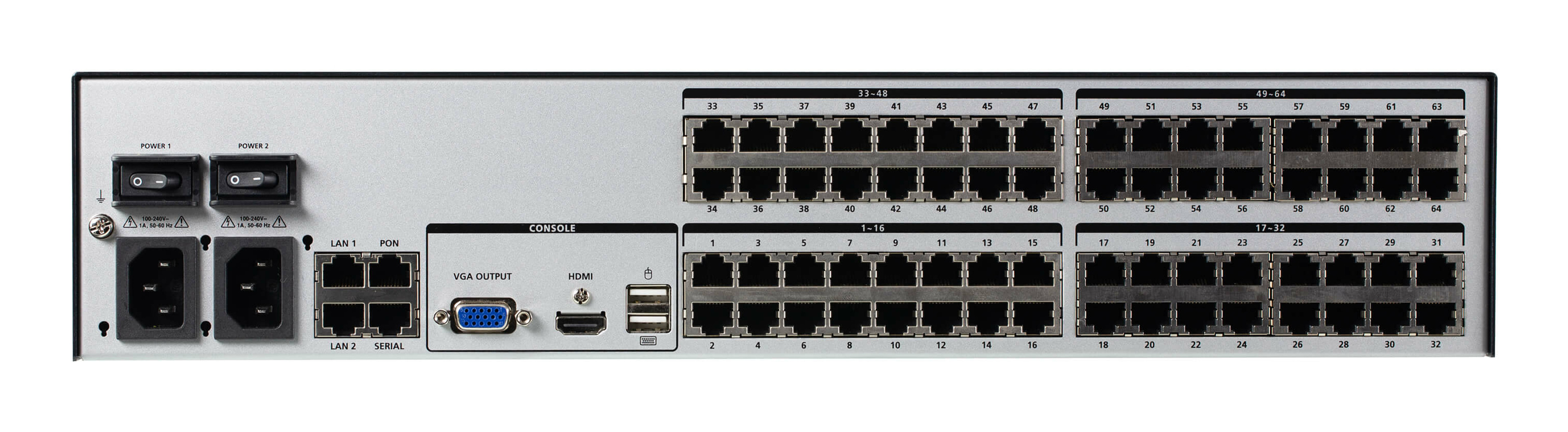

- High port density - RJ-45 connectors and Cat 5e / 6 cable for up to 64 ports in 2U housing
- Panel Array Mode™ - monitors all ports in a grid display (both local and remote screens)
- Integrated with ATENCC2000Centralized Management Software andCCVSRVideo Session Recording Software
- High-Grade Security - supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Specifications:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
