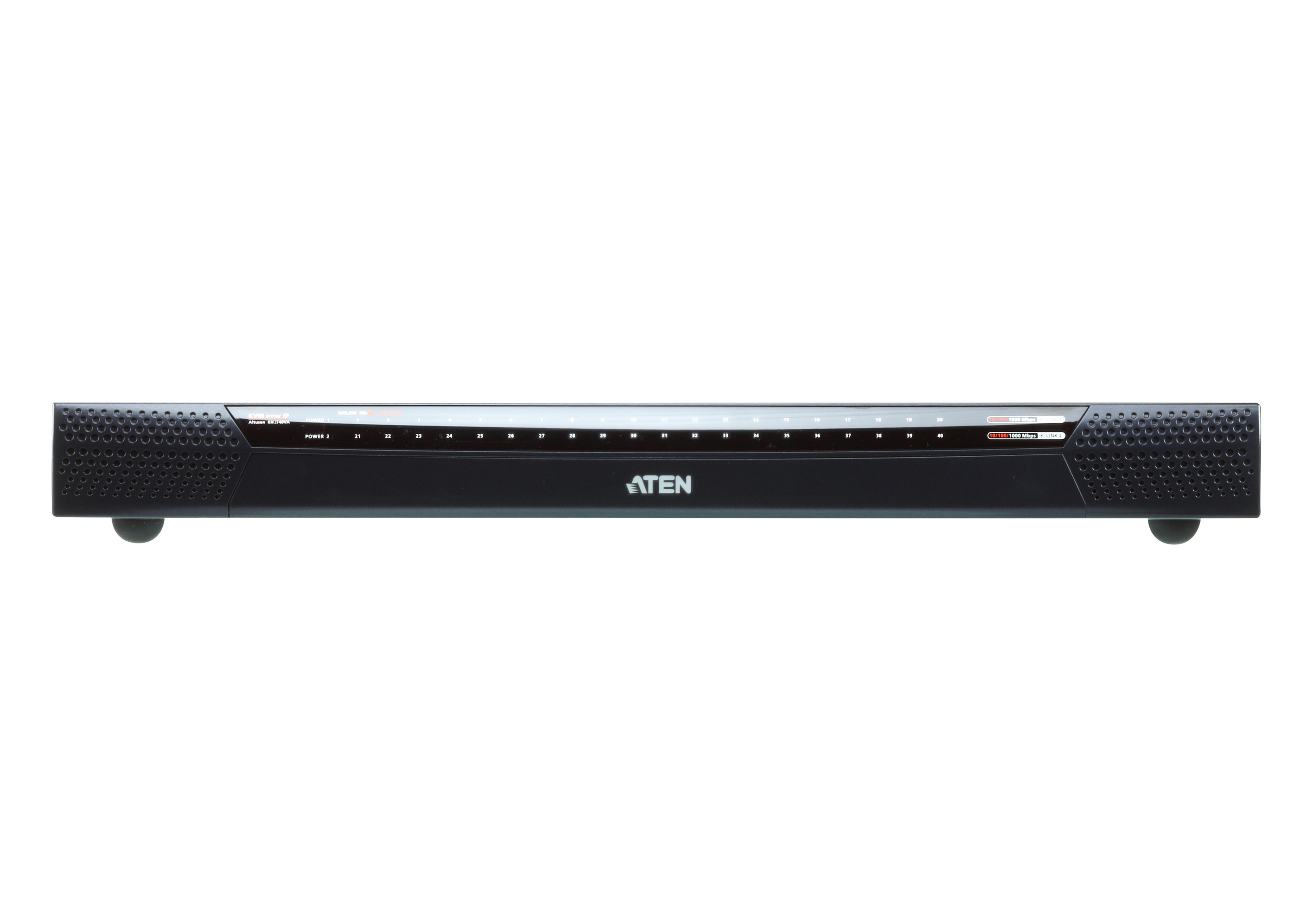

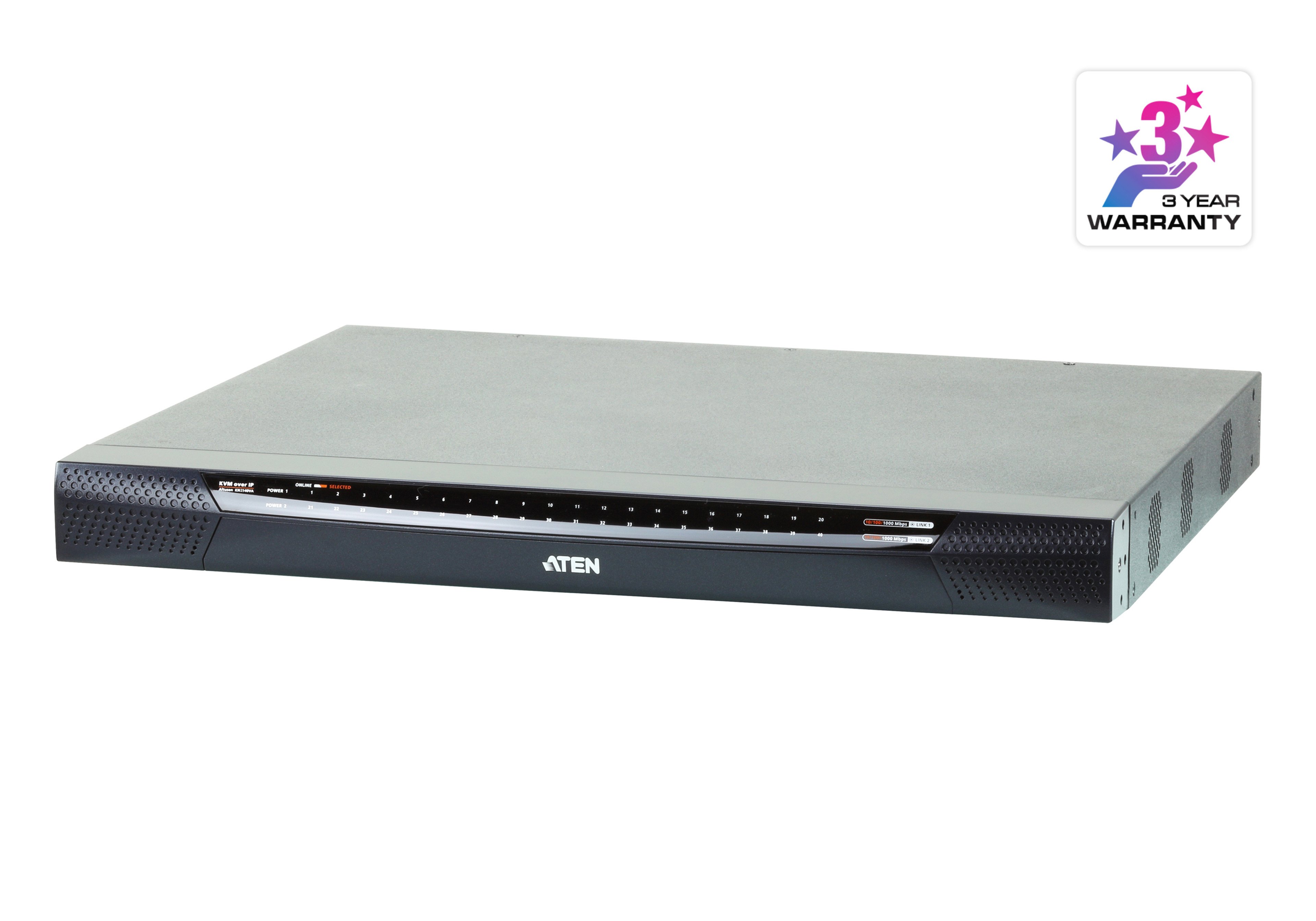

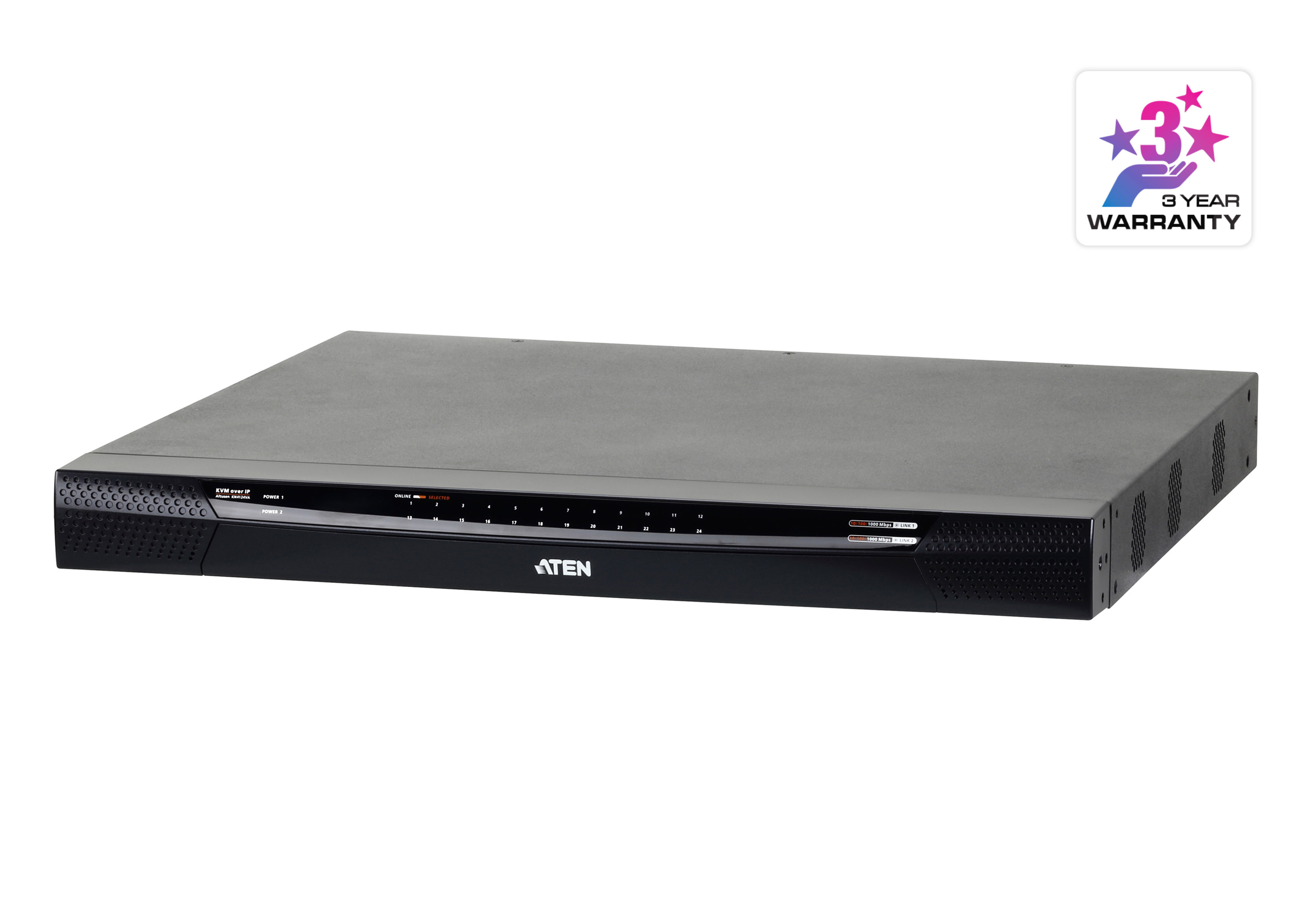

Aten KN2140VA 2 Remote & 1 Local user 40 Port IP KVM

Aten

Regular Price $5,969.00
Discount Price: $4,882.00
Product Overview:

2 Remote & 1 Local simultaneous users, 40Port Cat5 FHD IP KVM with Virtual Media and Dual Power Supply - FIPS140-2 TAA Compliant

MFG#:
KN2140VA
Product Category:
KVM Over IP
Adding to cart… The item has been added

Description:

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN2140VA feature superior video quality with HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.


The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.

Exclusive KN Series Features:
‧ High-grade security – supports FIPS 140-2 level 1 security standards
‧ 2x faster virtual media transmission speeds
‧ Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200

With dual on-board NICs and dual power supplies, the KN Series is built for reliability, to ensure 24/7 availability of remote access to all servers.

The KN Series can be integrated into ATEN's CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID function.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.

Features:

  • Exclusive KN Series Features
  • High-Grade Security – supports FIPS 140-2 level 1 security standards
  • Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
  • 2x faster virtual media transmission speeds
  • Simultaneously share one local console and two independent connections to servers
  • Hardware
  • High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
  • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
  • Two separate buses for remote KVM over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
  • Monitor and control up to 40 computers on a single level or control up to 512 computers in a cascade*
    *Cascade-compatible KVM switches include the following: CS9134, CS9138, KH1508A and KH1516A.
  • Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • Green IT Fan – speed varies according to temperature
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification
  • Firmware upgradeable
  • Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
  • Port Share Mode – allows multiple users to gain access to a server simultaneously
  • Supported by ATEN's CC2000 Management Software
  • IPv6 capable
  • Easy-to-Use Interface
  • ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
  • Launch multiple virtual remote desktop sessions to control multiple servers at the same time
  • Fullscreen or scalable virtual remote desktop window
  • Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
  • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
  • Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent Keyboard/Mouse, video and virtual media data encryption
  • Supports IP/MAC address filtering
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third-party CA certificate authentication
  • Virtual Media
  • Virtual media enables applications, OS patching, software installations and diagnostic testing
  • Works with USB-enabled servers at the operating system and BIOS level
  • Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
  • Virtual Remote Desktop
  • Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
  • Fullscreen or scalable window for desktop sessions
  • Message Board for communication among remote users
  • Mouse DynaSync – automatically synchronizes the local and remote mouse movements
  • Exit Macro support
  • On-screen keyboard with multi-language support
  • BIOS-level access for troubleshooting
Specifications:
Computer Connections
Direct 40
Maximum 512 (via Cascade KVM Switches)
Console Connections
Local 1
Remote 2
Port Selection Pushbuttons, Hotkeys, GUI

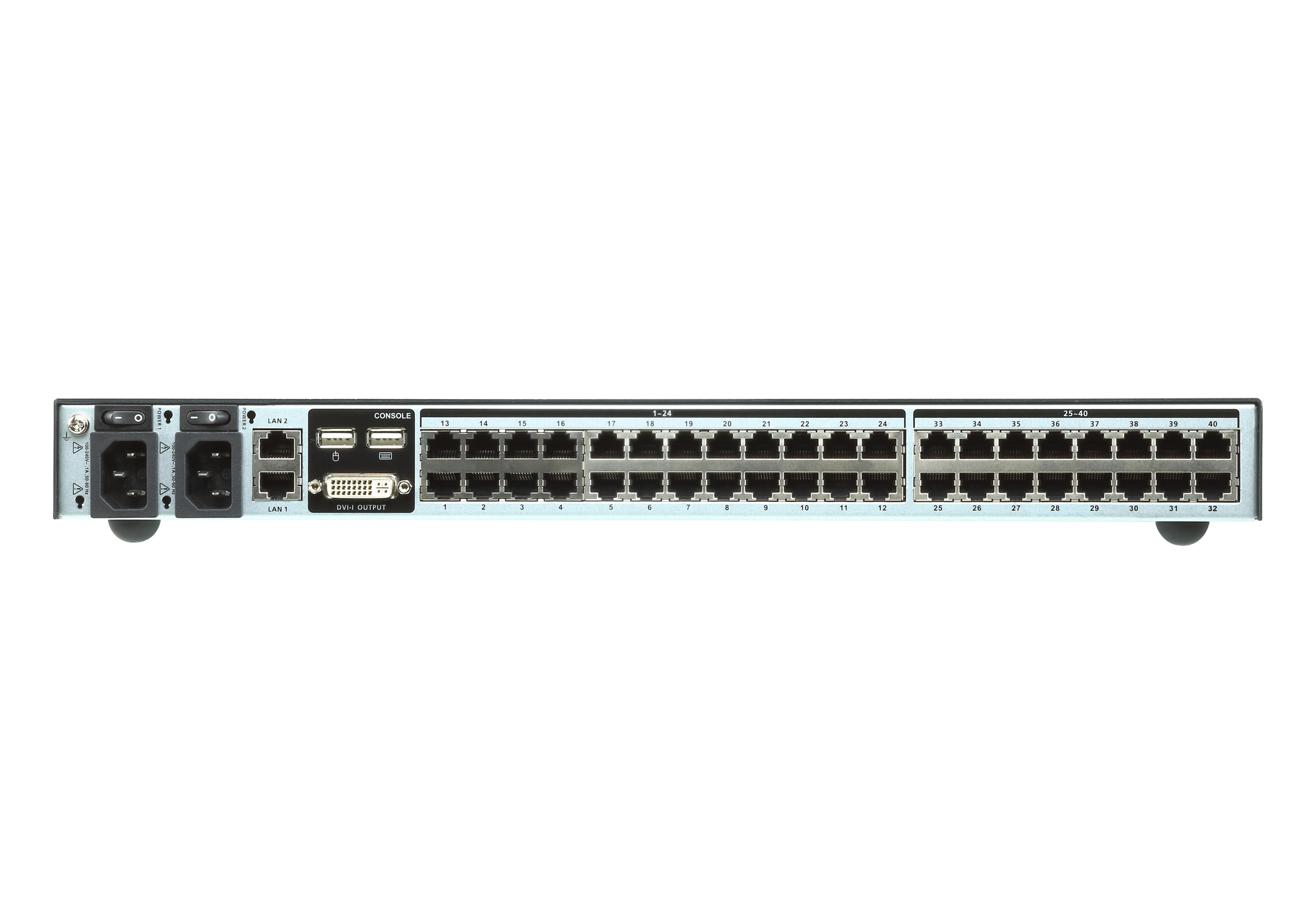

Connectors
Console Ports 2 x USB Type A Female (White)
1 x DVI-I Female (White)
KVM Ports 40 x RJ-45 Female (Black)
USB Port 3 x USB Female (White)
Audio 2 x Audio Jack Female (Pink; Green)
Laptop USB Console (LUC) Port 1 x Mini-USB Female (Black)
LAN Ports 2 x RJ-45 Female (Black)
Power 2 x IEC 60320/C14
Switches
Power 2 x Rocker Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
LEDs
Online / Selected 40(Green/Orange)
Power 2 (Blue)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption
Single Power 110V/45.87W; 220V/44.66W
Dual Power 110V/22.99W; 220V/22.88W (per input)
Scan Interval 1 – 255 Sec
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 5.54 kg ( 12.2 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
