Description:
ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant - 1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable WALLPLATE

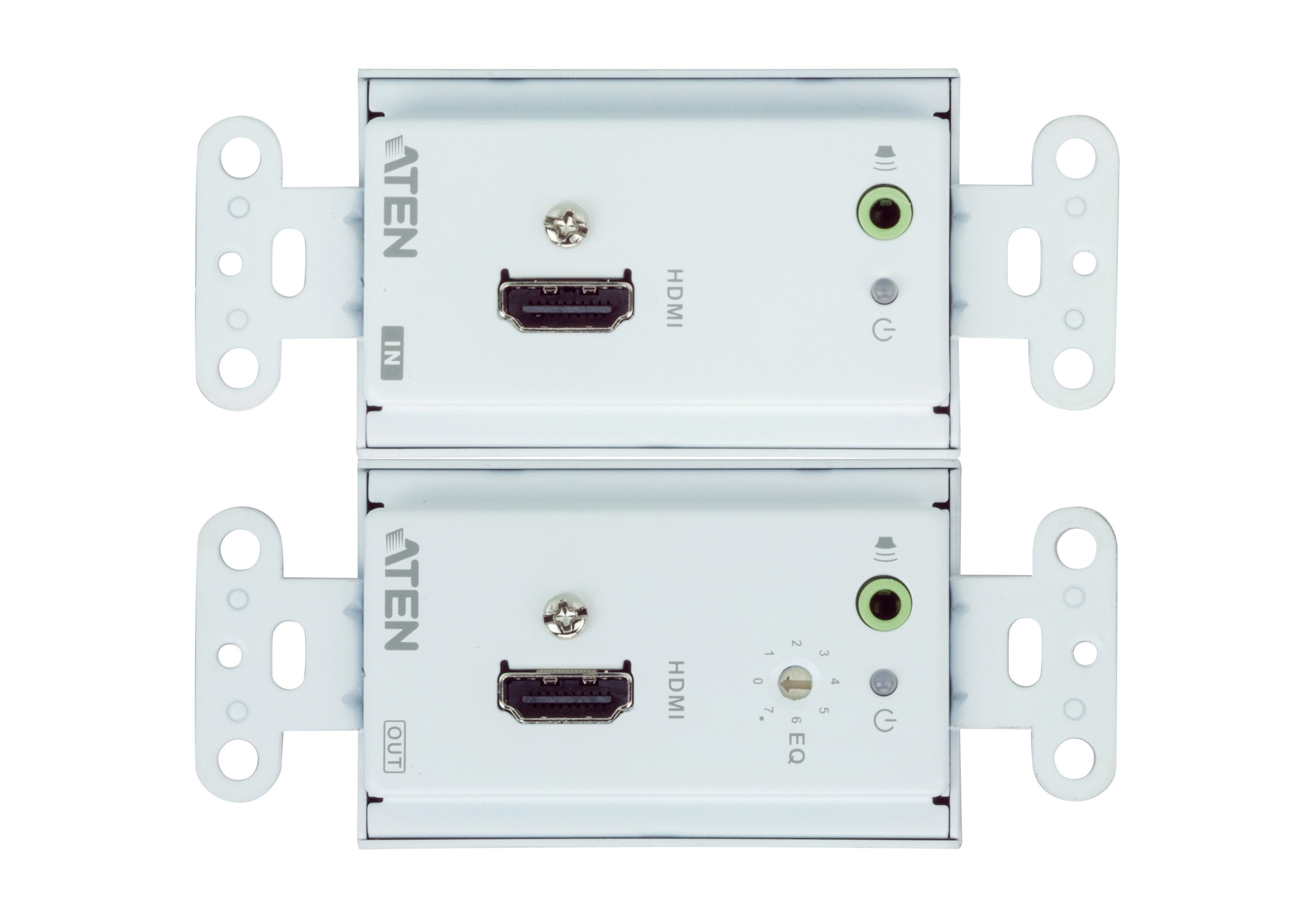

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.

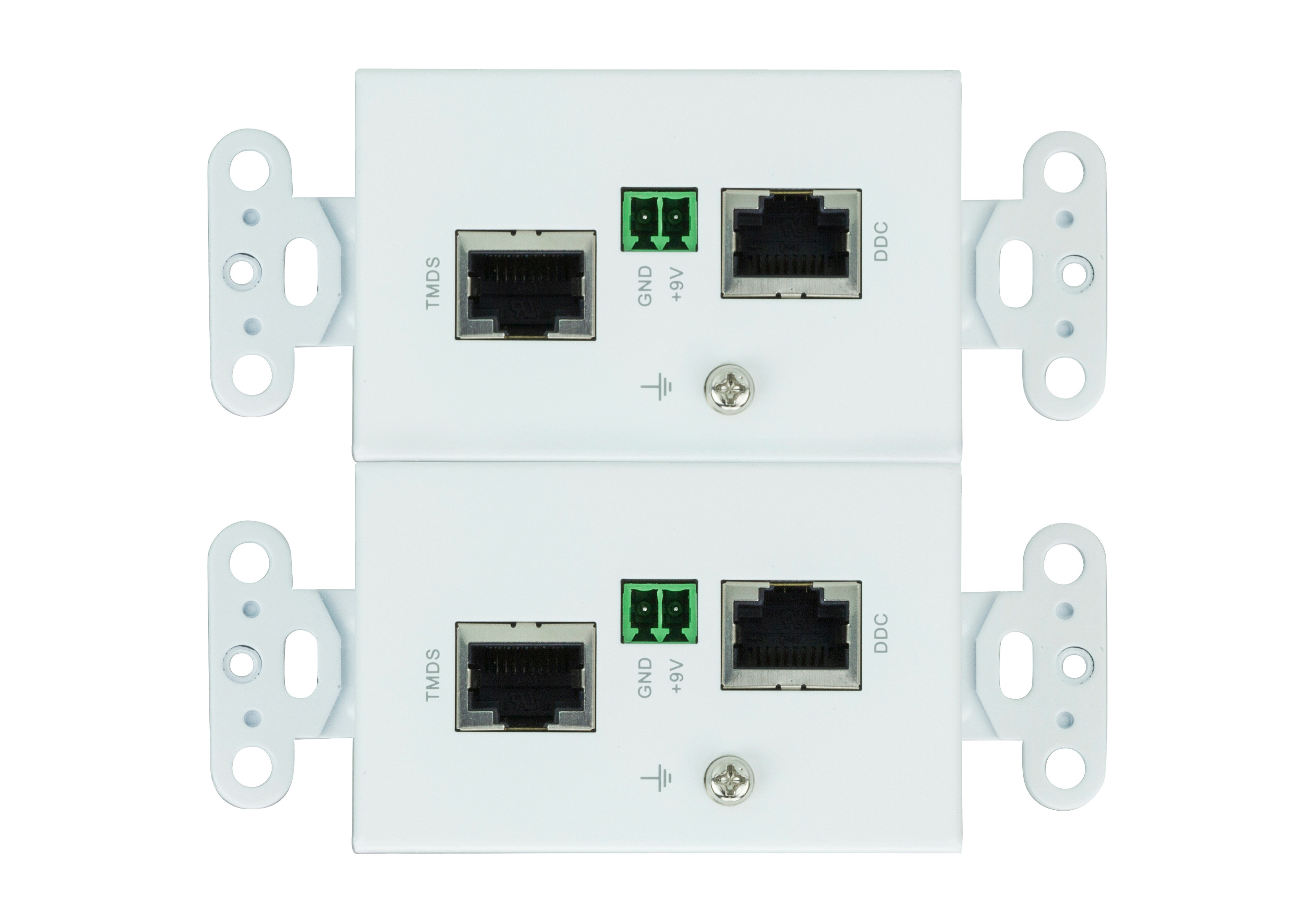

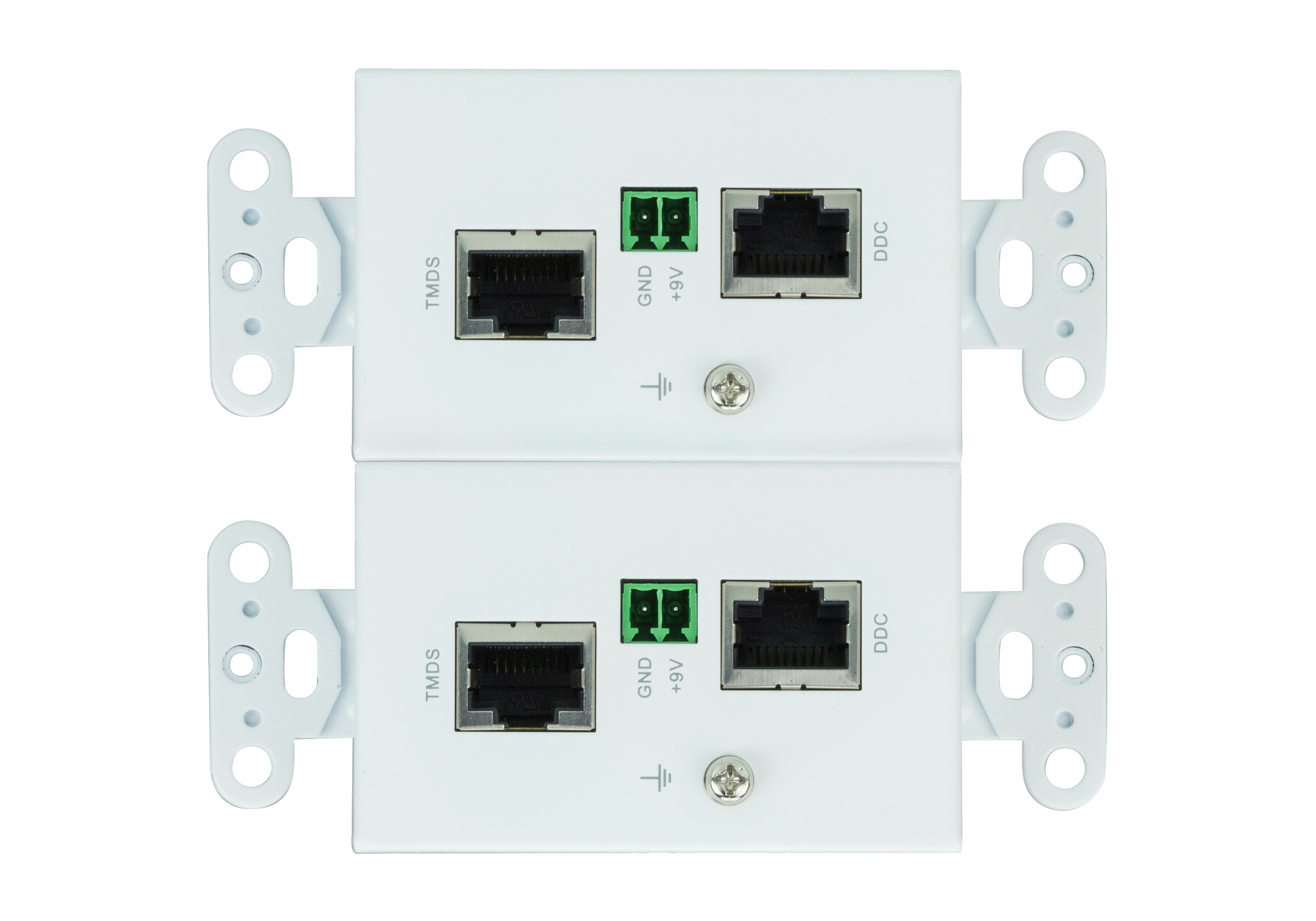

The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Specifications:
Power Description
Media & Performance
| Twisted Pair Cable Standard |
Category 5e |
| Media Type Supported |
Twisted Pair |
Video
| Graphics Modes |
Full HD |
| Maximum Video Resolution |
1920 x 1080 |
Miscellaneous
| Package Contents |
- 1 x VE806T HDMI Over Cat 5 Extender Wall Plate
- 1 x VE806R HDMI Over Cat 5 Extender Wall Plate
- 1 x Terminal Block Connector
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| WEEE |
General Information
| Product Type |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number |
VE806 |
| Manufacturer Website Address |
http://www.aten.com/us/en/ |
| Manufacturer |
ATEN Technology Inc |
| Product Model |
VE806 |
| Product Name |
HDMI Over Cat 5 Extender Wall Plate |
| Brand Name |
ATEN |
Technical Information
| Connectivity Technology |
Wired |
| Maximum Operating Distance |
196.85 ft |
| Number of Output Devices Supported |
1 |
| Number of Input Devices Supported |
1 |
Interfaces/Ports
| Number of Network (RJ-45) Ports |
4 |
| Network (RJ-45) |
Yes |
| Number of HDMI Inputs |
1 |
| Number of HDMI Outputs |
1 |
| HDMI In |
Yes |
| HDMI Out |
Yes |
Physical Characteristics
| Material |
Metal |
| Form Factor |
Wall Mountable |
| Length |
4.1" |
| Transmitter Height |
1.57" |
| Transmitter Width |
1.73" |
| Transmitter Weight (Approximate) |
6 oz |
