Description:

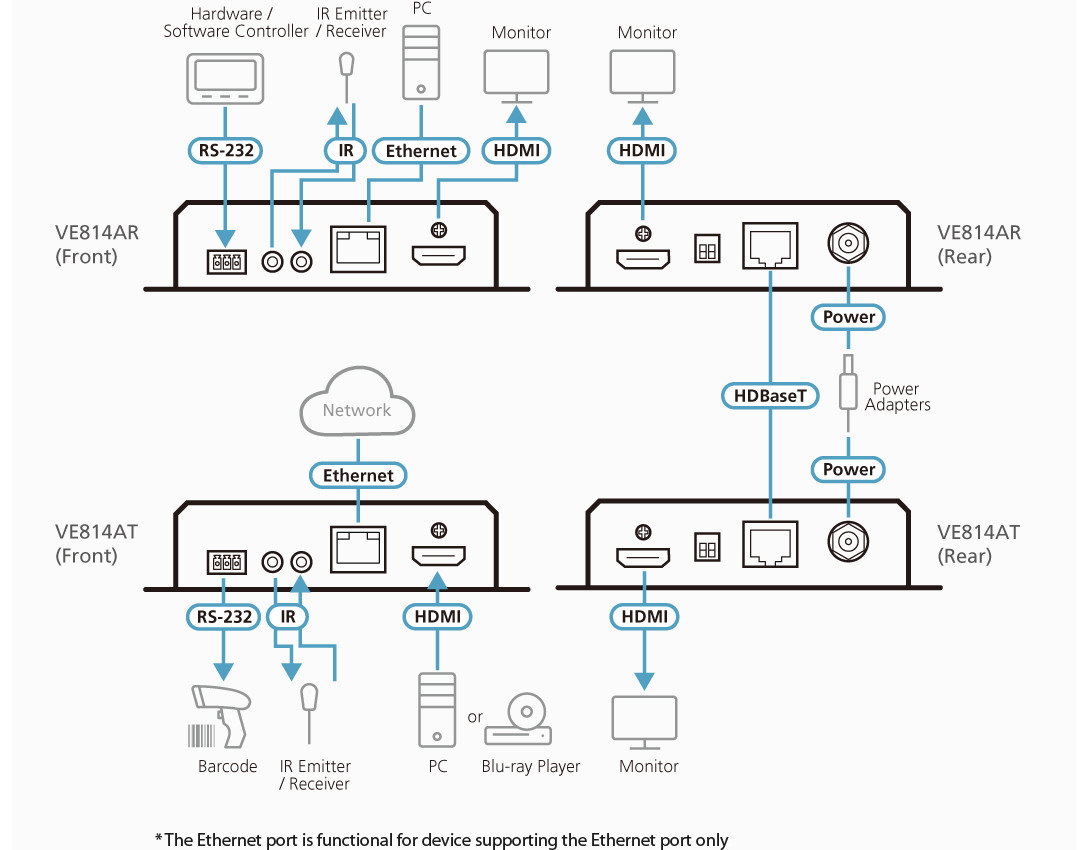

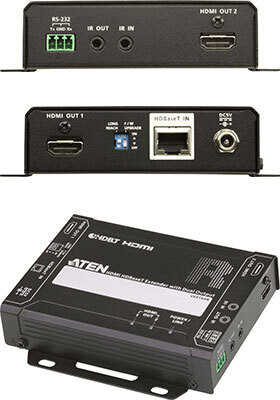

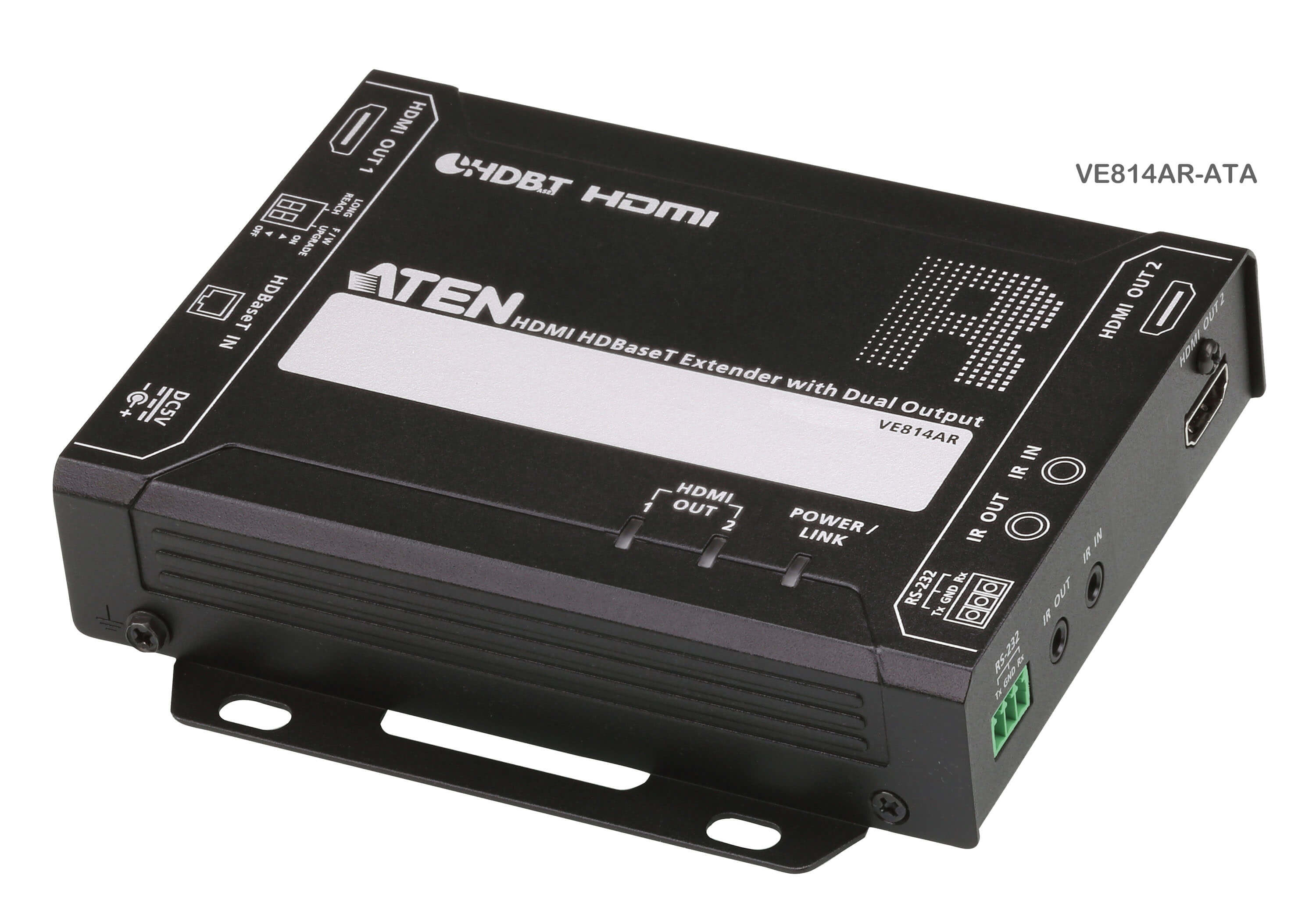

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Specifications:
| Product Type: |
Video Extender Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
492.13 ft |
| Number of Network (RJ-45) Ports: |
1 |
| Product Family: |
VanCryst |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Receiver |
| Manufacturer Part Number: |
VE814AR |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE814AR |
| Product Name: |
HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A) |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
1 |
| Network (RJ-45): |
Yes |

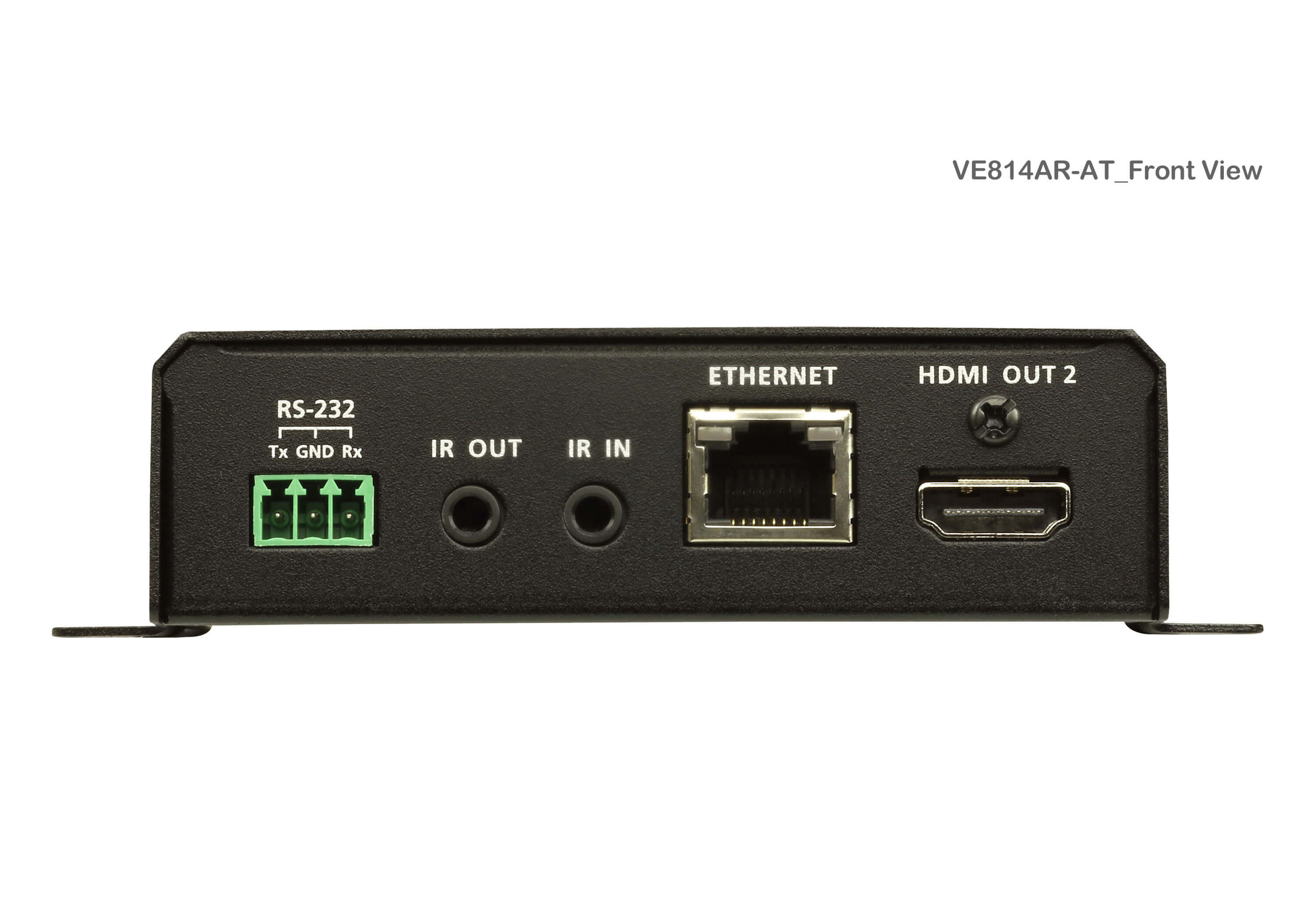

| Serial Port: |
Yes |

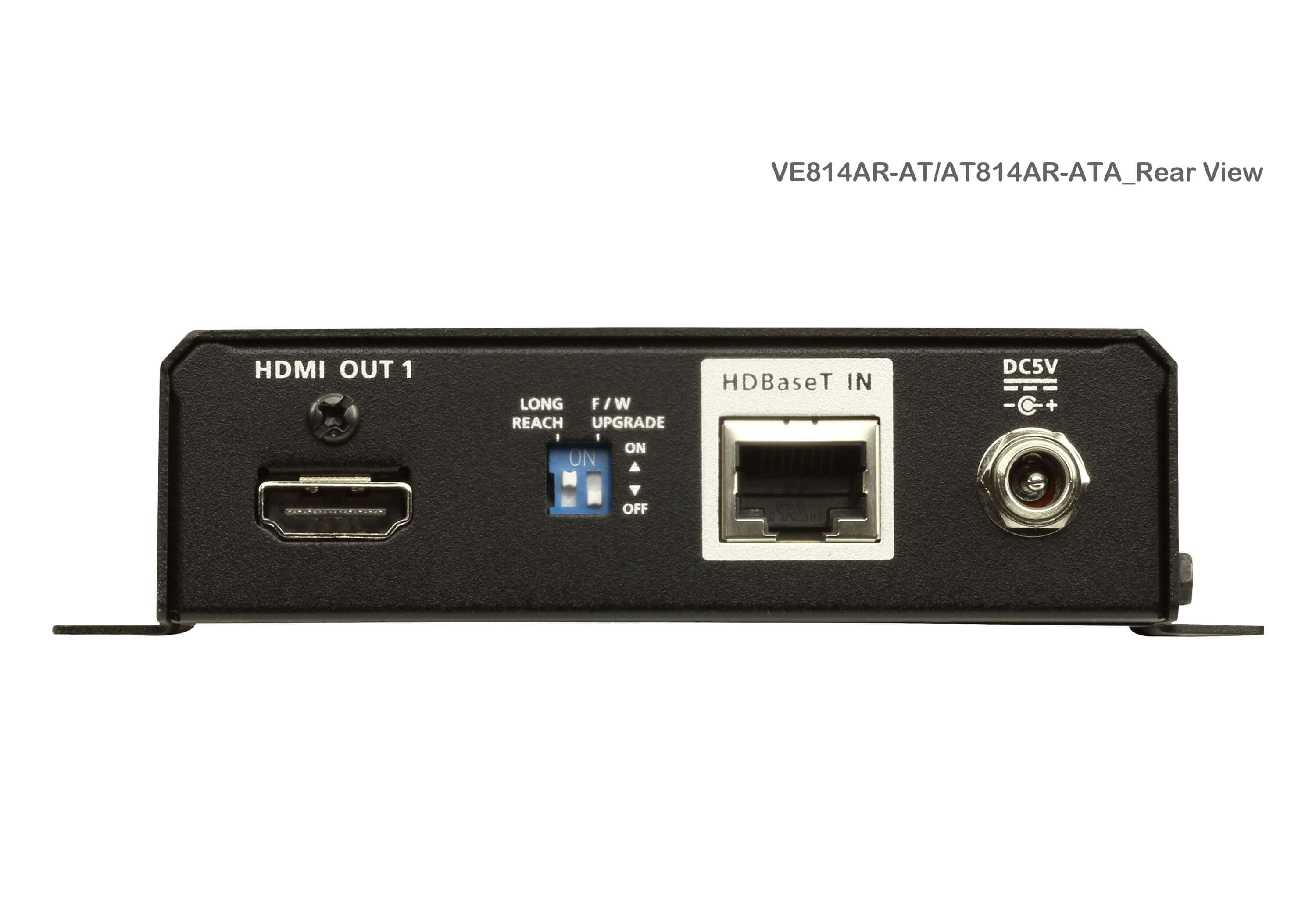

| Number of HDMI Outputs: |
2 |
| HDMI Out: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Receiver Height: |
1.14" |
| Receiver Width: |
3.98" |
| Receiver Depth: |
5.35" |
| Receiver Weight (Approximate): |
1.04 lb |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Number of Output Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
