Description:

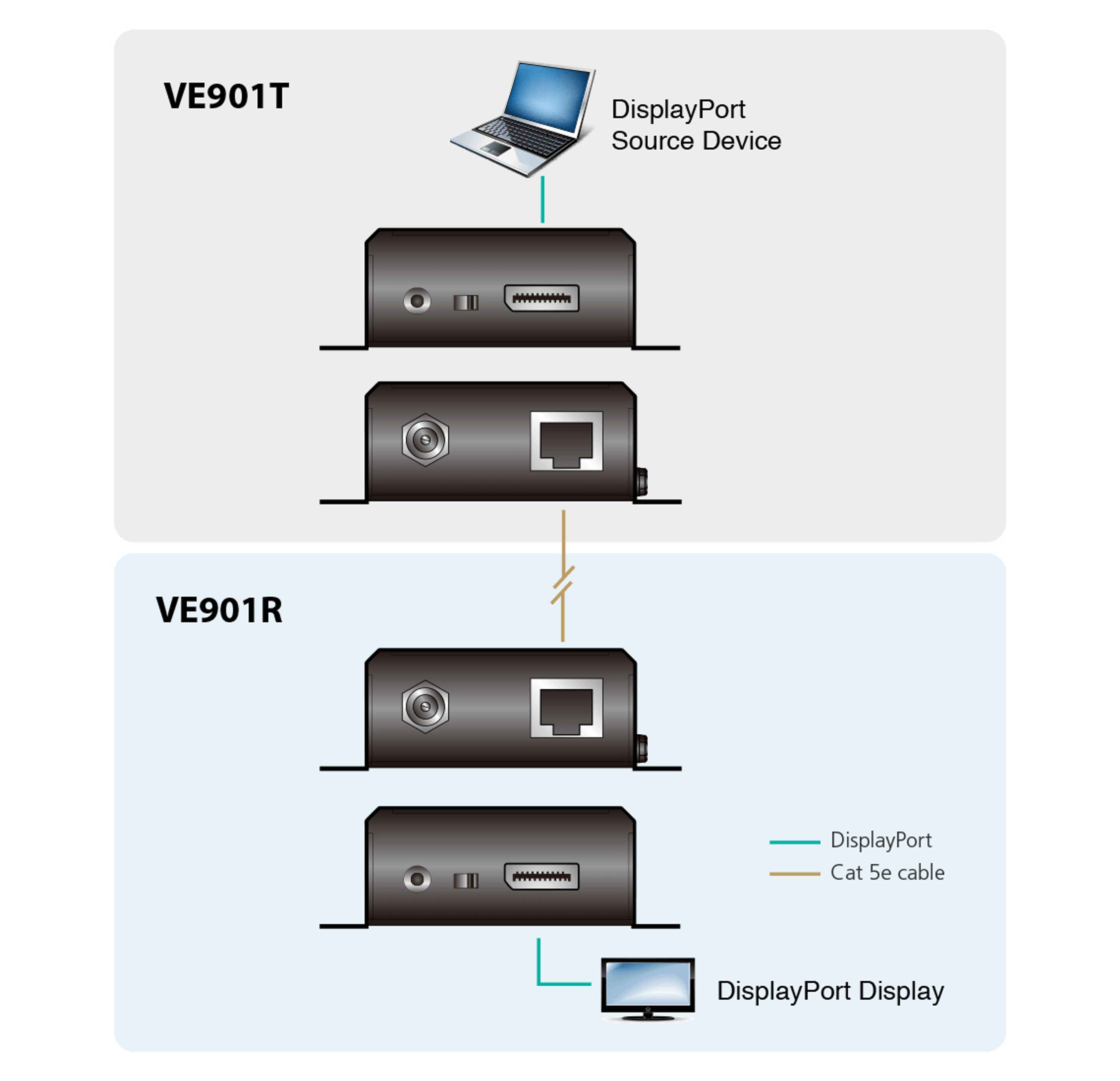

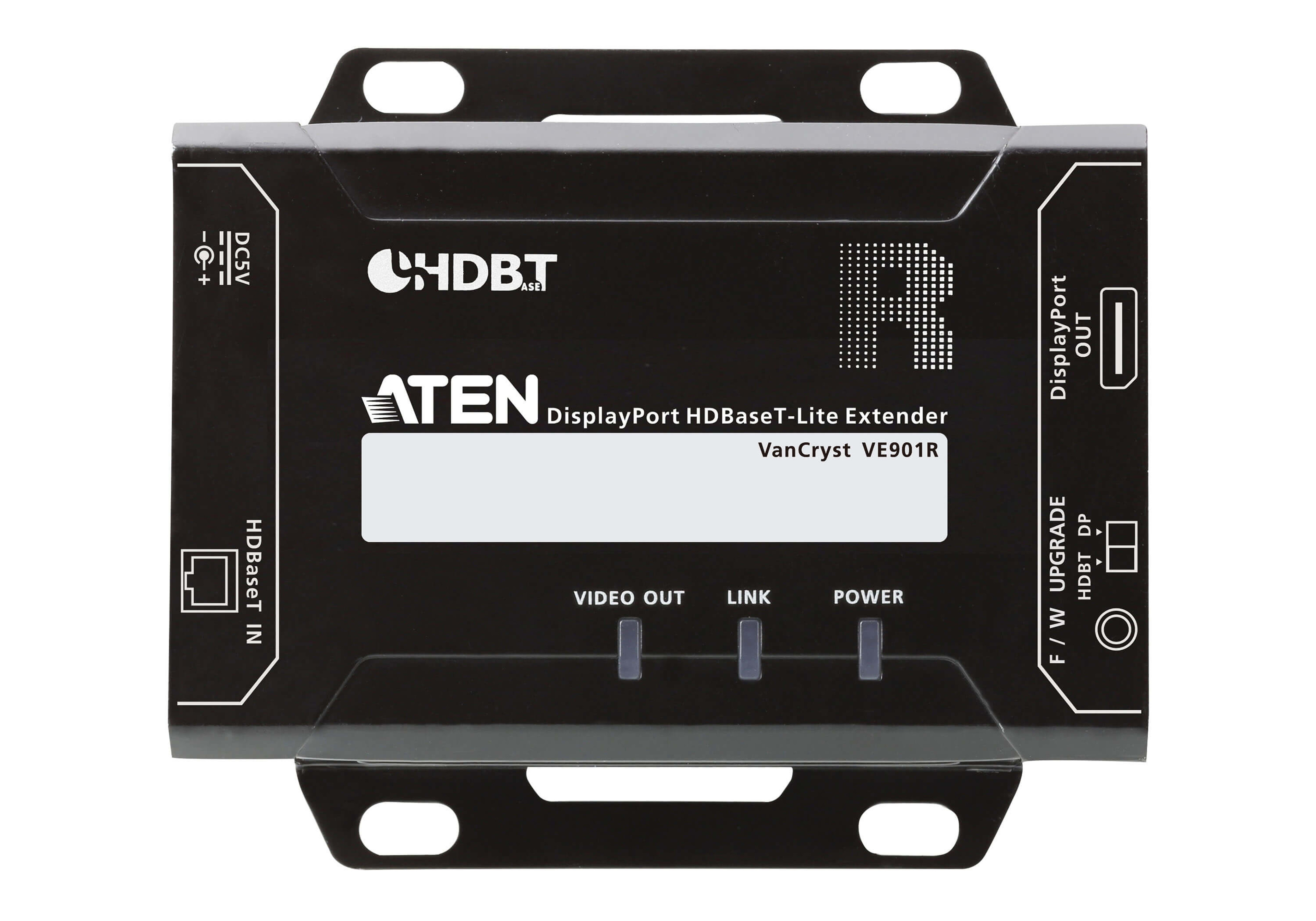

The VE901R DisplayPort HDBaseT-Lite Receiver is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. The VE901R DisplayPort HDBaseT-Lite Receiver is the perfect choice for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901R can be installed in a multitude of locations while ensuring peace of mind with its reliability
Specifications:
| Product Type: |
Video Extender Transmitter |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
229.66 ft |
| Number of Network (RJ-45) Ports: |
1 |
| DisplayPort: |
Yes |
| Product Family: |
VanCryst |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter |
| Manufacturer Part Number: |
VE901R |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE901R |
| Product Name: |
DisplayPort HDBaseT-Lite Receiver (4K@40m; 1080p@70m) |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
1 |
| Network (RJ-45): |
Yes |
| DisplayPort: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 6a |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- DisplayPort HDBaseT-Lite Receiver (4K@40m; 1080p@70m)
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Receiver Depth: |
3.85" |
| Transmitter Weight (Approximate): |
9.52 oz |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
229.66 ft |
| Number of Output Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
