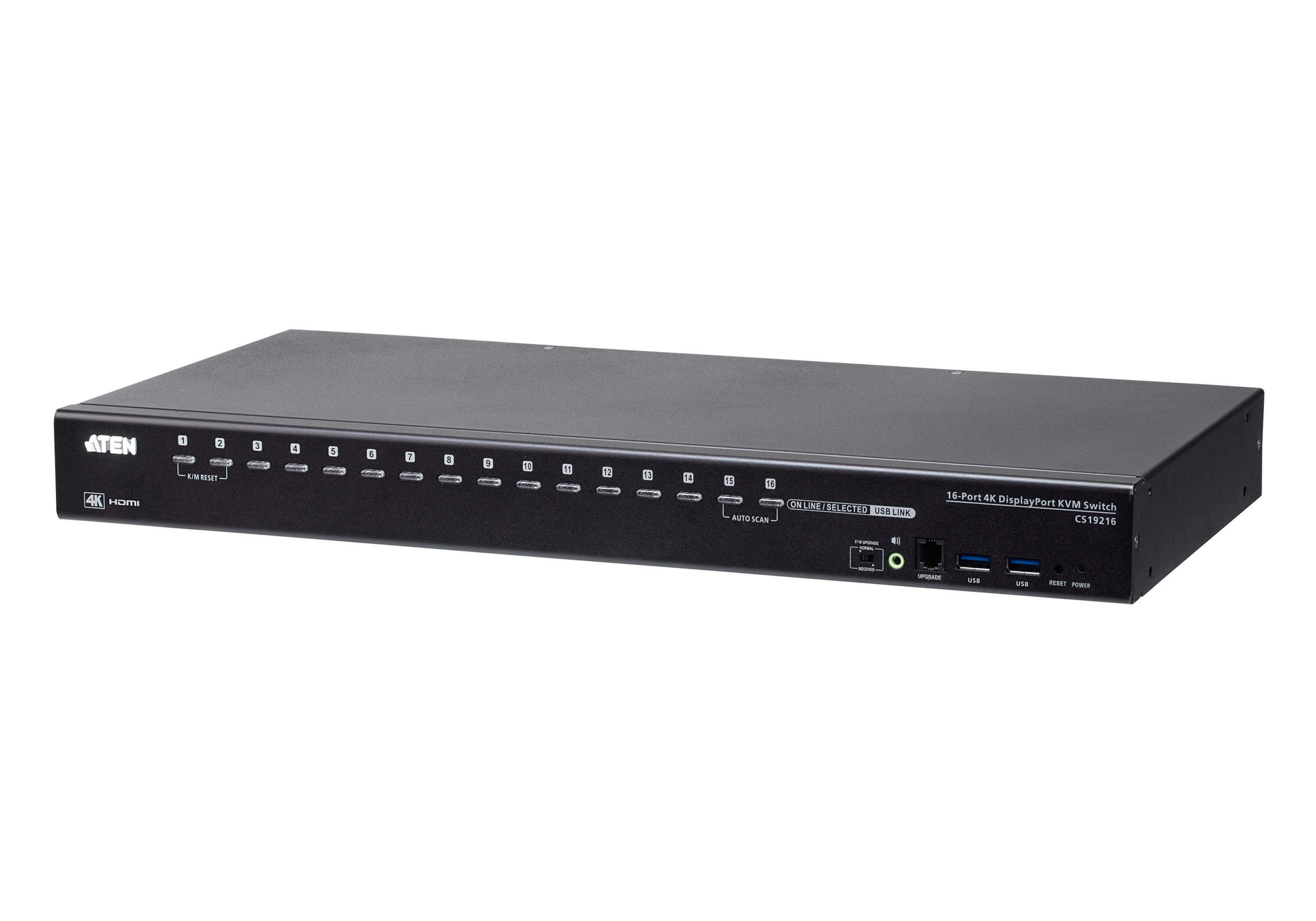

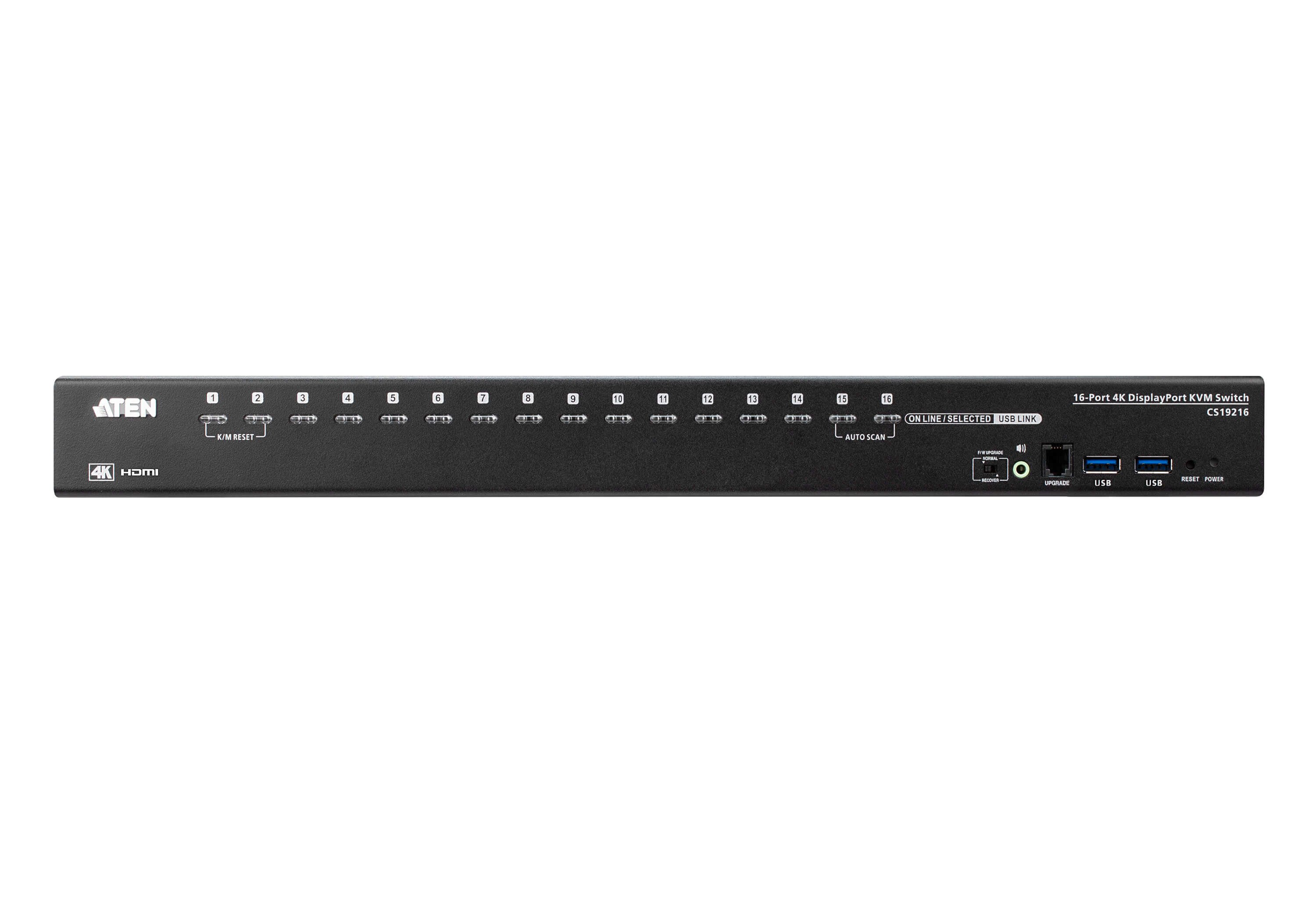

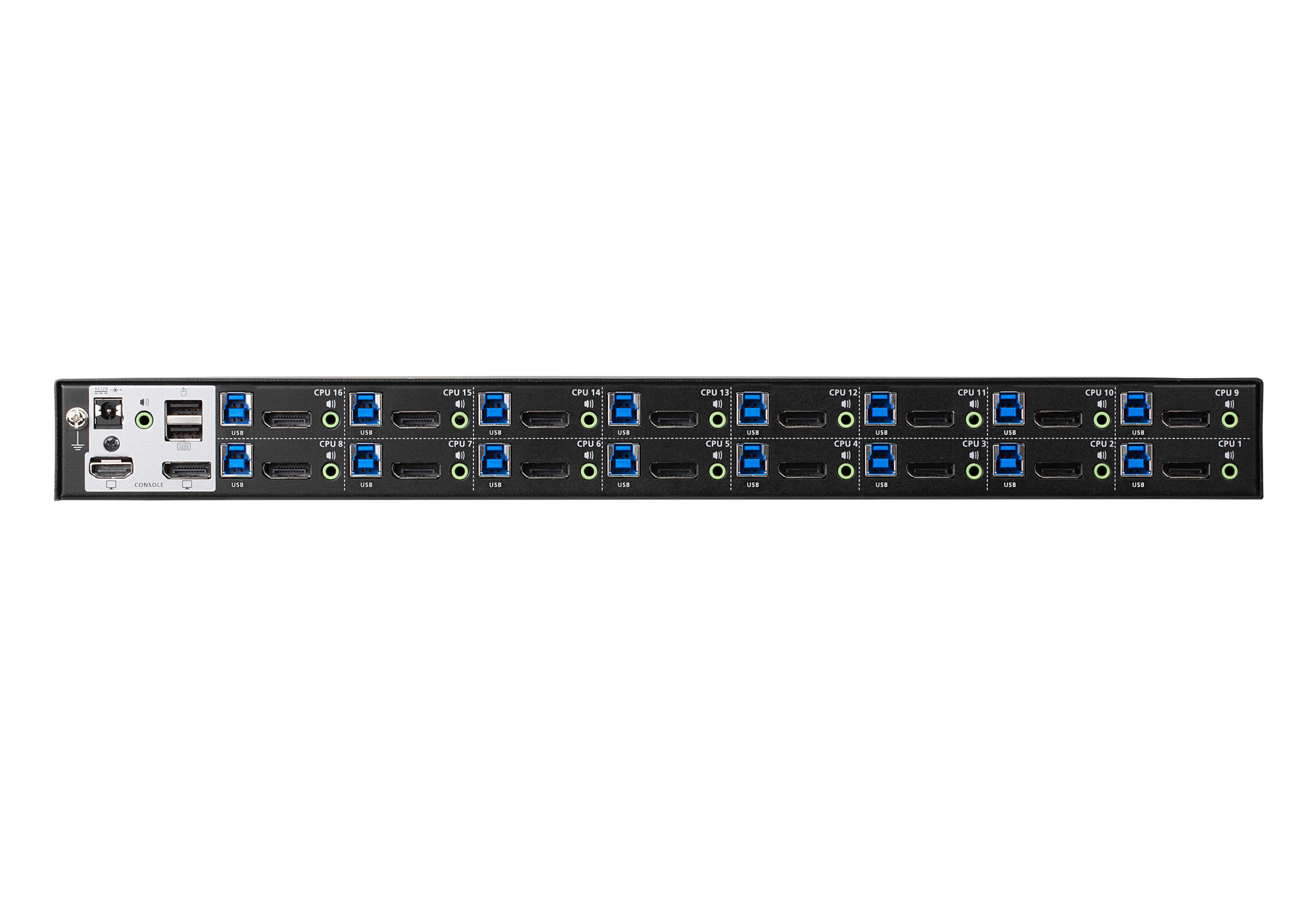

Aten CS19216 16PORT USB3.0 4K DISPLAYPORT KVM

Aten

MSRP: $2,068.00
Regular Price $1,757.95
Discount Price: $1,454.95
(You save $613.05 )
UPC:
672792011009
Product Overview:

6-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit - 16 Computer(s) - 1 Local User(s) - 4096 x 2160 - 20 x USB - 1 x HDMI - Rack-mountable - 17 x DisplayPort

MFG#:
CS19216
Product Category:
KVM Switches
Adding to cart… The item has been added

Description:

ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit - 16 Computer(s) - 1 Local User(s) - 4096 x 2160 - 20 x USB - 1 x HDMI - Rack-mountable - 17 x DisplayPort

The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.

To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.

With two patented ATEN technology - Video DynaSync™ and EDID Expert™, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.

Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.

To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19216 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.

Features
  • One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices
  • Cascadable to two levels - controls up to 256 computers
  • Multi-Display feature - stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ - selects optimum EDID mode for smooth power-up and highest quality display
  • Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility
  • Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio

Specifications:

Video
Maximum Video Resolution 4096 x 2160
Miscellaneous
Package Contents
  • CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
  • 2 x DisplayPort 1.4 Cables
  • 2 x USB 3.0 Cables
  • 2 x Audio Cables
  • 1 x Firmware Upgrade Cable
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Power Adapter
  • 1 x User Instructions
Country of Origin Taiwan
Technical Information
Number of Computers Supported 16
Number of Local Users Supported 1
Physical Characteristics
Weight (Approximate) 9.80 lb
Form Factor Rack-mountable
Height 1.7"
Width 8.4"
Depth 17"
Interfaces/Ports
USB Yes
HDMI Yes
Number of HDMI Ports 1
Number of USB Ports 20
DisplayPort Yes
Number of DisplayPorts 17
General Information
Product Type KVM Switchbox
Manufacturer Part Number CS19216
Manufacturer Website Address http://www.aten.com/us/en/
Packaged Quantity 1
Manufacturer ATEN Technology, Inc
Product Model CS19216
Product Name CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
Brand Name ATEN
