Aten KL1508AMUKit 8 Port 17 in Dual Rail LCD Cat5 KVM

Description:

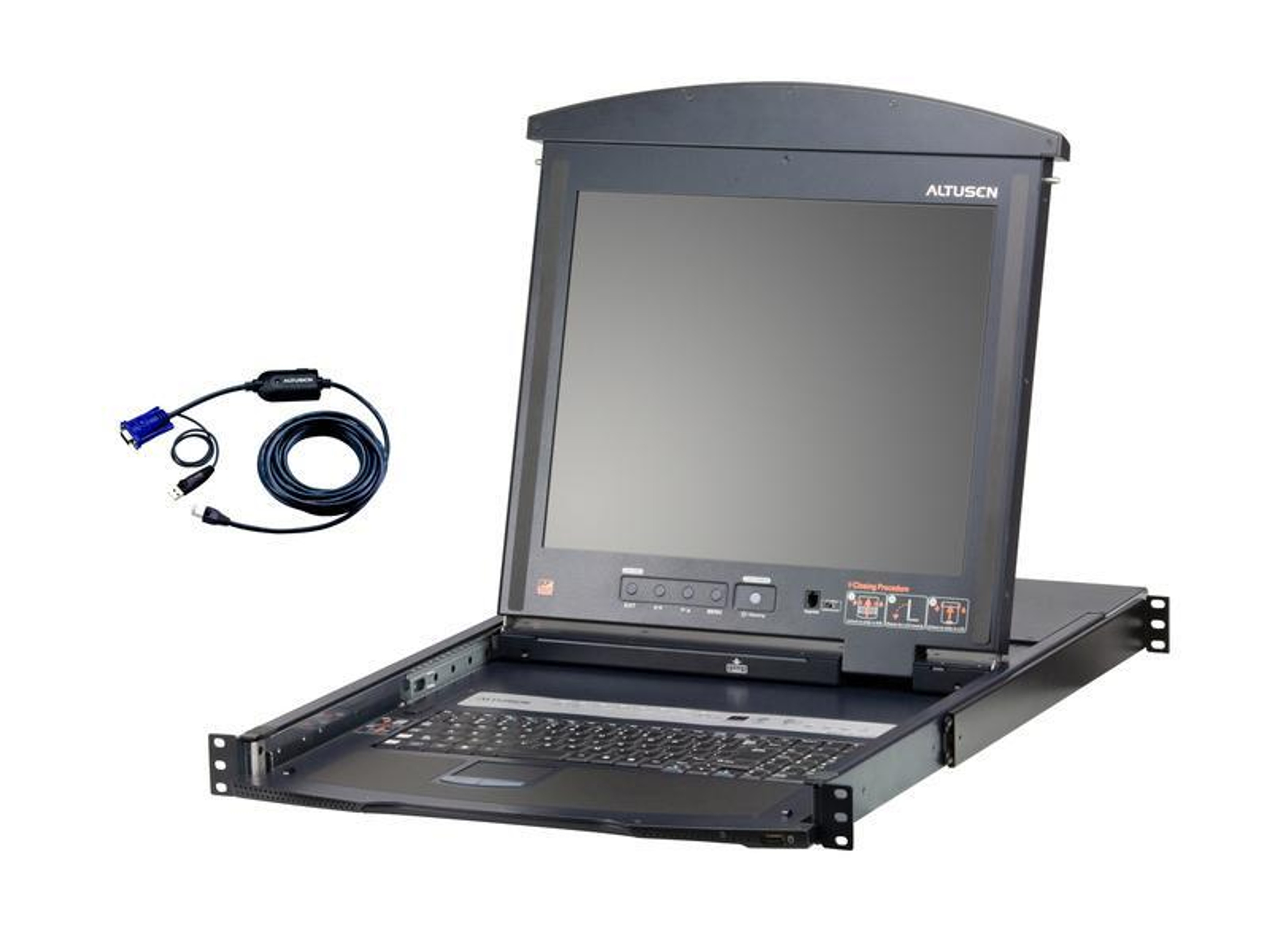

8 Port 17 in Dual Rail LCD Cat5 KVM Switch with an Extra Console Port  and (8) USB KVM Cables- TAA Compliant

Features:

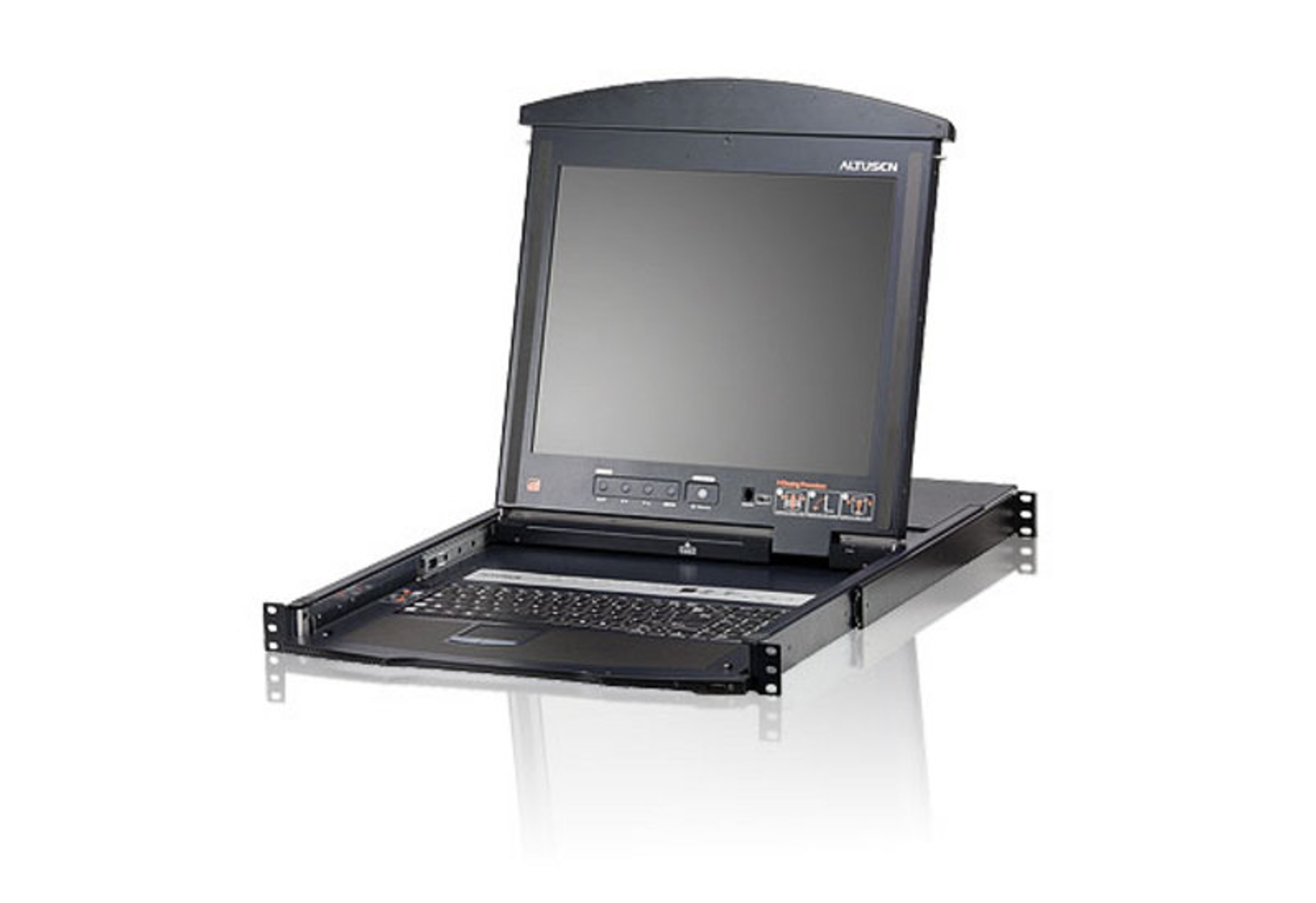

• KVM console with 17" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
• RJ-45 connectors and Cat 5 cable - extends the distance between computers and switch up to 40m (130') for resolutions of 1280 x 1024 @60Hz
• Dual Rail operation - LCD monitor slides independently of the keyboard/ touchpad
• A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
• KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation
• A single console controls up to 8 directly connected computers - daisy chain up to 31 additional units to control up to 256 computers
• No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
• Console lock enables the sliding console to remain securely locked away when not in use
• OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
• Quickly and conveniently switch to any computer with station and port selection switches LED displays indicate the station and port location
• Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
• Auto Scan feature for monitoring user-selected computers
• Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
• Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
• Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
• Rack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)
