Aten CL5816N 16-Port Dual Rail 19" LCD Combo KVM


Regular Price $2,552.00
Discount Price: $1,810.00
Product Overview:

16-Port Dual Rail 19" LCD Combo KVM - TAA Compliant

Adding to cart… The item has been added


The CL5816N Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.

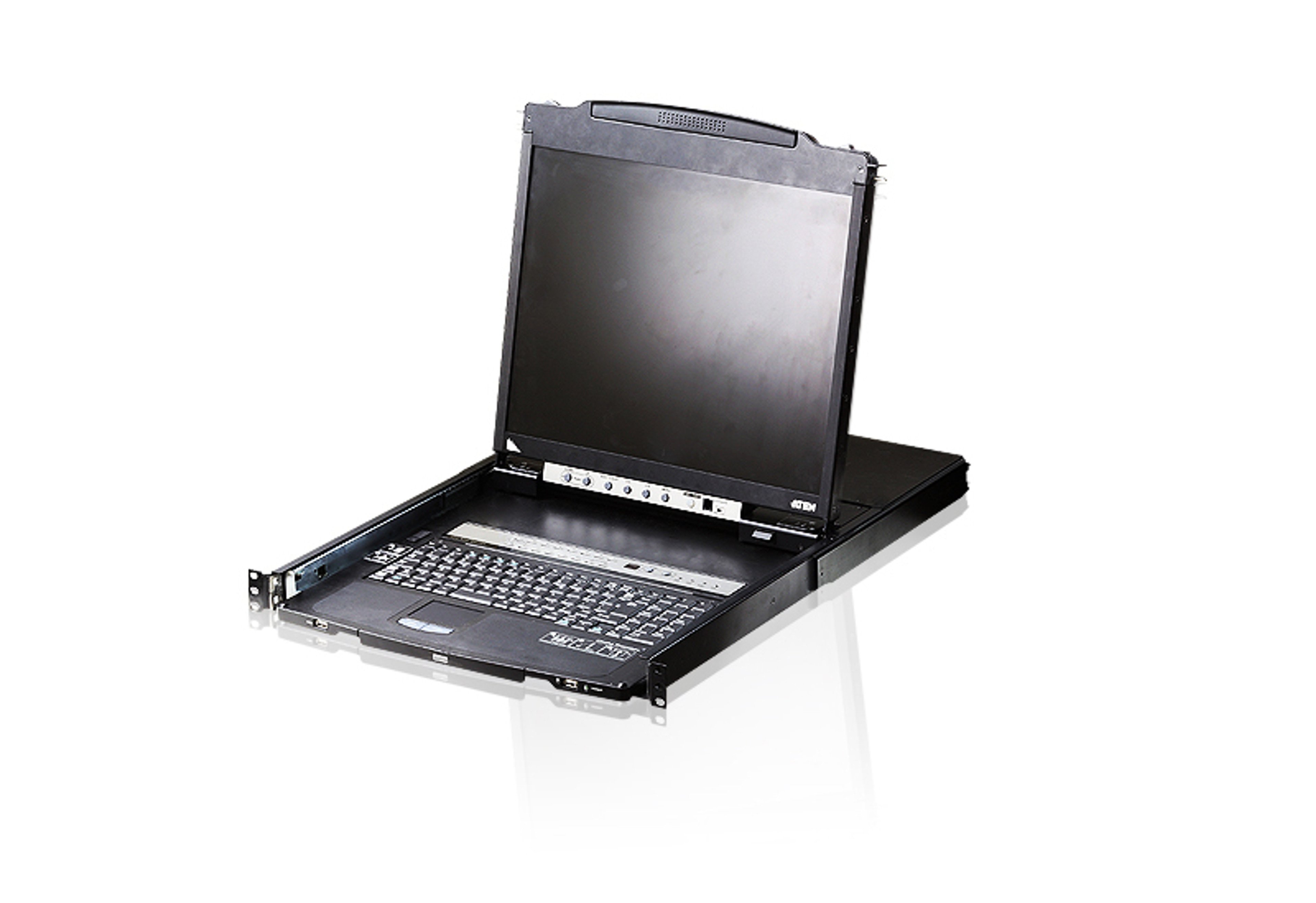

The CL5816N 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection push button switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down push buttons located on the monitor module.
The CL5816N supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5816N supports USB peripheral devices to be used with the attached computers. A single CL5816N can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse console.

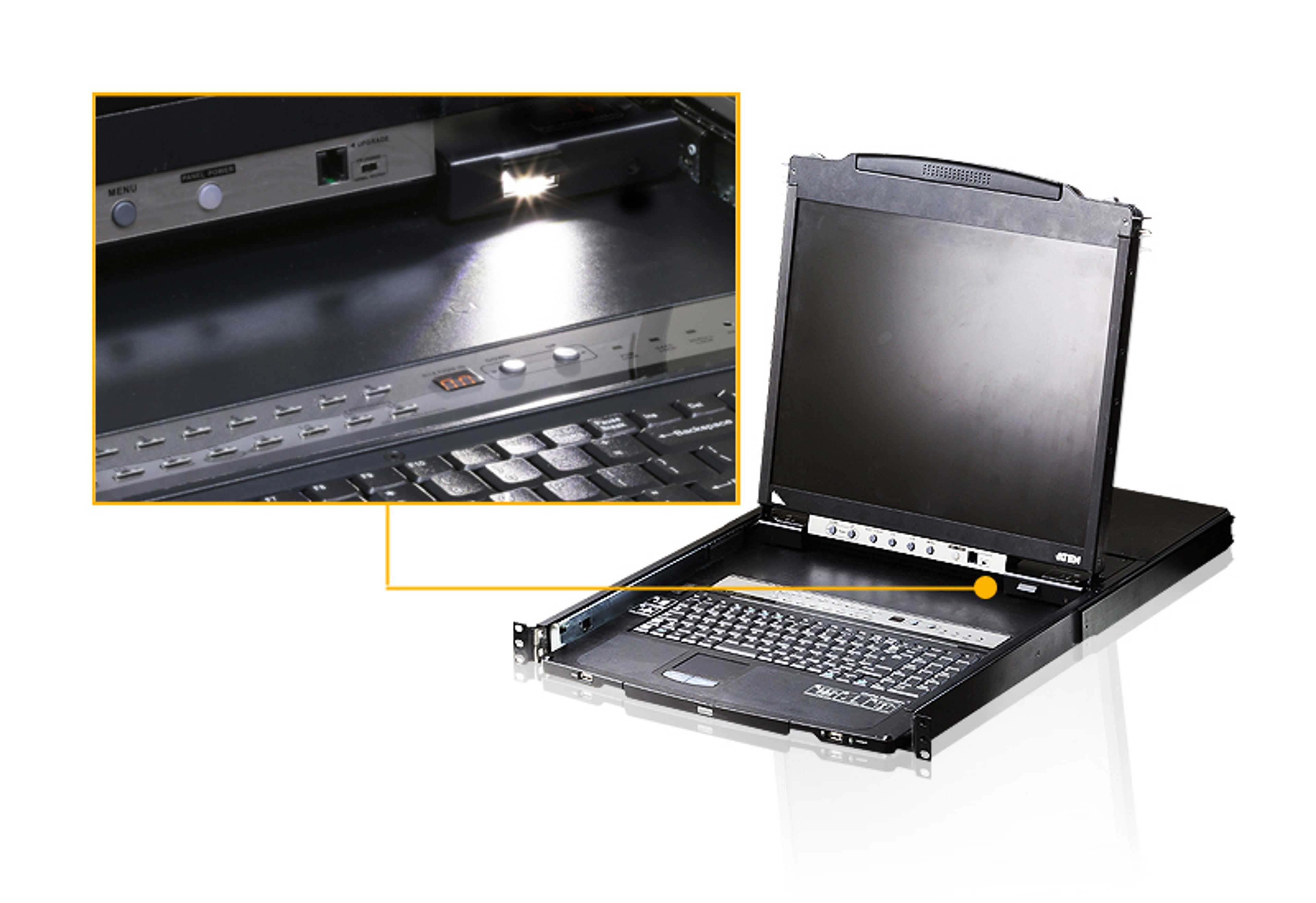

  • xclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 19" LED-backlit LCD monitor in a Dual Rail housing
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Daisy-chain up to 31 additional units*– control up to 512 computers from two consoles (one bus)
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • Supports USB peripherals for computers connected to the local station
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console Lock - enables the console drawer to remain securely locked away in position when not in use
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
    *With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
  • Supports external USB mouse
  • Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
  • No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security - only authorized users can view and control computers
  • LCD power button helps save energy and prolong display's life
  • Supports one administrator and four user accounts with separate profiles
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
  • Hot pluggable - add or remove computers without having to power down the switch
  • Beeper on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
  • Keyboard Language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese


omputer Connections
Direct 16
Daisy Chain or Cascading 512 [Daisy Chain]
Port Selection OSD, Hotkeys, Pushbuttons
Console Connectors
Secondary Console 1x SPHD-18 Male (additional Console Port)
Flash ROM Upgrade 1x RJ-11 Female
Extra Mouse 1x RJ-11 Female
USB Peripheral 1x USB Type-A Female(USB Peripheral share)

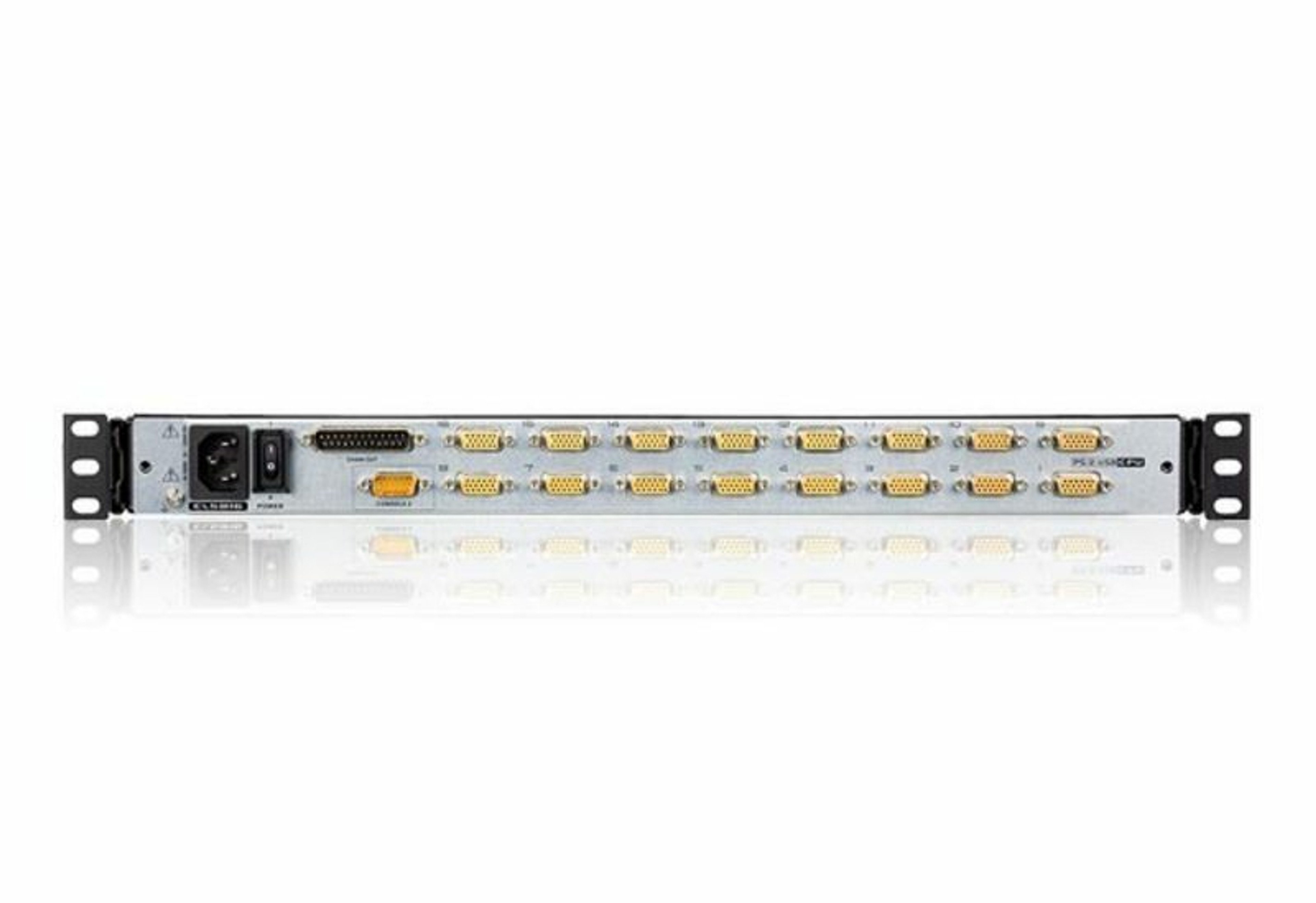

CPU Connectors
Keyboard, Mouse, and Monitor 16 SPHD-15/17 [F]
Daisy Chain 1x DB-25 Male
Power Connections 1x 3-Prong AC Socket
Port Selection 16 x Pushbutton
LCD Adjustment 4 x Pushbutton
LCD Power 1x Pushbutton
F/W Upgrade 1x Slide
Power 1x Rocker Switch
Reset 1x Semi-recessed Pushbutton
On Line 16 (Orange)
Selected 16 (Green)
Station ID 2x 7-segment LED Dispaly(Orange)
Power On 1 (Dark Green)
Keyboard USB, PS/2
Mouse USB, PS/2
Video Performance
Local 19" LCD - 1280x1024@75 Hz; DDC2B
Remote 1920x1440 (From Secondary Console)
Power Input Rating
Per AC Power Inlet, 50/60Hz 100~240V
Power Consumption 120V 26W / 230V 26.8W
Physical Properties
Unit Weight 34Lbs
Housing Metal / Plastic
Case Weight 32.54 Lbs.
Case Dimension 32.5 x 26.4 x 5.6 in
Unit Dimension 18.89 x 26.78 x 1.73 in
Case Qty 1 ea
