Description:

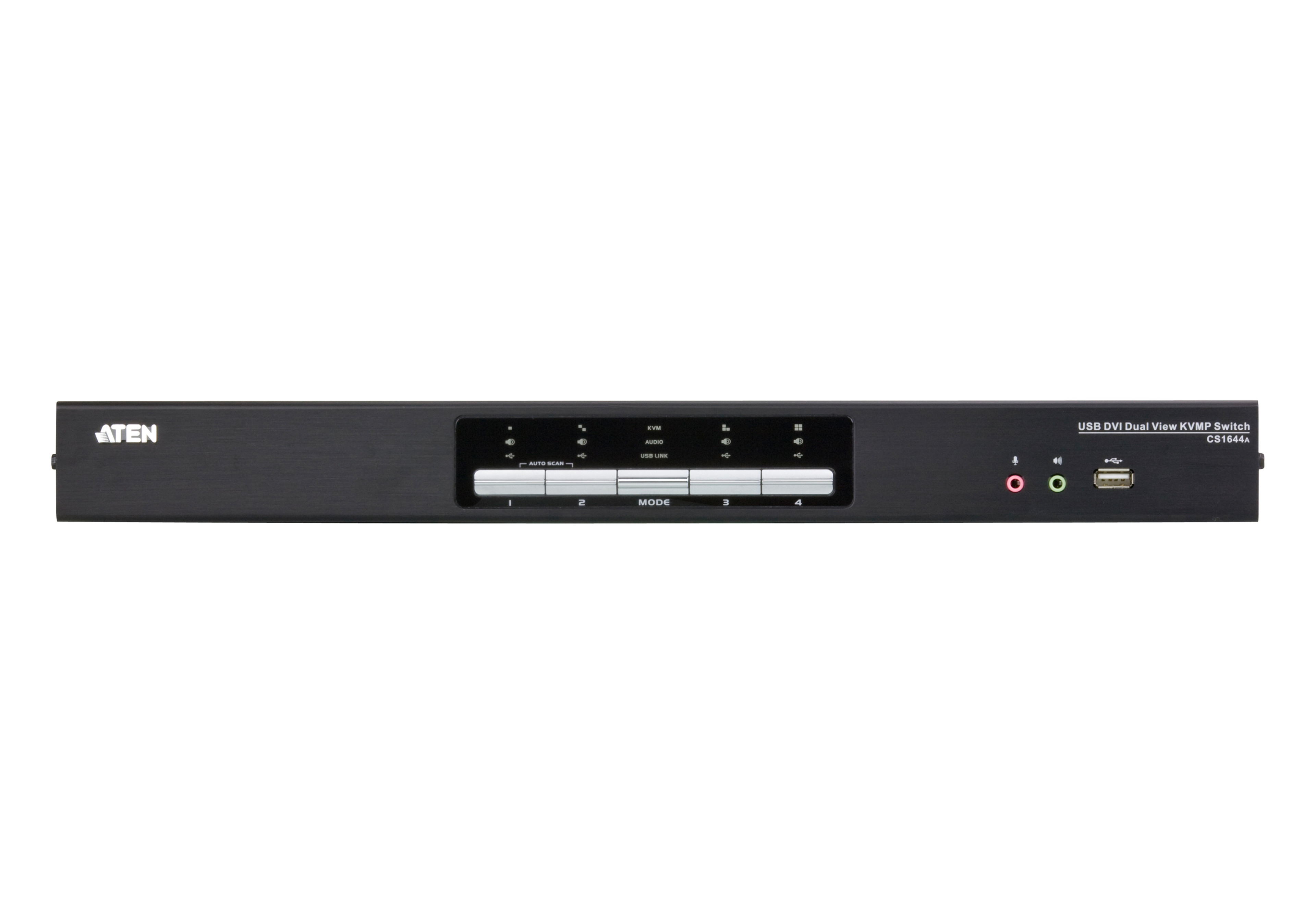

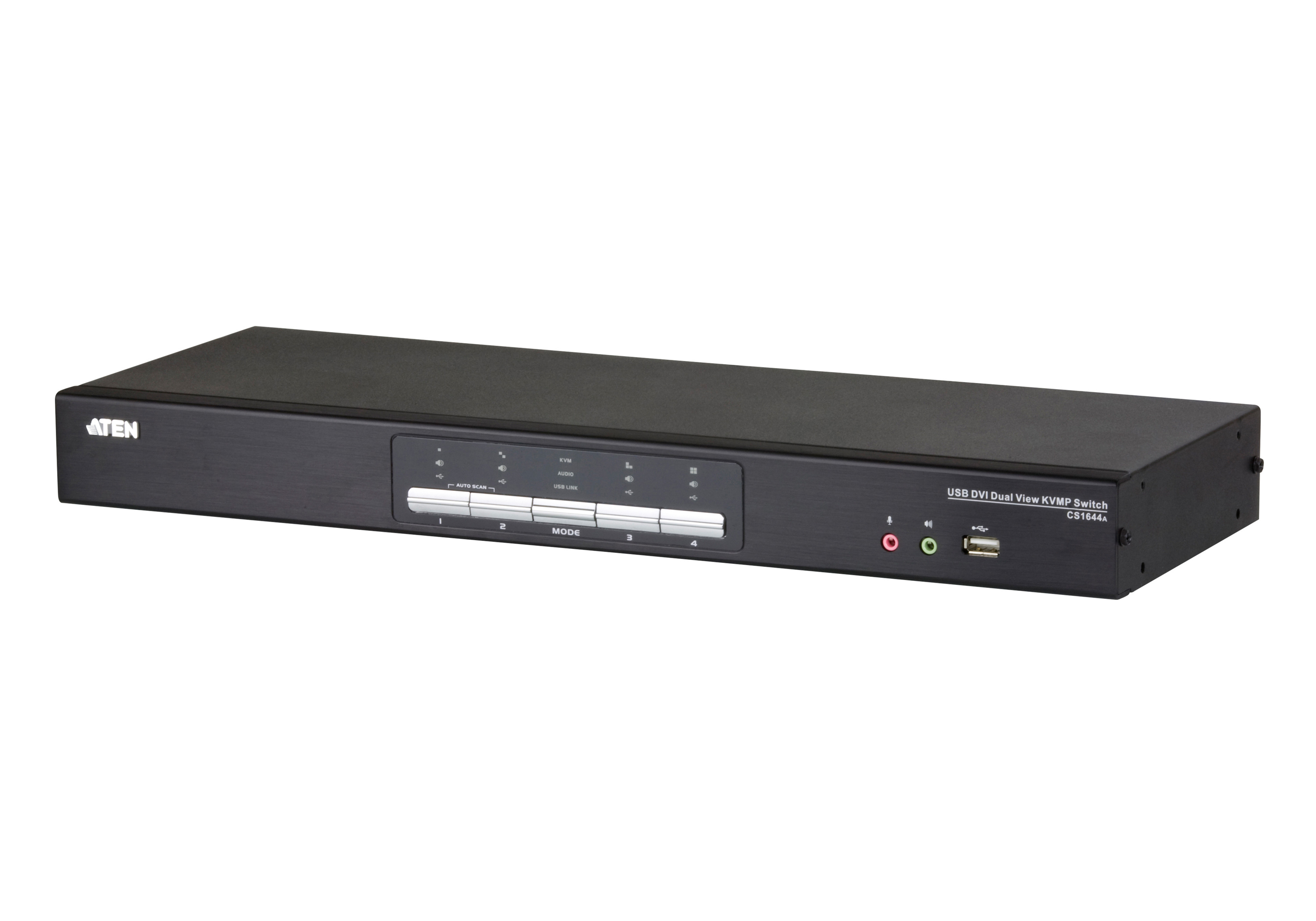

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals-demanding a high quality switch that provides stunning color, clarity and functionality.
Features:
- One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
- Multi-View Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
- Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
- Supports widescreen resolutions
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
- Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
- Sun/Mac keyboard support and emulation **
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
* Supports Linux Kernel 2.6 and higher. The CS1644A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
** PC keyboard combinations emulate Mac keyboards.
** Mac keyboards only work with their own computers.
Specifications:
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |

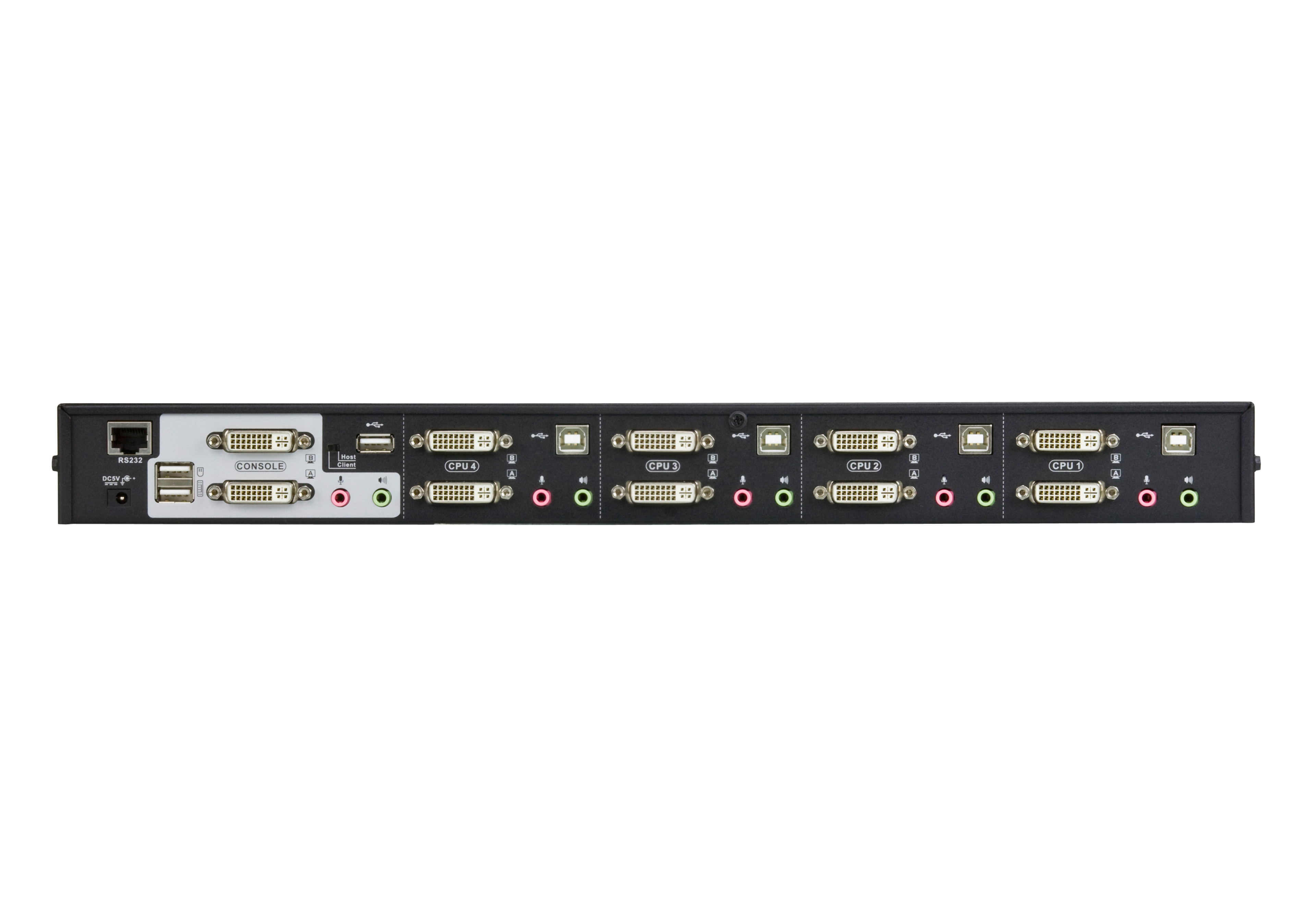

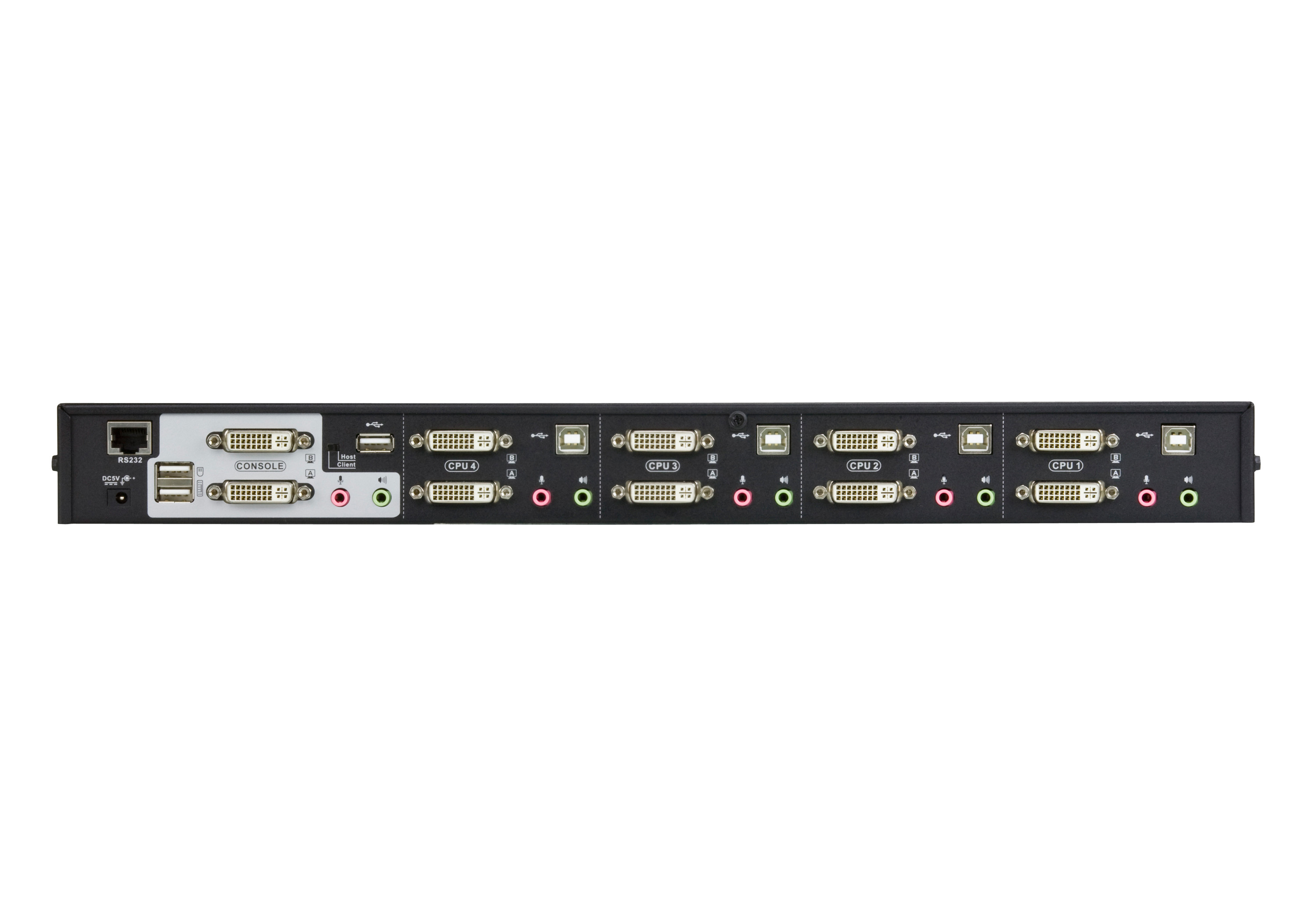

| Console Ports | 2 x USB Type A Female (White, rear panel) 2 x DVI-I Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 4 x USB Type B Female (white) 8 x DVI-I Female (white) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink) |
| Daisy Chain Ports | 1 x RJ-45 Female (rear panel) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (Black; 1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 5 x Pushbutton |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | DVI Dual Link: 2560 x 1600 at 60Hz; 1920 x 1200 at 120Hz (3D Display) |
| Scan Interval | 1-99 secs. (5 secs. default) |
| Power Consumption | DC 5.3 V, 12.19 W |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic + Metal |
| Weight | 2.32 kg ( 5.11 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.98 x 4.40 cm (17.21 x 6.29 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
