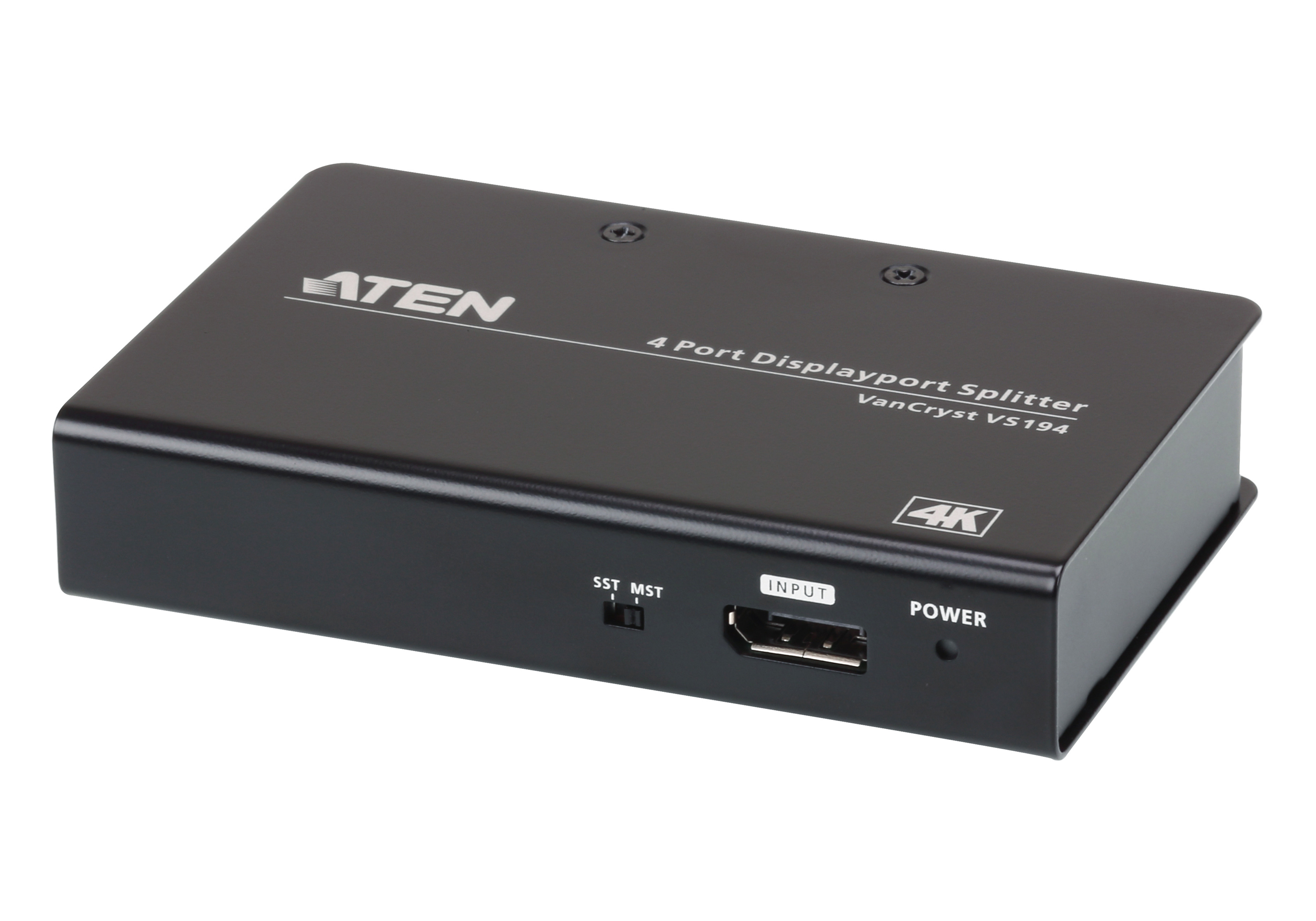

Description:

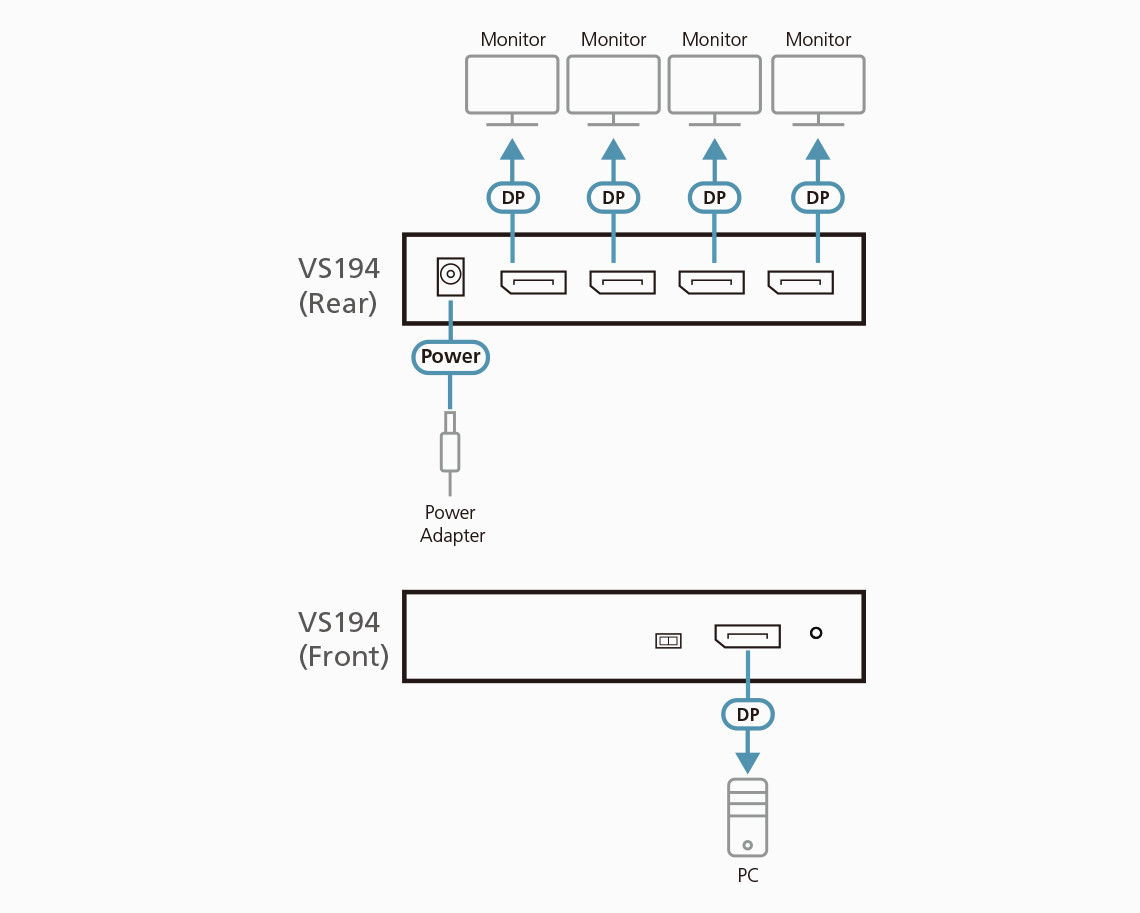

The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS194 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application. The VS194 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater applications, as well as in corporate, educational and commercial settings
Specifications:
| Product Type: |
Signal Splitter |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Number of DisplayPort Outputs: |
4 |
| Number of DisplayPort Inputs: |
1 |
| General Information |
|---|
| Product Type: |
Signal Splitter |
| Manufacturer Part Number: |
VS194 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VS194 |
| Product Name: |
4-Port 4K DisplayPort Splitter |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| DisplayPort: |
Yes |
| Number of DisplayPort Outputs: |
4 |
| Number of DisplayPort Inputs: |
1 |
| Miscellaneous |
|---|
| Package Contents: |
- 4-Port 4K DisplayPort Splitter
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Weight (Approximate): |
11.64 oz |
| Length: |
4.9" |
| Height: |
9.8" |
| Width: |
3.1" |
| Power Description |
|---|
| Input Voltage: |
5 V DC |
| Video |
|---|
| Maximum Video Resolution: |
4096 x 2160 |
