Description:

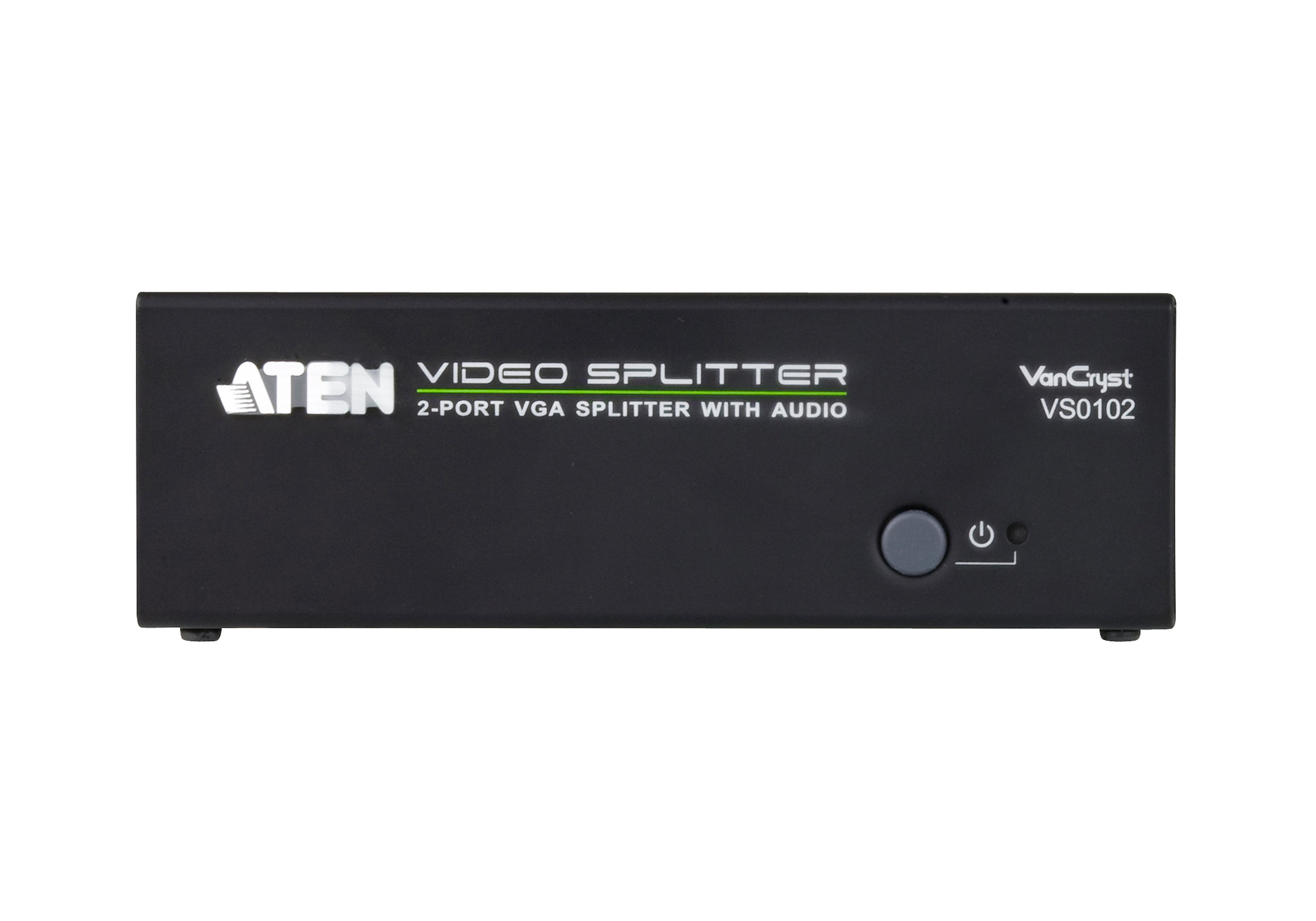

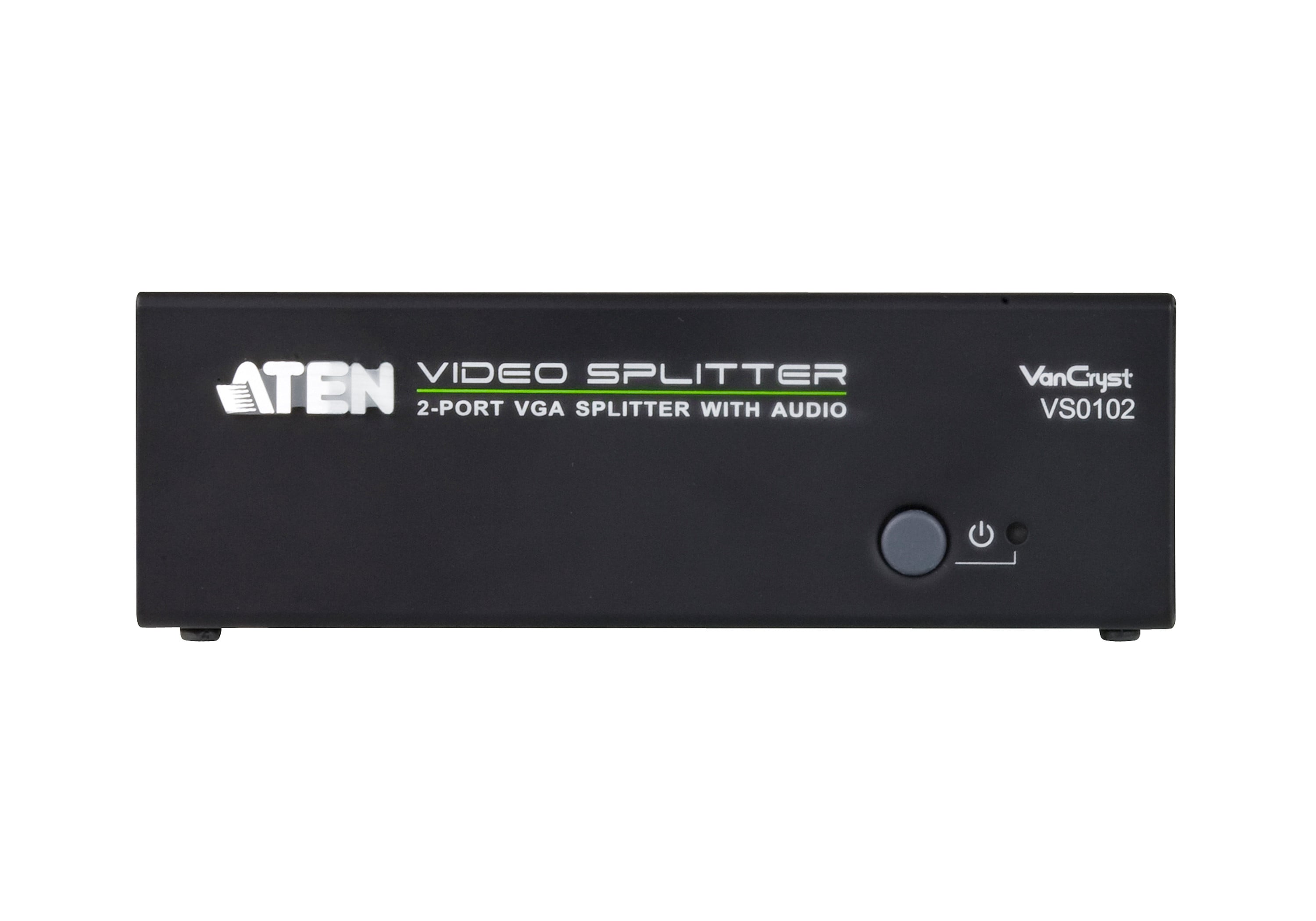

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC. The VS0102 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displays while sustaining the highest quality possible.
Specifications:
| Product Type: |
Signal Splitter |
| Brand Name: |
ATEN |
| Maximum Frequency: |
450 MHz |
| Number of VGA Outputs: |
2 |
| Number of Audio Line In: |
1 |
| Number of Audio Line Out: |
2 |
| Number of VGA Inputs: |
1 |
| General Information |
|---|
| Product Type: |
Signal Splitter |
| Manufacturer Part Number: |
VS0102 |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VS0102 |
| Product Name: |
2-Port VGA Splitter with Audio |
| Brand Name: |
ATEN |

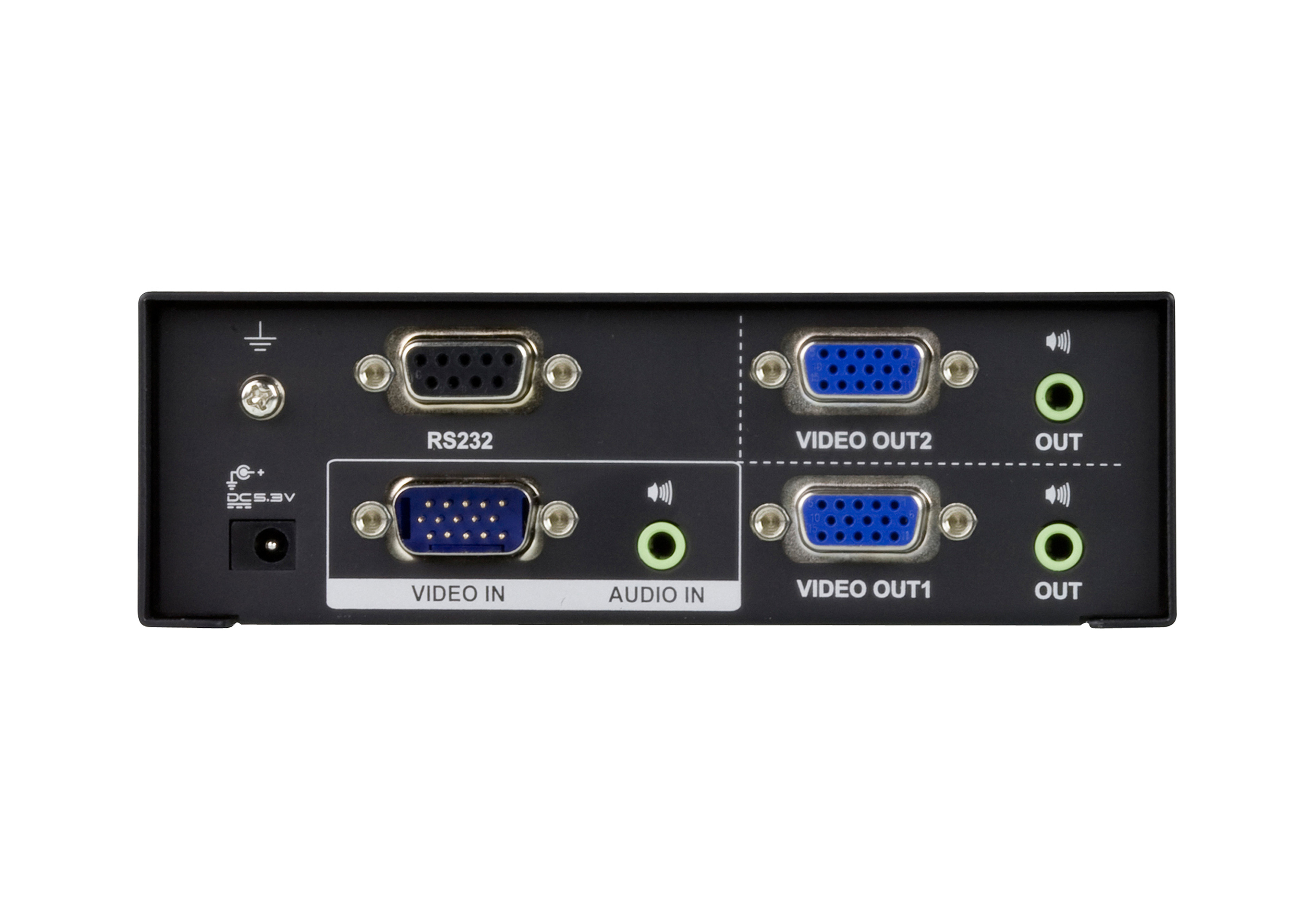

| Interfaces/Ports |
|---|
| Audio Line In: |
Yes |
| Audio Line Out: |
Yes |
| Serial Port: |
Yes |
| Number of VGA Outputs: |
2 |
| VGA In: |
Yes |
| VGA Out: |
Yes |
| Number of Audio Line In: |
1 |
| Number of Audio Line Out: |
2 |
| Number of VGA Inputs: |
1 |
| Miscellaneous |
|---|
| Additional Information: |
- One video input to 2 video outputs
- Superior video quality - up to 1920 x 1440 @ 60Hz
- Supports up to 450MHz bandwidth for high performance video
- Long distance transmission - up to 210 feet(65m) *
- Supports VGA, SVGA, UXGA, WUXGA, and multisync
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Expandable - provides up to 8 video displays
- Features RS-232 serial port for command controls **
- RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
- Supports stereo audio
- Plug-and-play - no software installation required
|
| Package Contents: |
- 2-Port VGA Splitter with Audio
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
1 lb |
| Length: |
5.1" |
| Height: |
1.7" |
| Width: |
3" |
| Power Description |
|---|
| Input Voltage: |
5.3 V DC |
| Technical Information |
|---|
| Maximum Frequency: |
450 MHz |
