Description:
The CL5716M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716M can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716M, so that up to 512 computers can all be controlled from a single KVM console.

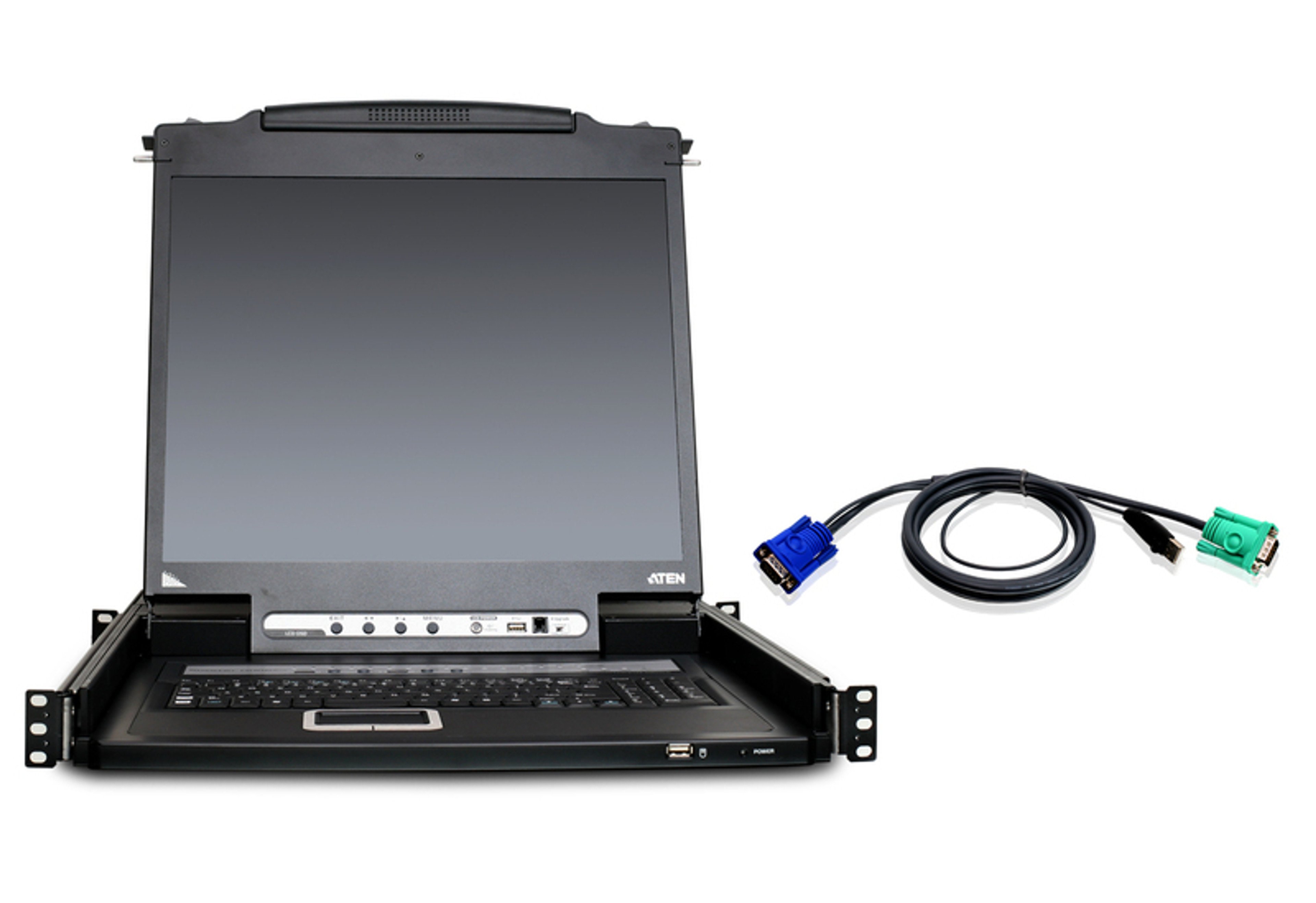

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing
Features:

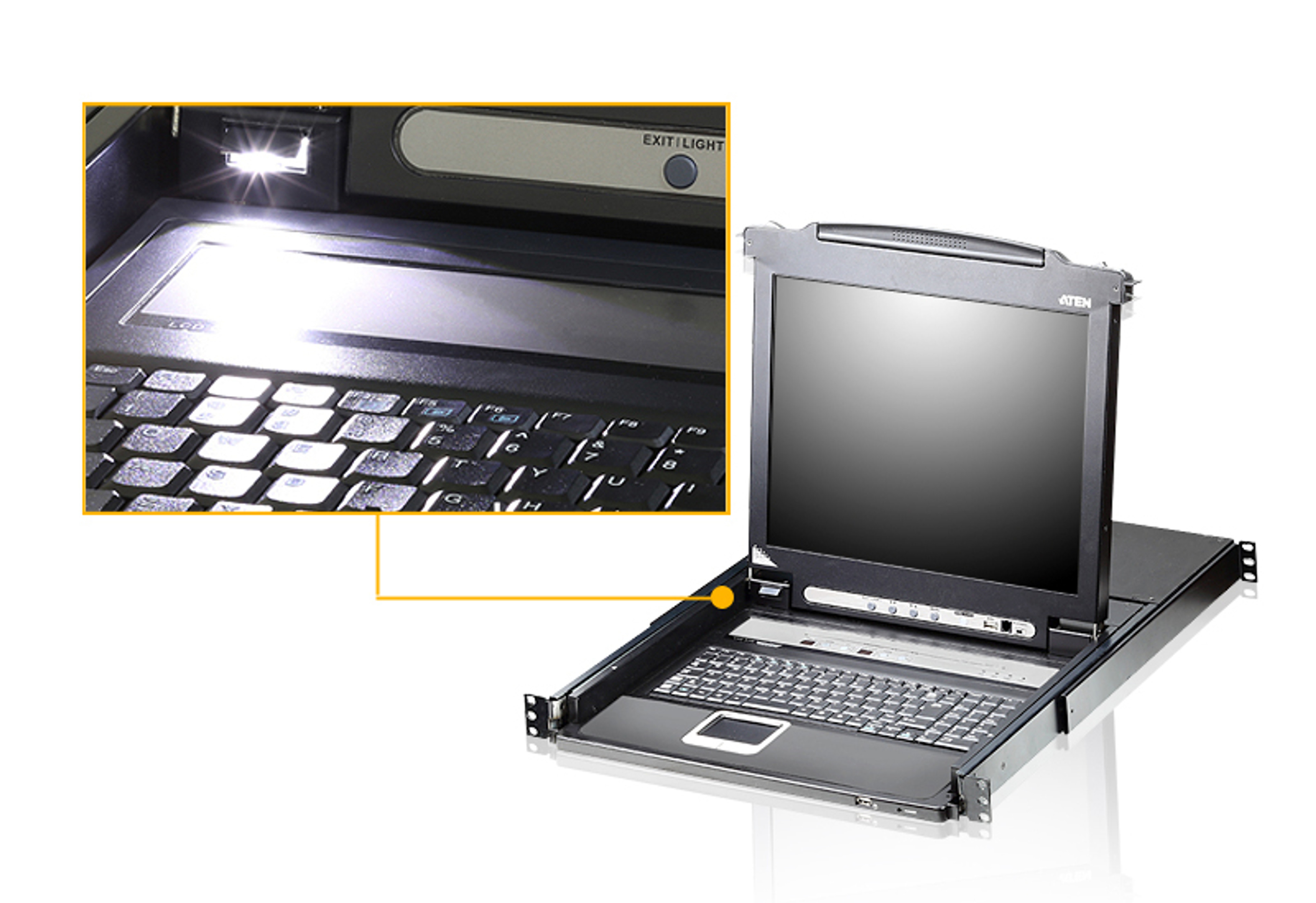

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Specifications:
| Computer Connections | |
| Direct | 16 |
| Daisy Chain or Cascading | 512(via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Console Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD-18 M |
| Flash ROM Upgrade | 1 x RJ-11 F |
| Mouse | 1 x USB Type-A Female (White) |
| Daisy Chain | 1 x DB-25 M |

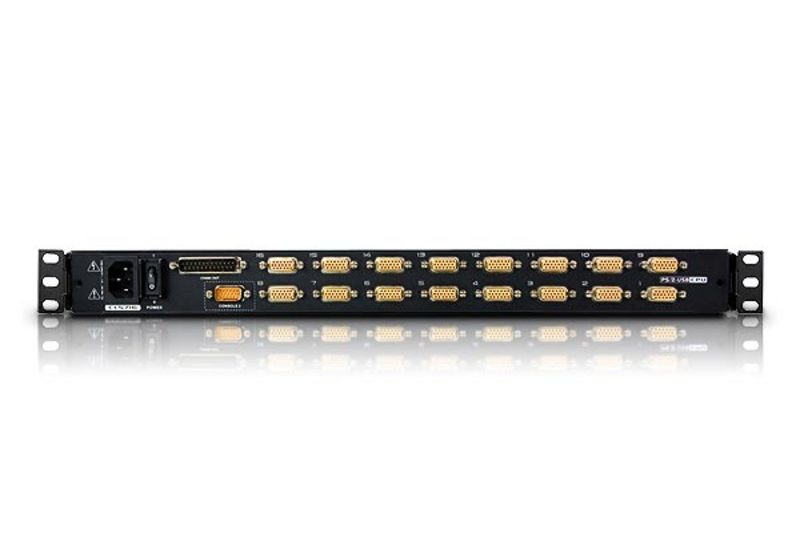

| Connectors | |
| Power | 3 prong AC Socket |
| Computer/KVM | 16 x SPHD-15 Female (Yellow) |
| USB | 1 x USB Type-A Female (White) |
| Switches | |
| Power | 1 x Rocker |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbuttons |
| Port Selection | 2 x Pushbuttons [port] 2 x Pushbuttons |
| F/W Upgrade | 1 x Slide |
| Reset | 1 x Semi-recessed Push Button |
| LEDs | |
| Port ID | 2 x 7-segment LED (Yellow) |
| Power On | 1 (Dark Green) |
| LCD Power | 1 (Orange) |
| Station ID | 2 x 7-segment LED (Yellow) |
| On Line | 16 (Orange) |
| Video Resolution | 17" LCD 1280 x 1024 @ 75 Hz (DDC2B) |
| Emulation | |
| Keyboard | PS/2, USB |
| Mouse | PS/2, USB |
| Scan Interval | 1 - 255 sec. |
| Environment | |
| Humidity | 0 ~ 80% RH, Noncondensing |
| Operation Temperature | 32~122 F(0~50 C) |
| Storage Temperature | -4~140F (-20~60C) |
| Power | |
| Amps | 1 A |
| Voltage | 100 - 240 VAC |
| Power Consumption | 27.5W : 95 BTU/h || 23W : 78 BTU/h |
| Unit Dimensions | |
| Width | 18.9 in |
| Height | 1.73 in |
| Depth | 25.30 in |
| Unit Package Dimensions | |
| Width | 25.75 in |
| Height | 5.375 in |
| Depth | 12.9 in |
| Weight | |
| Master Carton Wt. | 35 lbs |
| Unit Pack Wt. | 34 lbs |
| Unit Wt. w/accessories | 32.3 lbs |
| Unit Wt. | 29.96 lbs |
| Physical Properties | |
| Case Dimension | 25 x 12.9 x 5 in |
| Case Qty | 1 |
