Description:
The CL1016 LCD KVM Switch series are control units that allow access to multiple computers from a single keyboard, video, and mouse (KVM), console. A single CL1016 can control up to 16 computers. As many as 15 additional KVM switches can be daisy-chained to the CL1008, so that up to 256 computers can all be controlled from a single KVM console.

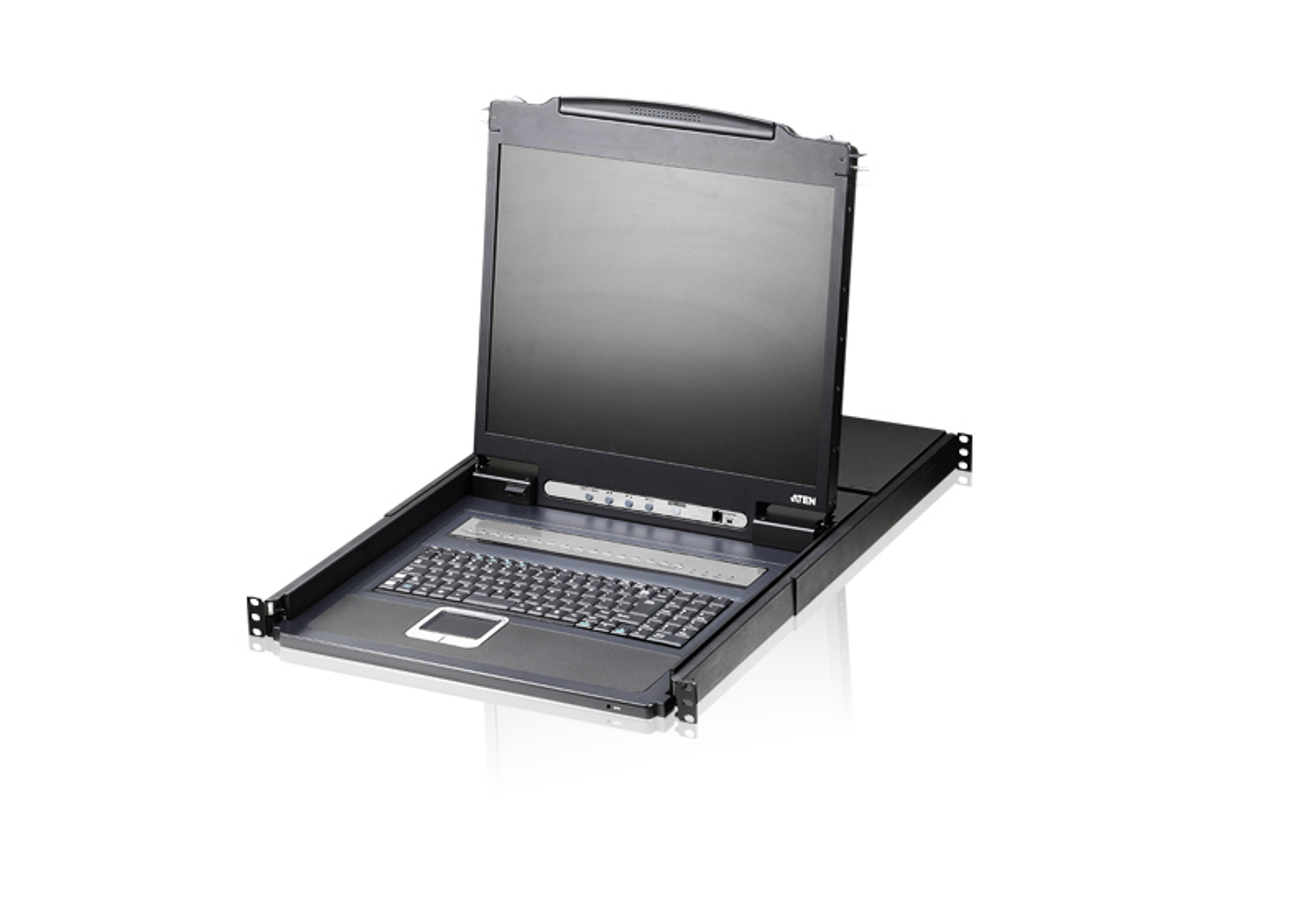

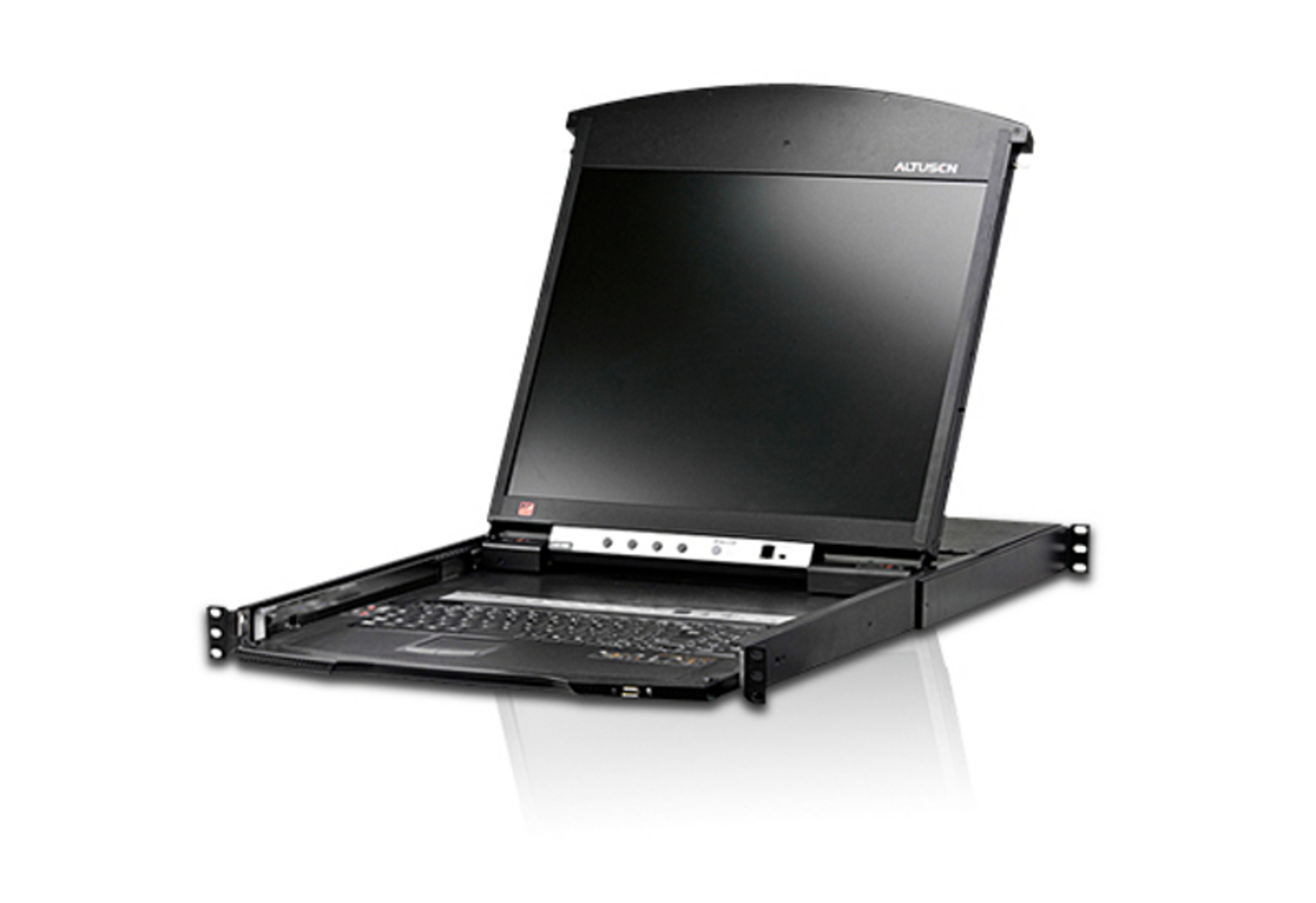

The CL1016 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Features:
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Daisy-chain up to 15 additional units - control up to 256 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto Scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Upgradable firmware
- Keyboard Language support: English (US), English (UK),French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Specifications:
| LEDs | |
| Power On | 1 (Dark Green) |
| Selected | 8 (Green) |
| On Line | 8 (Orange) |
| Port Selection | OSD; Hotkey; Pushbutton |
| Power Consumption | 120V; 30W 230V; 37W |
| Video Resolution | 1280 x 1024@75Hz; DDC2B |
| Scan Interval | 1~255 Seconds |
| Emulation | |
| Keyboard | PS/2 |
| Mouse | PS/2 |
| Computer Connections | |
| Direct | 8 |
| Daisy Chain or Cascading | 192 (via Daisy Chain) |
| Daisy Chain | 1 x DB-25 Male |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 8 x SPHD Female (Yellow) |
| Flash ROM Upgrade | 1 x FW Upgrade Port |
| Connectors | |
| Power | 1 x 3-prong AC socket |
| Switches | |
| Power | 1 x Rocker |
| Reset | 1 x Semi-recessed pushbutton |
| Port Selection | 8 x pushbutton |
| LCD Adjustment | 4 x pushbutton |
| F/W Upgrade | 1 x Slide |
| Power Output Rating | |
| Total AC Power Outlet, 50/60Hz | 100~240V AC; 1A |
| Environment | |
| Operation Temperature | 32~ 104°F [0°~40°C] |
| Storage Temperature | -4~140°F [-20°~60°C] |
| Humidity | 0~80% RH, Non-condensing |
| Physical Properties | |
| Unit Weight | 26 lbs |
| Housing | Plastic/Metal |
| Case Weight | 29.87 lbs |
| Unit Weight with package | 44 lbs |
| Case Dimension | 28.3 x 26.5 x 5.5 in |
| Case Qty | 1 |
| Unit Dimension | 18.89 x 25.20 x 1.73 in |
| Unit Package Dimensions | 28.3 x 26.5 x 5.5 in |
