Product Description:
The VS0202 Video Matrix Switch allows video and audio from 2 computers to be routed to 2 monitors,projectors and speakers. Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.
Package Contents
- 1x 2-Port Video Matrix Switch
- 1x VGA/Audio Cable (1.8m)
- 1x Power Adapter
- 1x User Manual
- 1x Quick Start Guide
Features:

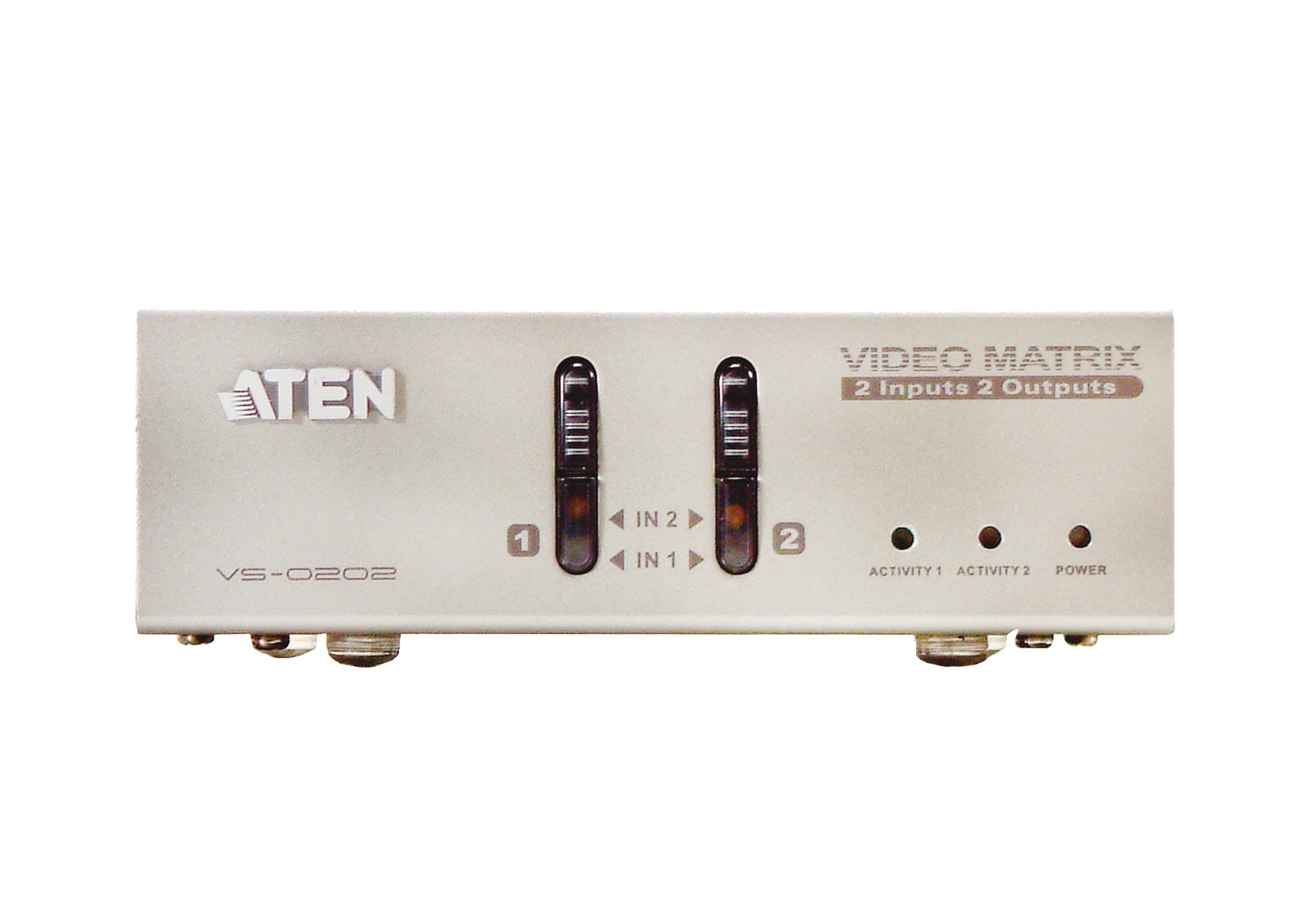

- Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
- Audio enabled.
- Duplicate and enhance video signals to up to 65 m (max.).
- Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
- With up to 300 MHz Video Bandwidth.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

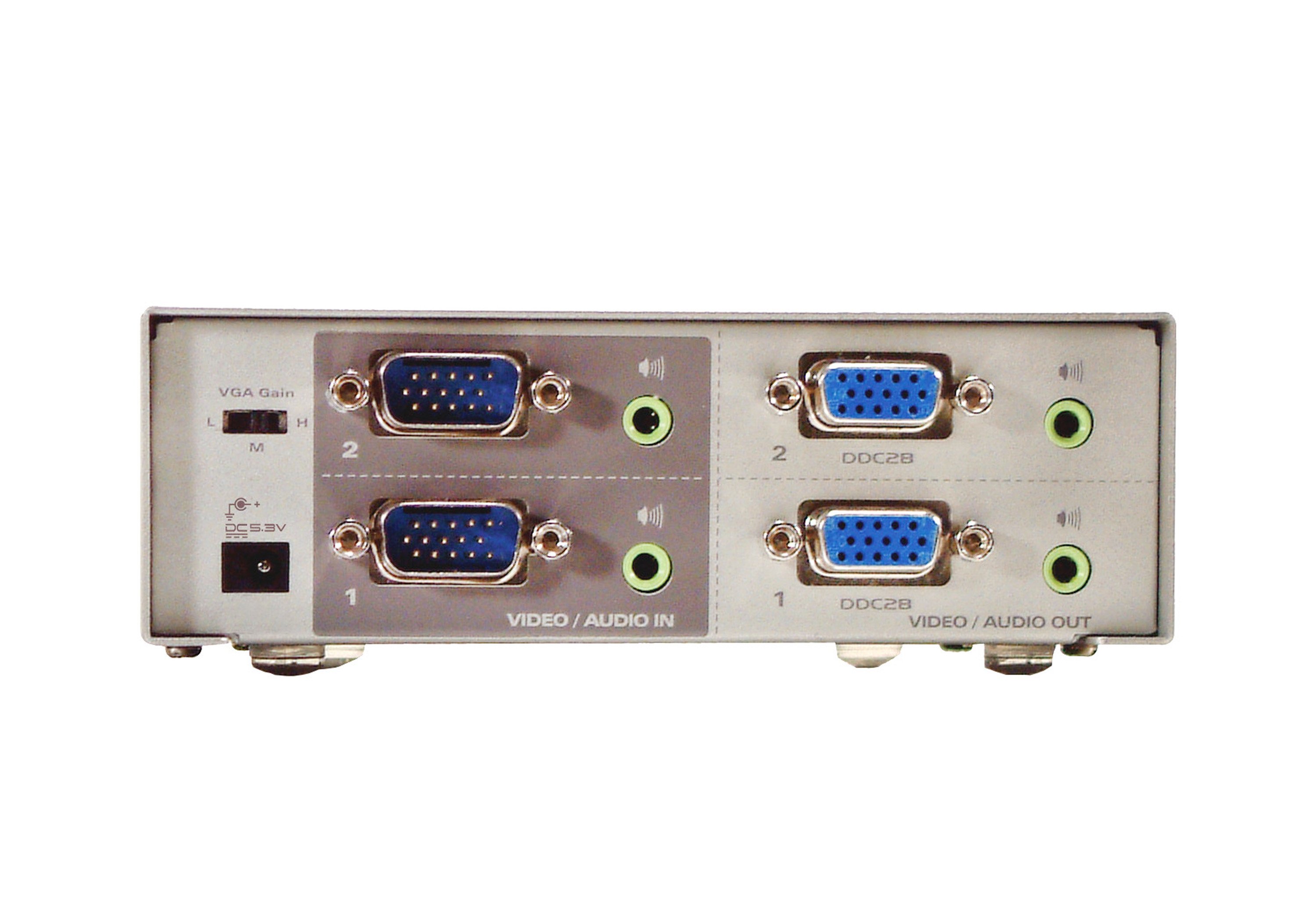

Specifications:
| Display Connections | 2 | ||
| Computer Connections | 2 | ||
| Port Selection | Pushbutton | ||
| Connectors | Input | Vdieo | 2 x HDB-15 Male (Blue) |
| Audio | 2 x Mini Stereo Jack Female (Green) | ||
| Output | Vdieo | 2 x HDB-15 Female (Blue) | |
| Audio | 2 x Mini Stereo Jack Female (Green) | ||
| Power | 1 x DC Jack (Black) | ||
| LEDs | Power | 1 (Blue) | |
| Activity / Source | 2 (Green) | ||
| Input | 1 | 2 (Green) | |
| 2 | 2 (Orange) | ||
| Video | 1920 x 1440 @ 60Hz | ||
| Video Bandwidth | 300 MHz | ||
| Sync Range | Sync Positive/Negative | ||
| Signal Range | 65m (210') | ||
| Power Consunption | DC 5.3V ,2.39W (Max.) | ||
| Environment | Operating Temp. | 0-50˚C | |
| Storage Temp. | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties |
Housing | Metal | |
| Weight | 0..47 kg | ||
| Dimensions ( L x W x H ) | 13.00 x 7.50 x 4.50 cm | ||
