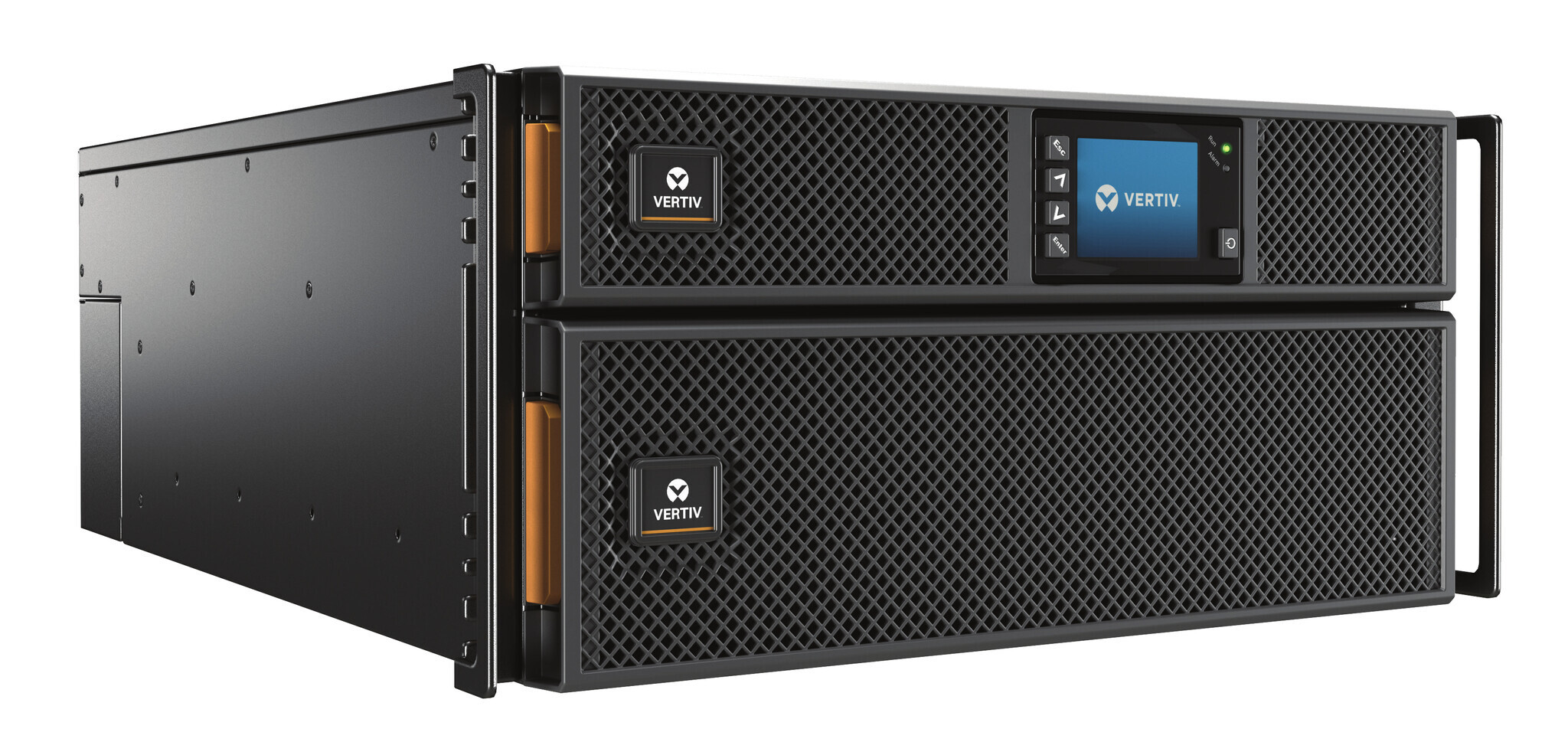

Vertiv Liebert GXT5 UPS - 8kVA/8kW/208 and 120V | Online Rack Tower Energy Star

Vertiv

Regular Price $10,965.15
Discount Price: $6,899.00
MFG#:
GXT5-8000MVRT6UXLN
Product Category:
Power Management Power Products

Description:

Vertiv Liebert GXT5 UPS - 8kVA/8kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 8kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.

More from the Manufacturer

Features
  • HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
  • REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
  • 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
  • ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
  • EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.

Specifications:

Controls/Indicators
Status Indicators

LED/Full Color Graphic LCD:

  • Alarm / Fault Indication
Warranty
Limited Warranty3 Year
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Maximum Operating Elevation9842.52 ft
Storage Temperature5°F (-15°C) - 104°F (40°C)
Environmental SensorsTemperature Sensor
Humidity Sensor
Leak Detection Sensor
Interfaces/Ports
USBYes
VGANo
Network (RJ-45)Yes
Modem (RJ-11)No
Serial PortYes
Total Number of Expansion Slots1
Physical Characteristics
Weight (Approximate)224.80 lb
Form FactorRack/Tower
Rack Height6U
Height10.2"
Width16.9"
Depth25.6"
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberGXT5-8000MVRT6UXLN
Manufacturer Website Addresshttp://www.vertiv.com/
Packaged Quantity1
ManufacturerVertiv
Product NameGXT5 8000VA 208/120V UPS
Product SeriesGXT
Brand NameLiebert
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)17 Minute
Backup/Run Time (Full Load)6.50 Minute
Battery CharacteristicsValve-regulated, Non-spillable, Flame-retardant
Replaceable BatteryYes
Number of External Battery Cabinets1
Backup/Run Time With External Battery Cabinet (Full Load)17.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)45 Minute
Miscellaneous
Additional Information
  • Package Type: Natrual corrugated with single color silk screen
  • Dataline Protection: No
Package Contents
  • GXT5 8000VA 208/120V UPS
  • 4 Post Fixed Rail Kit
  • Tower Stand
  • USB Cable
  • Quick Start Guide
  • Safety Instruction Manual
Certifications & Standards
  • Surge Immunity: IEEE/ANSI C62.41 Category A & B
  • Transportation: ISTA Procedure 1E
  • Safety: UL1778, c-UL listed
  • Emissions: FCC Part 15 (Class A)
Country of OriginChina
Environmentally FriendlyYes
TAA CompliantNo
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Power Description
Input Voltage208 V AC
Output Voltage120 V AC
208 V AC
Waveform TypePure Sine Wave
Input Frequency60 Hz
Load Capacity (VA)8000 VA
Load Capacity (Watt)8000 W
User Selectable Output208/120VAC
Utility (AC) Mode Overload
  • 105% to 125% for 5 minutes
  • 125% to 150% for 60 seconds
  • >150% (impact load) minimum 200 ms
Technical Information
Application/UsageData Center
Mission Critical Equipment
IT System
Bypass SwitchInternal
Maintenance
Automatic & Manual
Emergency Power OFFYes
Plug/Connector TypeTerminal Block
PhaseSingle Phase
Receptacle TypeHardwired
Transfer Time0 ns
