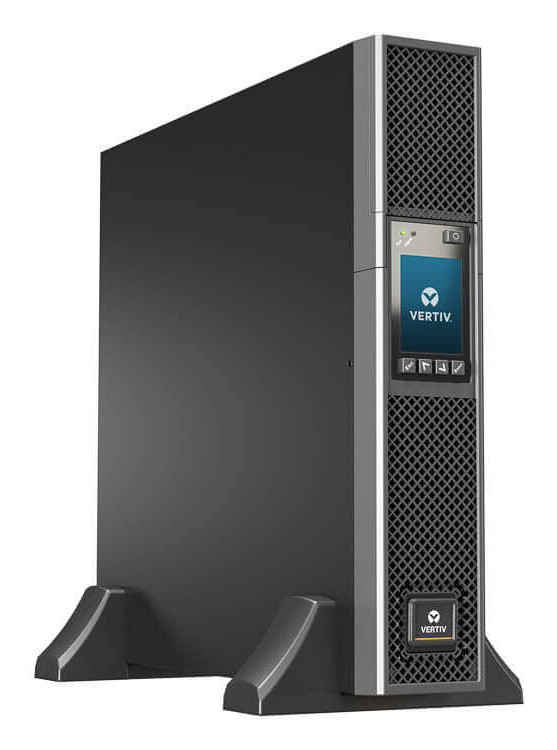

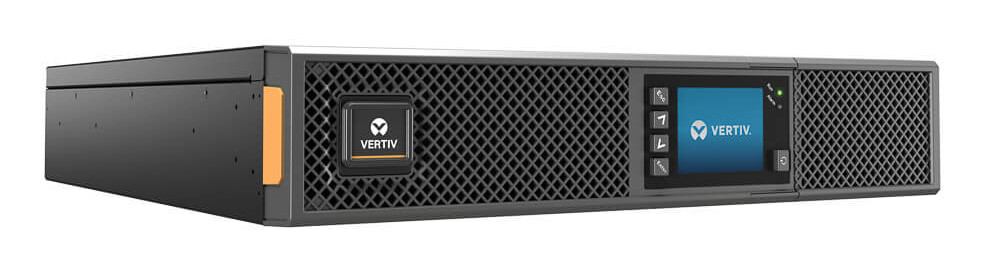

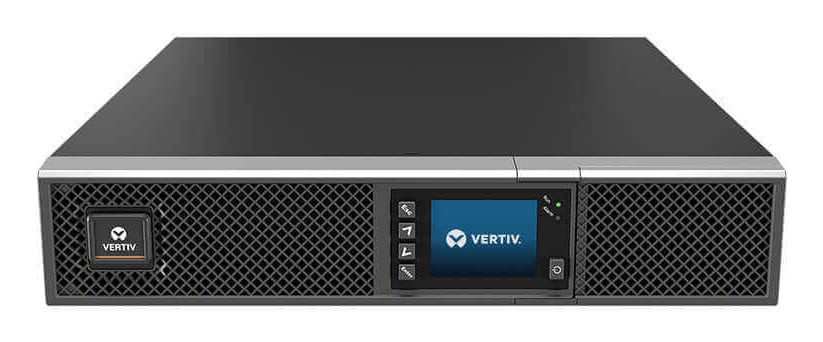

GXT5 TAA 1500VA 120V UPS, Rack/Tower - Vertiv GXT5-1500LVRT2UXLTAA

Name: GXT5 TAA 1500VA 120V UPS, Rack/Tower - Vertiv GXT5-1500LVRT2UXLTAA
Brand: Vertiv
SKU: GXT5-1500LVRT2UXLTAA
Availability: InStock

Vertiv

MSRP: $2,525.00 SALE PRICE
$1,584.65

REGULAR PRICE $1,850.08

(You Save $940.35)

UPC:767041038644

MFG#:GXT5-1500LVRT2UXLTAA

Product Category:UPS

Description:

The Vertiv Liebert GXT5 TAA UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment against outages and every type of power disturbance without drawing on battery power, which extends battery life and minimizes replacements. This single-phase UPS operates with high power efficiency is intended for both centralized and edge applications. The unit includes a rack mounting hardware kit and base for tower installation in open environments. With available Vertiv LIFE Services, data center managers can reduce the risk of unexpected downtime through remote diagnostic and preventive monitoring. An optional RDU101 SNMP/webcard allows users to manage up to 100 distributed units with the free Vertiv Trellis Power Insight Application. Available in capacities from 1000VA to 3000VA in rack and tower configurations, the Vertiv Liebert GXT5 UPS includes:

Compact 2U rack/tower convertible systems that are easy to install, configure and operate
Scalable runtimes with external battery cabinets and hot-swappable internal batteries
High power factor (PF 0.9-1.0) ensures the connection of more loads and IT equipment
TAA compliant UPS designed for government and government-affiliated environments
Programmable individual output socket for optimum battery usage and connected equipment power control
High normal operating efficiency and ultimate efficiency with Vertiv’s active eco-mode
User-friendly interface includes gravity sensing graphical color display

Specifications:

Controls/Indicators
Status Indicators	Color LCD
Warranty
Limited Warranty	3 Year
Interfaces/Ports
VGA	No
Modem (RJ-11)	No
Serial Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Storage Temperature	-4°F (-20°C) - 140°F (60°C)
Environmental Sensors	Temperature Sensor
	Leak Detection Sensor
	Humidity Sensor
General Information
Product Type	Double Conversion Online UPS
Manufacturer Part Number	GXT5-1500LVRT2UXLTAA
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Name	GXT5 1500VA 120V UPS
Product Series	GXT
Brand Name	Liebert
Physical Characteristics
Weight (Approximate)	46.20 lb
Form Factor	Rack/Tower
Rack Height	2U
Height	3.4"
Width	16.9"
Depth	18.5"
Product Color	Black
Color Family	Black
Technical Information
Application/Usage	Mission Critical Equipment
	IT Equipment
Emergency Power OFF	Yes
Plug/Connector Type	NEMA 5-15P
Cord Length	10 ft
Phase	Single Phase
Receptacle Type	NEMA 5-15R
Transfer Time	0 ns
Receptacle Detail	6 x NEMA 5-15R

Power Description
Circuit Breaker	Yes
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Current	12 A
Waveform Type	Pure Sine Wave
Output Current	1.50 A
Input Voltage Range	60 V AC - 150 V AC
Input Frequency	70 Hz
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1350 W
User Selectable Output	Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
Utility (AC) Mode Overload	>200% for 250ms 150- 200% for 2 seconds 125- 150% for 50 seconds 105-125% for 60 seconds
Battery Information
Battery Life	5 Year
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Battery Size	12V
Hot Pluggable	Yes
Number of Batteries	3
Backup/Run Time (Half Load)	13 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Valve-regulated, Non-spillable
Typical Battery Recharge Time	3 Hour
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	25 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	59 Minute
Miscellaneous
Additional Information	Operating Temperature,°F (°C):+32 to +104 (0 to 40) Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C. Relative Humidity:0% to 95%, non-condensing Audible Noise: <46dBA max @ 3 ft. (1m) front and sides < 43dBA, at 3 ft. (1m) rear
Package Contents	GXT5 1500VA 120V UPS 4 Post Rack Mounting Tower Stand USB Cable User Guide Safety Instruction Manual
Software Included	Free Download - Power Insight 2.2
Certifications & Standards	UL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A
Country of Origin	United States
Assembly Required	No
Environmentally Friendly	Yes
TAA Compliant	Yes
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
	Waste Electrical and Electronic Equipment Directive (WEEE)
	Restriction of Hazardous Substances (RoHS)
	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
