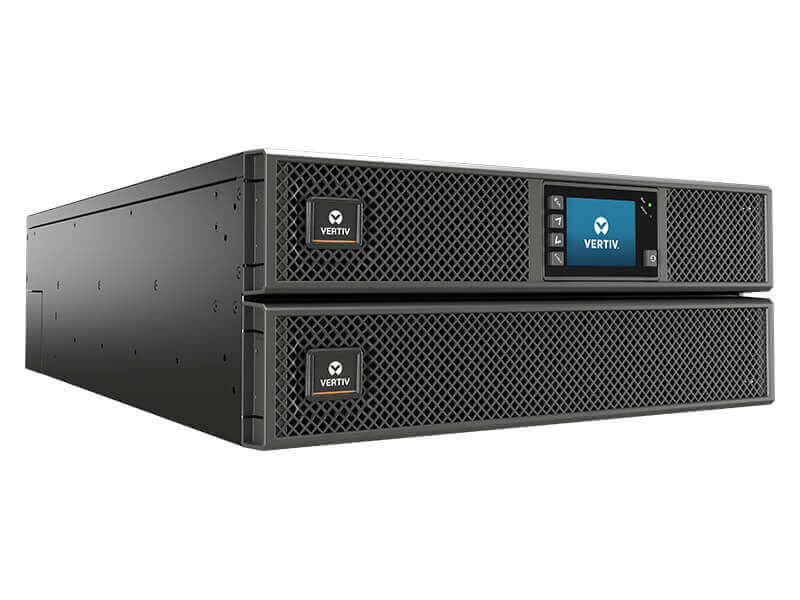

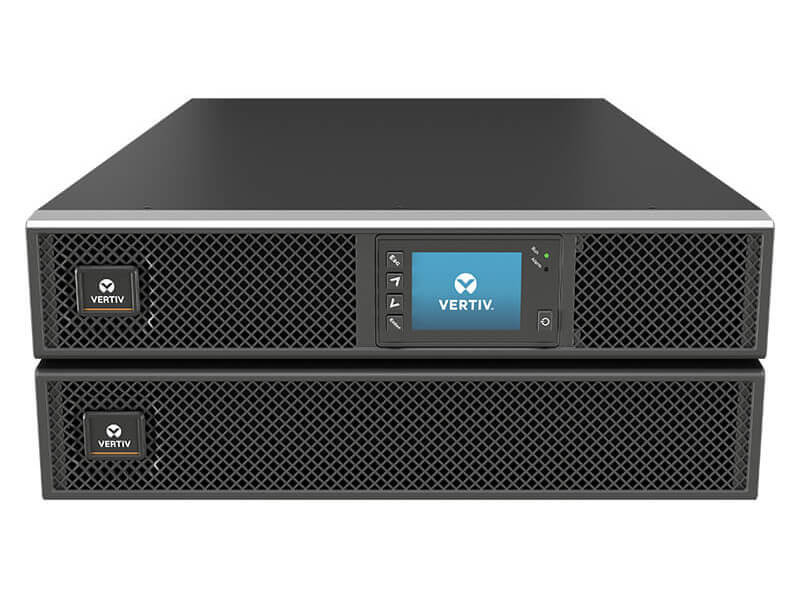

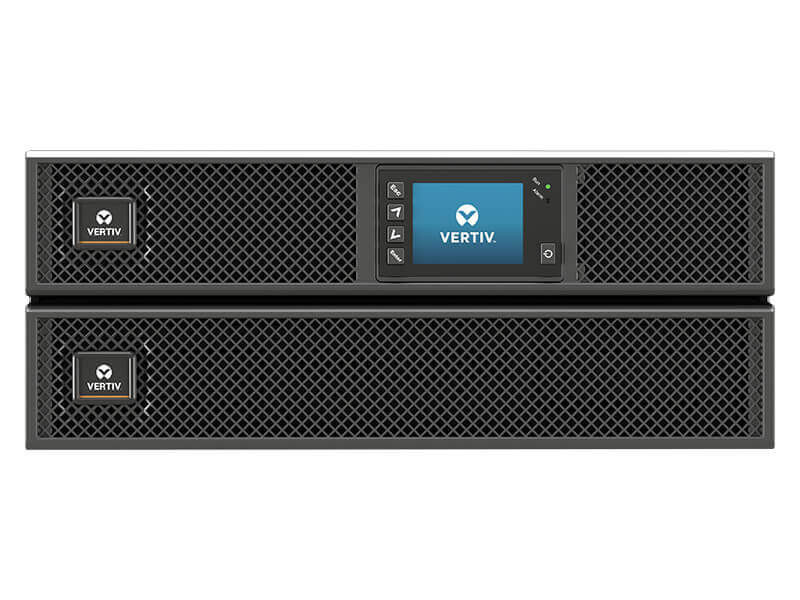

Vertiv GXT5-6000MVRT4UXLN GXT5 6KVA 120/208V UPS 6KVA 6KW 208V IN 120V/208V OUT

Vertiv

Regular Price $9,141.00
Discount Price: $5,725.00
UPC:
767041026412
Product Overview:

GXT5 UPS - 6kVA/6kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 4U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty

MFG#:
GXT5-6000MVRT4UXLN
Product Category:
UPS
Adding to cart… The item has been added

Description:

Vertiv Liebert GXT5 UPS - 6kVA/6kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 4U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 6kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.

Features

  • HIGH POWER FACTOR (0.9-1.0): More usable power allows more connected loads saving space and costs.
  • REMOTE MANAGEMENT: Optional Vertiv RDU101 network communications card with advanced features.
  • 3-YEAR WARRANTY: 3-year comprehensive coverage including battery with options for 2-year extension.
  • ENERGY EFFICIENT (up to 95%): Energy Star 2.0 certified with high normal operating efficiency.
  • EASY-TO-USE INTERFACE: Tower/rack mount design with gravity sensing graphical color display.

Specifications:

Controls/Indicators
Status Indicators

LED/Full Color Graphic LCD:

  • Alarm / Fault Indication
Warranty
Limited Warranty 3 Year
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 9842.52 ft
Storage Temperature 5°F (-15°C) - 104°F (40°C)
Environmental Sensors Leak Detection Sensor
  Humidity Sensor
  Temperature Sensor
Interfaces/Ports
USB Yes
VGA No
Network (RJ-45) Yes
Modem (RJ-11) No
Serial Port Yes
Total Number of Expansion Slots 1
Physical Characteristics
Weight (Approximate) 130.60 lb
Form Factor Rack/Tower
Rack Height 4U
Height 6.8"
Width 16.9"
Depth 25.6"
Miscellaneous
Additional Information
  • Package Type: Natrual corrugated with single color silk screen
  • Dataline Protection: No
Package Contents
  • GXT5 6000VA 208/120V UPS
  • 4 Post Fixed Rail Kit
  • Tower Stand
  • USB Cable
  • Quick Start Guide
  • Safety Instruction Manual
Certifications & Standards
  • Surge Immunity: IEEE/ANSI C62.41 Category A & B
  • Transportation: ISTA Procedure 1E
  • Safety: UL1778, c-UL listed
  • Emissions: FCC Part 15 (Class A)
Country of Origin China
Environmentally Friendly Yes
TAA Compliant No
Energy Star Yes
General Information
Product Type Double Conversion Online UPS
Manufacturer Part Number GXT5-6000MVRT4UXLN
Manufacturer Website Address http://www.vertiv.com/
Packaged Quantity 1
Manufacturer Vertiv
Product Name GXT5 6000VA 208/120V UPS
Product Series GXT
Brand Name Liebert
Power Description
Input Voltage 230 V AC
Output Voltage 120 V AC
  208 V AC
Load Capacity 6000 VA/6000 W
Waveform Type Pure Sine Wave
Input Frequency 60 Hz
User Selectable Output

208/120VAC

Utility (AC) Mode Overload
  • 105% to 125% for 5 minutes
  • 125% to 150% for 60 seconds
  • >150% (impact load) minimum 200 ms
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Half Load) 9.50 Minute
Backup/Run Time (Full Load) 3.50 Minute
Battery Characteristics Valve-regulated, Non-spillable, Flame-retardant
Replaceable Battery Yes
Number of External Battery Cabinets 1
Backup/Run Time With External Battery Cabinet (Full Load) 9.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load) 25.50 Minute
Technical Information
Application/Usage Mission Critical Equipment
  Data Center
  IT System
Bypass Switch Internal
  Maintenance
  Automatic & Manual
Emergency Power OFF Yes
Plug/Connector Type Terminal Block
Phase Single Phase
Receptacle Type Hardwired
Transfer Time 0 ns
