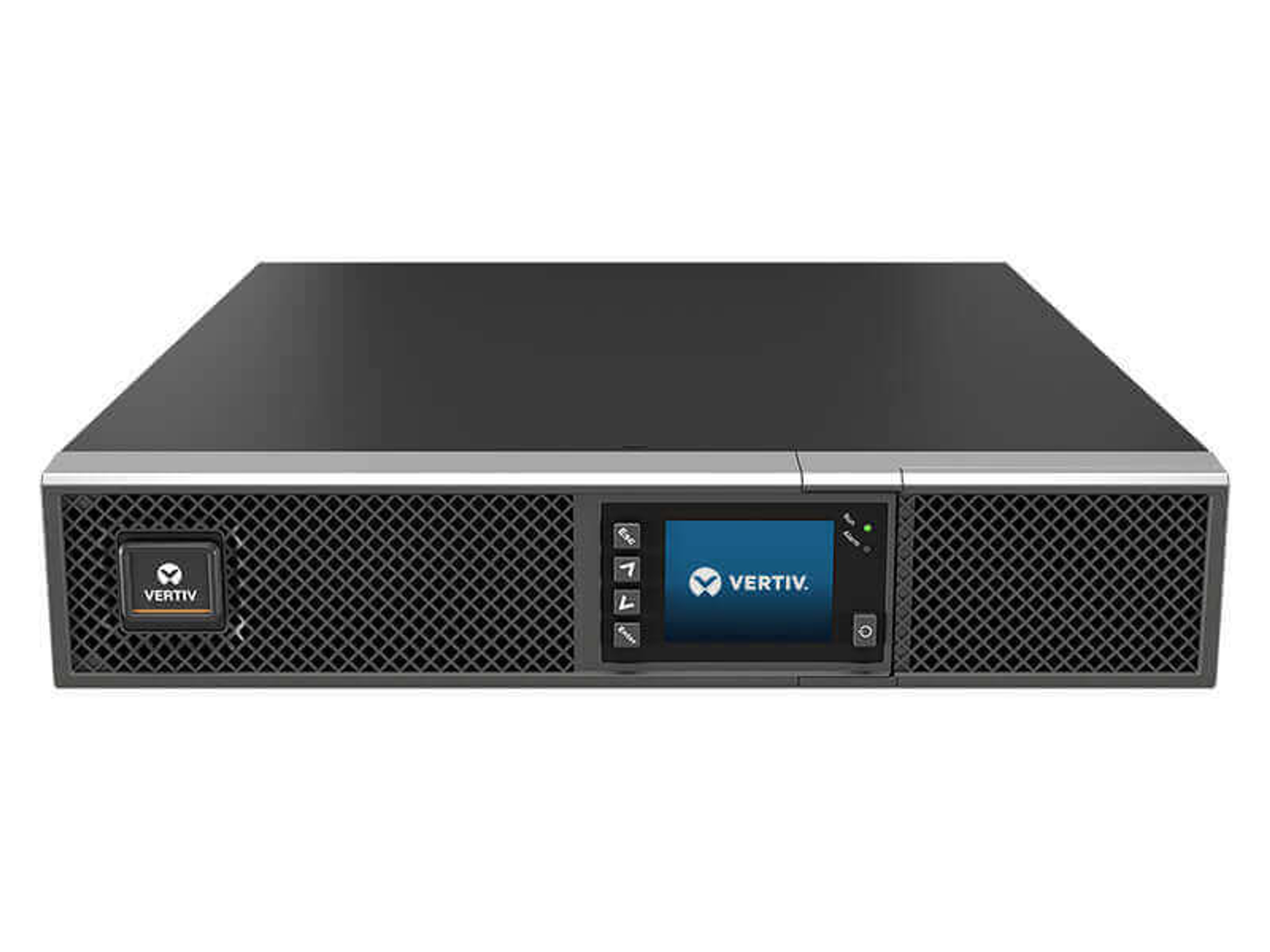

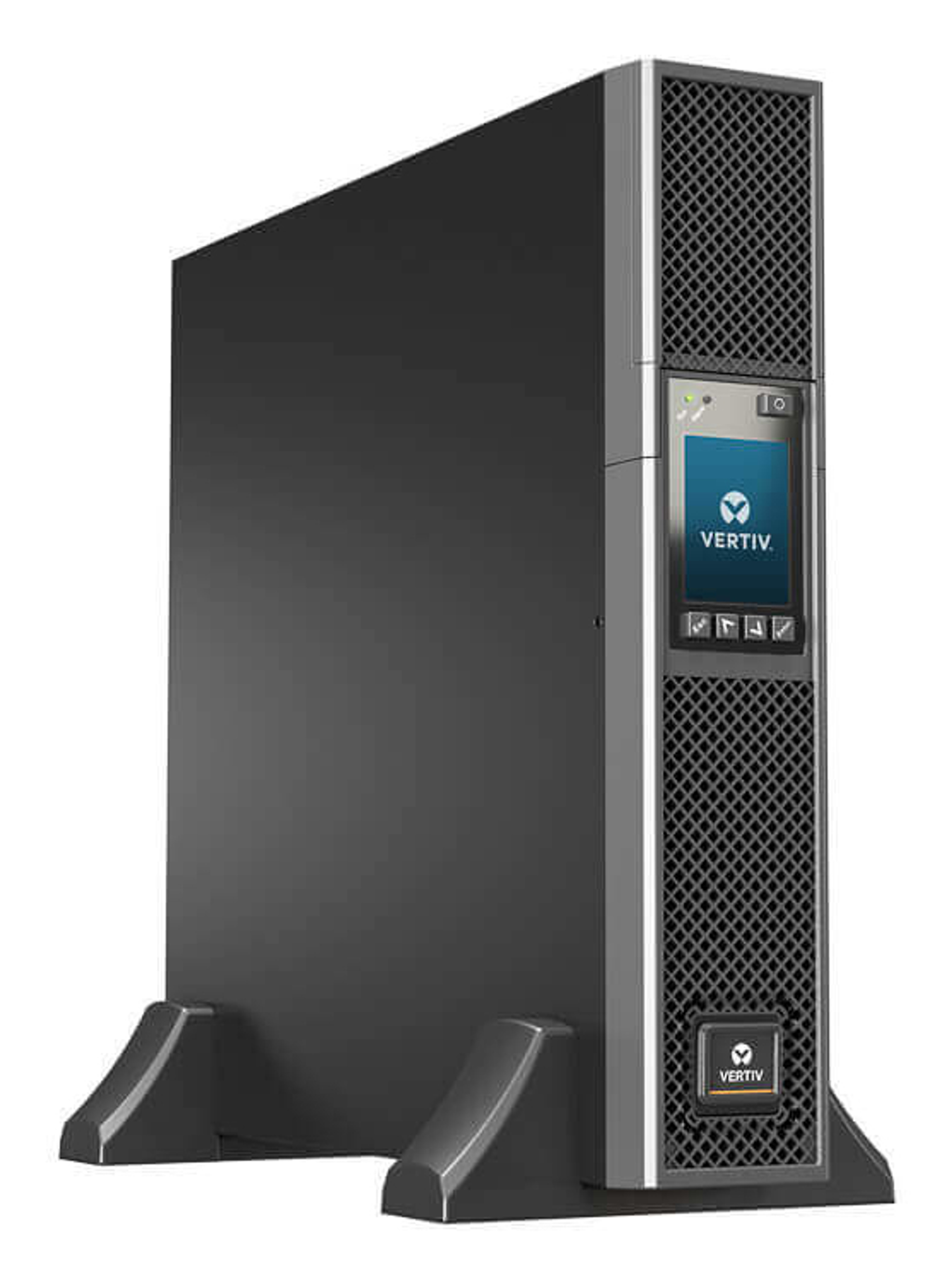

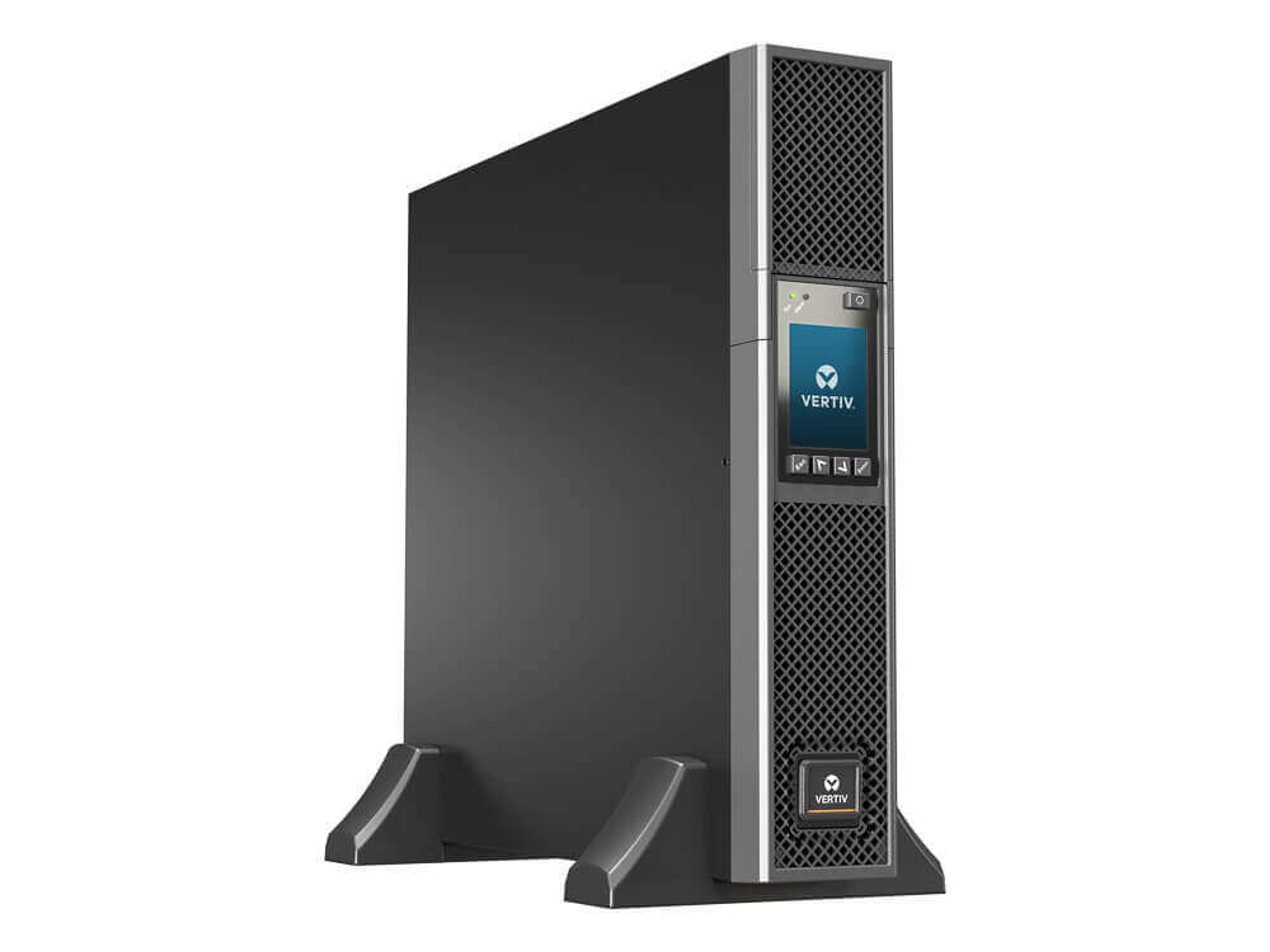

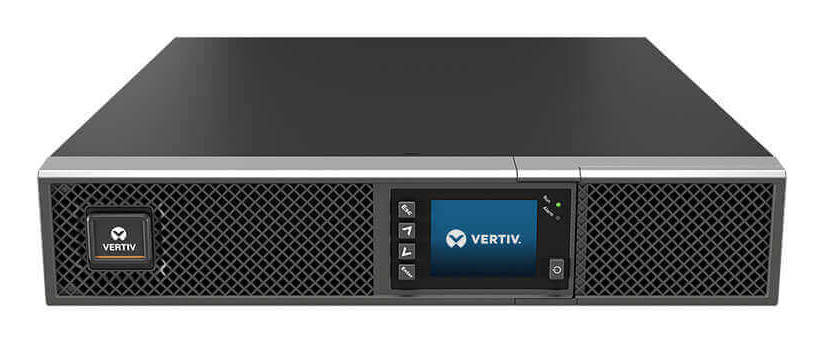

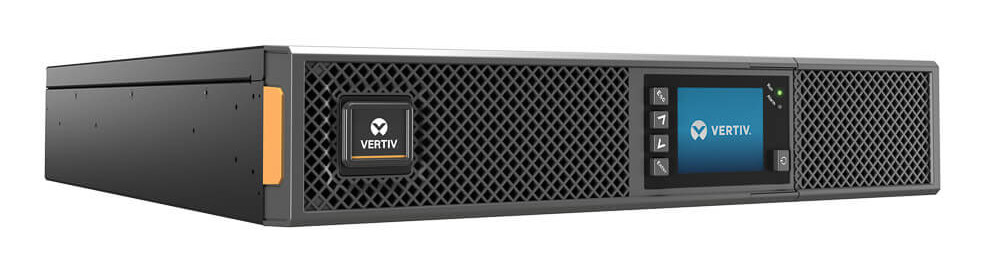

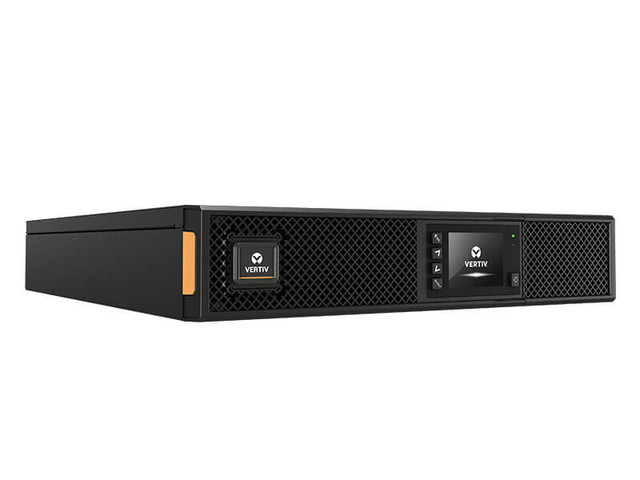

GXT5 3000VA UPS - Vertiv GXT5-3000LVRT2UXL

Vertiv Liebert GXT5 UPS - 3000VA/2700W 120V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty

The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

Features

• Reliable, easy-to-manage power protection and battery backup with 3000VA (2700W) capacity.
• Highest power factor available on standard input connections.
• Four individual programmable output receptacle for device control and management for optimum battery usage.
• Its user-friendly interface includes color graphic display with gravity sensing feature.
• It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.

Specifications:

Controls/Indicators Status Indicators Color LCD Warranty Limited Warranty 3 Year Interfaces/Ports VGA No Modem (RJ-11) No Serial Port Yes EPO Port Yes USB (HID Compliant) Port Yes Environmental Conditions Maximum Operating Temperature 104°F (40°C) Maximum Operating Elevation 9842.52 ft Maximum Storage Elevation 49212.60 ft Storage Temperature -4°F (-20°C) - 140°F (60°C) Environmental Sensors Temperature Sensor   Leak Detection Sensor   Humidity Sensor General Information Product Type Double Conversion Online UPS Manufacturer Part Number GXT5-3000LVRT2UXL Manufacturer Website Address http://www.vertiv.com/ Manufacturer Vertiv Product Name GXT5 3000VA 120V UPS Product Series GXT Brand Name Liebert Physical Characteristics Weight (Approximate) 70 lb Form Factor Rack/Tower Rack Height 2U Height 3.4" Width 16.9" Depth 21.3" Product Color Black Miscellaneous Additional Information Operating Temperature,°F (°C):+32 to +104 (0 to 40) Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C. Relative Humidity:0% to 95%, non-condensing Audible Noise: <48dBA max @ 3 ft. (1m) front and sides <48dBA, at 3 ft. (1m) rear Package Contents GXT5 3000VA 120V UPS 4 Post Rack Mounting Tower Stand USB Cable User Guide Safety Instruction Manual Software Included Power Insight 2.2 Certifications & Standards UL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A Country of Origin China Assembly Required No Environmentally Friendly Yes TAA Compliant No Energy Star Yes

Power Description Circuit Breaker Yes Input Voltage 120 V AC Output Voltage 120 V AC Input Current 24 A Load Capacity 3000 VA/2700 W Waveform Type Sine Wave Output Current 25 A Input Voltage Range 60 V AC - 150 V AC Input Frequency 70 Hz User Selectable Output Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3% Utility (AC) Mode Overload >200% for 250ms 150- 200% for 2 seconds 125- 150% for 10 seconds 105-125% for 15 seconds Technical Information Application/Usage IT Equipment   Mission Critical Equipment Emergency Power OFF Yes Plug/Connector Type NEMA L5-30P Cord Length 10 ft Phase Single Phase Receptacle Type NEMA 5-20R   NEMA L5-30R Transfer Time 0 ns Receptacle Detail 6 x NEMA 5-20R   1 x NEMA L5-30R Battery Information Battery Life 5 Year Battery Chemistry Lead Acid Hot Swappable Yes Battery Size 12V Hot Pluggable Yes Number of Batteries 3 Backup/Run Time (Half Load) 9 Minute Backup/Run Time (Full Load) 3 Minute Battery Characteristics Valve-regulated, Non-spillable Typical Battery Recharge Time 3 Hour Number of External Battery Cabinets 1 Backup/Run Time With External Battery Cabinet (Full Load) 17 Minute Backup/Run Time With External Battery Cabinet (Half Load) 43.50 Minute
