| Controls/Indicators |
| Status Indicators |
Color LCD |
| Warranty |
| Limited Warranty |
3 Year |
| Interfaces/Ports |
| VGA |
No |
| Modem (RJ-11) |
No |
| Serial Port |
Yes |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
| Environmental Conditions |
| Maximum Operating Temperature |
104°F (40°C) |
| Maximum Operating Elevation |
9842.52 ft |
| Maximum Storage Elevation |
49212.60 ft |
| Storage Temperature |
-4°F (-20°C) - 140°F (60°C) |
| Environmental Sensors |
Leak Detection Sensor |
| |
Humidity Sensor |
| |
Temperature Sensor |
| General Information |
| Product Type |
Double Conversion Online UPS |
| Manufacturer Part Number |
GXT5-1000LVRT2UXL |
| Manufacturer Website Address |
http://www.vertiv.com/ |
| Manufacturer |
Vertiv |
| Product Name |

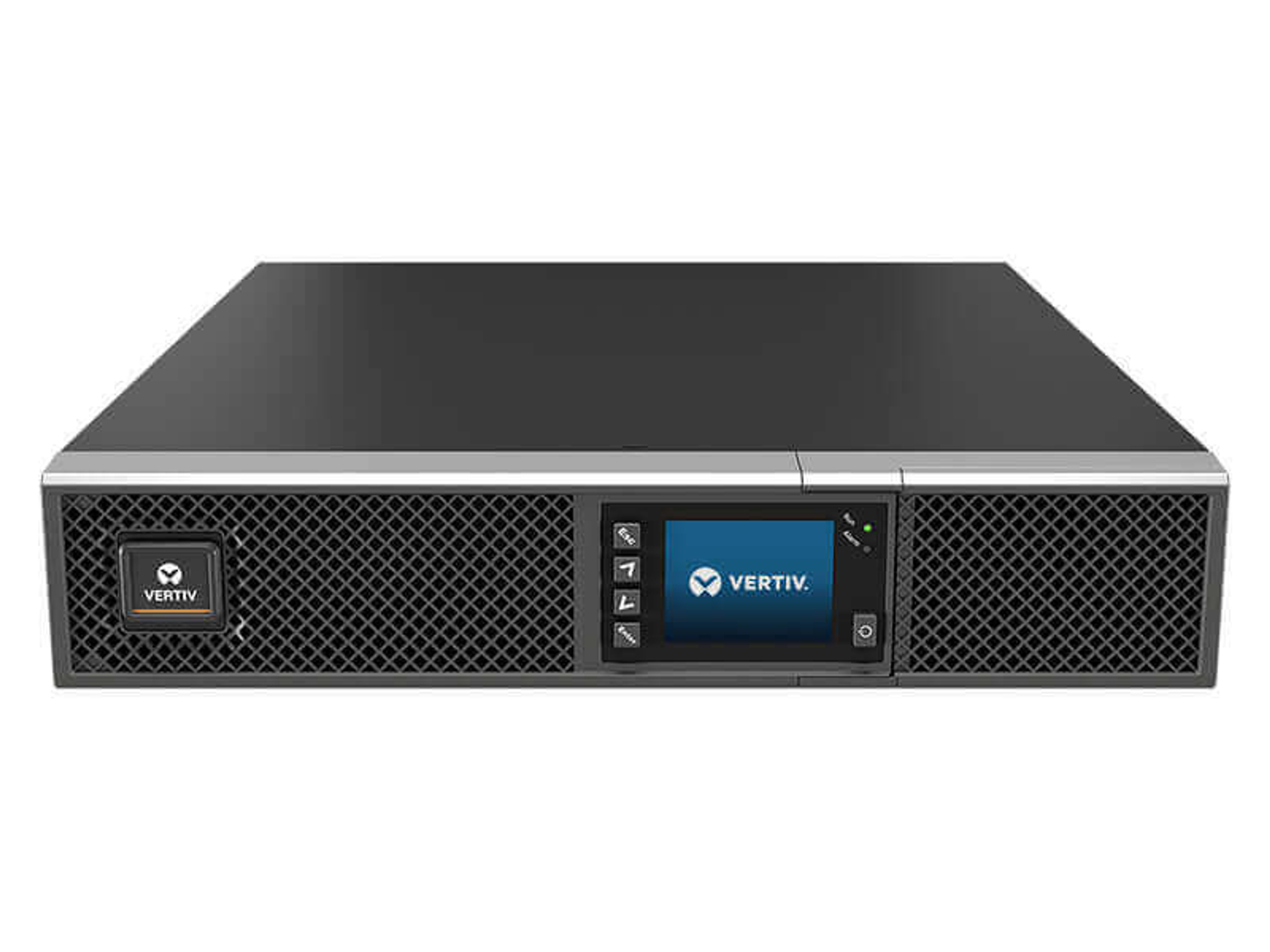

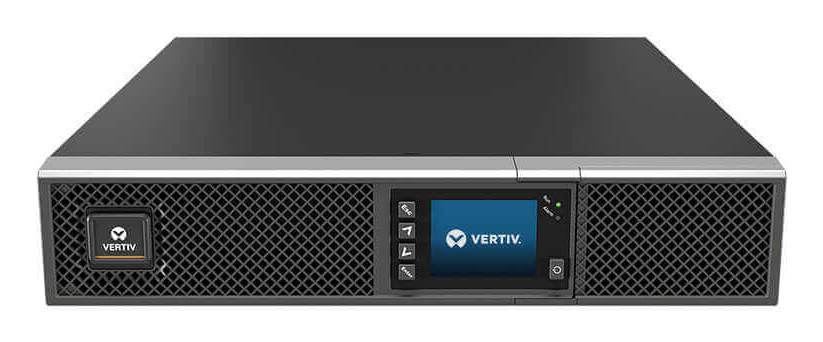

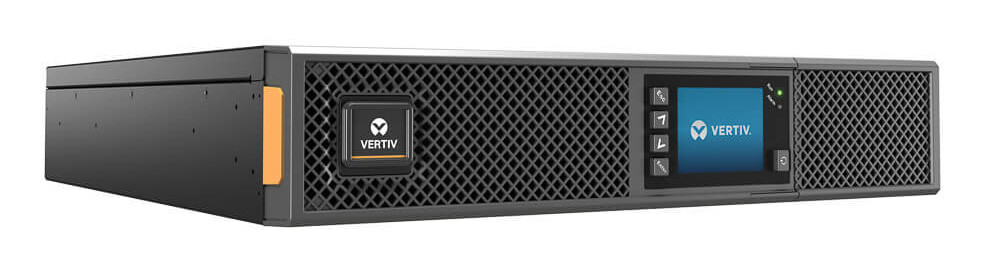

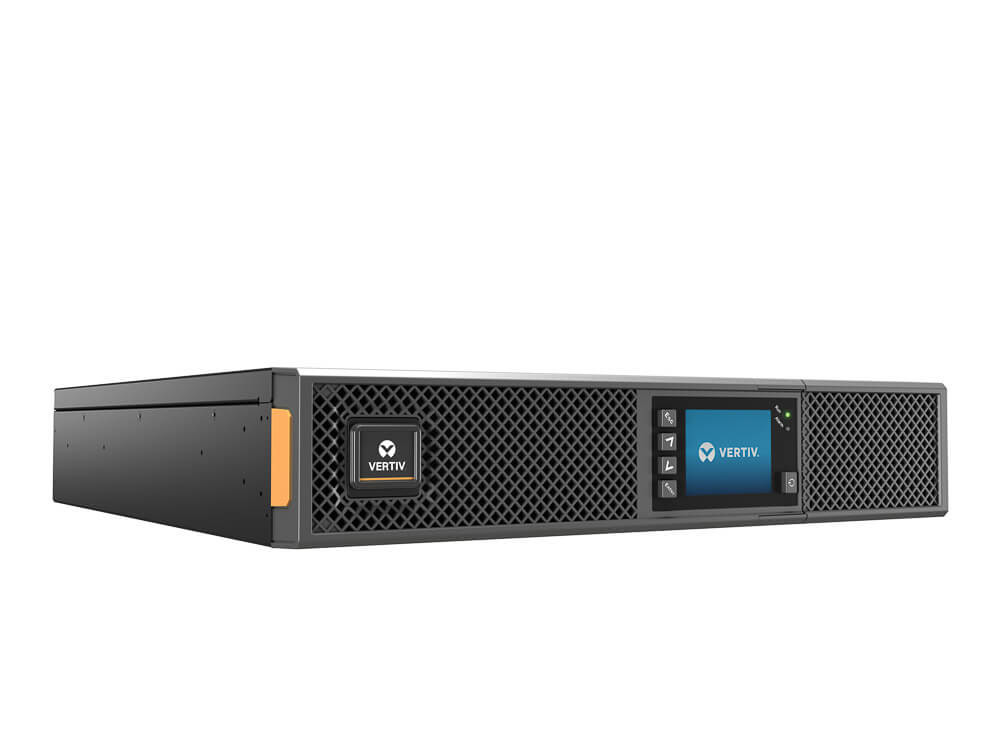

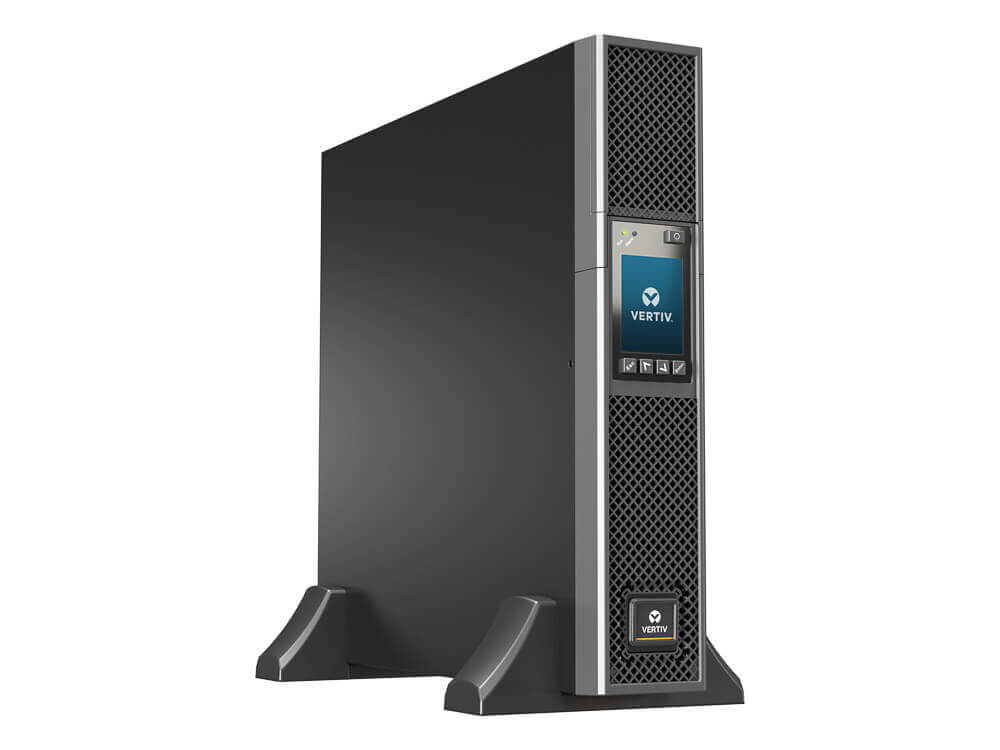

GXT5 1000VA 120V UPS |
| Product Series |
GXT |
| Brand Name |
Liebert |
| Physical Characteristics |
| Weight (Approximate) |
40 lb |
| Form Factor |
Rack/Tower |
| Rack Height |
2U |
| Height |
3.4" |
| Width |
16.9" |
| Depth |
15.7" |
| Product Color |
Black |
| Miscellaneous |
| Additional Information |
- Operating Temperature,°F (°C):+32 to +104 (0 to 40)
- Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
- Relative Humidity:0% to 95%, non-condensing
- Audible Noise:
- <46dBA max @ 3 ft. (1m) front and sides
- < 43dBA, at 3 ft. (1m) rear
|
| Package Contents |
- GXT5 1000VA 120V UPS
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
|
| Software Included |
Free Download - Power Insight 2.2 |
| Certifications & Standards |
- UL1778, 4th Ed.
- FCC Part 15 Class A
- ANSI C62.41 Cat. B
- ISTA 1A
|
| Country of Origin |
China |
| Assembly Required |
No |
| Environmentally Friendly |
Yes |
| TAA Compliant |
No |
| Energy Star |
Yes |
| Technical Information |
| Application/Usage |
IT Equipment |
| |
Mission Critical Equipment |
| Emergency Power OFF |
Yes |
| Plug/Connector Type |
NEMA 5-15P |
| Cord Length |
10 ft |
| Phase |
Single Phase |
| Receptacle Type |
NEMA 5-15R |
| Transfer Time |
0 ns |
| Receptacle Detail |
6 x NEMA 5-15R |
