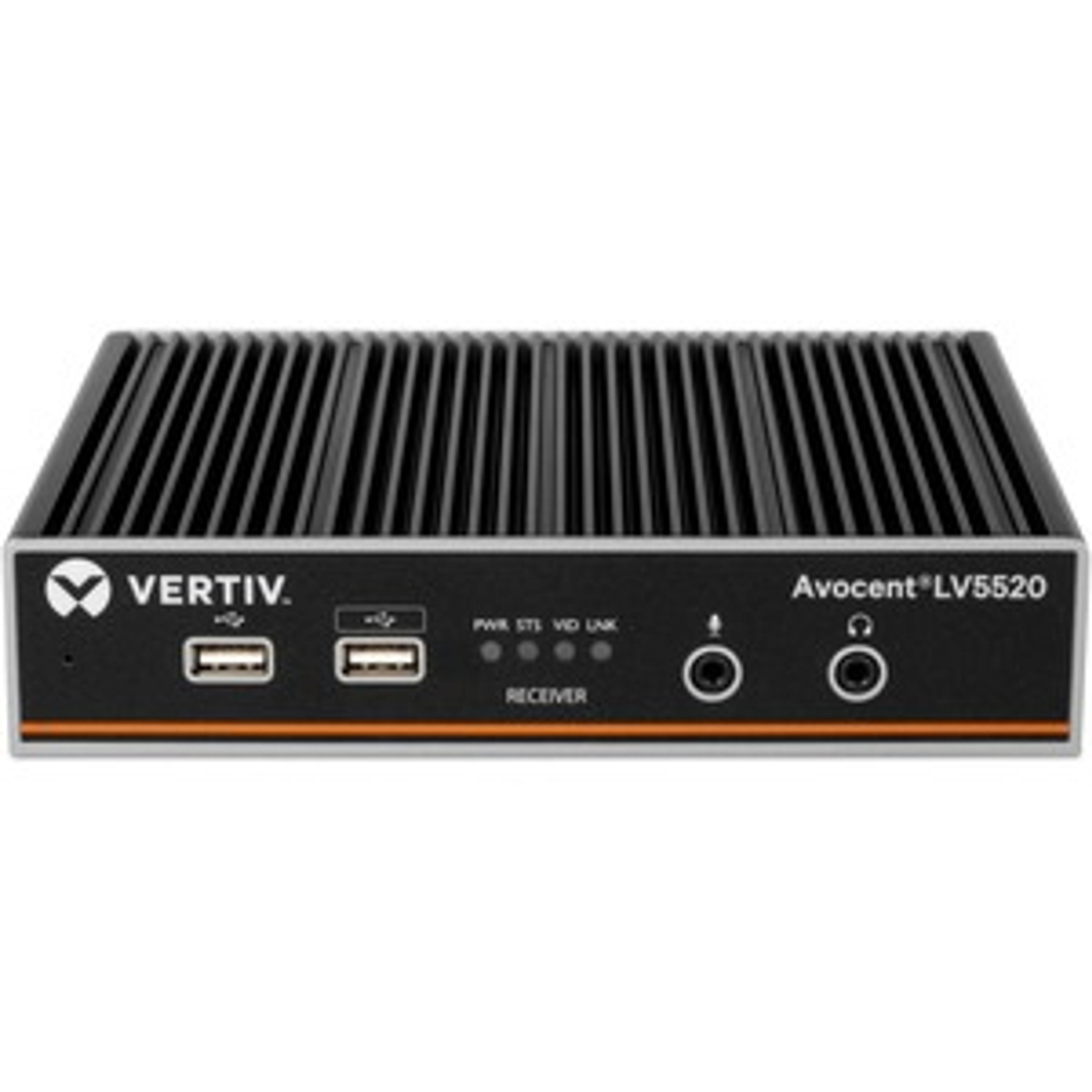

Vertiv LV5520R-400 Dual DP Extender 4K60 USB2.0

Vertiv Avocent LV5520 High-Performance KVM Extender | Receiver - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.

Features

• Delivers seamless KVM control and 4k video transmission.
• Allows for greater distance with the Fiber Option.
• Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
• Plug-and-play with no drivers or software to install, and no on-site configuration required.
• Faster throughput with updated USB.

Specifications:

Warranty Limited Warranty 2 Year Video Maximum Video Resolution 4096 x 2160 Graphic Mode 4K Power Description Input Voltage 230 V AC   120 V AC Power Consumption 18 W Input Voltage Range 100-240 VAC Physical Characteristics Form Factor Rack-mountable Rack Height 1U Receiver Height 1.54" Receiver Width 7.32" Receiver Depth 5.83" Receiver Weight (Approximate) 2.73 lb Product Color Black Technical Information Connectivity Technology Wired Maximum Operating Distance 13123.36 ft KVM Technology Digital Number of Computers Supported 1 Number of Local Users Supported 1 Number of Remote Users Supported 0 Device Type High Performance KVM General Information Product Type KVM Extender Receiver Manufacturer Part Number LV5520R-400 Manufacturer Website Address http://www.vertiv.com/ Packaged Quantity 1 Manufacturer Vertiv Product Model LV5520R Product Name LV5520 High-Performance KVM Extender | Receiver Product Line LongView Product Series 5000 Brand Name AVOCENT Miscellaneous Package Contents LV5520 High-Performance KVM Extender | Receiver 1 x LV5500 Extender Quick Installation Guide 1 x Extender RMK Quick Installation Guide 1 x Compliance/Safety Sheet (See PLM BOM) 1 each 1 x Customer Support/Warranty Card (See PLM BOM) 1 x 3.5mm stereo plug to plug audio cable, 3meter 2 x USB cable, Type A to Type B, 1.8meter 2 x DisplayPort cable, M-M, High Bit-Rate, 2meter 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 1 x China RoHS Declaration 1 x Vertiv document wallet Platform Supported Sun   PC   Mac   Linux   Unix Country of Origin United Kingdom Environmentally Friendly Yes Environmental Certification China RoHS TAA Compliant Yes

Interfaces/Ports Microphone Yes USB Yes HDMI No Number of HDMI Ports 0 DVI No VGA No Headphone Yes Number of Network (RJ-45) Ports 1 Network (RJ-45) Yes Number of USB Ports 2 DisplayPort Yes Proprietary Interface No PS/2 Port No Number of PS/2 Ports 0 DMS-59 Port No Number of ST Ports 0 Number of VGA Ports 0 Digital Audio/Video Yes Number of DVI Ports 0
