Description:

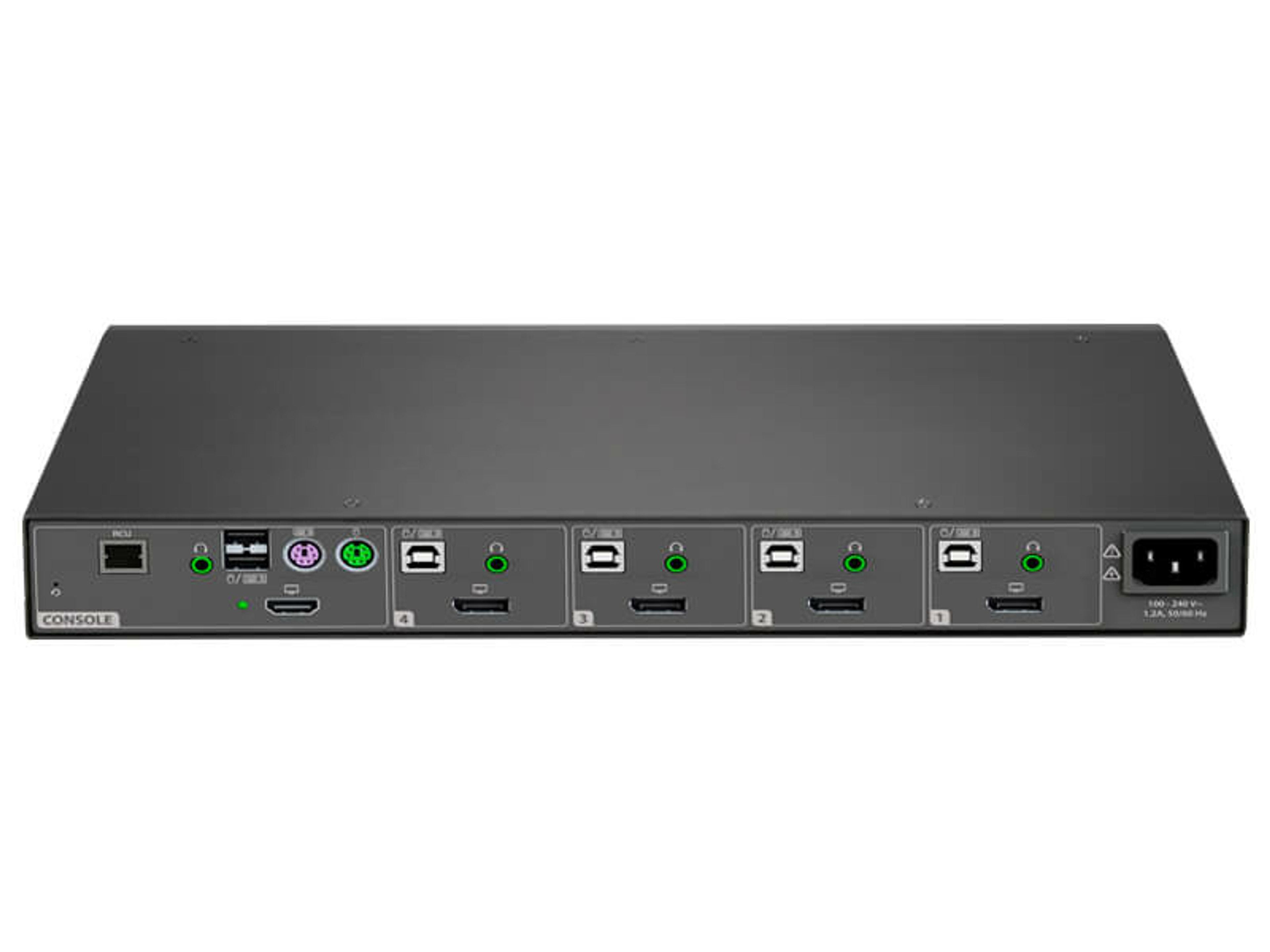

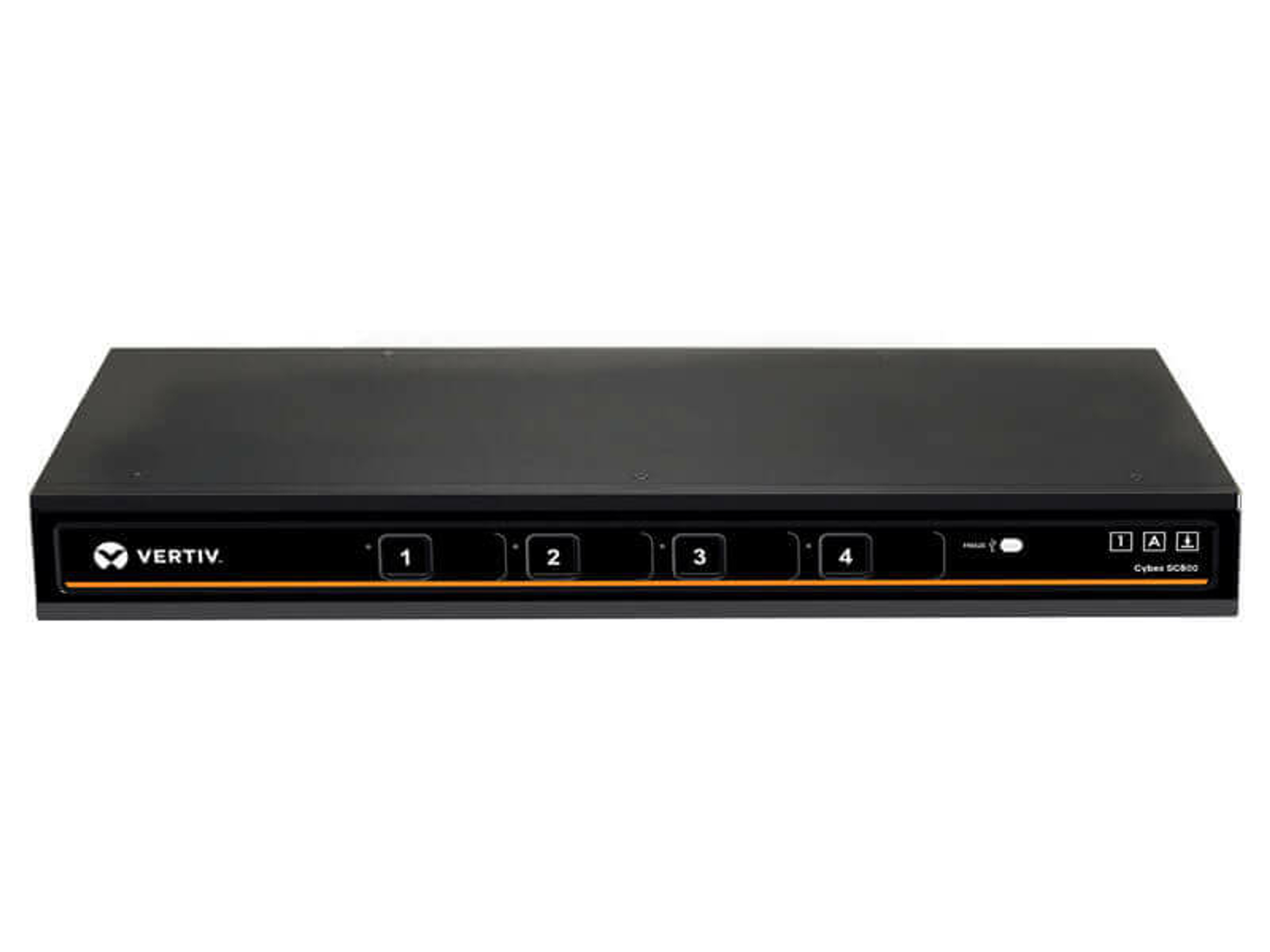

Vertiv Cybex SC900 Secure KVM | Dual Head | 4 Port Universal and DVI-D | NIAP version 4.0 Certified - Secure Desktop KVM Switches | Secure KVM Switch | Dual Head | NIAP Certified | Secure Keyboard | 2 to 8 Port, Secure Isolated Channels | Running up to UHD 4K at 60Hz | 3-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
The Vertiv Cybex SC900 series secure desktop KVM switching portfolio offers a proven solution for guarding against desktop cyber intrusion while working efficiently and with a minimum of clutter. These switches enable users to seamlessly and securely switch between multiple computer resources at the push of a button. Certified to meet the recently released NIAP Common Criteria Protection Profile for Peripheral Sharing Devices (PSD) ver. 4.0, the Vertiv Cybex KVM switches provide high resolution compatibility up to UHD 4K at 60Hz. The Vertiv Cybex SC900 series models are available in single-head and dual-head two-port, four-port, and eight-port options, with the DPHC models coming with a USB-C connection. With a universal port on every unit, the Vertiv Cybex SC900 can use a combination of DP, HDMI, or VDI-D cables without needing additional adaptors.
Features
- Certified to National Information Assurance Partnership (NIAP) Protection Profile V4.0.
- Isolated ports provide discrete processing paths, preventing data leakage between adjacent ports.
- Provides unique, customizable indicators that improve situational awareness of active channels.
- Tamper-evident holographic labels visibly indicate any compromised hardware.
- Gain true image reproduction and display flexibility.
Specifications:
| Power Description |
| Input Voltage Range |
100VAC-240VAC |
| Warranty |
| Limited Warranty |
3 Year |
| Technical Information |
| Maximum Operating Distance |
10 ft |
| Number of Computers Supported |
4 |
| Number of Local Users Supported |
1 |
| Number of Remote Users Supported |
0 |
| Miscellaneous |
| Package Contents |
- Cybex SC940DVI Secure Desktop KVM Switch
- Power Supply
|
| Country of Origin |
United States |
| Environmentally Friendly |
Yes |
| TAA Compliant |
Yes |
| Energy Star |
No |
| Physical Characteristics |
| Weight (Approximate) |
3.70 lb |
| Form Factor |
Rack-mountable |
| |
Desktop |
| Rack Height |
1U |
| Height |
2.2" |
| Width |
13.7" |
| Depth |
5" |
|
| General Information |
| Product Type |
KVM Switchbox |
| Manufacturer Part Number |
SC940DVI-400 |
| Manufacturer Website Address |
http://www.vertiv.com/ |
| Packaged Quantity |
1 |
| Manufacturer |
Vertiv |
| Product Model |
SC940DVI |
| Product Name |
Cybex SC940DVI Secure Desktop KVM Switch |
| Product Line |
Cybex SC |
| Product Series |
900 |
| Brand Name |
AVOCENT |
| Interfaces/Ports |
| USB |
Yes |
| HDMI |
Yes |
| Number of HDMI Ports |
2 |
| DVI |
No |
| VGA |
No |
| Number of Network (RJ-45) Ports |
0 |
| Network (RJ-45) |
No |
| Number of USB Ports |
2 |
| DisplayPort |
Yes |
| Management Port |
No |
| PS/2 Port |
No |
| Number of PS/2 Ports |
0 |
| Number of VGA Ports |
0 |
| Number of DisplayPorts |
2 |
| Number of DVI Ports |
0 |
|
