Name: Lantronix UD1100IA2-01 IA single port 10/100 device server
Brand: Lantronix
SKU: UD1100IA2-01
Availability: InStock

Product Description:

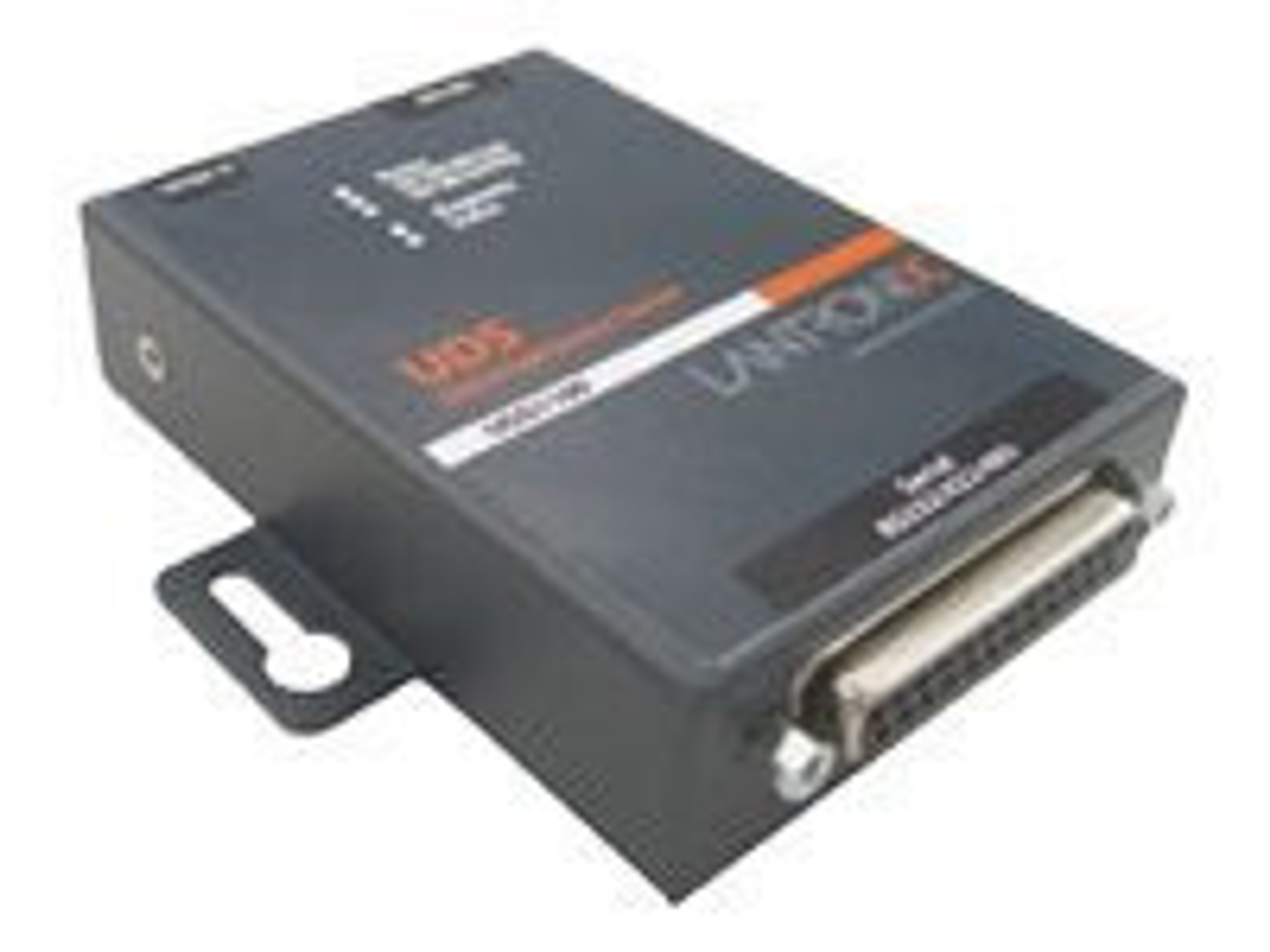

Lantronix Industrial Device Server UDS1100-IAP - Device server - Ethernet, Fast Ethernet, RS-232, RS-422, RS-485

Lantronix UDS1100-IAP is a rugged and powerful tool which enables users to connect, manage and control just about any piece of industrial equipment from virtually anywhere over Ethernet or the Internet. This single-port Device Server is a quick, simple and inexpensive way to bring the advantages of real-time or on-demand information access.

Main Specifications

Product Description	Lantronix Industrial Device Server UDS1100-IAP - device server
Device Type	Device server
Enclosure Type	External
Dimensions (WxDxH)	2.5 in x 3.5 in x 0.9 in
Weight	7.1 oz
Processor	1 x 48 MHz
RAM Installed ( Max )	256 KB
Flash Memory Installed (Max)	2 MB flash
Data Link Protocol	Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol	TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol	SNMP, Telnet, HTTP
Communication Mode	Half-duplex, full-duplex
Features	Flow control, auto-sensing per device, DHCP support, ARP support, manageable, half duplex mode, full duplex mode
OS Required	Microsoft Windows 98/ME/NT/2000/XP
Manufacturer Warranty	2 years warranty

Extended Specifications

General

Device Type	Device server
Width	2.5 in
Depth	3.5 in
Height	0.9 in
Weight	7.1 oz

Processor / Memory / Storage

Processors Installed	1 x 48 MHz
Max Supported Qty	1
RAM Installed ( Max )	256 KB SRAM
Flash Memory Installed (Max)	2 MB flash
Hard Drive	None.

Networking

Form Factor	External
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol	TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol	SNMP, Telnet, HTTP
Communication Mode	Half-duplex, full-duplex
Status Indicators	Link activity, power, status
Features	Flow control, auto-sensing per device, DHCP support, ARP support, manageable, half duplex mode, full duplex mode

Expansion / Connectivity

Interfaces

1 x serial - RS-232/422/485 - 25 pin D-Sub (DB-25)
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45

Miscellaneous

Mounting Kit	Included
Compliant Standards	FCC Class A certified, CSA, TUV, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Class A, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8, WEEE

Power

Power Device

Power adapter - external

Software / System Requirements

OS Required

Microsoft Windows 98/ME/NT/2000/XP

Manufacturer Warranty

Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature	-40 °F
Max Operating Temperature	158 °F
