Lantronix UD1100002-01 Device Server UDS 1100

Lantronix

MSRP: $175.40 SALE PRICE
$159.13

REGULAR PRICE $169.44

(You Save $16.27)

Product Overview:

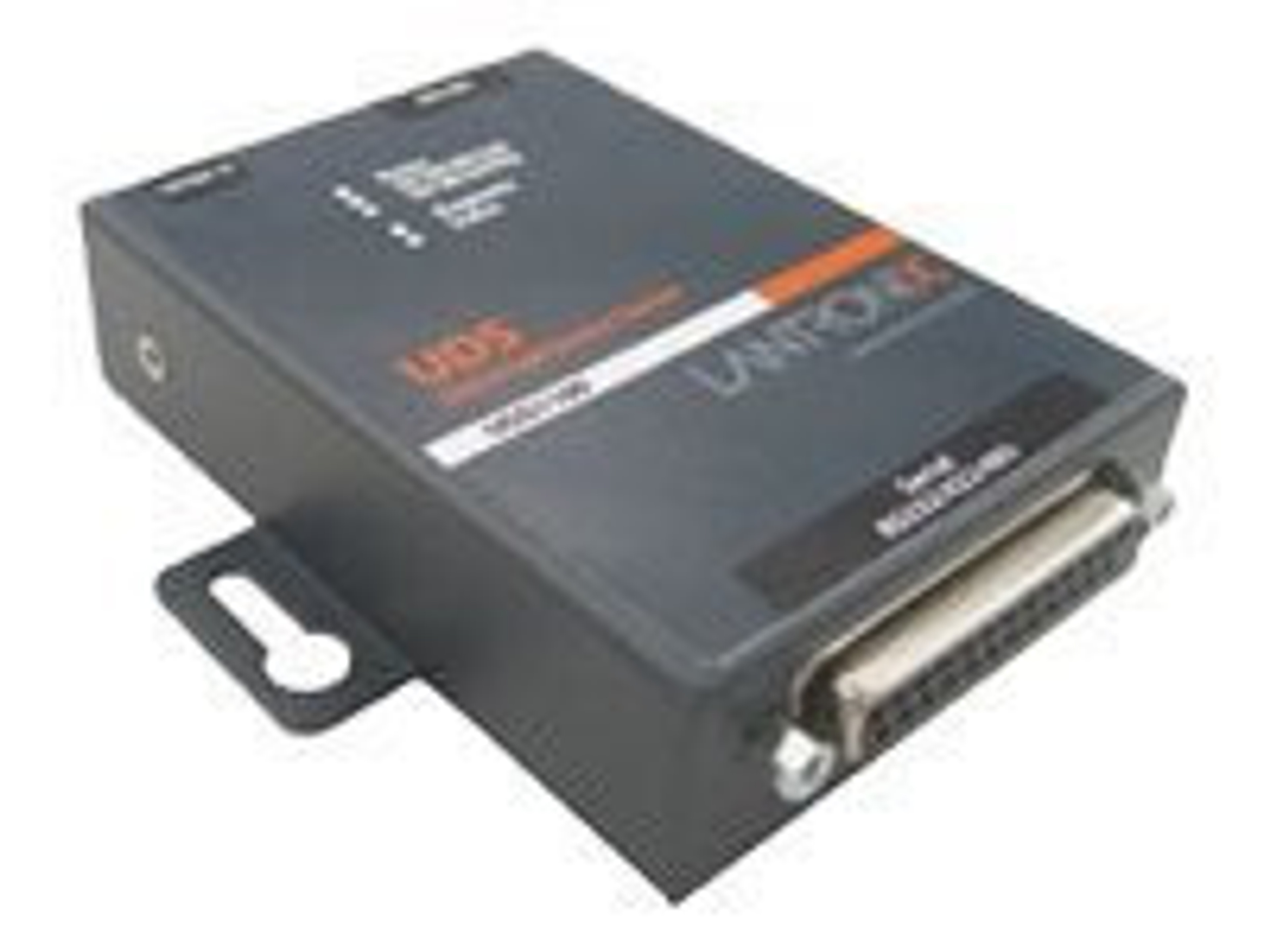

Lantronix Device Server UDS 1100 - Device server - 10Mb LAN, 100Mb LAN, RS-232, RS-422, RS-485

MFG#:UD1100002-01
Product Category:Console Server Accessories
★★★★☆4.1/5
Rate Us on Trustpilot

Additional information

Product Description:

Lantronix Device Server UDS 1100 - Device server - 10Mb LAN, 100Mb LAN, RS-232, RS-422, RS-485
With the UDS1100, virtually any piece of equipment with a serial port can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.

This product is a 100-240 VAC International power supply with regional adapters.



Main Specifications

Product Description Lantronix Device Server UDS 1100 - device server
Device Type Device server
Enclosure Type External
Dimensions (WxDxH) 2.5 in x 3.5 in x 0.9 in
Weight 7.1 oz
Processor 1 x 48 MHz
RAM Installed ( Max ) 256 KB
Flash Memory Installed (Max) 2 MB flash
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Features Flow control, DHCP support, ARP support, half duplex mode, full duplex mode
OS Required Microsoft Windows 98/ME/NT/2000/XP
Power AC 120/230 V
Manufacturer Warranty 1 year warranty


Extended Specifications

General
Device Type Device server
Width 2.5 in
Depth 3.5 in
Height 0.9 in
Weight 7.1 oz
Processor / Memory / Storage
Processors Installed 1 x 48 MHz
Max Supported Qty 1
RAM Installed ( Max ) 256 KB SRAM
Flash Memory Installed (Max) 2 MB flash
Hard Drive None.
Networking
Form Factor External
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP
Remote Management Protocol SNMP, Telnet, HTTP
Status Indicators Link activity, power, status
Features Flow control, DHCP support, ARP support, half duplex mode, full duplex mode
Expansion / Connectivity
Interfaces 1 x serial - RS-232/422/485 - 25 pin D-Sub (DB-25)
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Compliant Standards FCC Class A certified, CSA, TUV, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Class A, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8
Power
Voltage Required AC 120/230 V
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows 98/ME/NT/2000/XP
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
