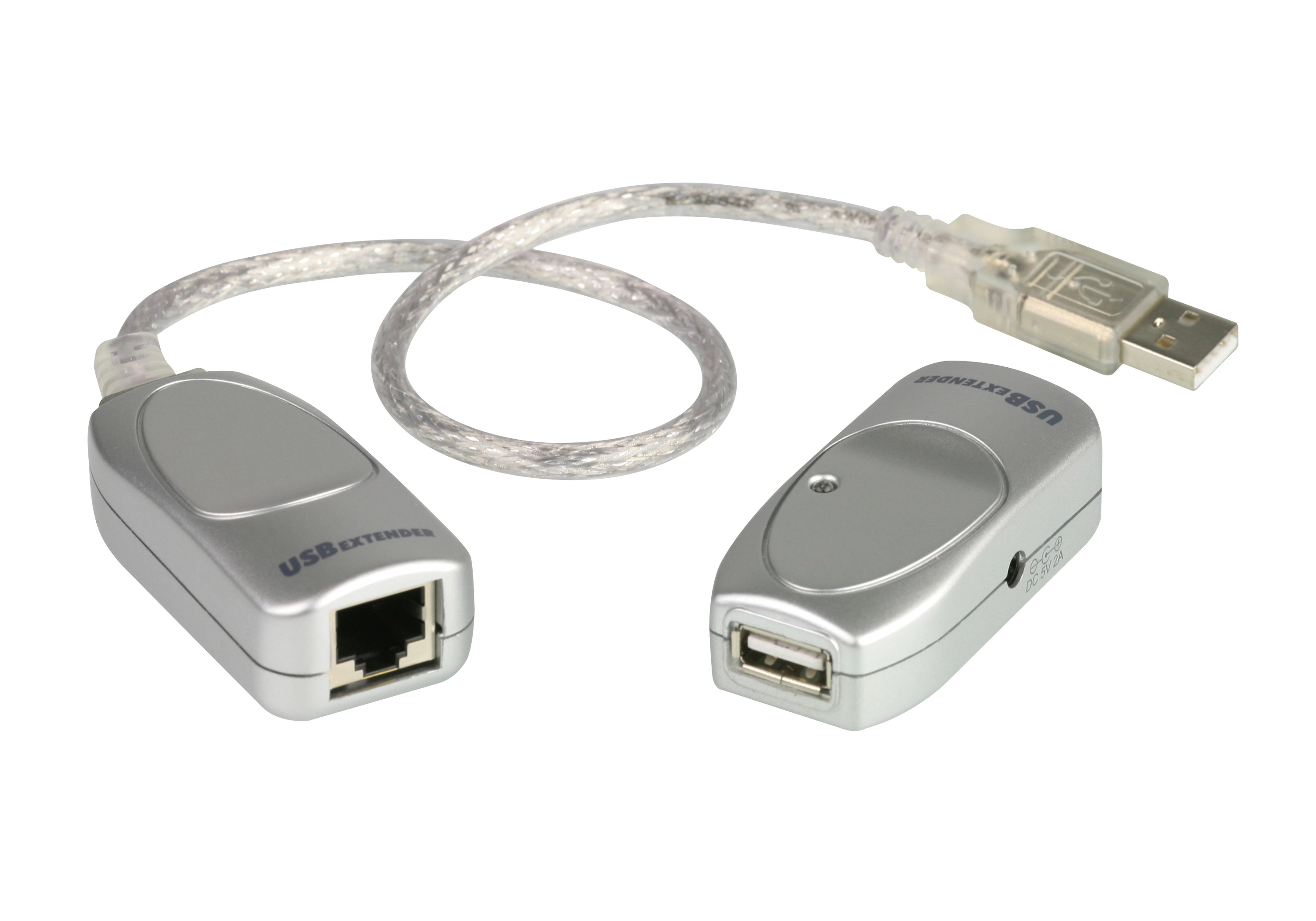

Aten UCE60 USB Cat5 Extender

Description:

CE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Cat 5/Cat 5e/Cat 6 cable.

Features

USB 1.1 compliant. Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices. Extends the transmission distance of a USB device up to 60m (198 ft) using Cat 5/ Cat 5e/ Cat 6 cabling. Embedded USB 1.1 Transceivers prevent signal loss. Lowest cost solution for extending USB signals. No additional installation software required. LED indicates when additional external power supply needed. Multiplatform support: Windows 2000/XP/Vista Mac.

Package Content

1x Local Unit (1 ft USB Cable attached) 1x Remote Unit

Diagram

Specification

Connectors Local Unit Upstream Port 1 x USB Type A Male  (White) Downstream Port 1 x RJ-45 Female Remote Unit Upstream Port 1 x USB Type A Female (White) Downstream Port 1 x RJ-45 Female Built-in Cable length (Local) 1' Interconnect Cable Standard Cat5/5e/6  Network Cable Signal Range 60m (198') Supply Current Drawn 20mA Environment Operating Temperature 0-40˚C Storage Temperature -40-85˚C
