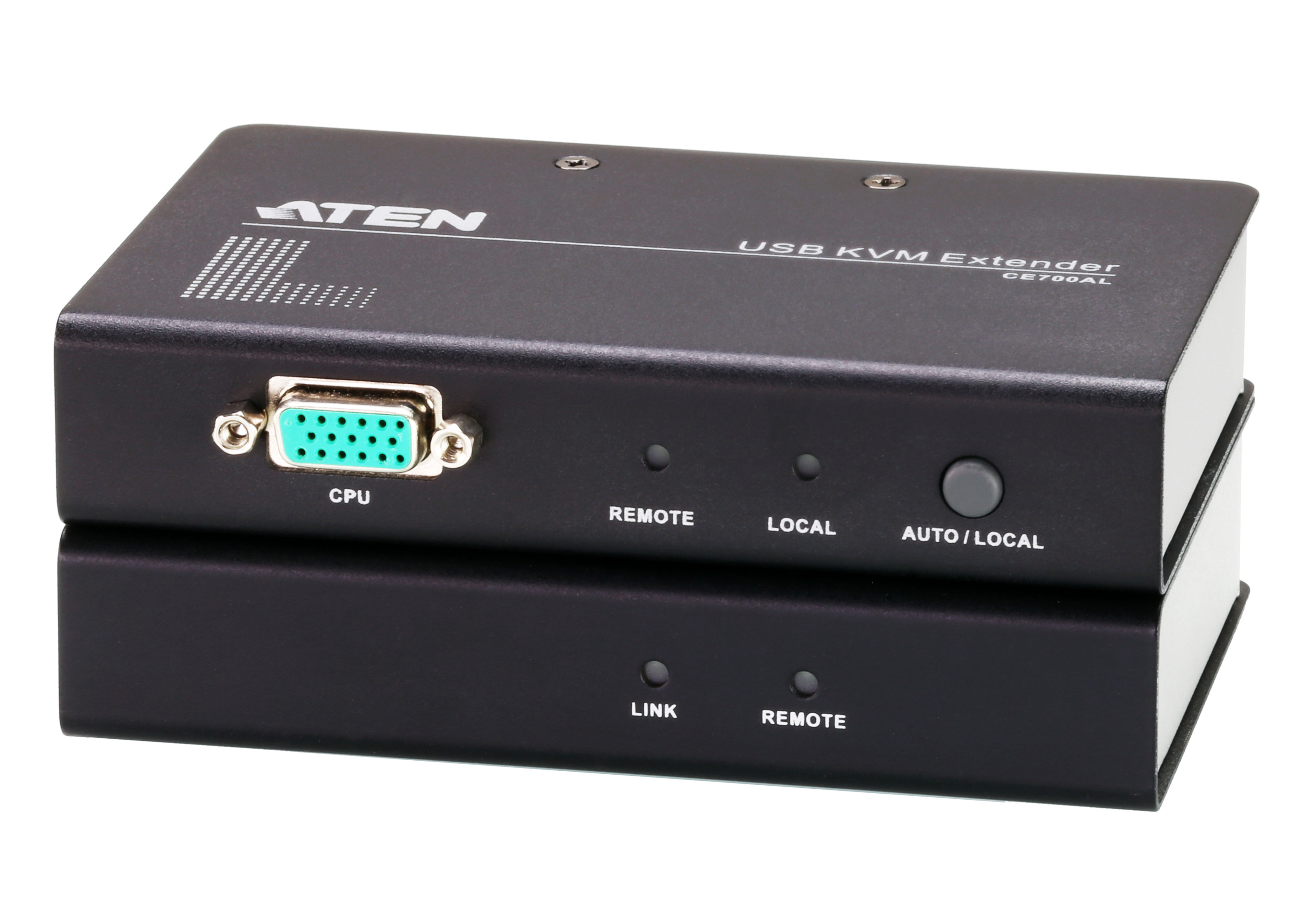

Aten CE700A Cat5 USB KVM Console Extender up to 500 ft.

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Features

Cat 5e cable connects the Local and Remote Units - up to 150m apart Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) USB Keyboard and USB Mouse Ports USB overcurrent detection and prevention Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection Automatic gain control - adjusts signal strength to compensate for distance High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m) Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes Multiplatform support - Windows, Linux

Package Content

1x CE700AL USB KVM Extender (Local Unit) 1x CE700AR USB KVM Extender (Remote Unit) 2x Power Adapters 1x USB KVM Cable (1.8m) 2x Grounding Wires 1x Rack Mount Kit 1x User Manual 1x Quick Start Guide

Specification

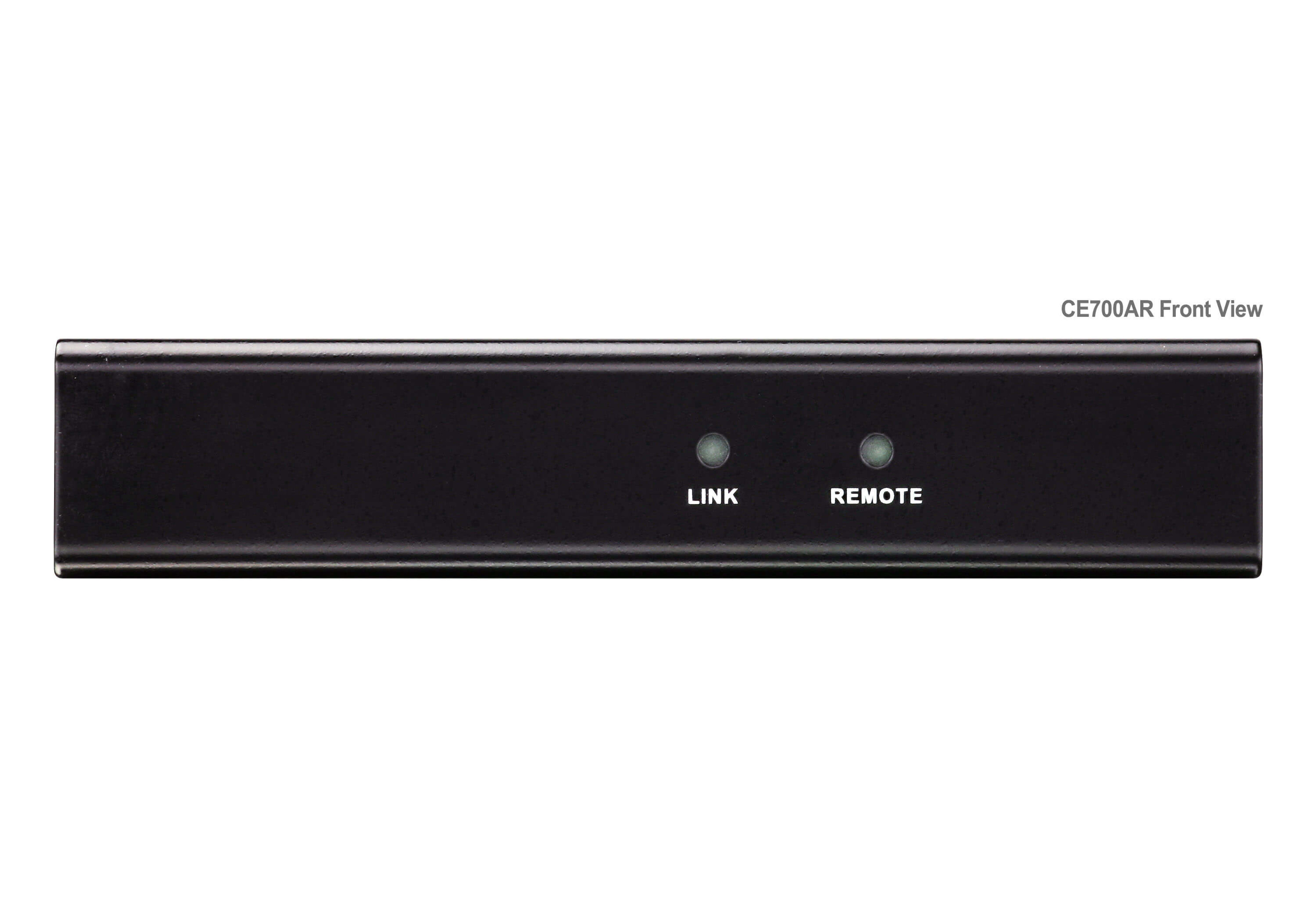

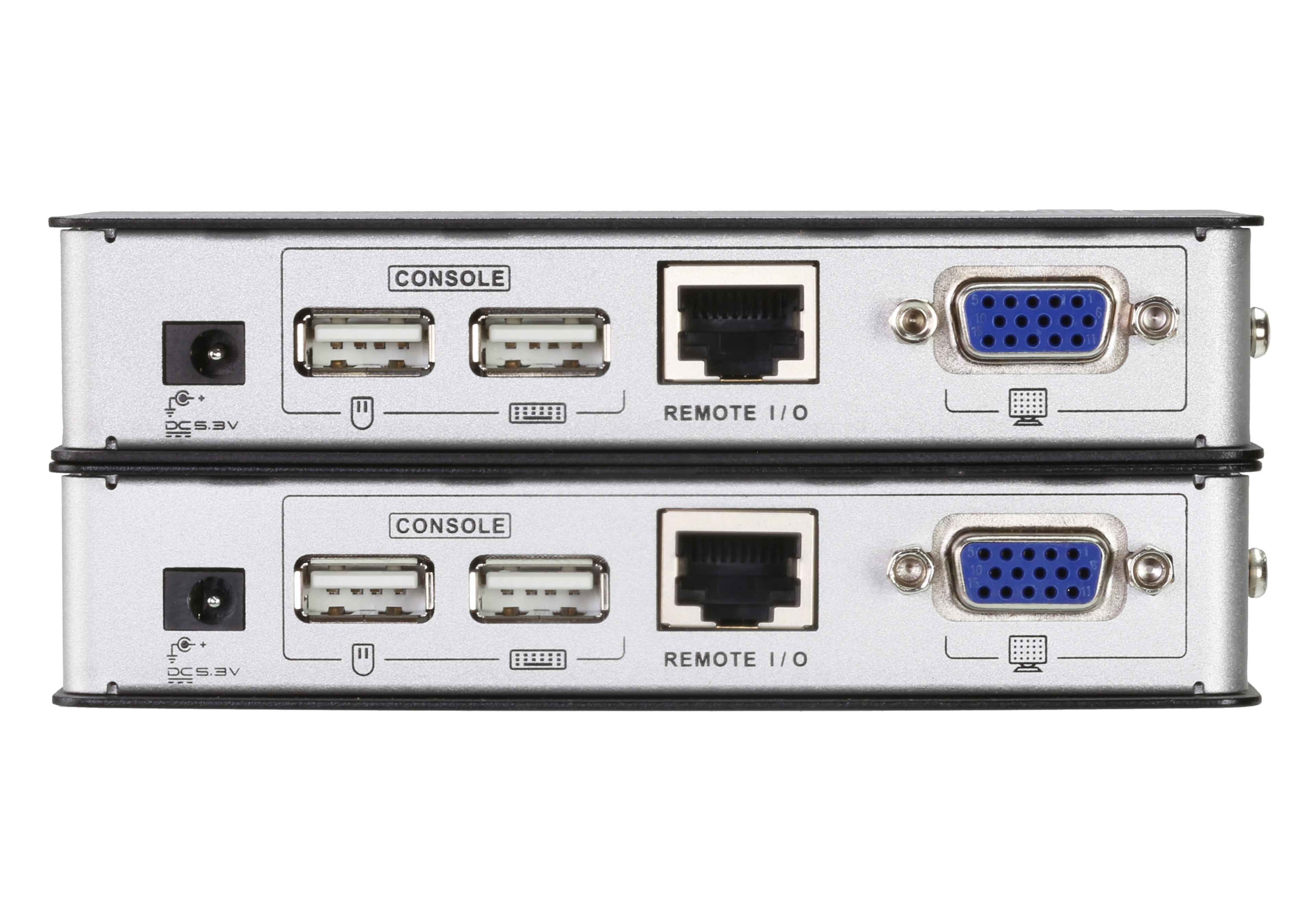

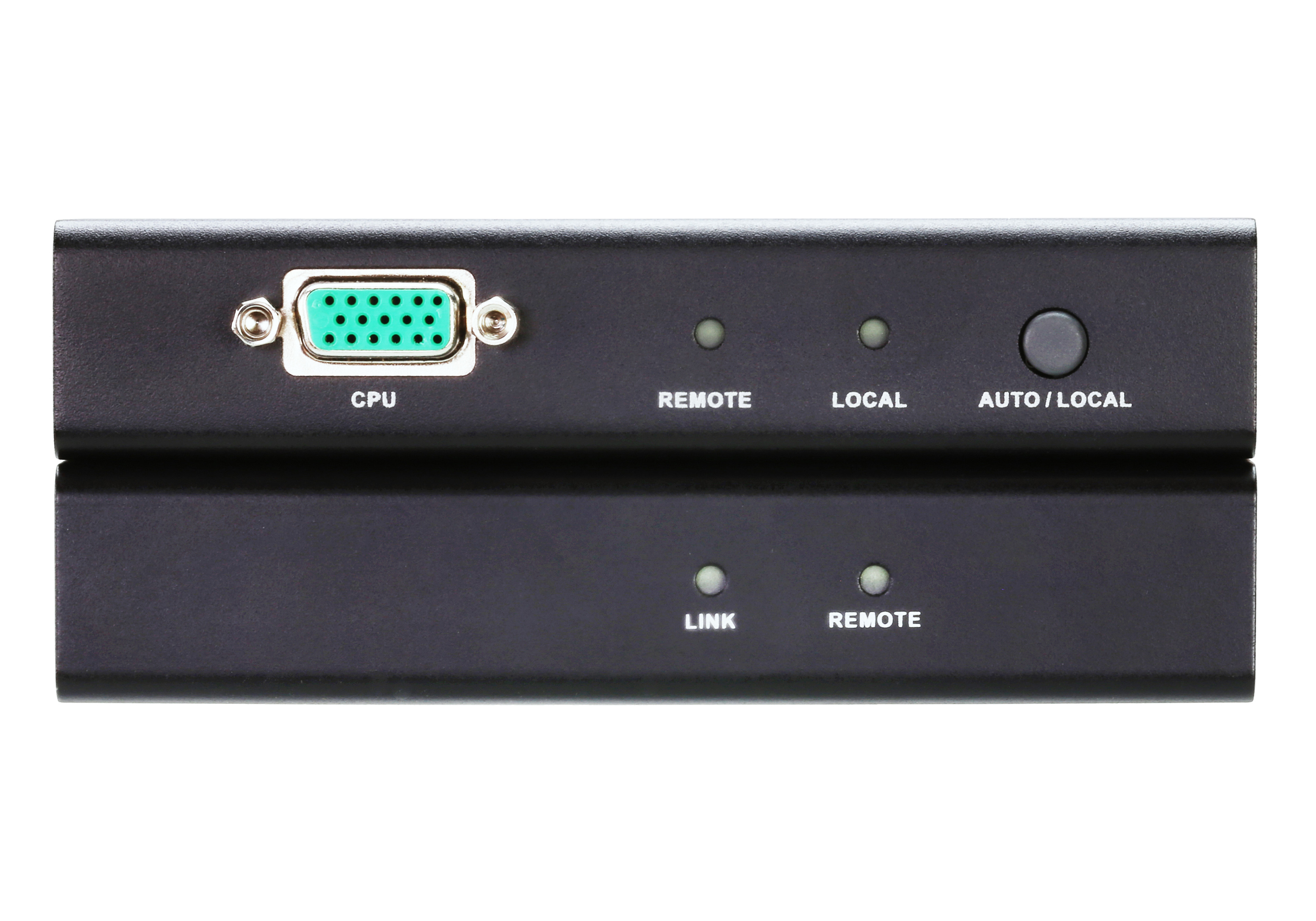

Function CE700AL CE700AR Connectors Console Ports Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) KVM Ports Keyboard/ Video / Mouse 1 x SPHD-17 Female (Green) N/A Unit to Unit 1 x RJ-45 Female (Black) Power 1 x DC Jack (Black) Pushbuttons Operating Mode Selection 1 x Pushbutton N/A LEDs Local 1 (Green) N/A Remote 1 (Green) 1 (Green) Link N/A 1 (Green) Emulation Keyboard / Mouse USB Power Consumption DC5.3V/2.31W DC5.3V/2.84W Video 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m) Environment Operating Temp. 0 - 50°C Storage Temp. -20 - 60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 0.32 kg 0.31 kg Dimensions (L x W x H) 12.50 x 8.15 x 2.50 cm
