Description:

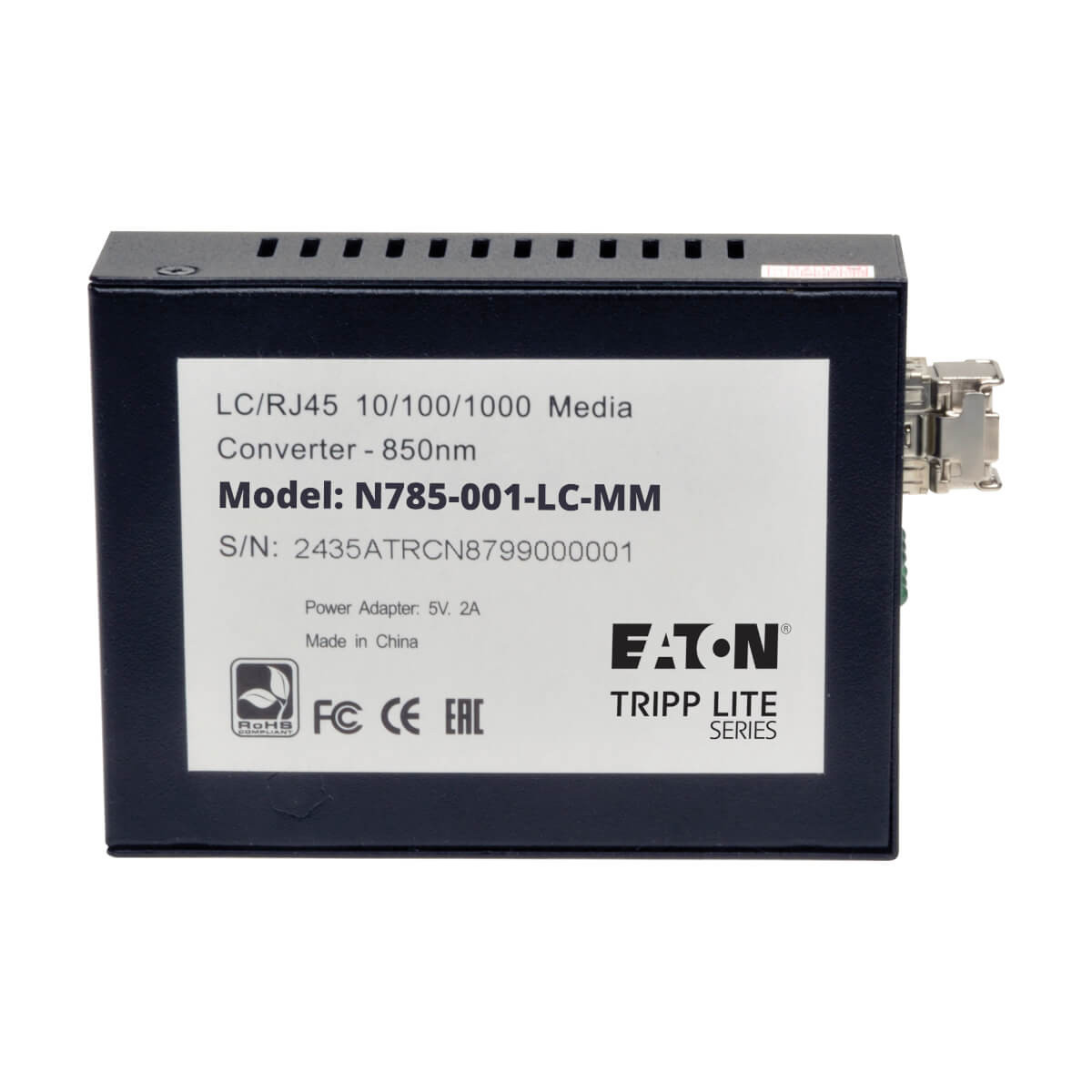

LC MULTIMODE MEDIA CONVERTER 10/100/1000 RJ45 LC 550M 850NM
Specifications:
OVERVIEW
| UPC Code |
037332183927 |
| Product Type |
Fiber to Ethernet |
| Technology |
Cat5/5e; Cat6; Multimode |
| Mode Type |
Multimode |
DISPLAY
| Accessories (Included) |
External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A) |
NETWORK
| Network Ports |
RJ45 (FEMALE); LC (FEMALE) |
INPUT
| AC Power Adapter Plug(s) |
NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) |
100-240V / 50/60Hz / 1.2A |
| AC Power Adapter Output Specs (V / A) |
5V / 2A |
| AC Power Adapter Cord Length (ft.) |
4.53 |
| AC Power Adapter Cord Length (m) |
1.38 |
POWER
| Power Source Type |
AC Adapter |
| AC Adapter |
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A |

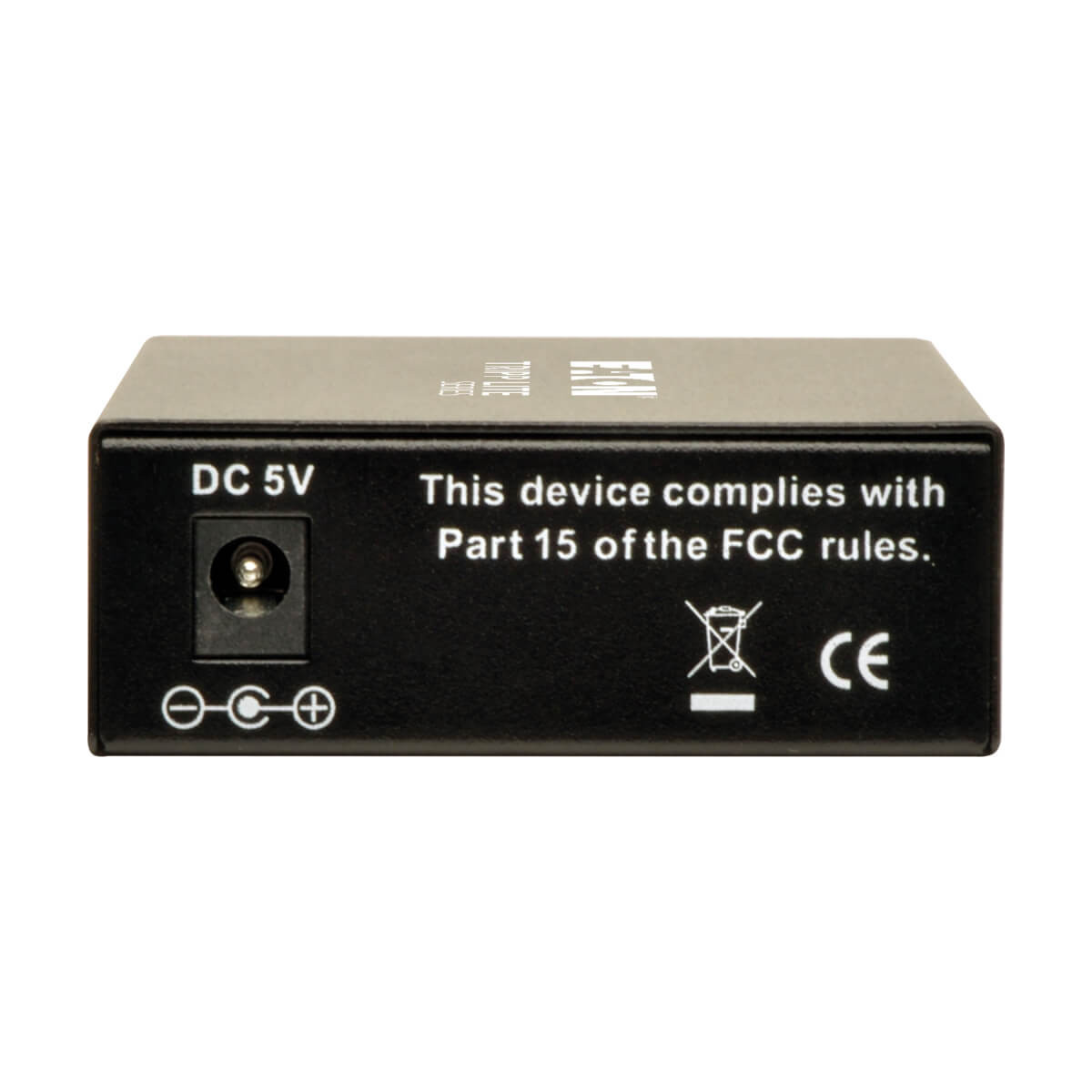

| DC Barrel Plug |
OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve |
USER INTERFACE, ALERTS & CONTROLS

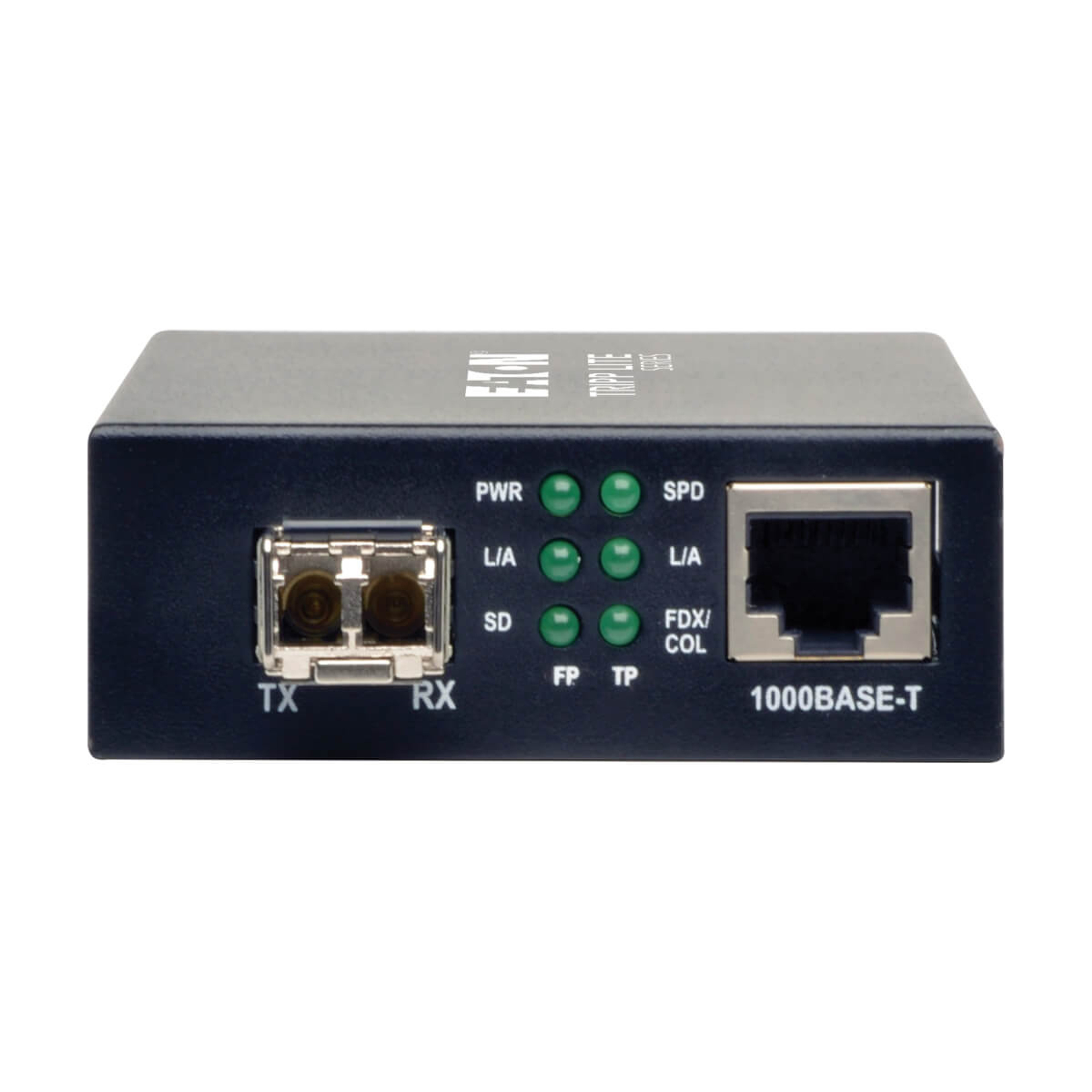

| LED Indicators |
PWR (Power LED), L/A (Fiber port connection indicator), SD (Fiber signal indicator), SPD (Network speed), TP-L/A (Copper port connection indicator), FDX/COL (Full Duplex/Half Duplex) |
PHYSICAL
| Color |
Black |
| Power Cord Color |
Black |
| Shipping Dimensions (hwd / in.) |
3.70 x 1.02 x 2.76 |
| Shipping Weight (lbs.) |
0.95 |
| Unit Dimensions (hwd / in.) |
0.000 x 0.000 x 0.000 |
| Unit Packaging Type |
Box |
| Unit Weight (lbs.) |
1.00 |
| Housing |
Metal |
ENVIRONMENTAL
| Operating Temperature Range |
32° to 140°F (0° to 60°C) |
| Storage Temperature Range |
-4° to 158°F (-20° to 70°C) |
| Relative Humidity |
5% to 90% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility |
10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit) |
| Network Speed Details |
10 Mbps; 100 Mbps; 1000 Mbps |
| Wavelength |
850nm |
| Transmission Distance |
550 m |
| IEEE Standards Supported |
802.3; 802.3u; 802.3ab; 802.3z |
| Wavelength Division Multiplexing (WDM) |
Yes |
CONNECTIONS
| Side A - Connector 1 |
RJ45 (FEMALE) |
| Side B - Connector 1 |
LC DUPLEX (FEMALE) |
FEATURES & SPECIFICATIONS
| Data Transfer Rate |
1 Gbps; 10 Mbps; 100 Mbps |
| Working Mode |
Full/Half Duplex |
| Auto MDIX Support |
Yes |
| Optical Port |
LC |
STANDARDS & COMPLIANCE
| External Power Supply Certifications |
CE; FCC; cUL; WEEE |
| Product Compliance |
RoHS; CE (Europe); FCC (USA) |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) |
2-year limited warranty |
