Description:
Tripp Lite Server Remote Control External KVM over IP RS-232 Port TAA GSA - 1 x 1 - 1 x Keyboard/Mouse/Video - 0U - Rack-mountable RS-232 RJ45 HD15F PS/2 USB DB9 TAA
Tripp Lite's B051-000 is an IP implemented KVM solution that allows network administrators to access a server or KVM switch from any station connected to the network, whether from the LAN, WAN, or the Internet. Network administrators can enjoy freedom from being bound to the server room; work from anywhere in the office, remote locations, or even from home! Since the B051-000 uses TCP/IP as its communication protocol, network administrators can remotely access attached KVM switches, allowing remote control of the attached servers to perform many tasks with ease and speed, such as installing and running GUI applications, BIOS level troubleshooting, routine monitoring, system maintenance, system administration, and rebooting. It supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java Client. The server can be accessed whether it is down the hall, on the other side of town, or thousands of miles away! Utilizing advanced security technologies, the B051-000 provides password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout to make sure that remote access is secure. The B051-000 offers high resolution (up to 1600 x 1200 @ 60Hz), user-friendly Windows GUI Client Software and Java client software. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Specifications:
Number of Computers Supported |
1 |
Warranty
Power Description
Input Voltage |
110 V AC |
220 V AC |
Video
Maximum Video Resolution |
1600 x 1200 |
Graphic Mode |
UXGA |
Interfaces/Ports
USB |
Yes |
Number of Network (RJ-45) Ports |
1 |
Network (RJ-45) |
Yes |
Number of USB Ports |
1 |
Serial Port |
Yes |
Miscellaneous

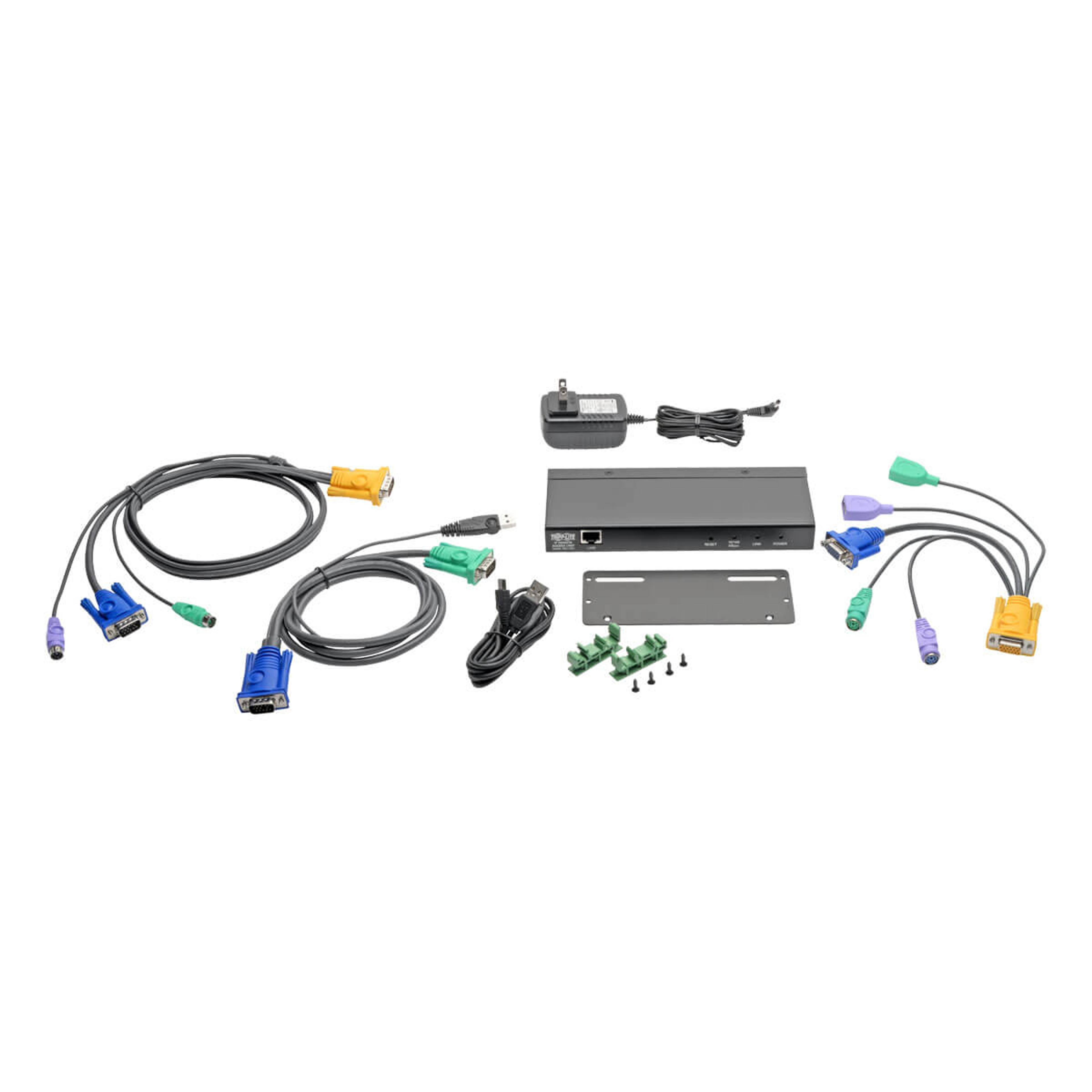

Package Contents |
- B051-000 IP Remote Access KVM Switch
- 1 x USB KVM Cable Kit
- 1 x PS/2 KVM Cable Kit
- 1 x USB - PS/2 Console Connector Kit
- 1 x USB 2.0 Virtual Media Cable
- 1 x Power Adapter
- 1 x Rack-mounting Kit
- 1 x Software CD with Owner's Manual
- 1 x Quick Start Guide
|
Country of Origin |
Taiwan |
Environmentally Friendly |
Yes |
Environmental Certification |
RoHS |
WEEE |
Physical Characteristics
Weight (Approximate) |
1.08 lb |
Form Factor |
Rack-mountable |
Height |
1" |
Width |
7.9" |
Depth |
3.2" |
General Information
Product Type |
KVM Switchbox |
Manufacturer Part Number |
B051-000 |
Manufacturer Website Address |
http://www.tripplite.com |
Manufacturer |
Tripp Lite |
Product Model |
B051-000 |
Product Name |
B051-000 IP Remote Access KVM Switch |
Brand Name |
Tripp Lite |
