Tripp Lite B002-HD1AC4-N4 4-Port KVM Switch - Secure Data Management

Tripp Lite

Regular Price $1,960.00
Discount Price: $1,095.00
UPC:
37332275264
MFG#:
B002-HD1AC4-N4
Product Category:
KVM Switches
Manuals Brochures and Guides:
Adding to cart… The item has been added

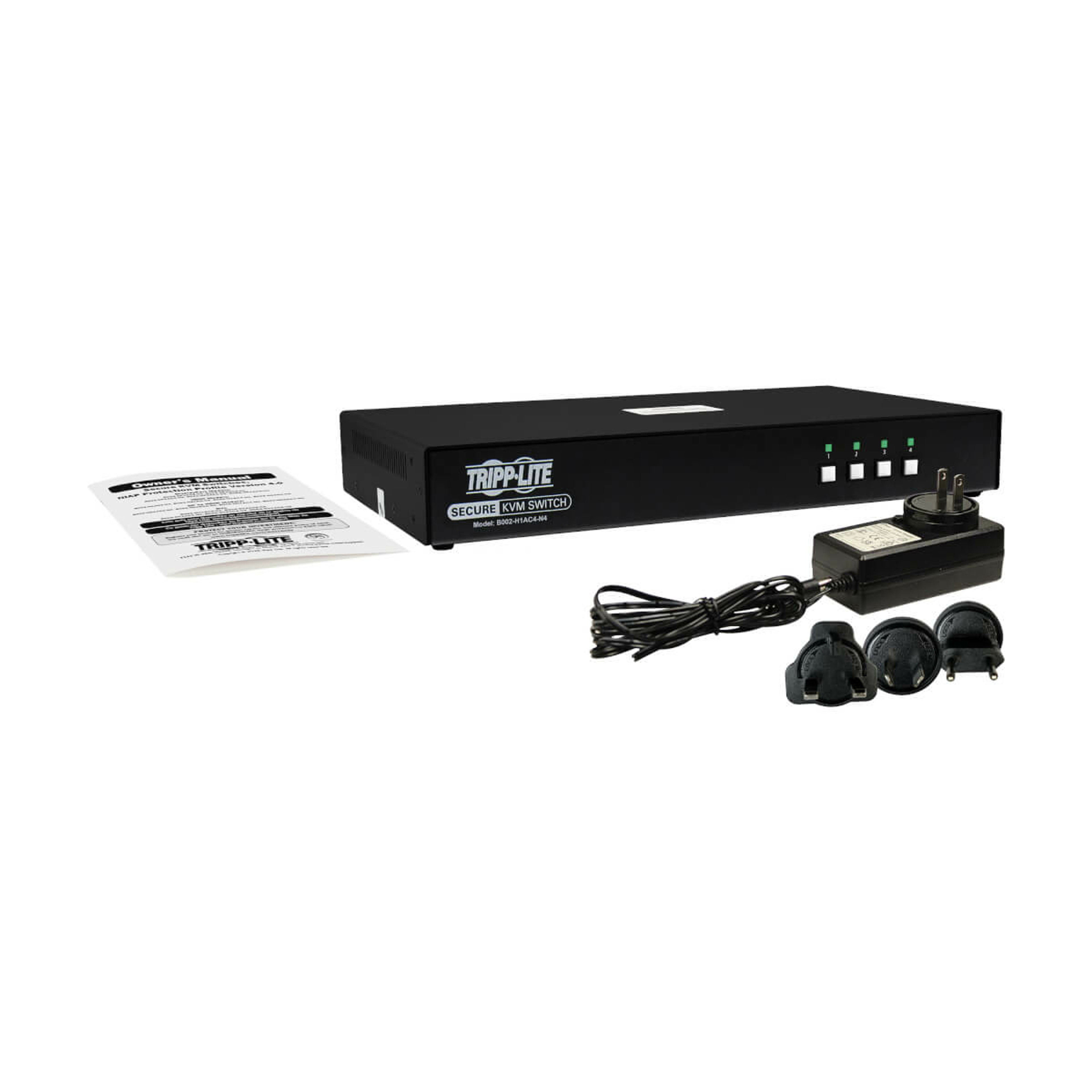

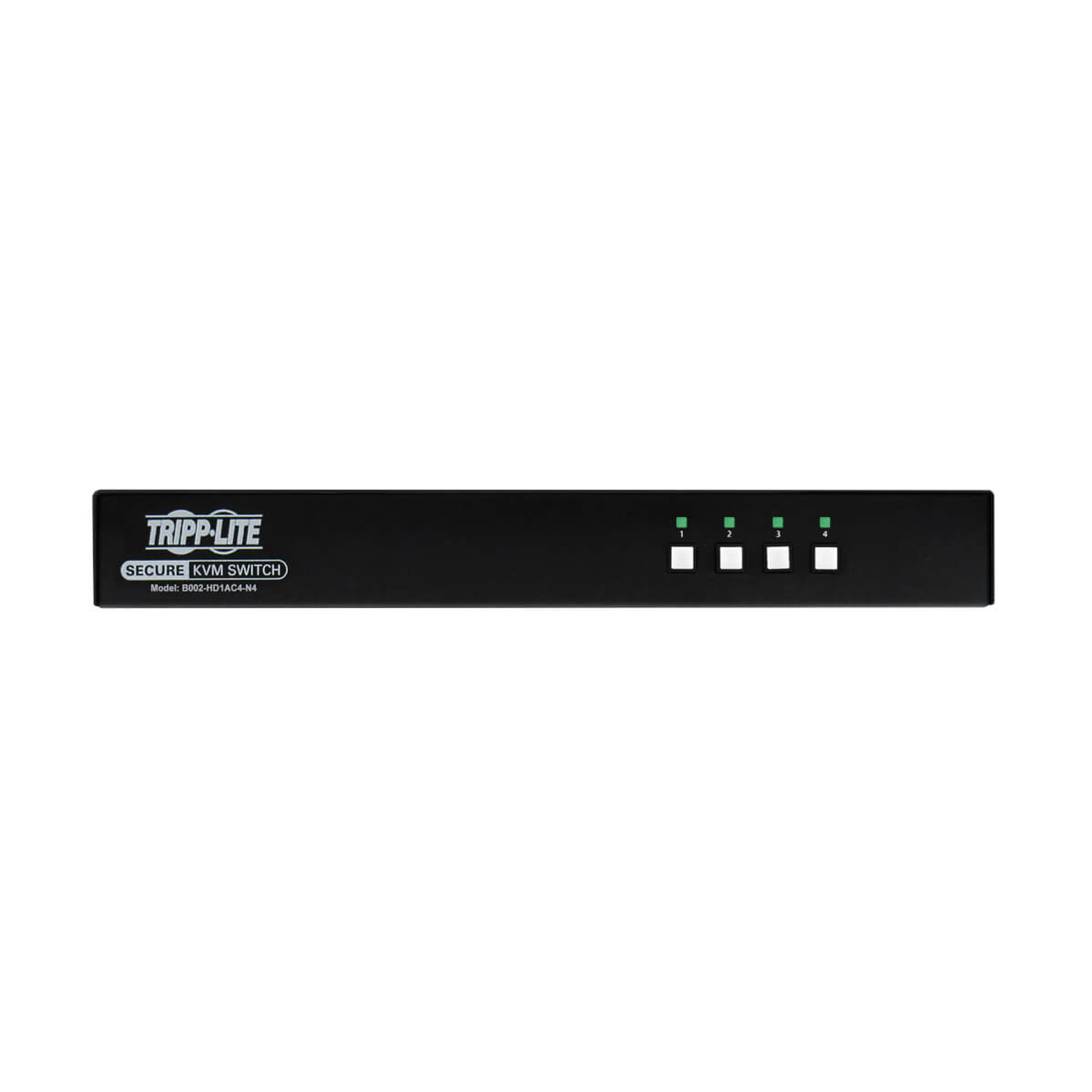

Tripp Lite B002-HD1AC4-N4 4-Port KVM Switch - Secure Data Management

Ideal for Secure Networks: The Tripp Lite 4-Port KVM Switch is designed for environments that require stringent data security, such as government, military, finance, education, and healthcare. With electronically isolated channels for each KVM port, it ensures that sensitive data remains secure and prevents any data transfer between connected computers, even if they operate at different security levels.

NIAP PP4.0 Certified: This KVM switch meets the latest information assurance standards, certified by the National Information Assurance Partnership (NIAP). It features discrete processing paths to prevent data leakage and crosstalk, ensuring that data flows securely from device to host.

Top Security Features: The switch includes anti-tampering protection that disables the unit if the housing is opened, and it clears the keyboard buffer automatically after data transmission. Access to connected computers is restricted to the switch’s panel buttons, enhancing data integrity.

Supports Biometric Authentication: The Common Access Card (CAC) port allows for the use of smart cards and biometric readers, providing an additional layer of security for user authentication.

Seamless Switching Experience: With full USB device filtering and support for UHD resolutions up to 4K @ 60 Hz, this KVM switch ensures smooth, no-delay switching while preventing unwanted data transmission through DDC lines.

TAA-Compliant: The B002-HD1AC4-N4 is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.

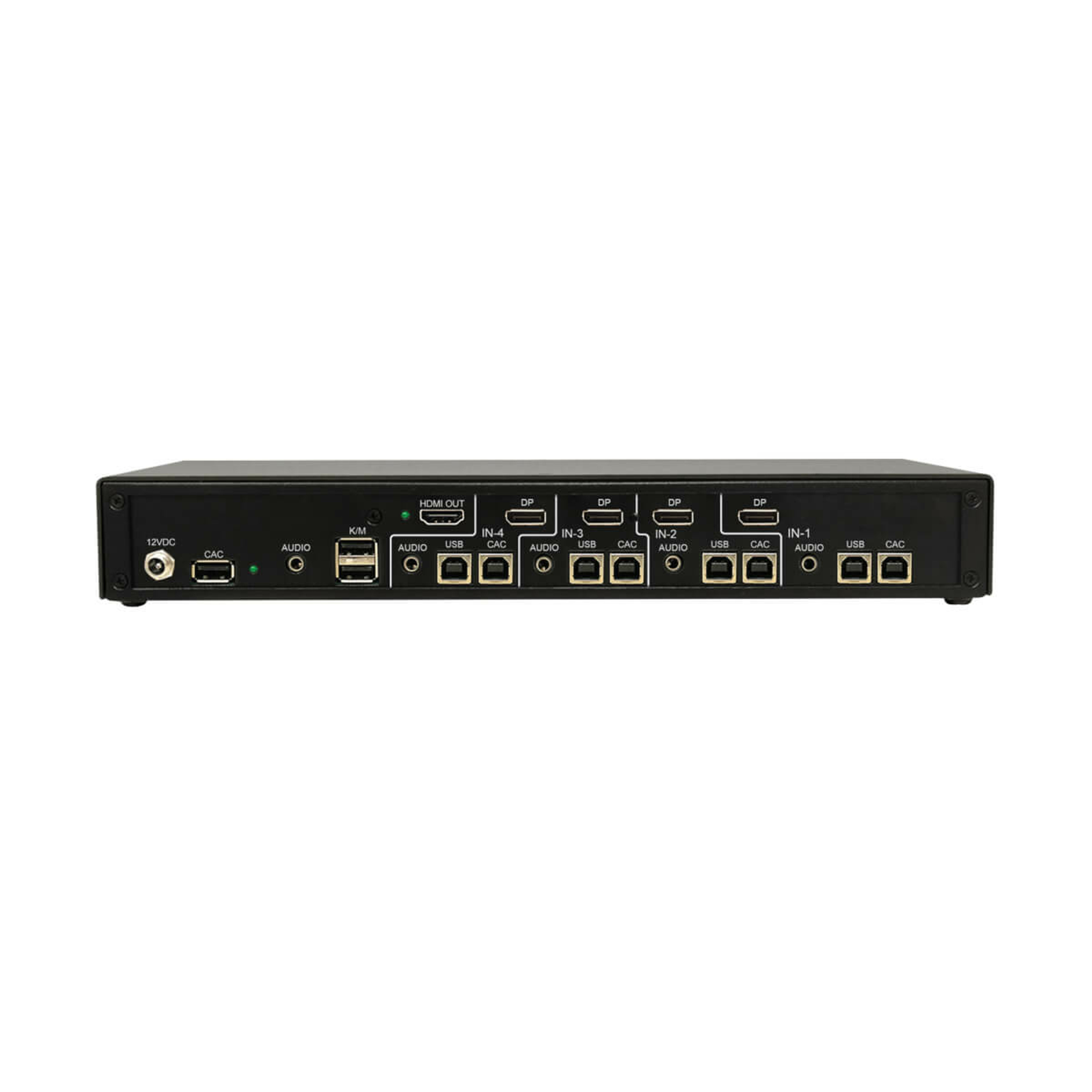

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
HDMI ports quantity1
HDMI version1.4
DisplayPorts quantity4
USB 2.0 Type-B ports quantity8
Console portsHDMI, USB A
Console USB ports quantity3
Audio connections✓
Headphone outputs5
DC-in jack✓

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth60 Hz
Number of users1 user(s)

Design

Rack mountingNo
Product colorBlack
Housing materialMetal
Cable length59.1" (1.5 m)
LED indicators✓
Push button✓
CertificationCE; UKCA; cUL, NOM (Mexico), NIAP PP4.0; RoHS; CE (Europe); UKCA; FCC (USA)

Display

Built-in displayNo

Power

Power sourceDC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.3 A
Output voltage12 V
Output current3 A
External power adapter✓

System requirements

Windows operating systems supported✓
Linux operating systems supported✓
Mac operating systems supported✓

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width12.6" (319.2 mm)
Depth6.7" (170.2 mm)
Height1.76" (44.7 mm)
Weight4.21 lbs (1.91 kg)

Packaging data

Package width11" (279.4 mm)
Package depth16" (406.4 mm)
Package height4" (101.6 mm)
Package weight6 lbs (2.72 kg)
Package typeBox

Packaging content

Cables includedDC
Manual✓

Logistics data

Harmonized System (HS) code8471.80.4000
Master (outer) case width19" (482.6 mm)
Master (outer) case length25" (635 mm)
Master (outer) case height19" (482.6 mm)
Master (outer) case weight45 lbs (20.4 kg)
Quantity per master (outer) case8 pc(s)
Country of originUnited States
