Tripp Lite B002-DP2AC4 4-Port KVM Switch - Secure DisplayPort Control

Tripp Lite

Regular Price $1,500.00
Discount Price: $836.00
UPC:
37332221827
MFG#:
B002-DP2AC4
Product Category:
KVM Switches
Manuals Brochures and Guides:
Adding to cart… The item has been added

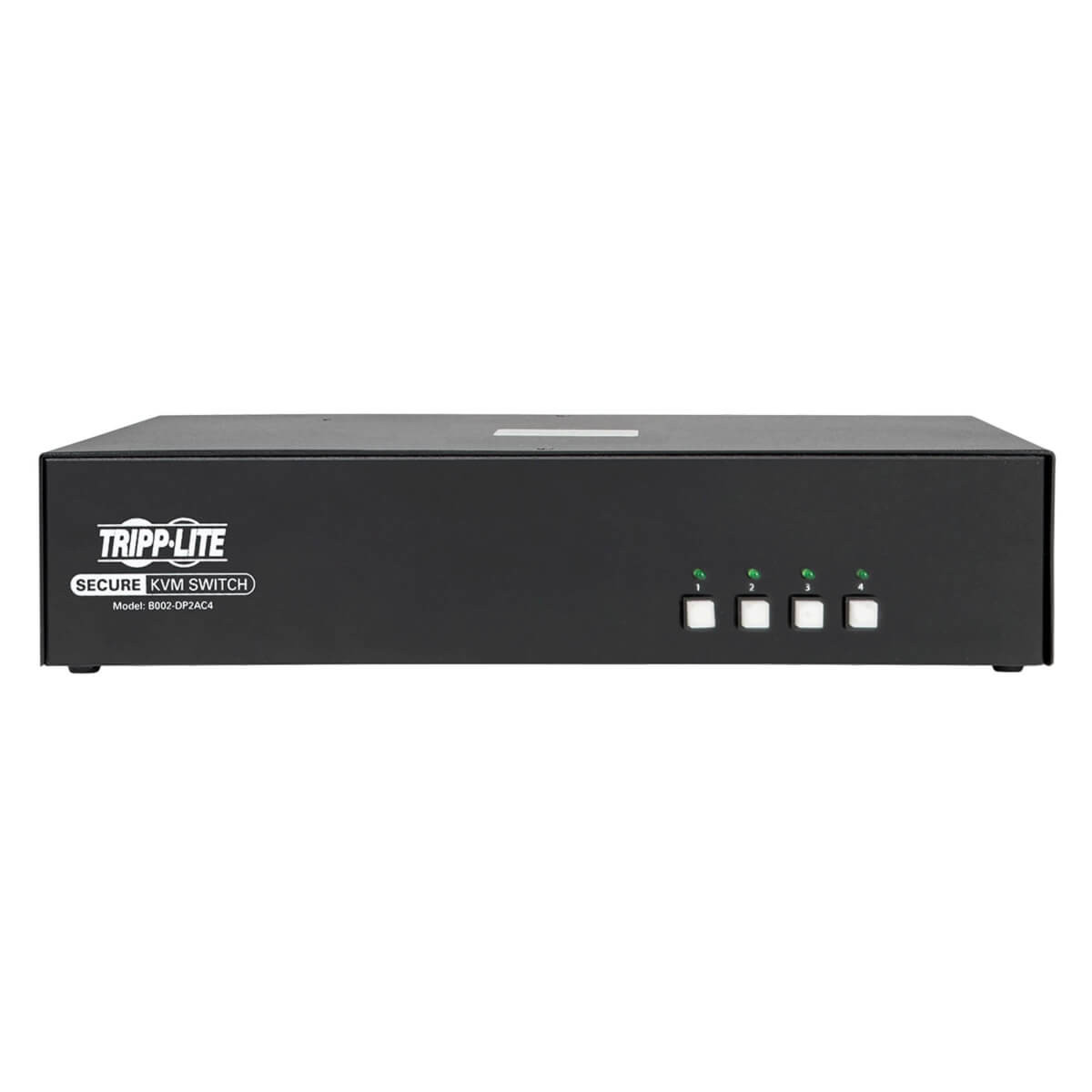

Tripp Lite B002-DP2AC4 4-Port KVM Switch - Secure DisplayPort Control

Enhance Your Security with Advanced KVM Technology
The Tripp Lite B002-DP2AC4 is a 4-Port KVM switch designed for environments that require stringent security measures, such as government, military, financial, and healthcare sectors. This KVM switch ensures that sensitive data remains secure with its electronically isolated channels, preventing any data transfer between connected computers.

Key Features:

  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.
  • NIAP PP3.0 certified, meeting top information assurance standards.

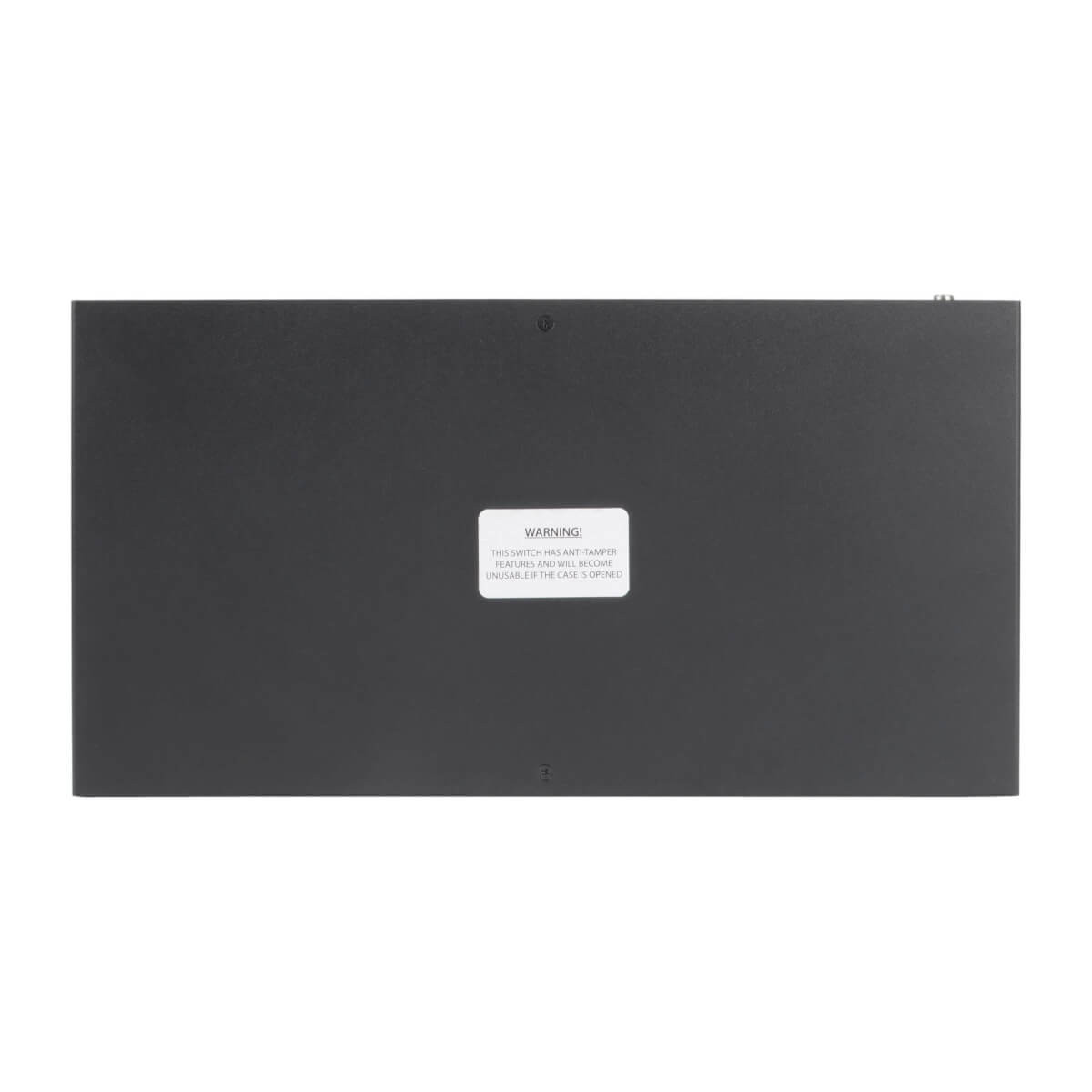

  • Anti-tampering protection disables the unit if the housing is opened.
  • Supports biometric and smart card readers via the CAC port.
  • Maintains constant keyboard and mouse emulation for smooth switching.

Typical Applications:
- Control up to 4 computers with different security levels from a single monitor/keyboard/mouse.
- Operate smart cards, scanners, and biometric devices via the CAC port.
- Protect sensitive information from cyber threats.

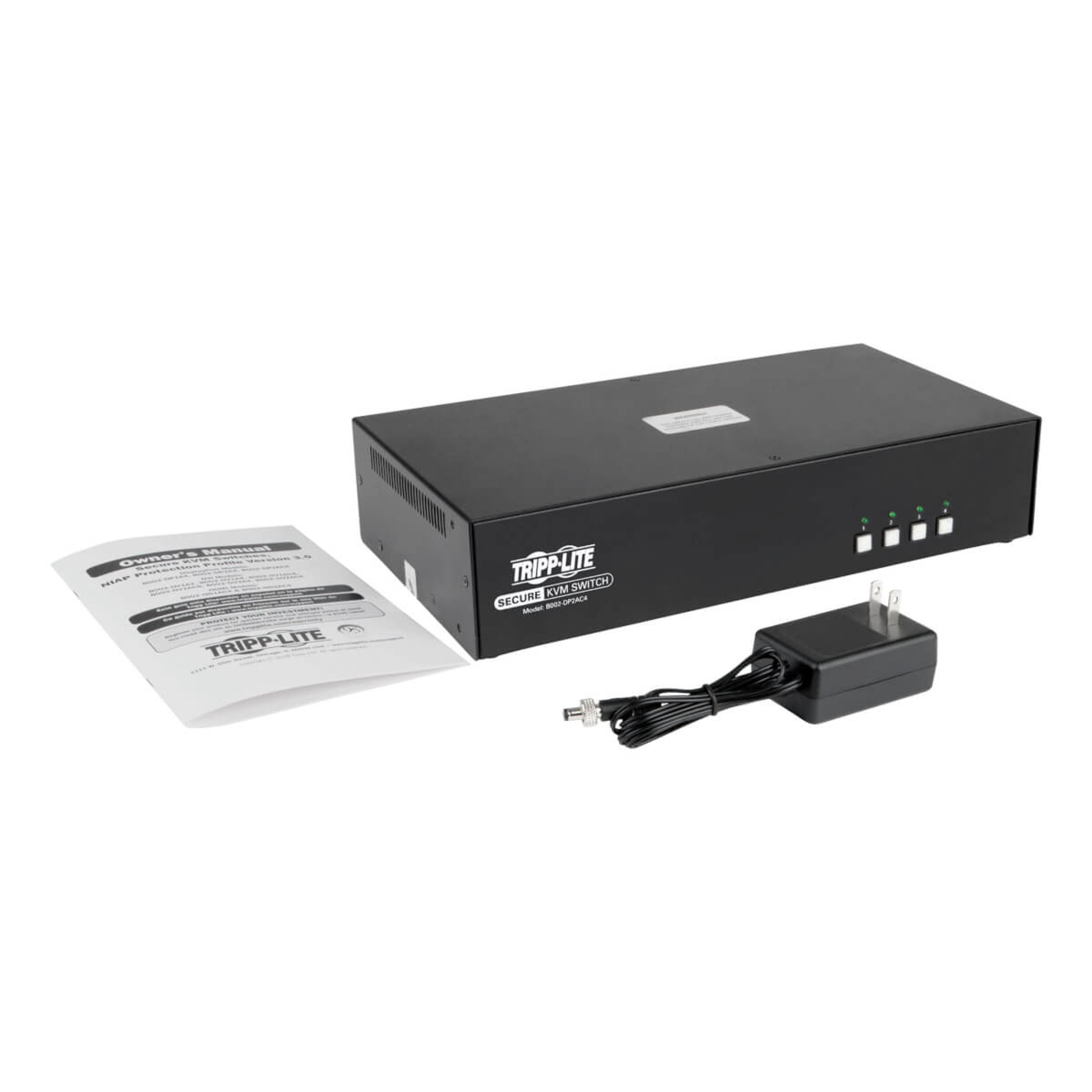

Package Includes:
- B002-DP2AC4 Secure 4-Port NIAP PP3.0-Certified DisplayPort KVM Switch
- External power supply with NEMA 1-15P plug & 5 ft. cord
- Owner’s manual

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity10
USB 2.0 Type-B ports quantity8
Console portsDisplayPort, USB A
Console USB ports quantity3
Audio connectionsâś“
Headphone outputs5
DC-in jackâś“

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz
Number of users1 user(s)

Design

Rack mountingNo
Product colorBlack
Cable length59.1" (1.5 m)
LED indicatorsâś“
Push buttonâś“

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage12 V
Output current2 A
External power adapterâś“

System requirements

Windows operating systems supportedâś“
Linux operating systems supportedâś“
Mac operating systems supportedâś“

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width12.6" (319.3 mm)
Depth6.7" (170.2 mm)
Height2.7" (68.6 mm)
Weight3 lbs (1.36 kg)

Packaging data

Package width11.1" (282.6 mm)
Package depth15.1" (384.2 mm)
Package height4" (101.6 mm)
Package weight3.99 lbs (1.81 kg)
Package typeBox

Packaging content

Cables includedAC
Manualâś“
AC adapter includedâś“

Logistics data

Harmonized System (HS) code8471.80.4000
Master (outer) case width18" (457.2 mm)
Master (outer) case length24" (609.6 mm)
Master (outer) case height18" (457.2 mm)
Master (outer) case weight48.1 lbs (21.8 kg)
Quantity per master (outer) case8 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332221824
Country of originUnited States
