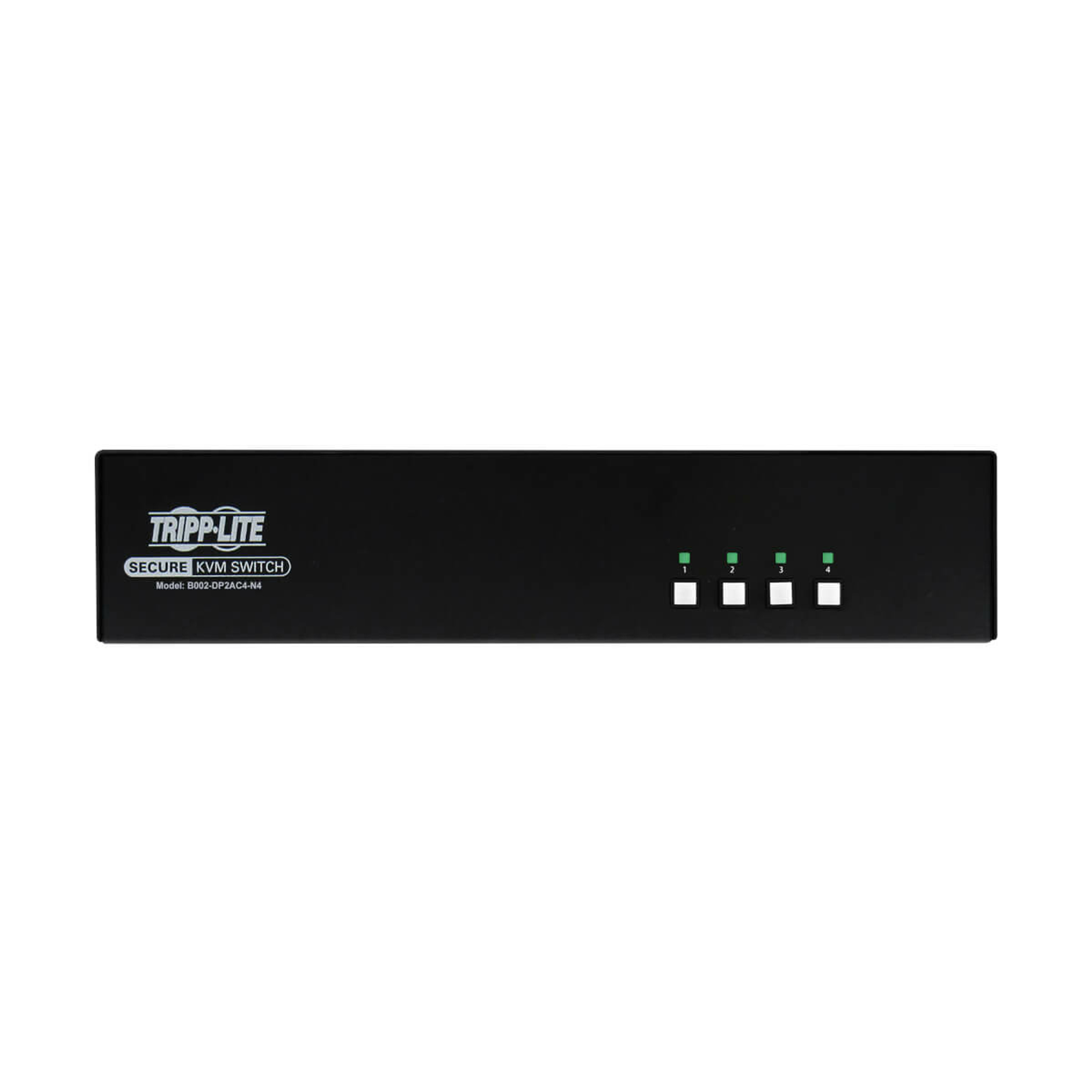

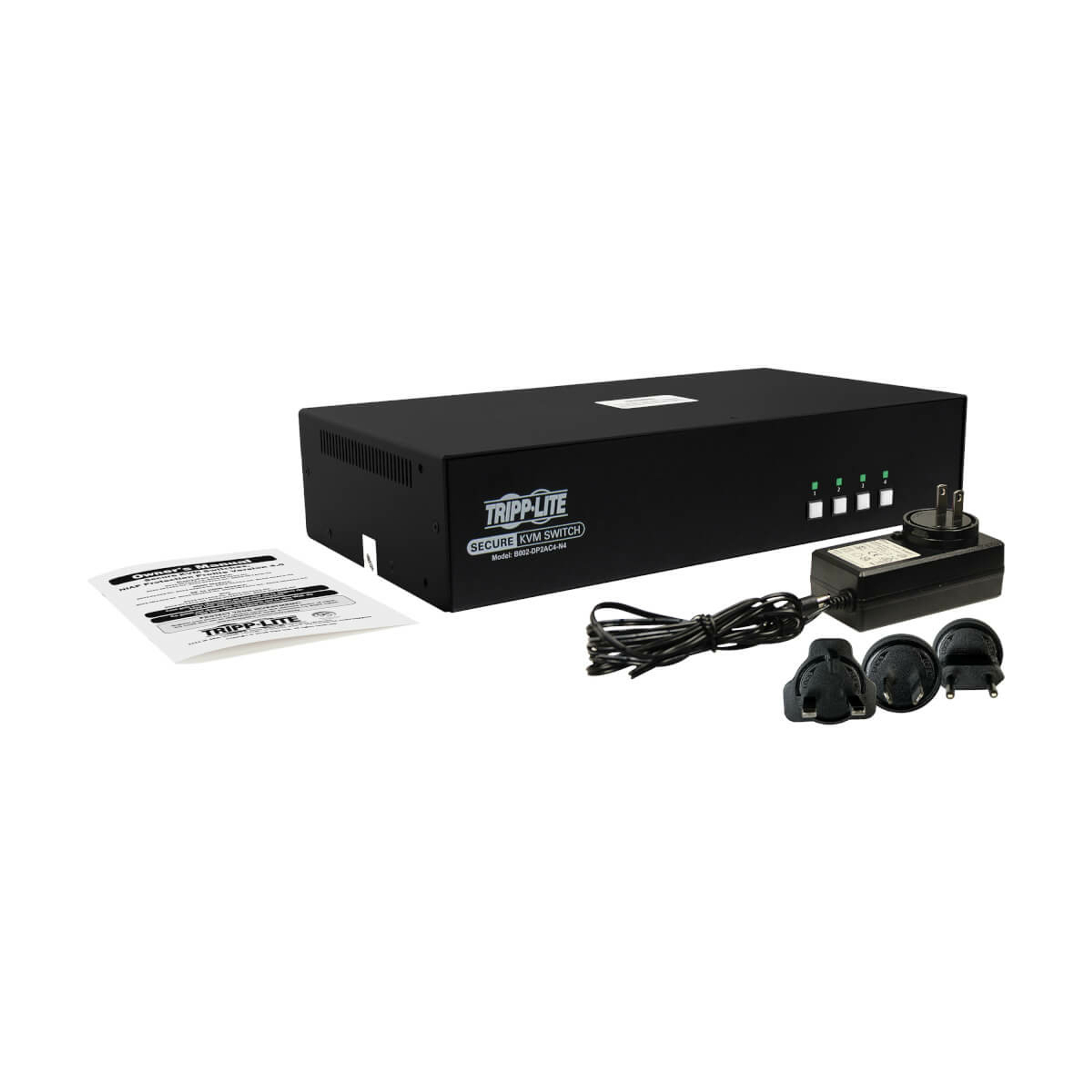

Tripp Lite B002-DP2AC4-N4 4-Port DisplayPort KVM Switch

Secure Data Management for Sensitive Environments
This 4-Port DisplayPort KVM Switch is designed for applications that require stringent security measures, making it ideal for government, military, finance, education, and healthcare sectors. With electronically isolated channels for each KVM port, it ensures that data cannot be transferred between connected computers, even if they operate at different security levels.

NIAP PP4.0 Certified
Certified by the National Information Assurance Partnership (NIAP) to meet the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 4.0, this KVM switch features discrete processing paths to prevent data leakage and crosstalk between ports.

Advanced Security Features
With anti-tampering protection, the switch disables itself if the housing is opened, providing visual evidence of tampering. The keyboard buffer clears automatically after data transmission, ensuring no sensitive information is stored.

Support for Biometric Authentication
The Common Access Card (CAC) port allows for the use of biometric and smart card readers, enhancing user authentication security.

Seamless Switching Experience
Enjoy smooth, no-delay switching with constant keyboard and mouse emulation. The KVM switch supports secure video emulation and EDID learning, preventing unwanted data transmission.

Accessory Cable Kits Available
Complement your KVM switch with P783-006-DPU and P783-010-DPU cable kits (sold separately) that comply with HDCP 2.2 and DisplayPort 1.2 standards.

TAA-Compliant
This KVM switch is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.

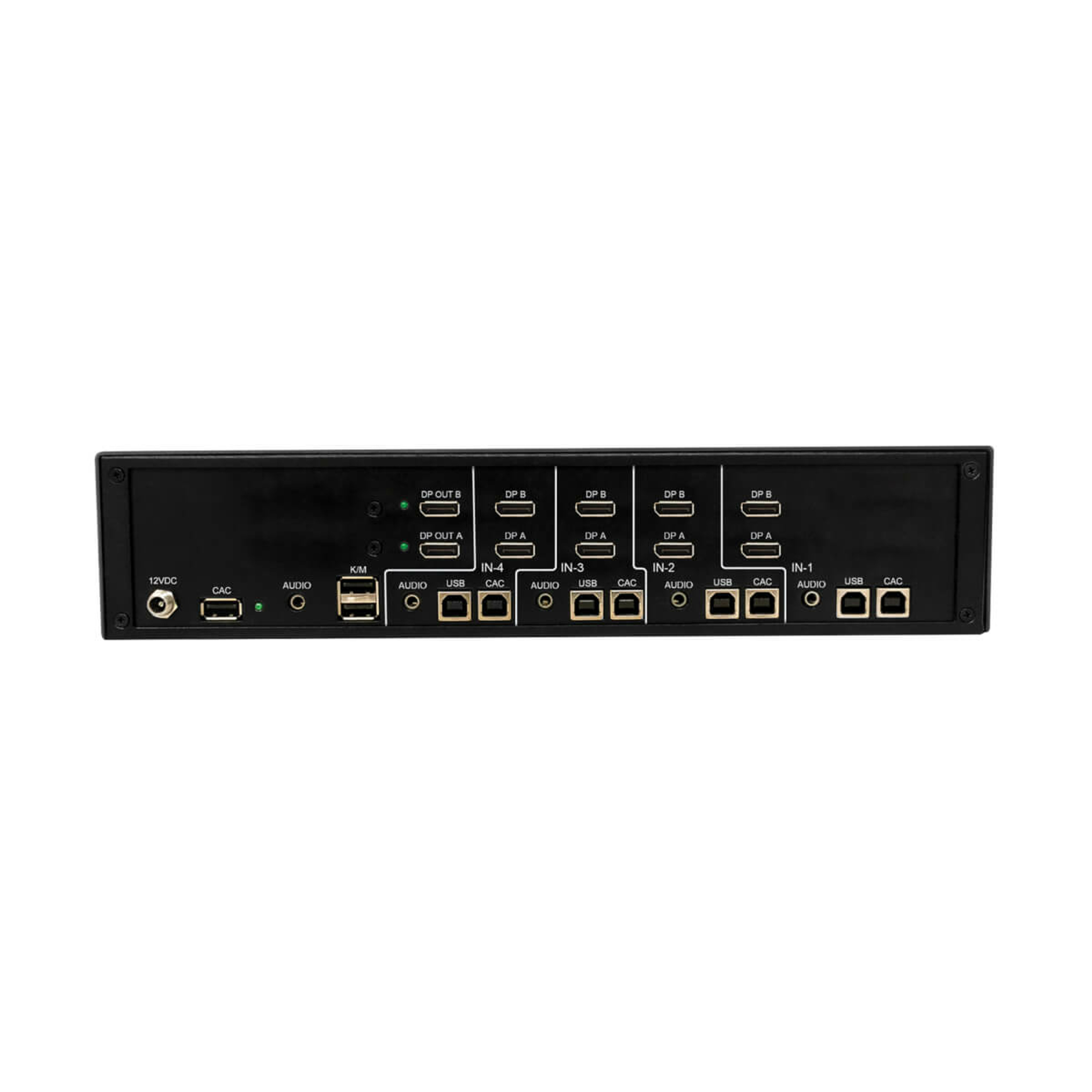

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity10
USB 2.0 Type-B ports quantity8
Console portsDisplayPort, USB A
Console USB ports quantity3
Audio connections✓
Headphone outputs5
DC-in jack✓

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz
Number of users1 user(s)

Design

Rack mountingNo
Product colorBlack
Housing materialMetal
Cable length59.1" (1.5 m)
LED indicators✓
Push button✓
CertificationCE; UKCA; cUL, NOM (Mexico), NIAP PP4.0; RoHS; CE (Europa); UKCA; FCC (EE UU)

Display

Built-in displayNo

Power

Power sourceDC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.3 A
Output voltage12 V
Output current3 A
External power adapter✓

System requirements

Windows operating systems supported✓
Linux operating systems supported✓
Mac operating systems supported✓

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width12.5" (317 mm)
Depth6.65" (169 mm)
Height2.7" (68.5 mm)
Weight4.21 lbs (1.91 kg)

Packaging data

Package width11" (279.4 mm)
Package depth16" (406.4 mm)
Package height4" (101.6 mm)
Package weight6 lbs (2.72 kg)
Package typeBox

Logistics data

Harmonized System (HS) code8471.80.4000
Master (outer) case width19" (482.6 mm)
Master (outer) case length25" (635 mm)
Master (outer) case height19" (482.6 mm)
Master (outer) case weight45 lbs (20.4 kg)
Quantity per master (outer) case8 pc(s)
Country of originUnited States
