Tripp Lite B002-DP1A4-N4 4-Port DisplayPort KVM Switch - Secure Data Management

Tripp Lite

Regular Price $1,880.00
Discount Price: $1,049.00
UPC:
37332274274
MFG#:
B002-DP1A4-N4
Product Category:
KVM Switches
Manuals Brochures and Guides:
Adding to cart… The item has been added

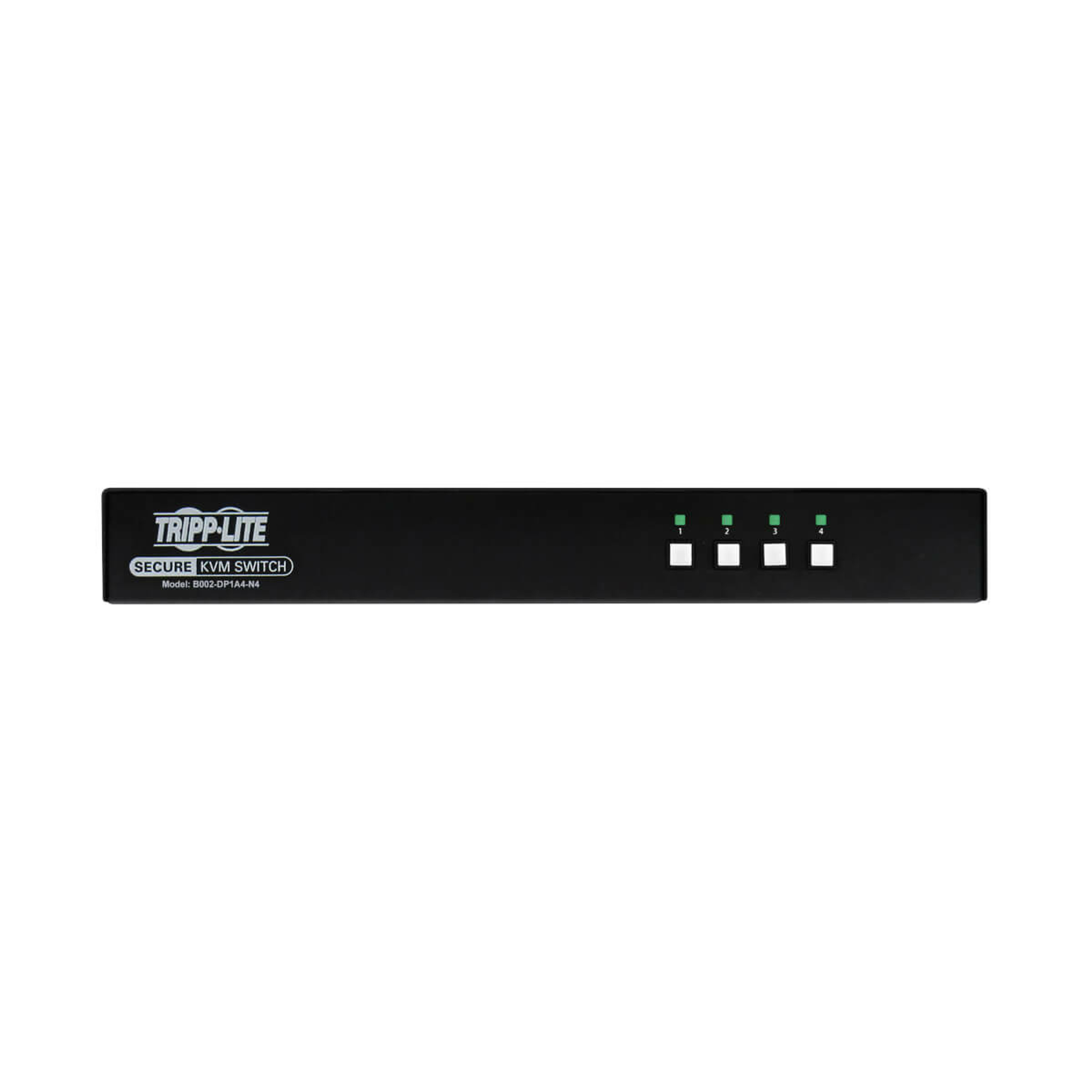

Tripp Lite B002-DP1A4-N4 4-Port DisplayPort KVM Switch

Secure Data Management for Sensitive Environments
This 4-Port DisplayPort KVM Switch is designed for applications that require stringent security measures, making it ideal for government, military, finance, education, and healthcare sectors. With electronically isolated channels for each KVM port, it ensures that data cannot be transferred between connected computers, even if they operate at different security levels.

NIAP PP4.0 Certified
Certified by the National Information Assurance Partnership (NIAP) to meet the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 4.0, this KVM switch features discrete processing paths to prevent data leakage and crosstalk between ports.

Advanced Security Features
With anti-tampering protection, the switch disables itself if the housing is opened, providing visual evidence of tampering. The keyboard buffer clears automatically after data transmission, ensuring no sensitive information is stored.

Smooth Switching Experience
Enjoy seamless switching between computers with constant keyboard and mouse emulation, preventing unwanted data transmission. The switch supports UHD video resolutions up to 3840 x 2160 (4K) at 30 Hz, delivering crystal-clear visuals.

Accessory Cable Kits
Compatible with P783-006 and P783-010 KVM cable kits (sold separately), this switch helps reduce clutter and supports USB 2.0 speeds up to 480 Mbps.

TAA-Compliant
The B002-DP1A4-N4 is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.

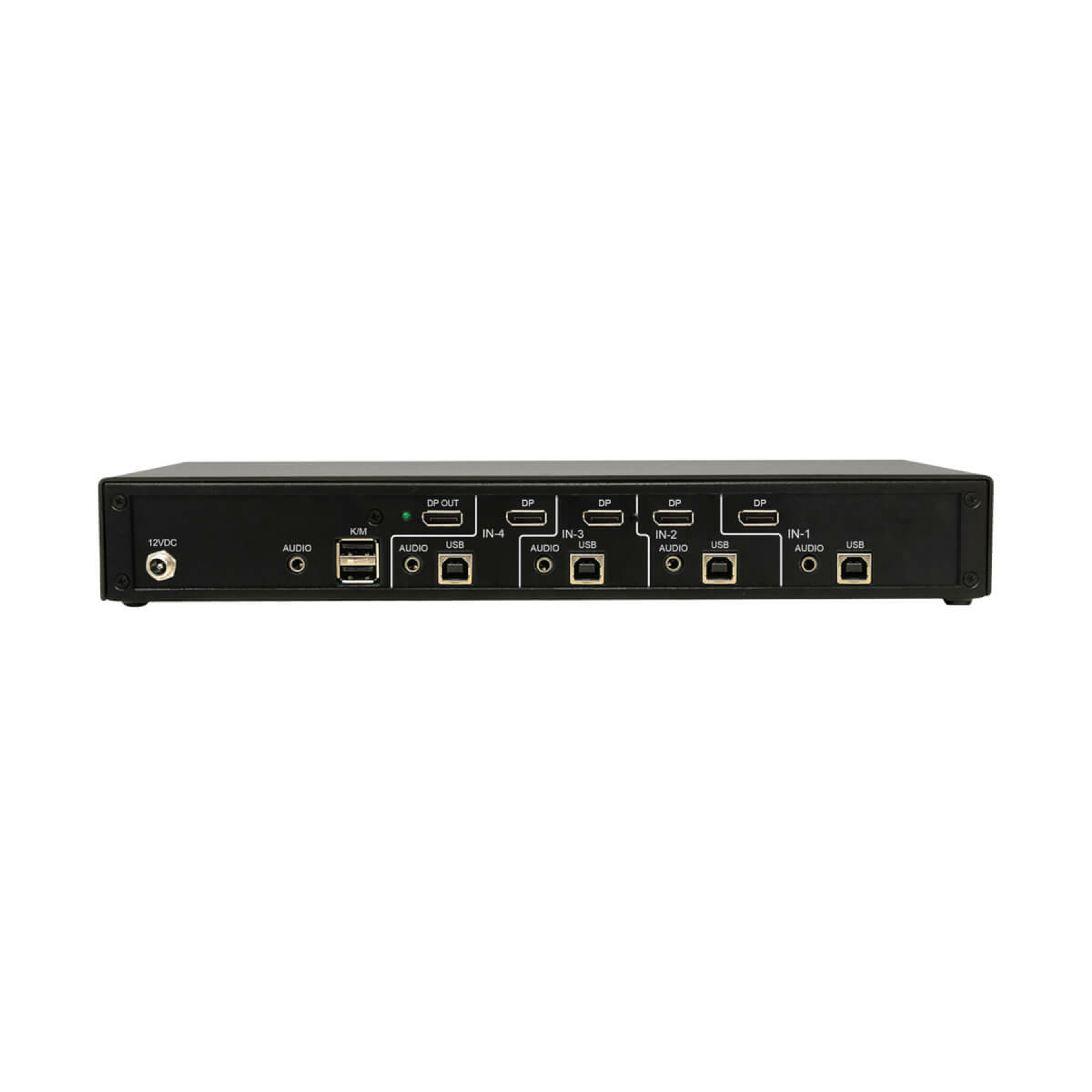

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Console portsDisplayPort, USB B
Audio connections✓

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz
Number of users1 user(s)

Design

Rack mountingNo
Product colorBlack
Housing materialMetal
Cable length59.1" (1.5 m)
LED indicators✓
Push button✓
CertificationCE; UKCA; cUL, NOM (Mexico), NIAP PP4.0; RoHS; CE (Europe); UKCA; FCC (USA)

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.3 A
Output voltage12 V
Output current3 A
External power adapter✓

System requirements

Windows operating systems supported✓
Linux operating systems supported✓
Mac operating systems supported✓

Sustainability

Compliance certificatesRoHS, Federal Communications Commission (FCC), UKCA, CE

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width12.5" (317 mm)
Depth6.65" (169 mm)
Height1.76" (44.7 mm)
Weight4.21 lbs (1.91 kg)

Packaging data

Package width11.1" (281.9 mm)
Package depth15.7" (398.8 mm)
Package height4" (101.6 mm)
Package weight5.51 lbs (2.5 kg)
Package typeBox

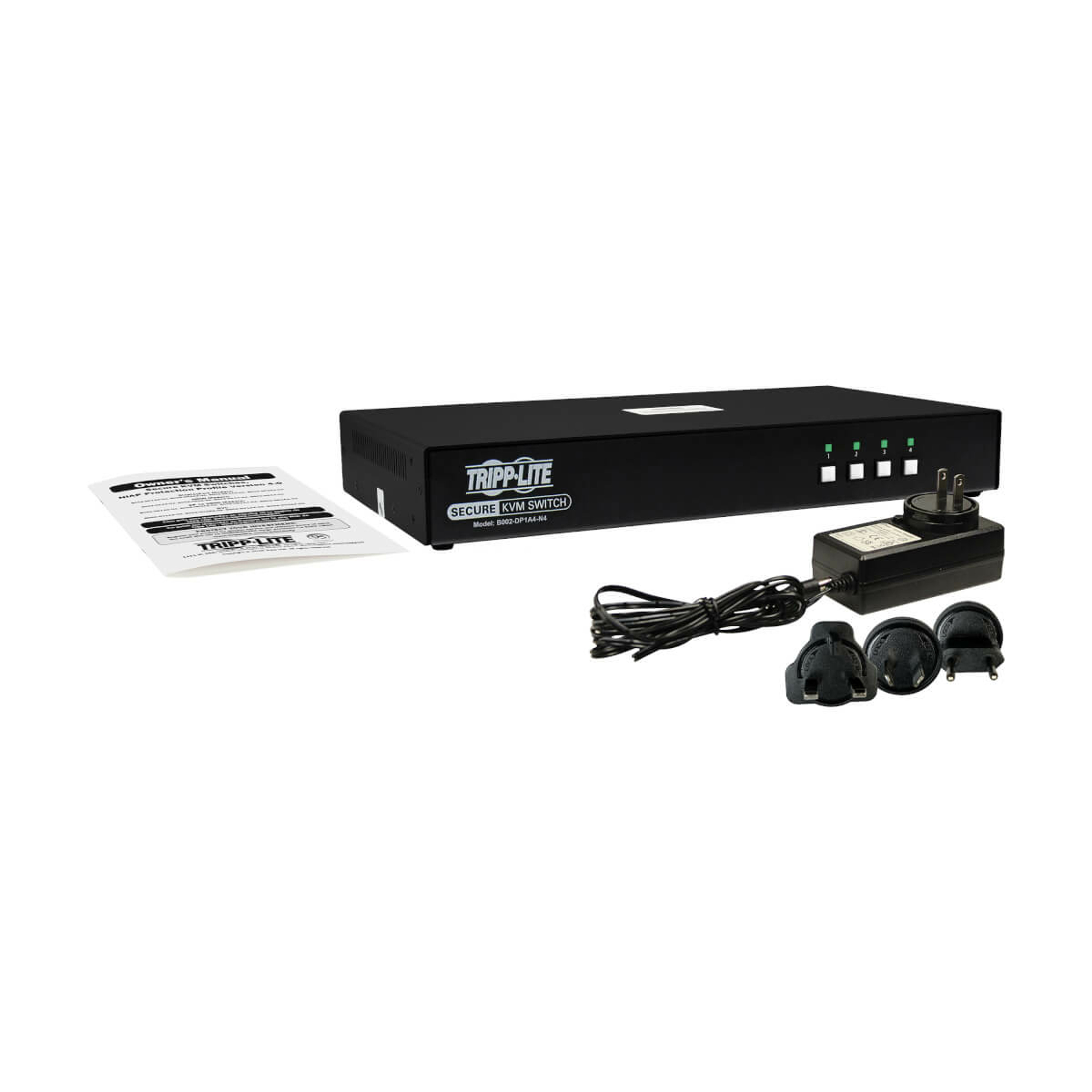

Packaging content

Cables includedDC
Manual✓

Logistics data

Harmonized System (HS) code8471.80.4000
Master (outer) case width18.4" (467.4 mm)
Master (outer) case length24.3" (617.2 mm)
Master (outer) case height18.8" (477.5 mm)
Master (outer) case weight48.1 lbs (21.8 kg)
Quantity per master (outer) case8 pc(s)
Country of originUnited States
