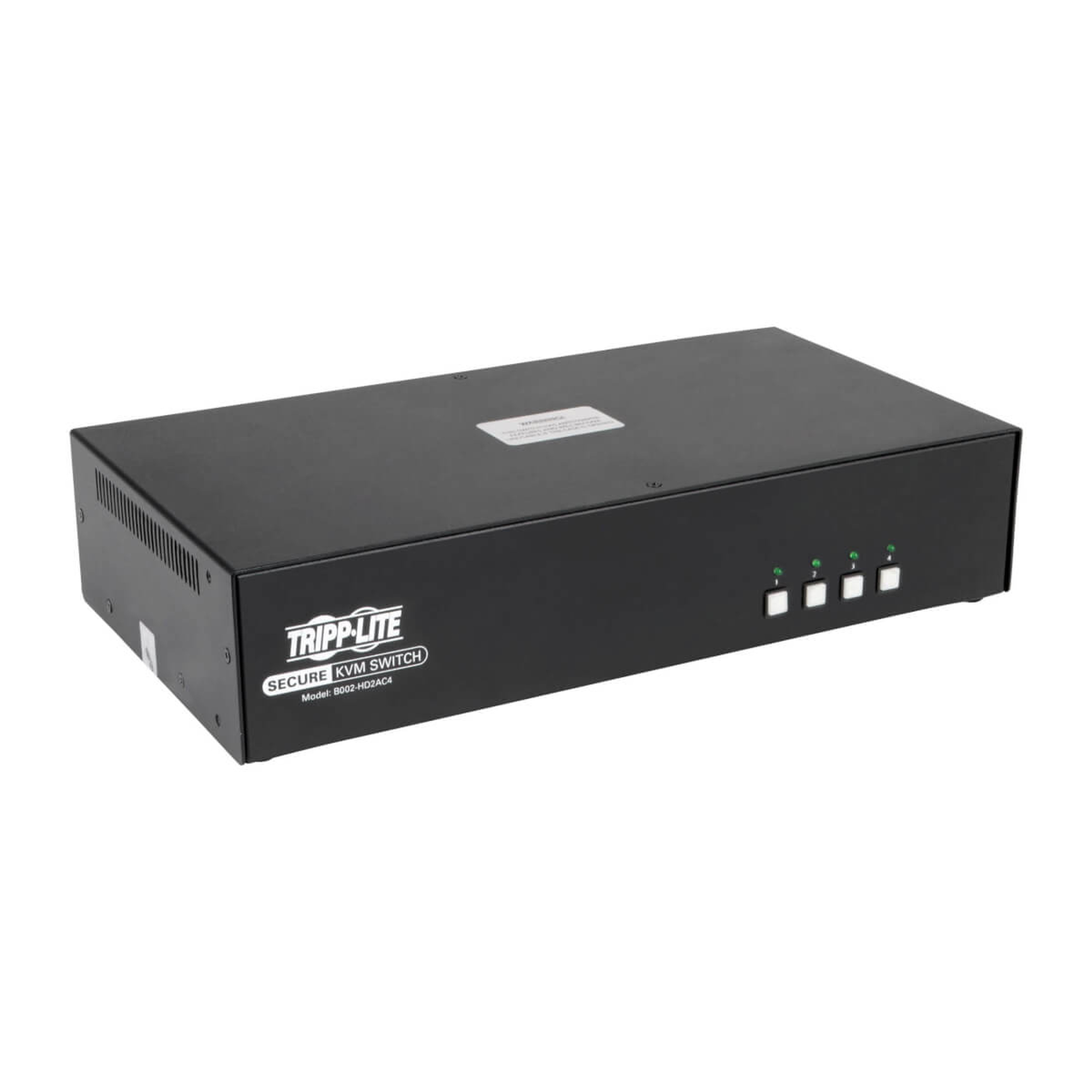

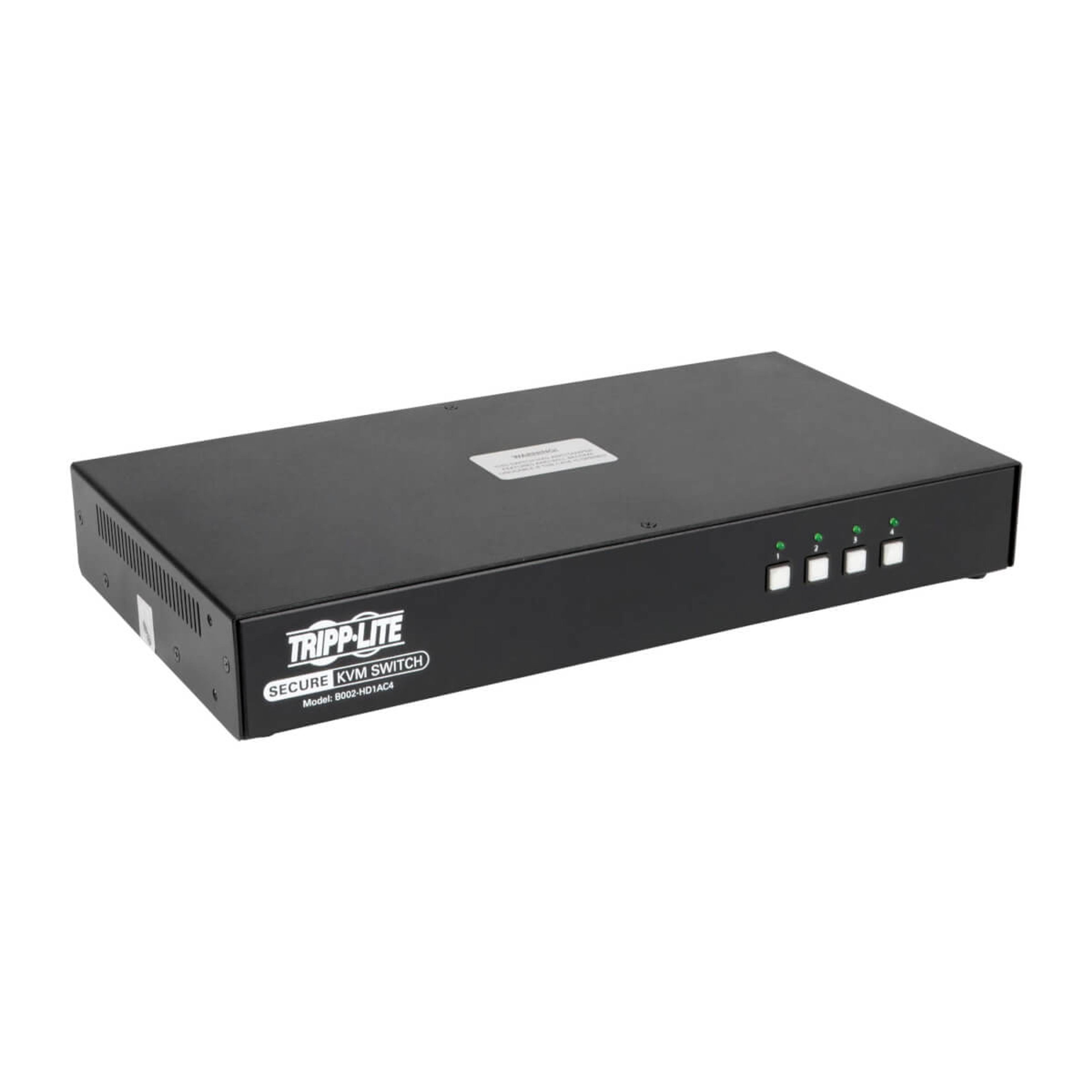

Tripp Lite B002-HD2AC4 4-Port KVM Switch - Secure HDMI to DisplayPort

The Tripp Lite B002-HD2AC4 is a state-of-the-art 4-Port KVM switch designed for environments that require the highest level of data security, such as government, military, financial, and healthcare sectors. This KVM switch allows you to control up to four computers from a single HDMI monitor, keyboard, and mouse, ensuring seamless operation without compromising sensitive information.

Key Features:

  • NIAP PP3.0 Certified: Meets stringent information assurance standards to prevent data leakage and crosstalk.

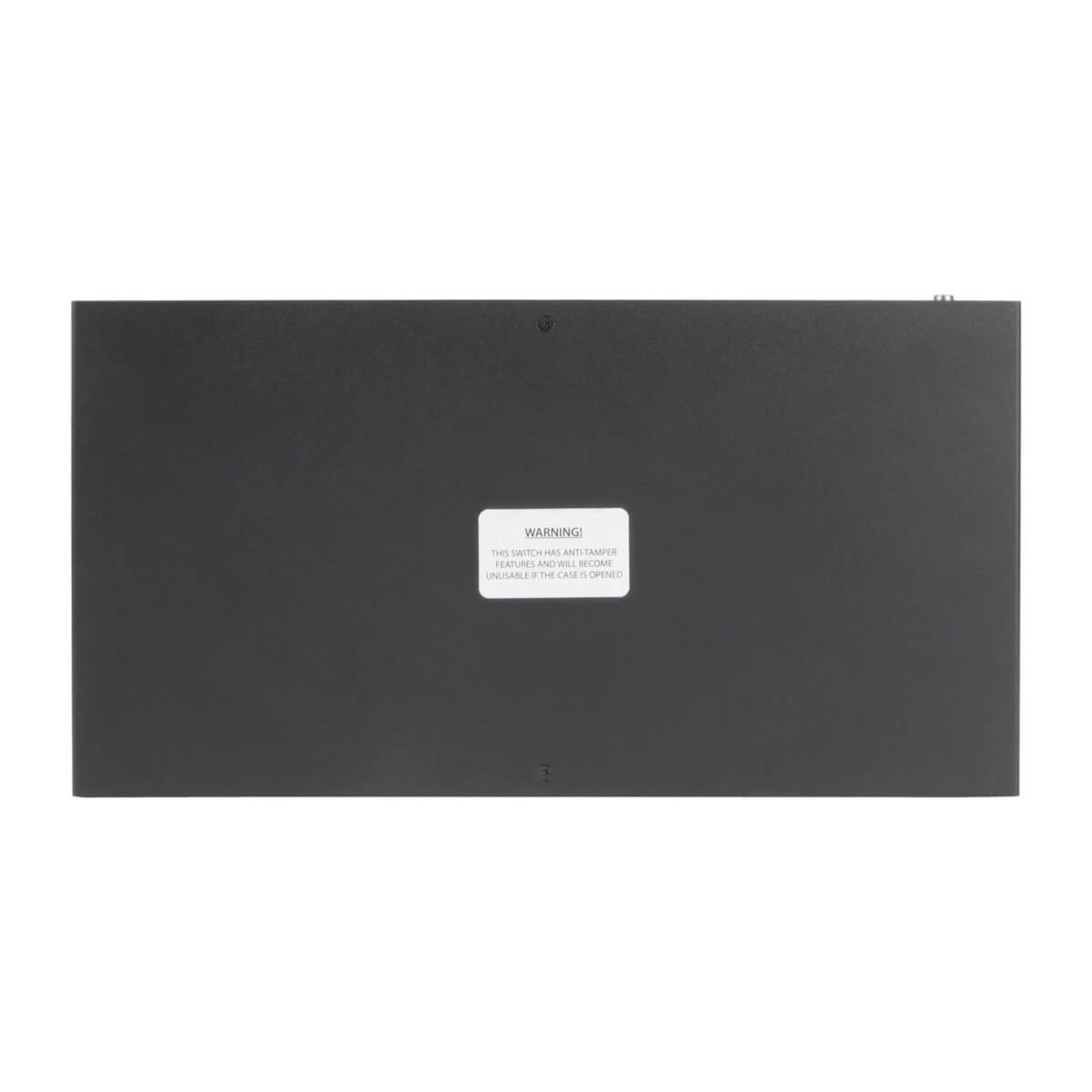

  • Top-of-the-Line Security: Features anti-tampering protection and automatic keyboard buffer clearing to safeguard your data.
  • CAC Port: Supports biometric and smart-card readers for enhanced user authentication.
  • Constant Emulation: Ensures smooth switching with no delay, protecting against unwanted data transmission.
  • TAA-Compliant: Eligible for GSA Schedule and federal procurement contracts.

With its robust security features and high-resolution support up to 3840 x 2160 (4K x 2K) at 30 Hz, the Tripp Lite B002-HD2AC4 is the ideal solution for protecting sensitive information while maintaining operational efficiency.

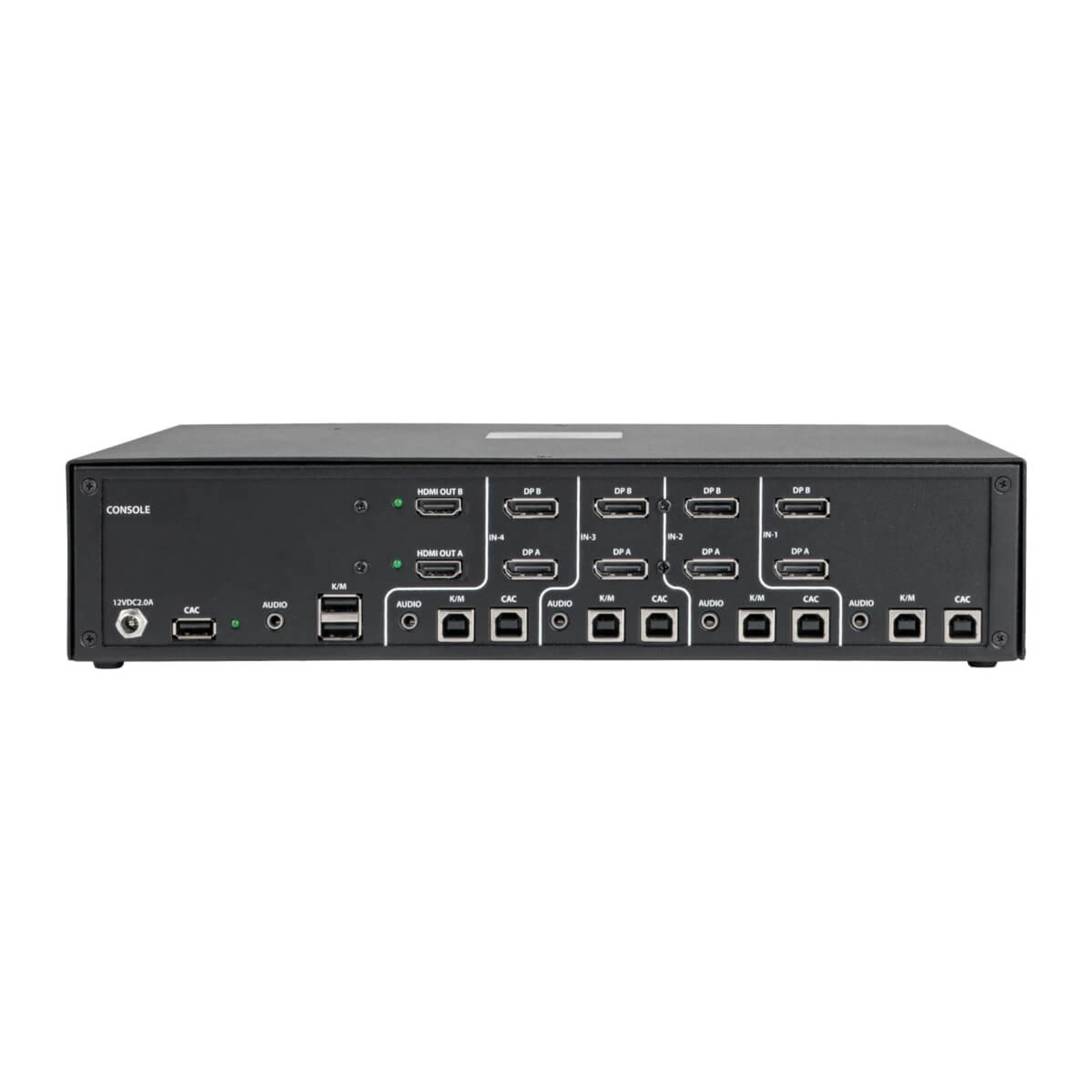

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI/DisplayPort
HDMI ports quantity2
HDMI version1.4
DisplayPorts quantity8
USB 2.0 Type-B ports quantity8
Console portsHDMI, USB A
Console USB ports quantity3
DC-in jack✓

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth30 Hz
Number of users1 user(s)

Design

Rack mountingNo
Product colorBlack
Cable length59.1" (1.5 m)
LED indicators✓

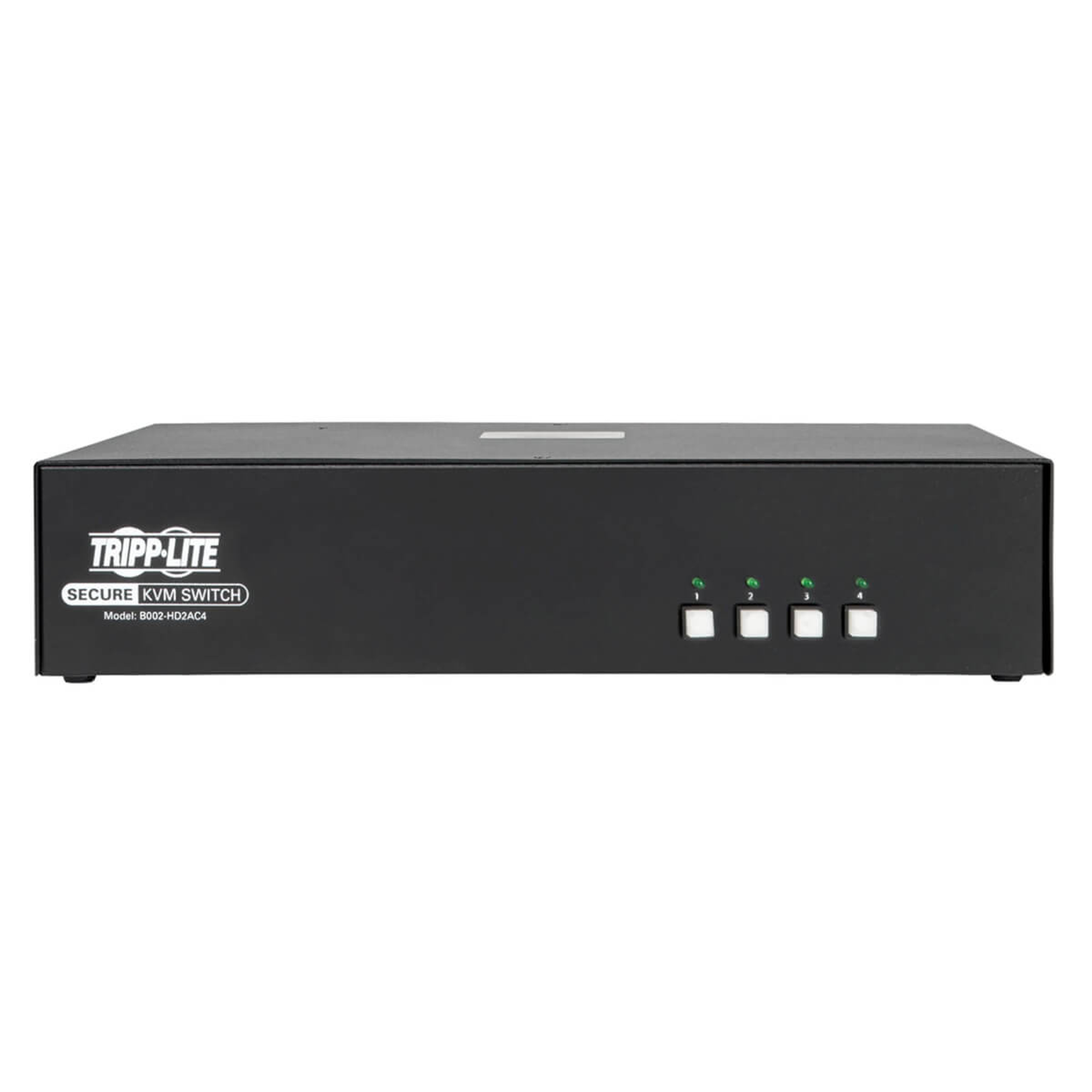

Push button✓

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage12 V
Output current2 A
External power adapter✓

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width12.6" (319.3 mm)
Depth6.7" (170.2 mm)
Height2.7" (68.6 mm)
Weight3.2 lbs (1.45 kg)

Packaging data

Package width11.1" (282.6 mm)
Package depth15.1" (384.2 mm)
Package height4" (101.6 mm)
Package weight3.99 lbs (1.81 kg)
Package typeBox

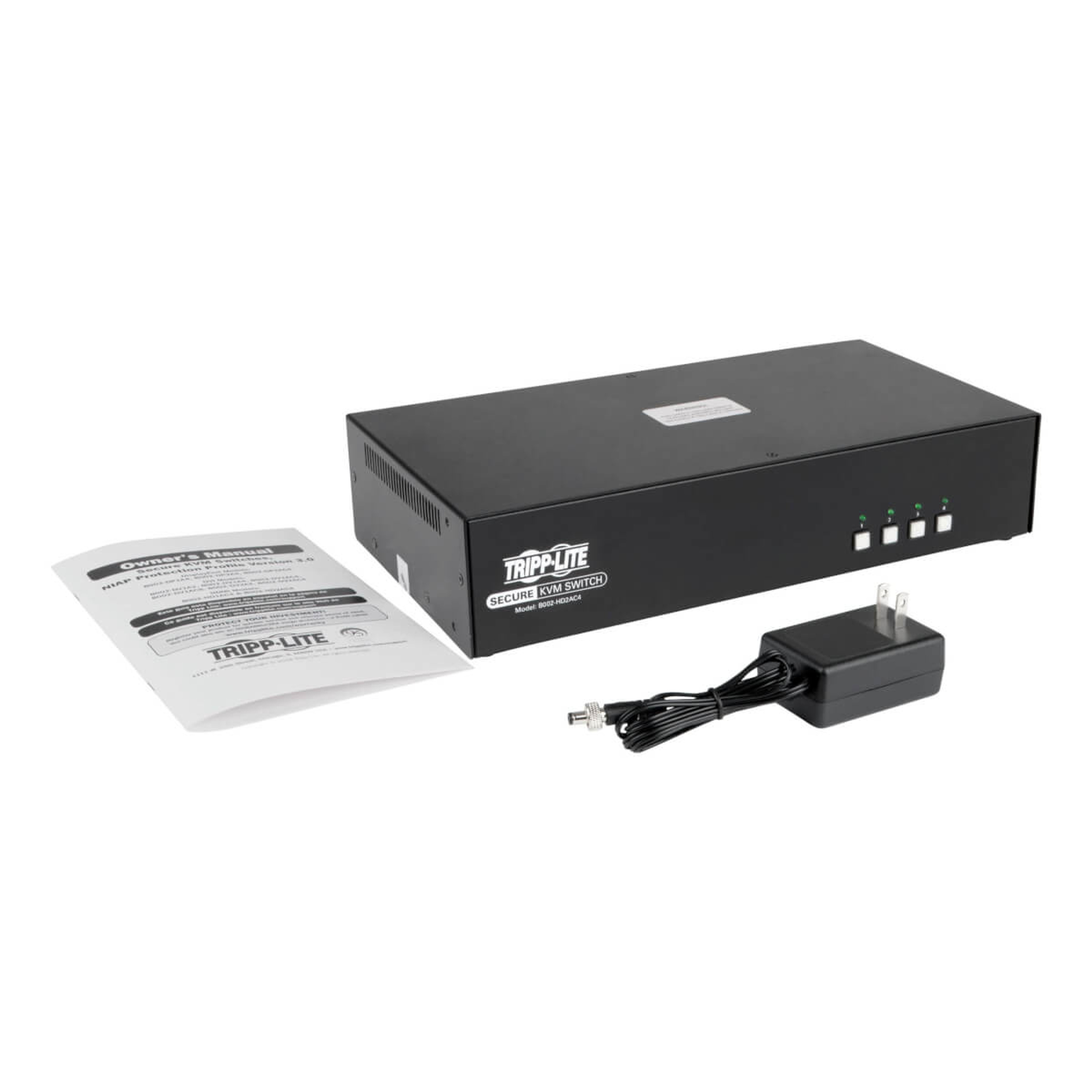

Packaging content

Manual✓
AC adapter included✓

Logistics data

Harmonized System (HS) code8471.80.4000
Master (outer) case width18" (457.2 mm)
Master (outer) case length24" (609.6 mm)
Master (outer) case height18" (457.2 mm)
Master (outer) case weight48.1 lbs (21.8 kg)
Quantity per master (outer) case8 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332221985
Country of originUnited States
