Description:

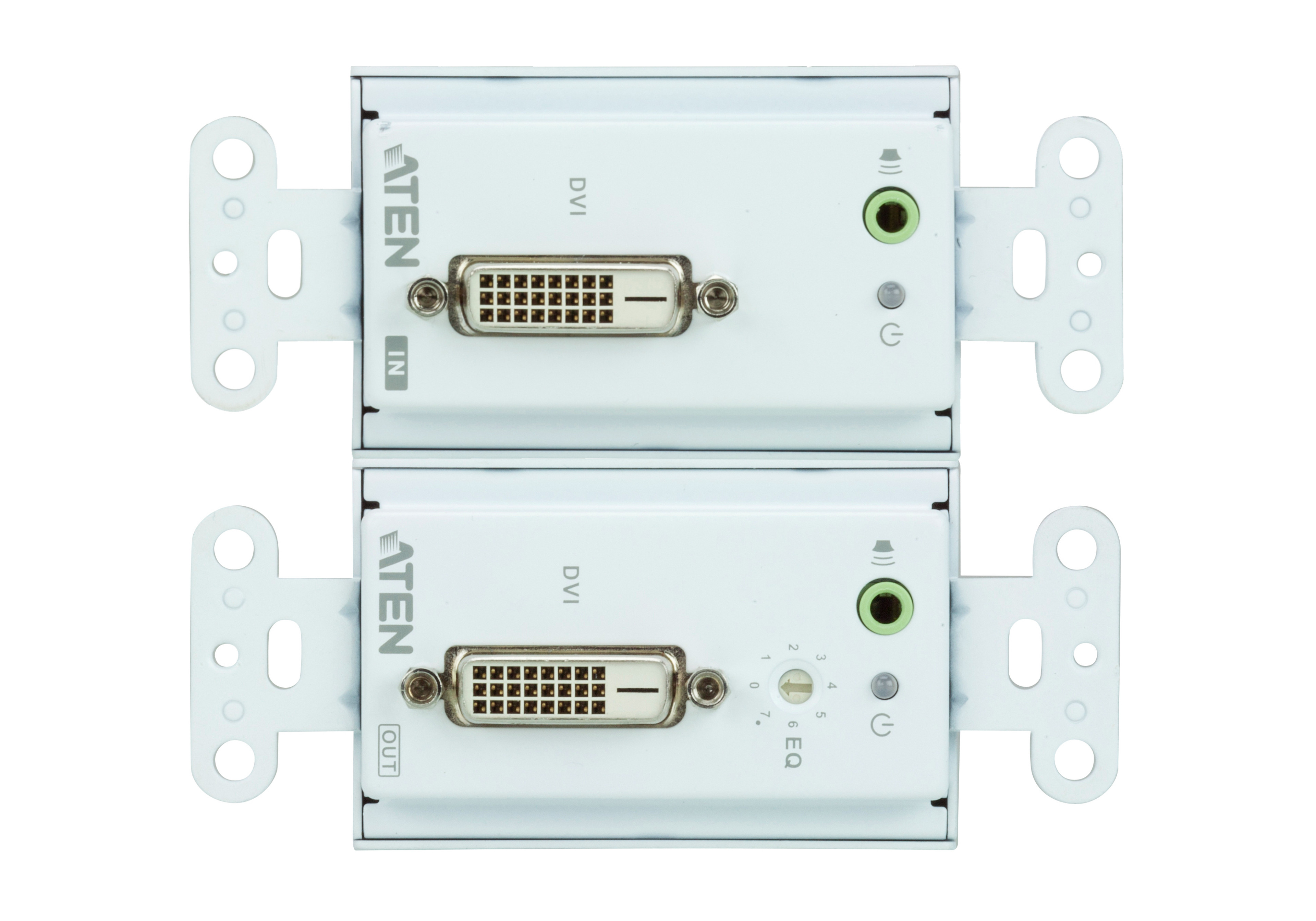

The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.

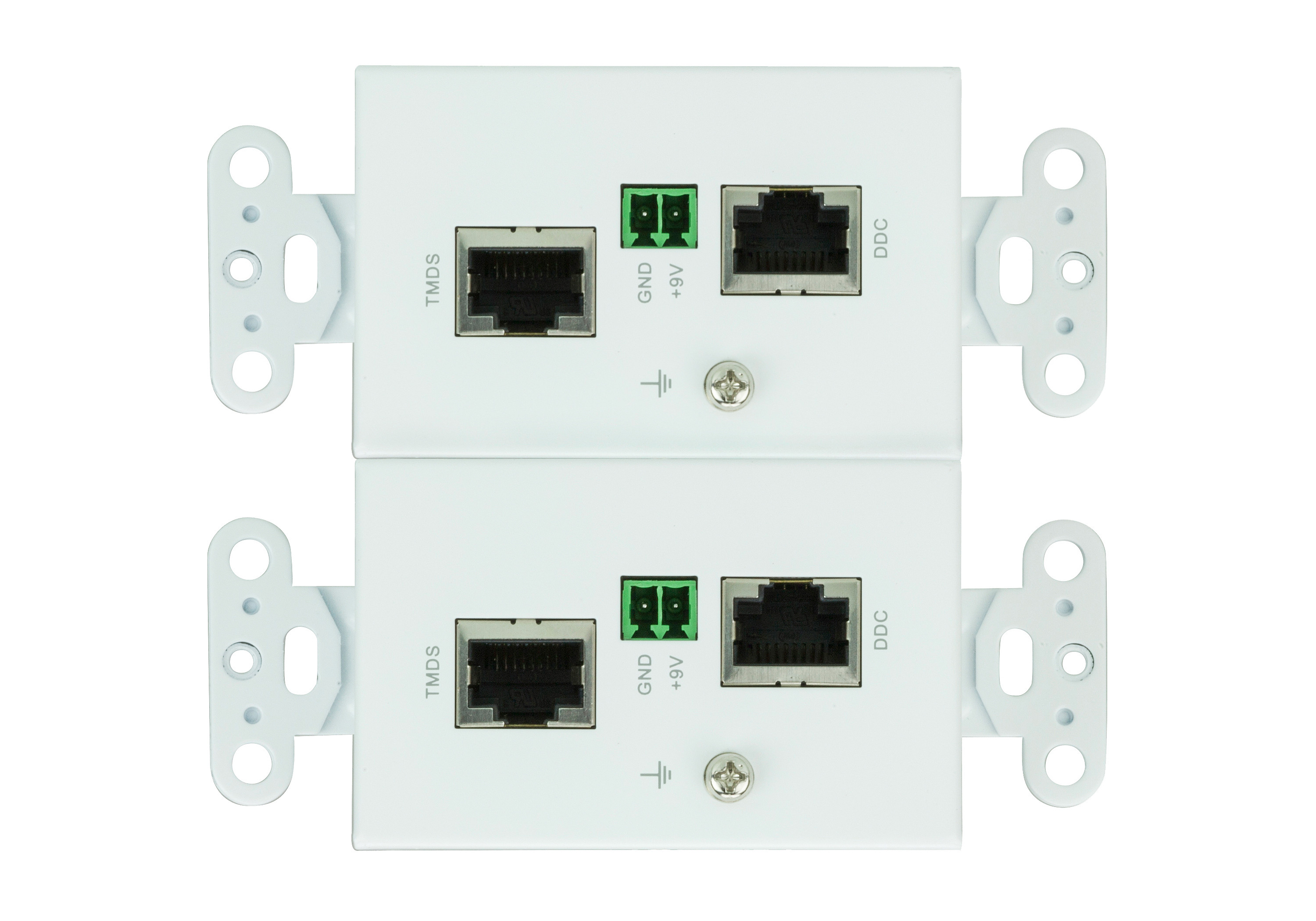

The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Specifications:
| Basic |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Wall Mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
196.85 ft |
| Number of Network (RJ-45) Ports: |
4 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| Number of DVI Inputs: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE606 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE606 |
| Product Name: |
DVI Over Cat 5 Extender Wall Plate |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
4 |
| Network (RJ-45): |
Yes |
| Number of DVI Outputs: |
1 |
| DVI In: |
Yes |
| DVI Out: |
Yes |
| Number of DVI Inputs: |
1 |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 5e |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 1 x VE606T DVI Over Cat 5 Extender Wall Plate
- 1 x VE606R DVI Over Cat 5 Extender Wall Plate
- 1 x Terminal Block Connector
- 1 x Power Adapter
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Form Factor: |
Wall Mountable |
| Length: |
4.1" |
| Transmitter Height: |
1.71" |
| Transmitter Width: |
1.73" |
| Transmitter Weight (Approximate): |
6 oz |
| Power Description |
|---|
| Input Voltage: |
9 V DC |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
196.85 ft |
| Number of Output Devices Supported: |
1 |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
Full HD |
| Maximum Video Resolution: |
1920 x 1080 |
