Description:

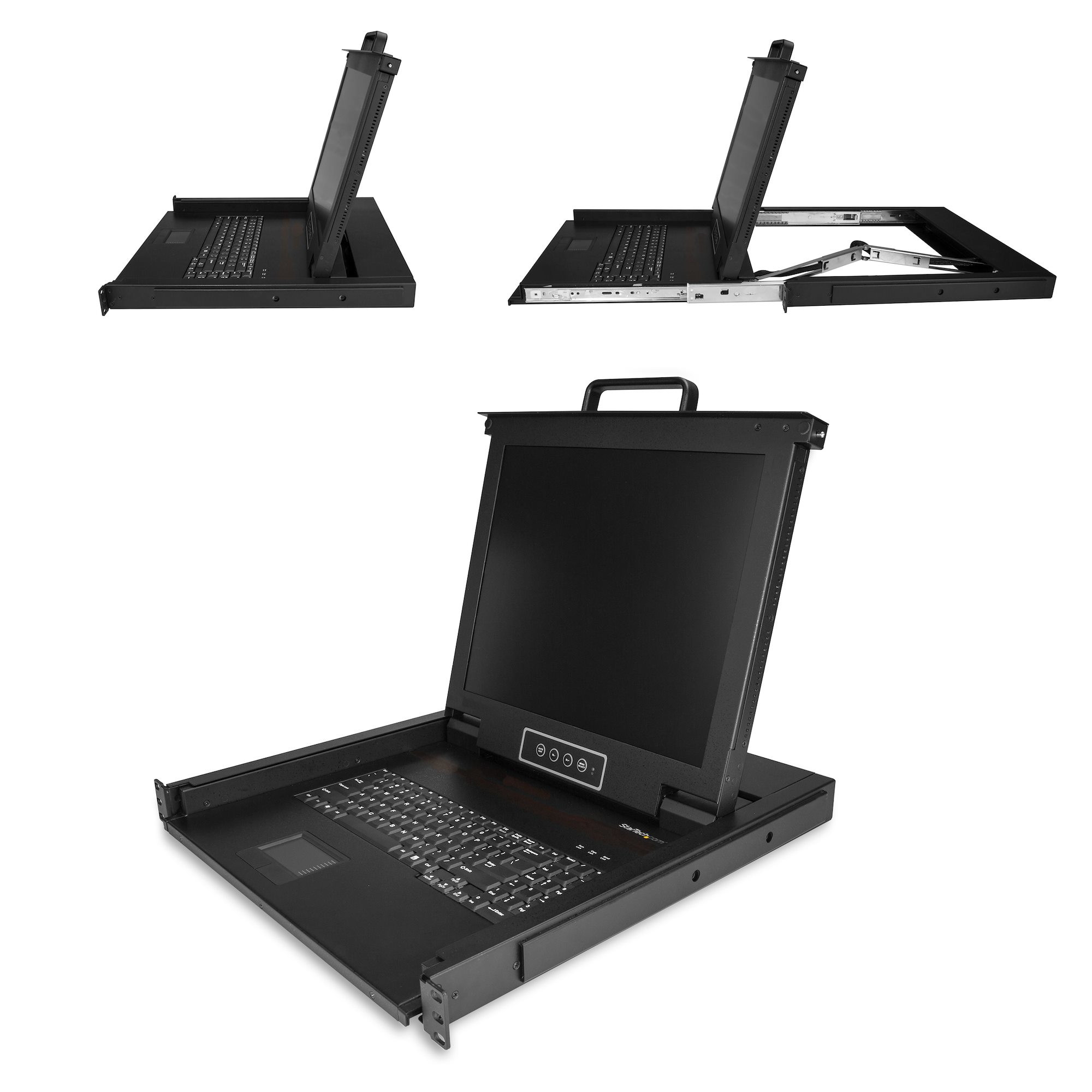

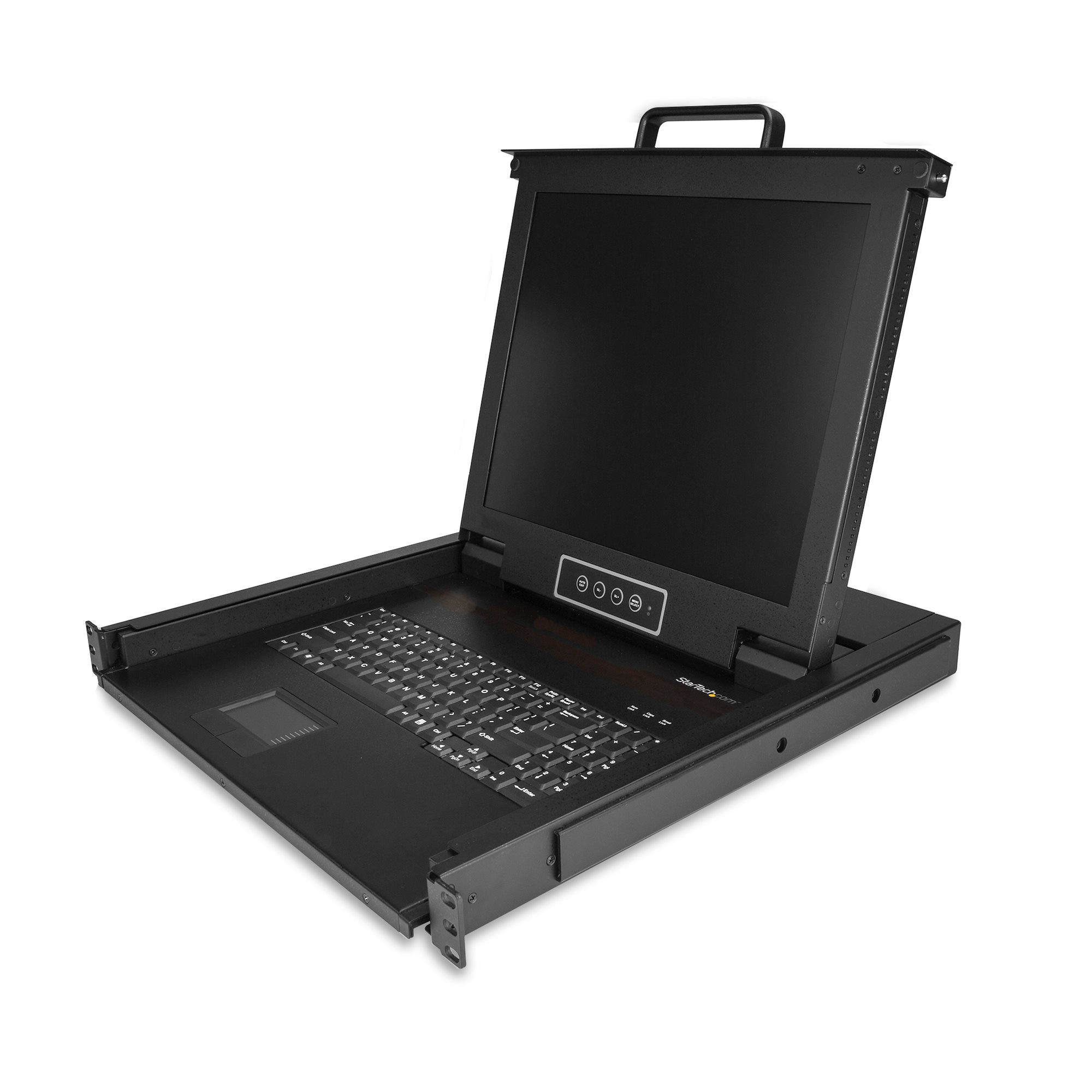

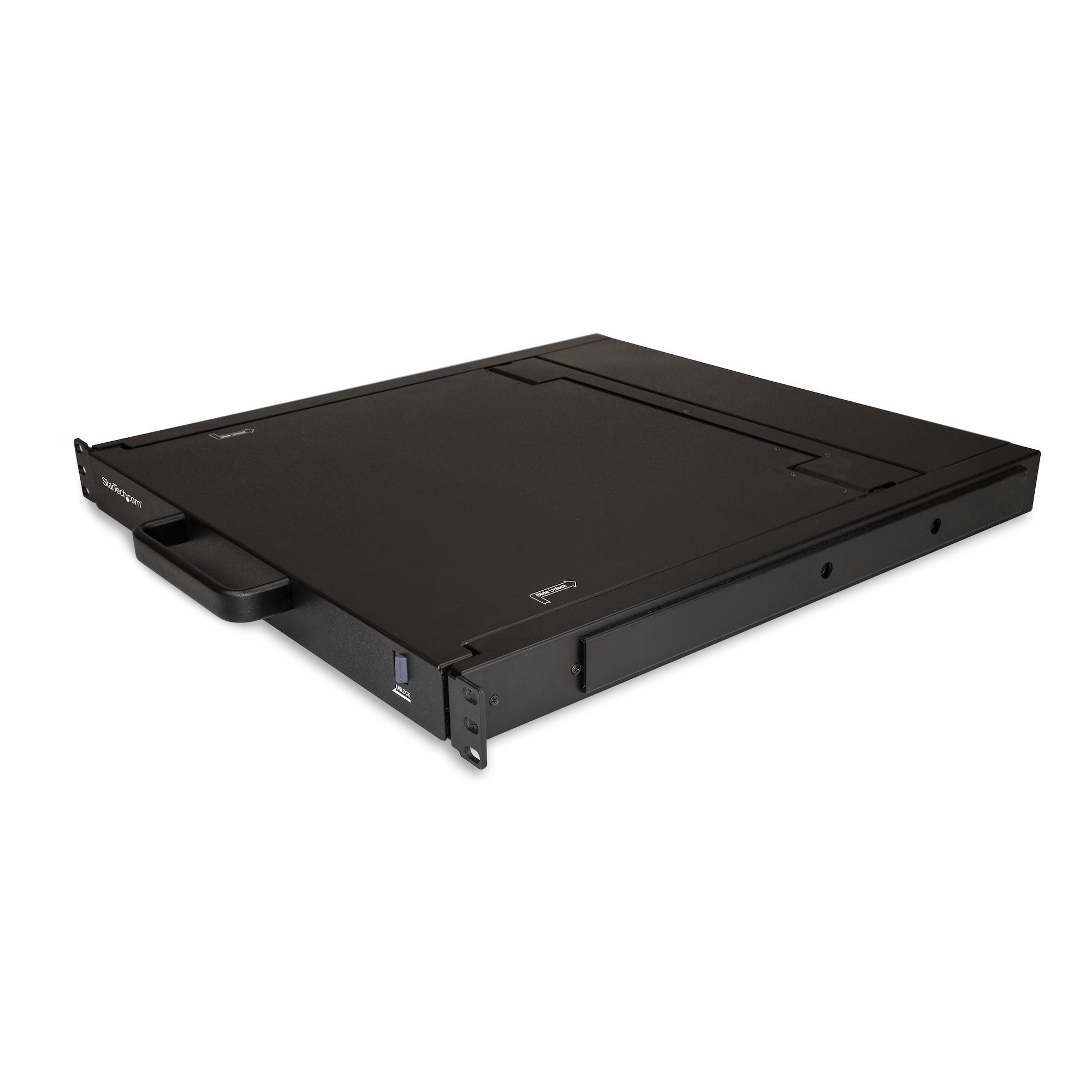

StarTech.com Rackmount KVM Console - 1U 17" LCD Monitor Single Port VGA KVM Server Rack Drawer includes Cables & Hardware - USB Support - Rackmount KVM console works w/all KVM switches w/ VGA + USB interfaces - Rack mount monitor w/17in Active Matrix TFT 1280 x 1024 LCD - 1U height - Integrated power supply - Server rack drawer w/durable steel enclosure 50000 hour MTBF 2 year warranty
Specifications:
Warranty Information
Warranty
2 Years
Connector(s)
Host Connectors

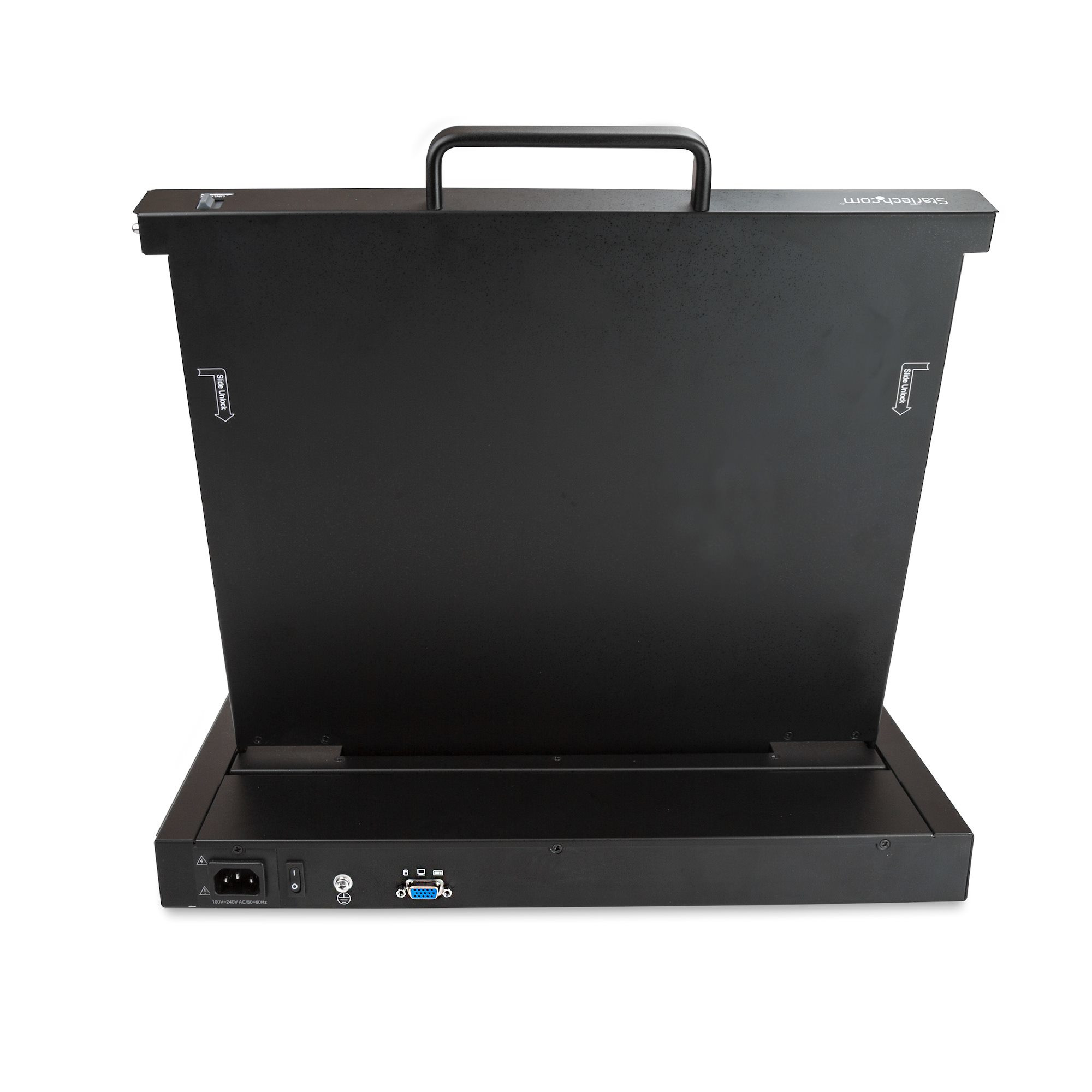

1 - VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
10 ~ 80% RH (non-condensing)
Hardware
U Height
1U
Front Door Key Lock
No
Audio
No
Display Size
17in
Panel Type
Active Matrix TFT LCD
KVM Ports
1
PC Interface
USB
PC Video Type
VGA
Number of Monitors Supported
1
Rack-Mountable
Yes
Cables Included
Yes
Indicators
LED Indicators
1 - Power / Status LED
Packaging Information
Package Height
7.3 in [18.5 cm]
Package Length
30.1 in [76.5 cm]
Package Width
24.2 in [61.5 cm]
Package Quantity
1
Shipping (Package) Weight
37.7 lb [17.1 kg]
Performance
IP Control
No
Maximum Analog Resolutions
1280 x 1024
Supported Resolutions
Resolutions up to 1280 x 1024 @ 60Hz
Aspect Ratio
5:4
Response Time
5ms
Contrast Ratio
1000:1
Brightness
250 cd/m²
Color Depth
8-bit, 16.7M colors
Pixel Pitch Support
0.264 x 0.264 mm
Viewing Angle
170° (H), 160° (V)
Maximum Number of Users
1
MTBF
50, 000 Hrs
Physical Characteristics
Color
Black
Material
Steel
Cable Length
6ft
Product Length
18.5 in [47.1 cm]
Product Width
17.6 in [44.8 cm]
Product Height
1.7 in [4.2 cm]
Weight of Product
25.6 lb [11.6 kg]
Maximum Mounting Depth
31.1 in [79 cm]
Minimum Mounting Depth
17.7 in [45 cm]
Power
Power Source
International Power Cords
Input Voltage
100 - 240 AC
Input Current
1.5A
Power Consumption (In Watts)
13W
Special Notes / Requirements
Note
The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack.
What's in the Box
Included in Package
1 - KVM console
1 - KVM cable
8 - M5 cage nuts
8 - M5 screws
5 - regional power cords (NA, JP, UK, EU, ANZ)
2 - mounting rails
1 - quick-start guide
