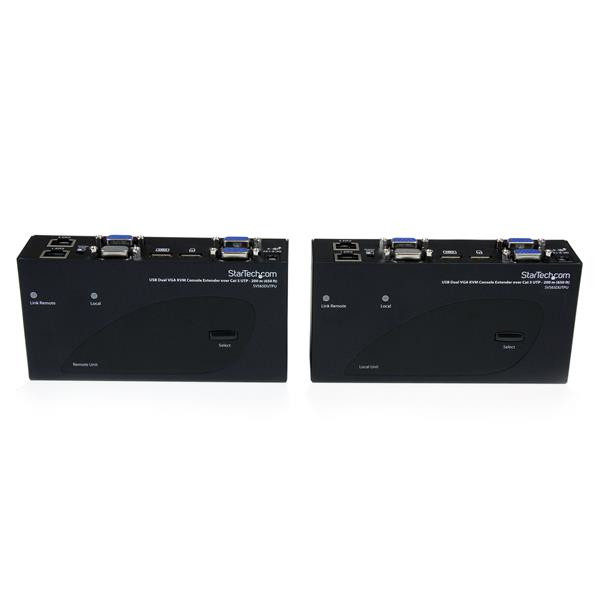

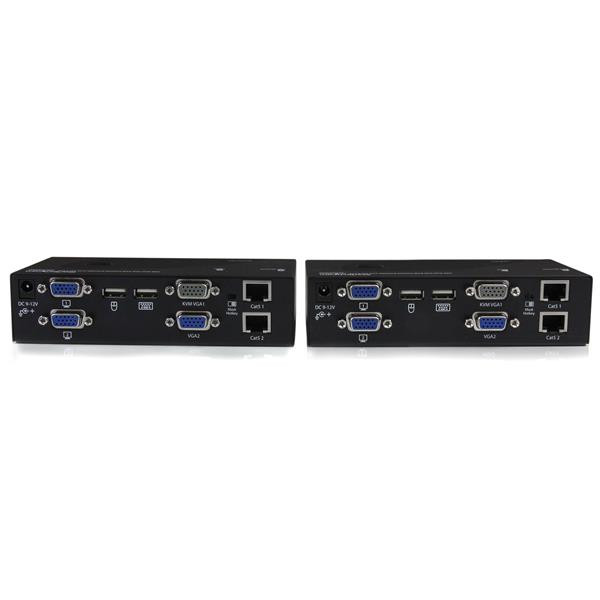

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally - Access your KVM over long distances while not exposing yourself to the network security risks of IP KVMs - Make your KVM remotely accessible with a KVM Extender CAT5 UTP - 650FT/200M
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
- Dual VGA KVM extender at 1920x1200 resolution
- Can be used with a single computer or connected to an existing KVM switch
- Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
- KVM console connections available on both the local and remote end
- Supports most combo keyboard and mouse sets (including Wireless)
- Intuitive hot-key commands for fine-tuning video
Limited Warranty | 3 Year |
Maximum Video Resolution | 1920 x 1200 |
Graphic Mode | WUXGA |
Input Voltage | 120 V AC |
230 V AC | |
Power Consumption | 5.40 W |
Input Voltage Range | 110 V AC - 240 V AC |
Connectivity Technology | Wired |
Maximum Operating Distance | 650 ft |
KVM Technology | Analog |
Number of Computers Supported | 2 |
Number of Local Users Supported | 2 |
Form Factor | Desktop |
Transmitter Height | 1.60" |
Transmitter Width | 3.10" |
Transmitter Depth | 6.10" |
Receiver Height | 1.60" |
Receiver Width | 3.10" |
Receiver Depth | 6.10" |
Transmitter Weight (Approximate) | 1.18 lb |
Receiver Weight (Approximate) | 1.18 lb |
Product Type | KVM Console/Extender |
Manufacturer Part Number | SV565DUTPU |
Manufacturer Website Address | http://www.startech.com |
Manufacturer | StarTech.com |
Product Name | USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m |
Brand Name | StarTech.com |
USB | Yes |
VGA | Yes |
Number of Network (RJ-45) Ports | 4 |
Network (RJ-45) | Yes |
Number of USB Ports | 4 |
Number of VGA Ports | 8 |
Package Contents |
|
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
RoHS | |
REACH | |
TAA Compliant | Yes |
