Description:

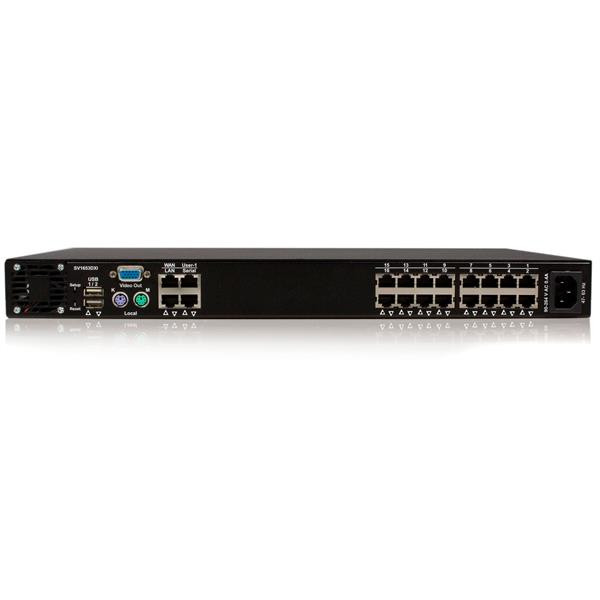

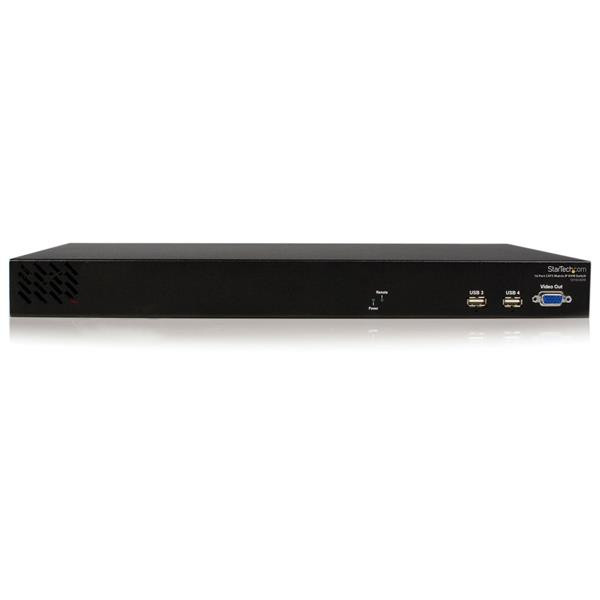

The SV1653DXI 16 Port Enterprise class CAT 5 Matrix IP KVM Switch provides multi-user control of connected servers, devices and services connected through a local network infrastructure. Multi-user functionality allows 1 local user, 1 IP user and 1 remote console user (with a console extender device - SV5CONS not included) to simultaneously access three different systems connected to the KVM.
The IP KVM switch allows users to reboot the system, access the BIOS and have full control over the keyboard and mouse as if they are on site, saving time and resources by providing complete remote control of connected equipment.
Aside from a dependable and convenient operating platform, the SV1653DXI IP KVM Switch also provides features that are essential for secure and efficient management of mission-critical servers and devices - day in and day out.
Specifications:
Power Description
| Input Voltage Range |
120 V AC - 230 V AC |
Warranty
Technical Information
| Maximum Operating Distance |
164 ft |
| Number of Computers Supported |
16 |
Video
| Maximum Video Resolution |
1600 x 1200 |
| Graphic Mode |
UXGA |
Miscellaneous
| Package Contents |
- 16 Port CAT5 Matrix IP KVM Switch
- 1 x Mounting Hardware
- 1 x Bag, Screws
- 1 x Power Cable
- 1 x Instruction Manual
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
REACH |
| RoHS |
| WEEE |
Basic
| Product Type |
KVM Switchbox |
| Form Factor |
Rack-mountable |
| Brand Name |
StarTech.com |
| Input Voltage Range |
120 V AC - 230 V AC |
| Maximum Video Resolution |
1600 x 1200 |
| Maximum Operating Distance |
164 ft |
| USB |
Yes |
| Network (RJ-45) |
Yes |
| PS/2 Port |
Yes |
| Number of Computers Supported |
16 |
Physical Characteristics
| Weight (Approximate) |
4.85 lb |
| Form Factor |
Rack-mountable |
| Rack Height |
1U |
| Height |
1.6" |
| Width |
16.7" |
| Depth |
1.3" |
General Information
| Product Type |
KVM Switchbox |
| Manufacturer Part Number |
SV1653DXI |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Manufacturer |
StarTech.com |
| Product Name |
16 Port CAT5 Matrix IP KVM Switch |
| Brand Name |
StarTech.com |
Interfaces/Ports
| USB |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| Number of USB Ports |
4 |
| Management Port |
Yes |
| PS/2 Port |
Yes |
| Number of PS/2 Ports |
2 |
