Description:
Find the length and color you need

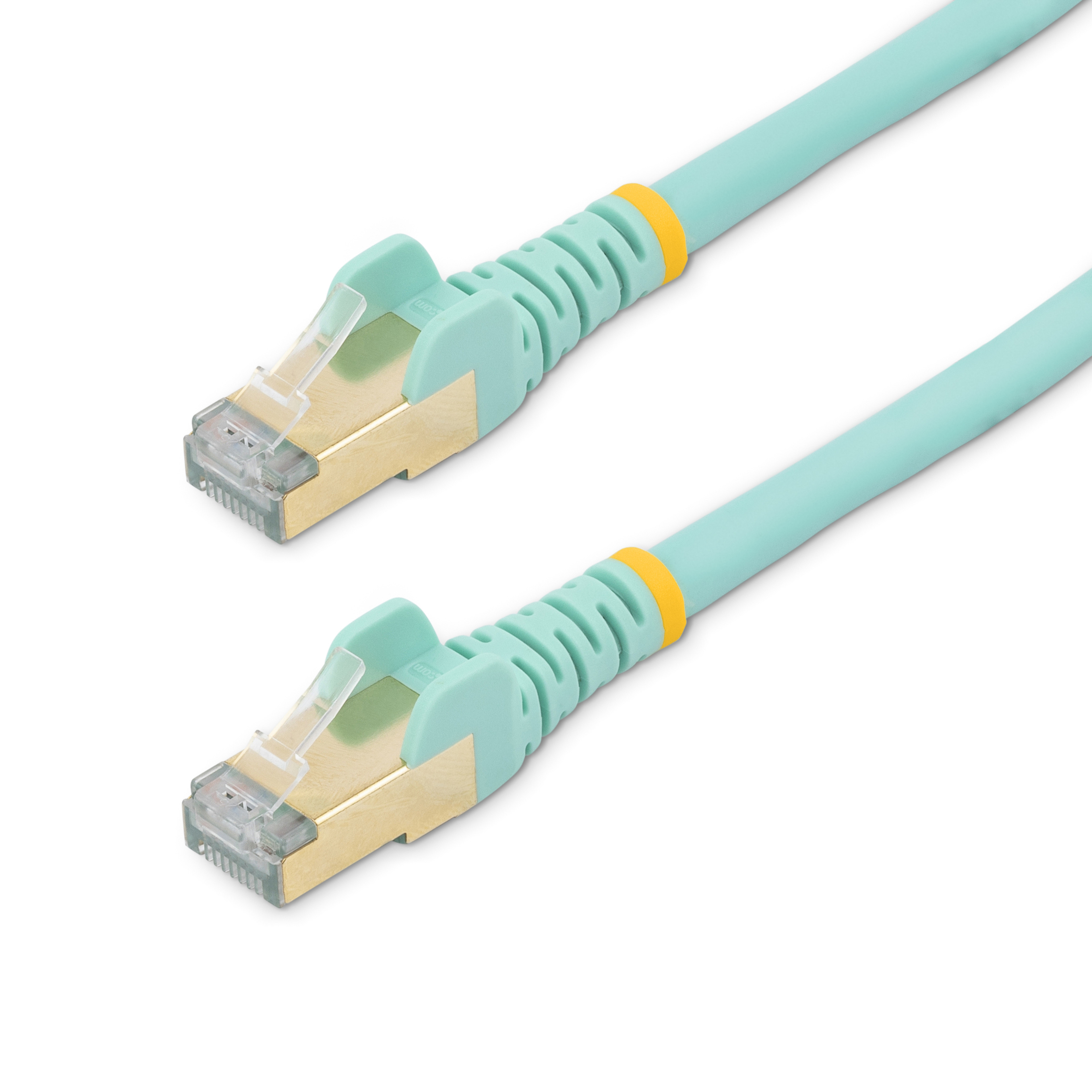

This 10-foot aqua patch cable is perfect for standard applications such as connecting from a wall jack to your laptop docking station or desktop computer.
For easier network installations, our Cat6apatch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

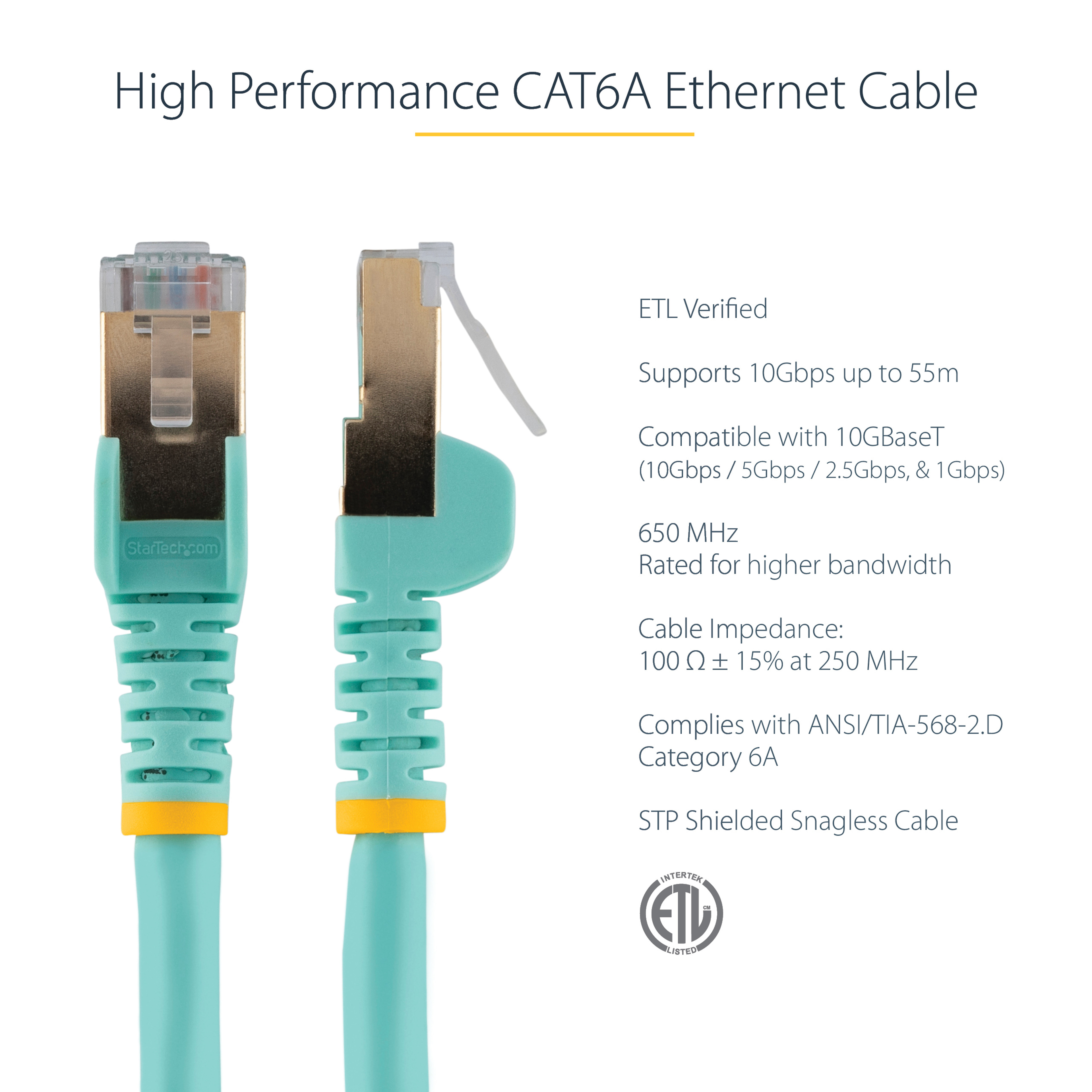

Reliable Cat6a 10 Gigabit connections
Each cable is tested for up to 500MHz frequency and is more than suitable for 10GBase-T Ethernet networks.

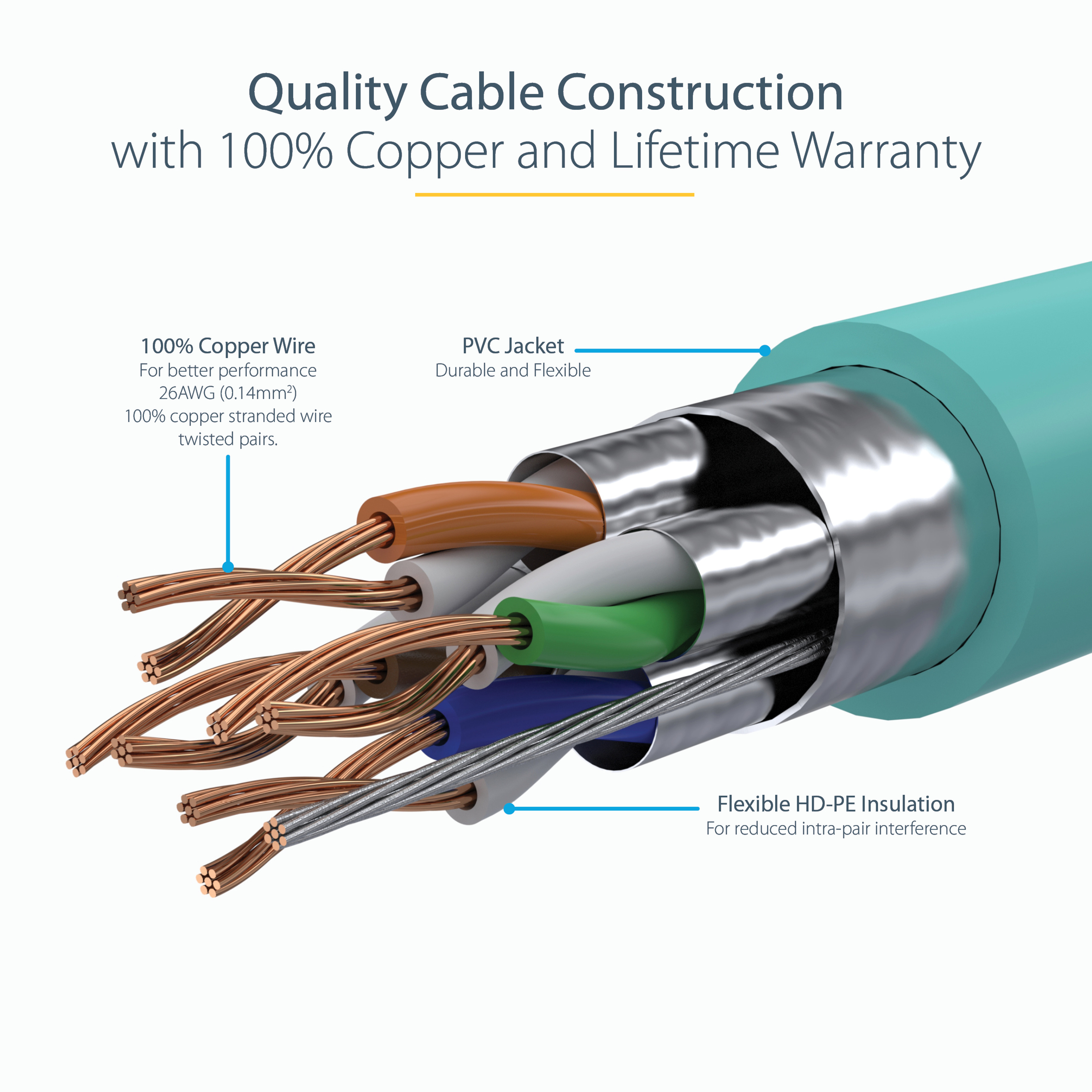

Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

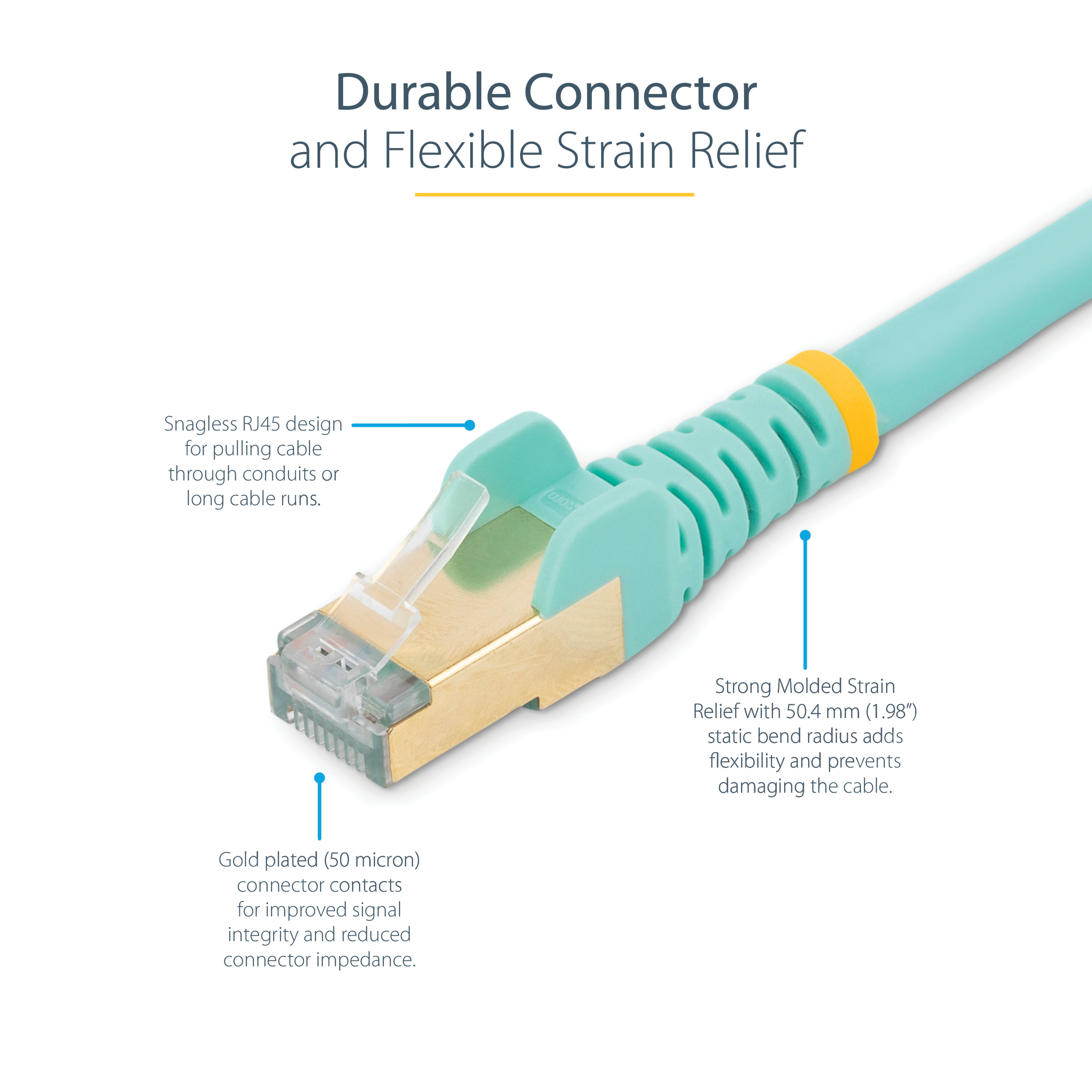

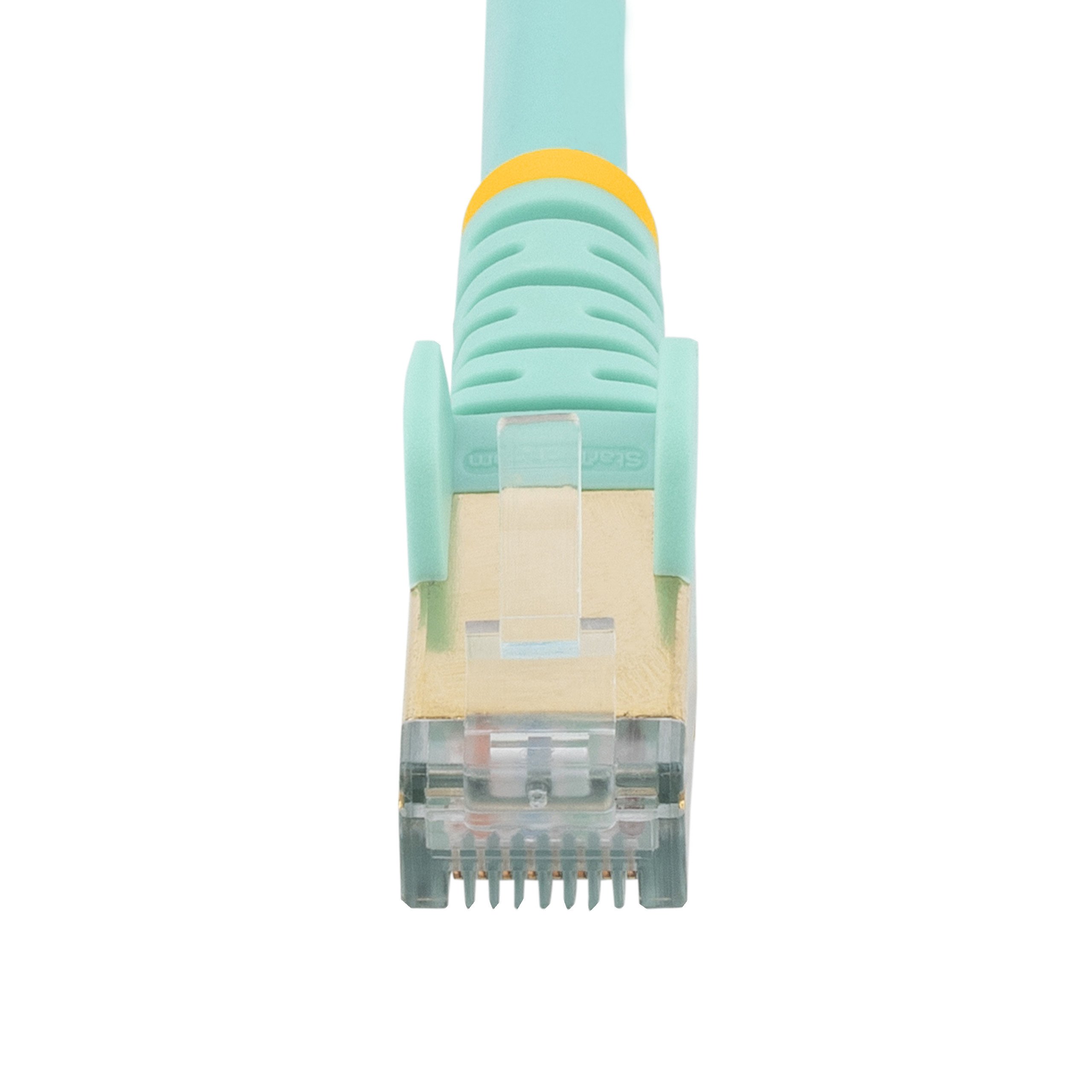

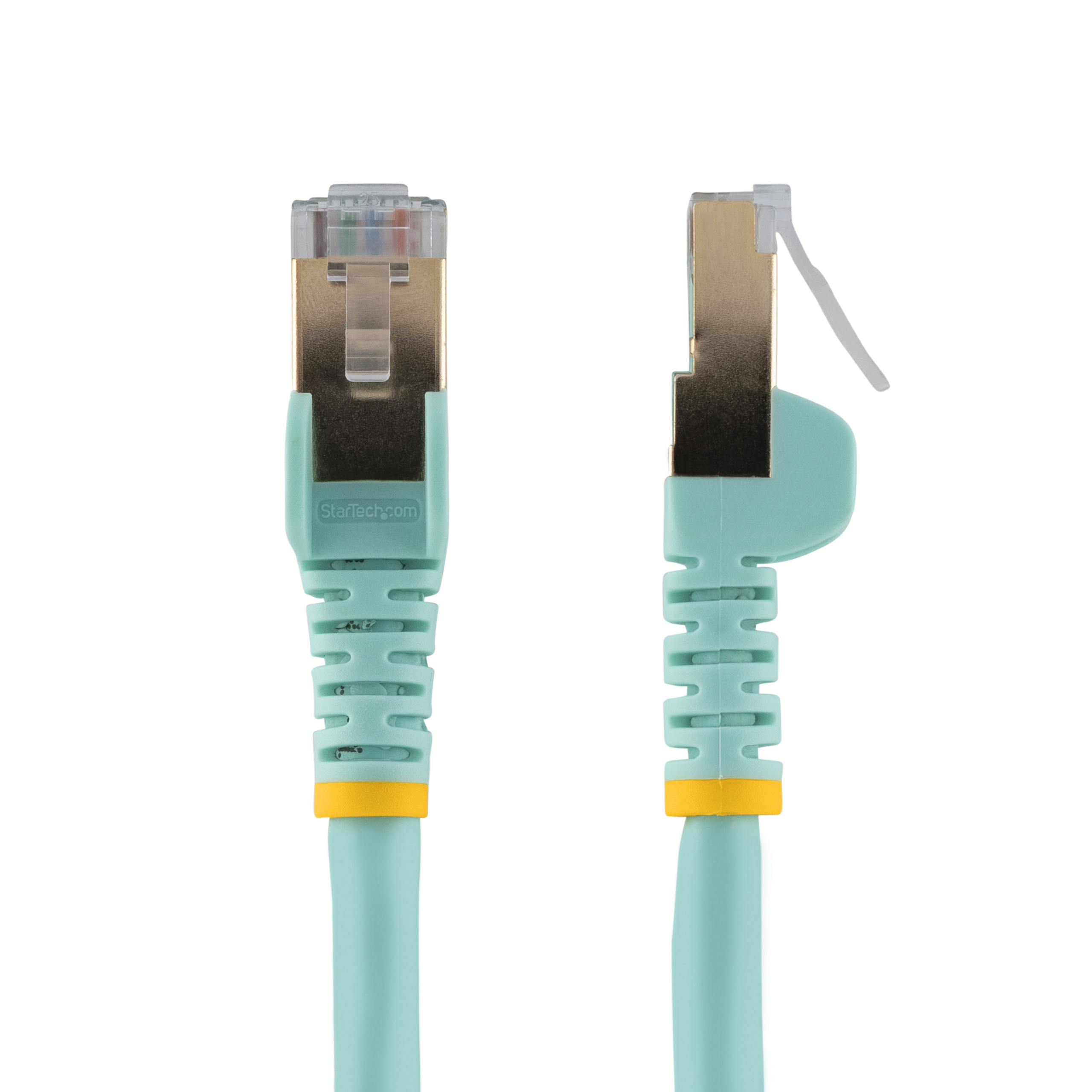

Snagless RJ45 clips help protect your network connections

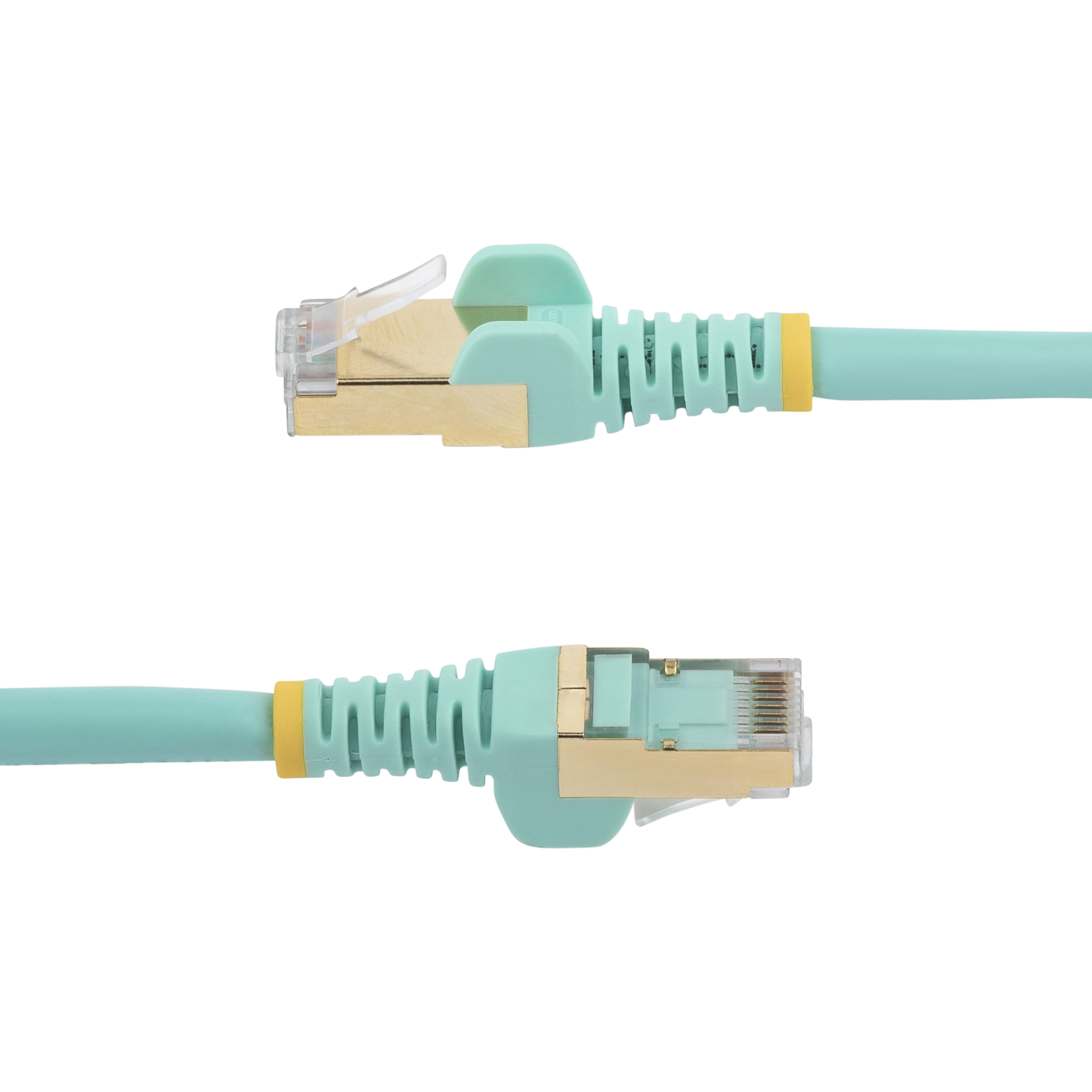

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
The C6ASPAT10AQ is backed by StarTech.com's lifetime warranty for guaranteed reliability.
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.

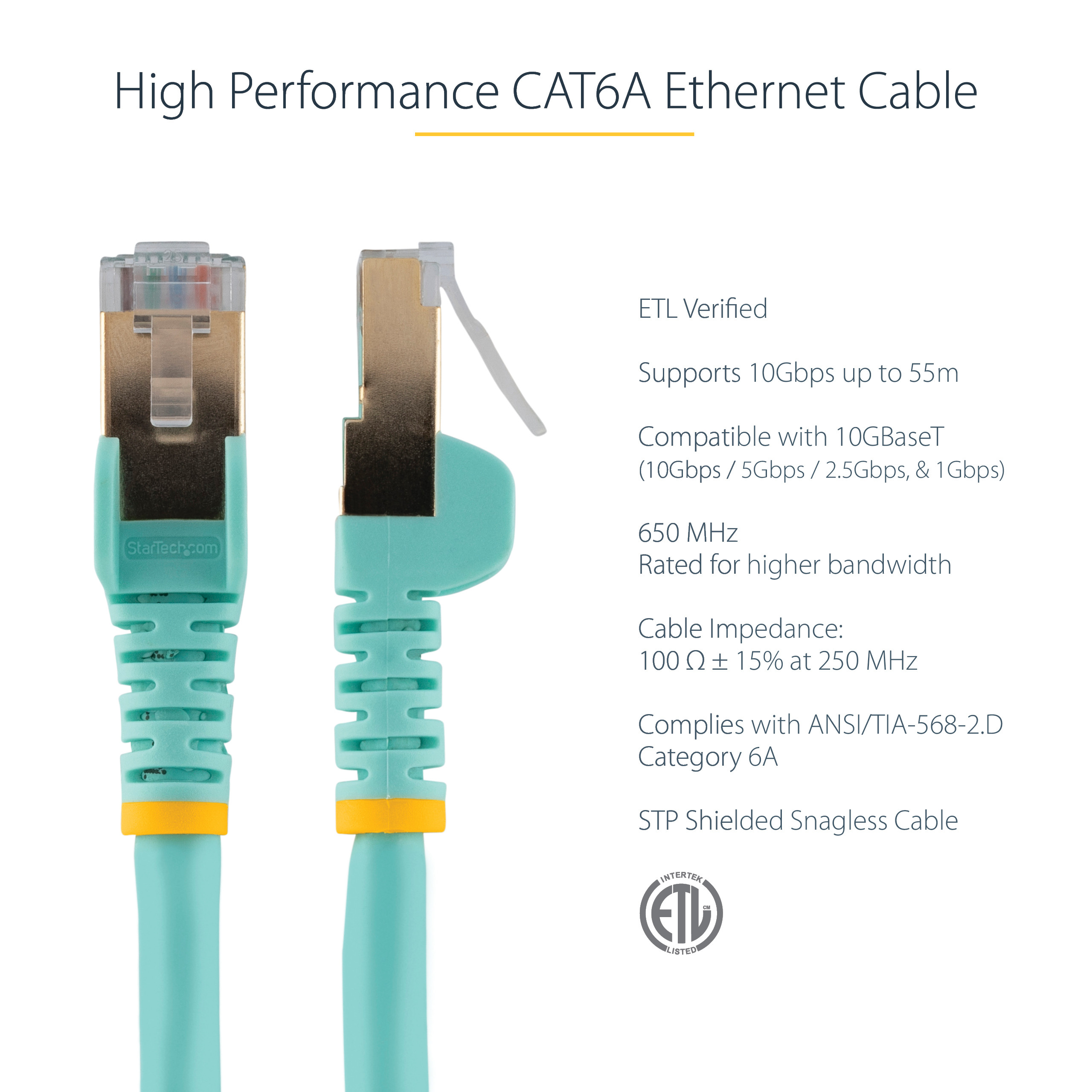

- HIGH PERFORMANCE CAT6a Ethernet CABLE: 100% copper for consistent & error-free 10 gigabit connection. Fluke tested complies with ANSI/TIA-568-D Category 6 requirements; ETL Certified Wiring
- PROTECT YOUR NETWORK: Shielded RJ45 connectors minimize Near-End Crosstalk (NEXT) & protect against noise & electromagnetic (EMI/RFI) interference compatible w/ multi-speed 10Base-T/NBASE-T generation

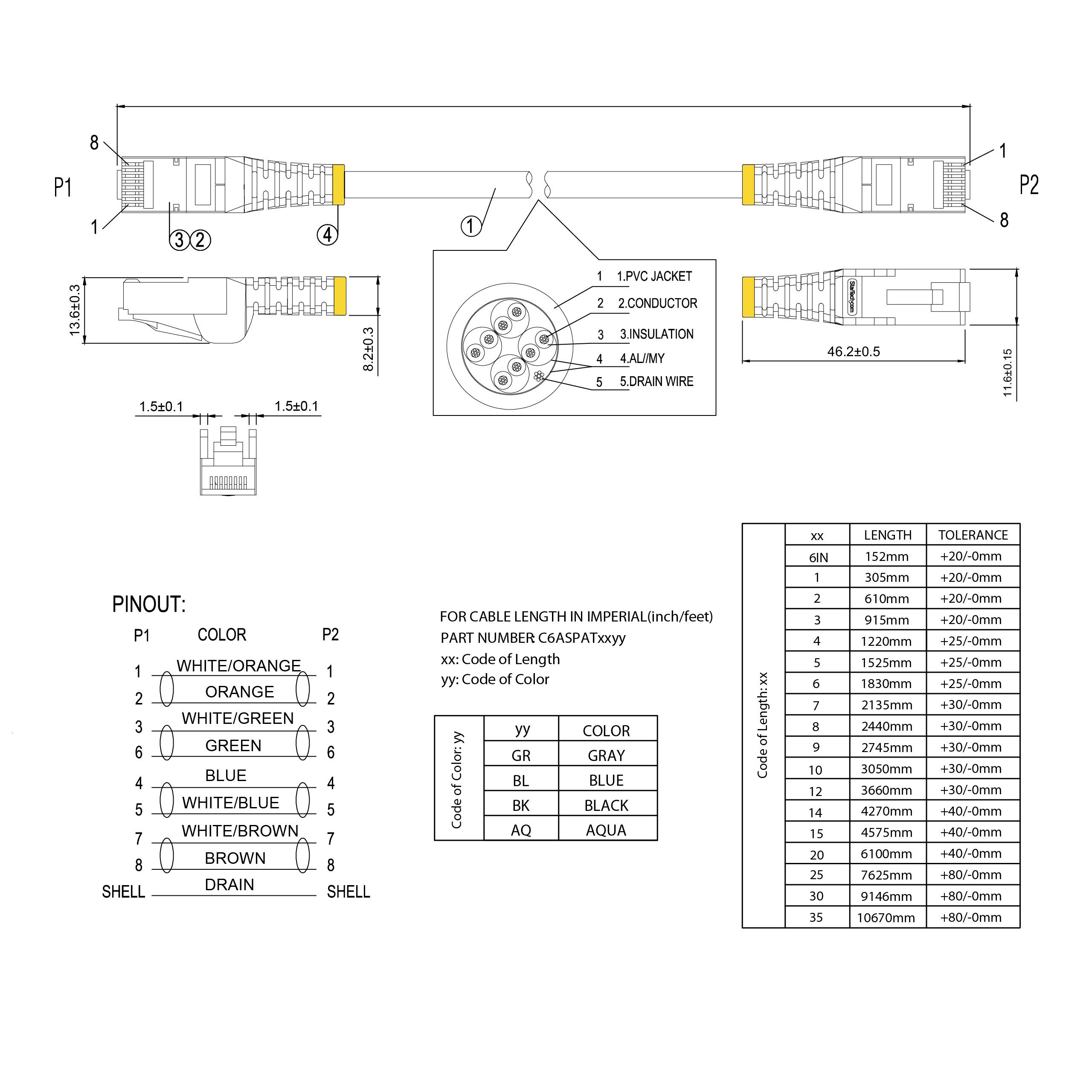

- SPECS: 10 GbE | Length: 10 ft (3 m) | Color: Aqua | Structure: 4 Pair STP | Connector: Snagless | Jacket Type: PVC |Wire Gauge: 26 AWG Copper| Wiring Standard: ANSI/TIA-568-D | Warranty: Lifetime

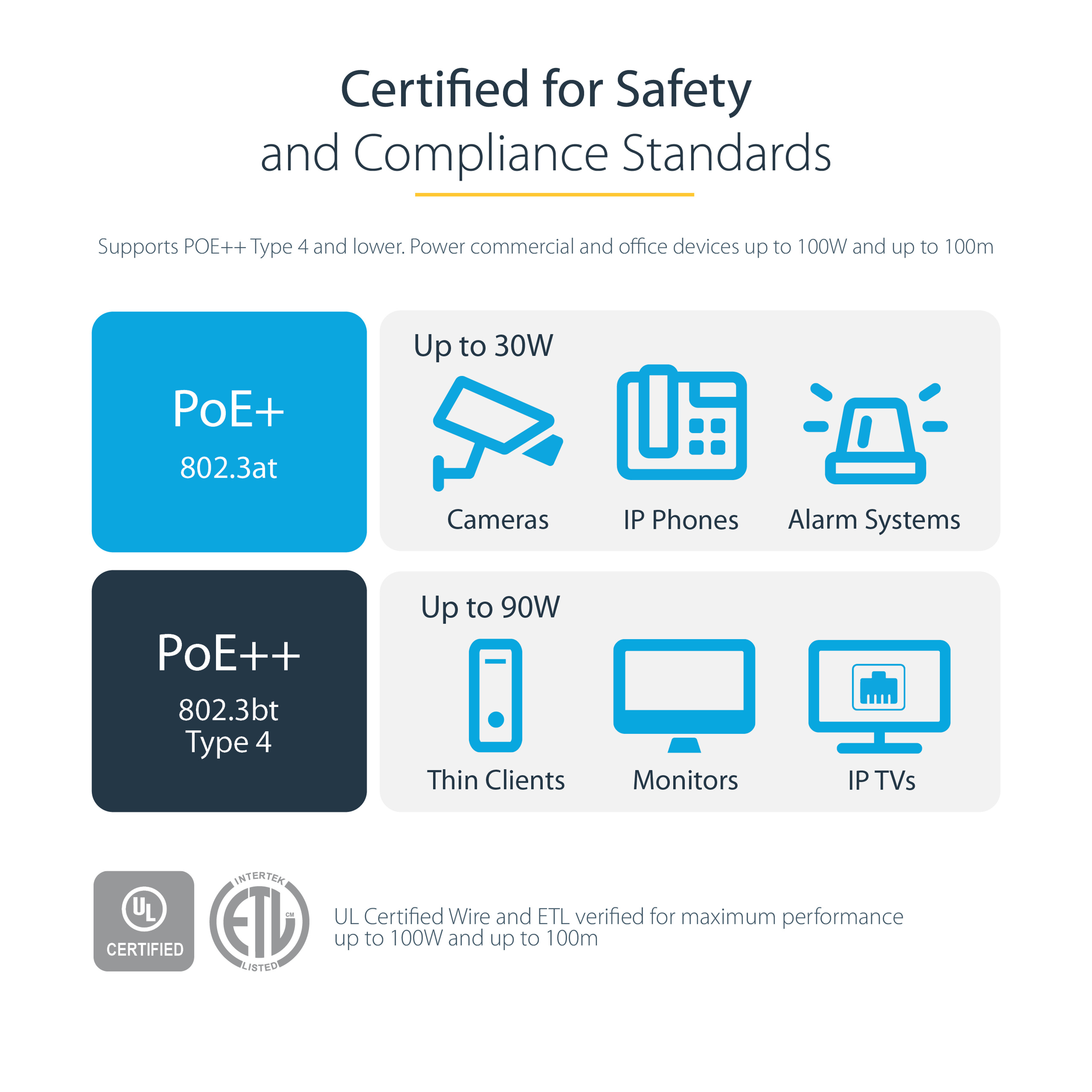

- POE SUPPORT: 26 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems. IEEE 802.3bt & DTE power compliant prevents cable heating up
- QUALITY CONSTRUCTION: 50-micron gold-plated connectors for clear signal & to stop rust/corrosion. Snagless connector enables easy installation & flexible disconnection of patch cord in wiring conduits
Specifications:
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 0.27 lb |
| Product Color | Aqua |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | C6ASPAT10AQ |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Cat6a Ethernet Patch Cable - Shielded (STP) - 10 ft., Aqua |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 10 ft |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Switch |
| VoIP Device | |
| Router | |
| Print Server | |
| PoE-enabled Device | |
| Patch Panel | |
| Notebook | |
| Network Device | |
| Hub | |
| Docking Station | |
| Desktop Computer | |
| Jacket Type | CMG |
| Shielding | Yes |
| Features | Stranded |
| Strain Relief | |
| Rust Resistant | |
| Noise Protection | |
| PoE | |
| Corrosion Resistant | |
| Damage Resistant | |
| EMI/RF Protection | |
| Flexible | |
| Minimized Near-End Crosstalk (NEXT) | |
| Booted | |
| Break Resistant | |
| Molded | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6a |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Plating | Gold |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
