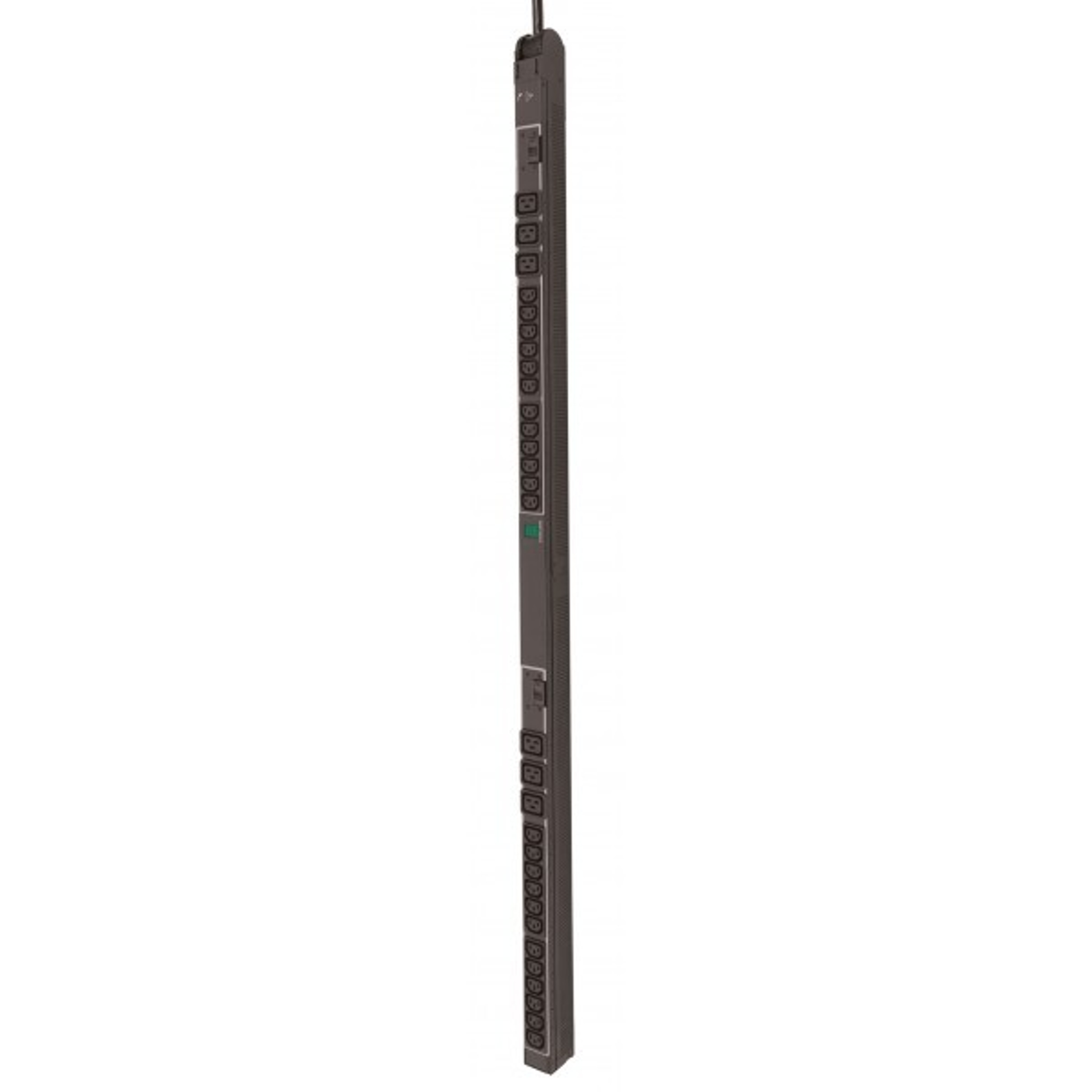

Name: Server Technology STV-2001G Metered PDU 0U (24) IEC C13 + (6) IEC C19 Outlets
Brand: Server Technology
SKU: STV-2001G
Availability: InStock

Key Features

AUTO-FLIP CURRENT DISPLAY

Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
BRANCH CIRCUIT PROTECTION

This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
HIGH RETENTION LOCKING OUTLETS

Receptacles have high retention and are compatible with P-Lock type power cords.
HIGH TEMPERATURE RATING

This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
POWER PIVOT™

The 90 degree rotatable power cord allows for standardized deployment at any facility no matter where power must be routed.
FLEXIBLE MOUNTING

Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).

Description

The Server Technology® Metered PDU provides reliable power distribution with local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet.

Inputs

Input Voltage (V):	208
Input Plug:	IEC C20 100-240V Inlet
Input Current (A):	16
Input Current Rated (A):	16
Input Power Capacity (kW):	3.3
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7

Outputs

Connector	Rating
(24) x IEC 60320/C13	North American Rating: ≤ 12A @208V L-L (15A Peak) Global Rating: ≤ 10A @230V L-N
(6) x IEC 60320/C19	North American Rating: ≤ 16A @208V L-L (20A Peak) Global Rating: ≤ 16A @230V L-N

Branch Circuit Protection

UL489 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating

Physical

Dimensions: 60.0in tall x 1.75in wide x 2.25in deep [1524mm x 45mm x 58mm]

Environmental

Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations

Communications & Security

Not Applicable

Certifications

North American:
Safety (TUVR certified, cTUVus mark)

UL Std. 60950-1, 62368-1
CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

Global:
Safety

EN 62368-1 (TUVR certified, T-mark)
IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

RoHS, European Hazardous Materials Directive, 2011/65/EU
WEEE Compliant
CE Mark
UK Legislation
RoHS, Electrical Equipment (Safety)

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (1.0 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
