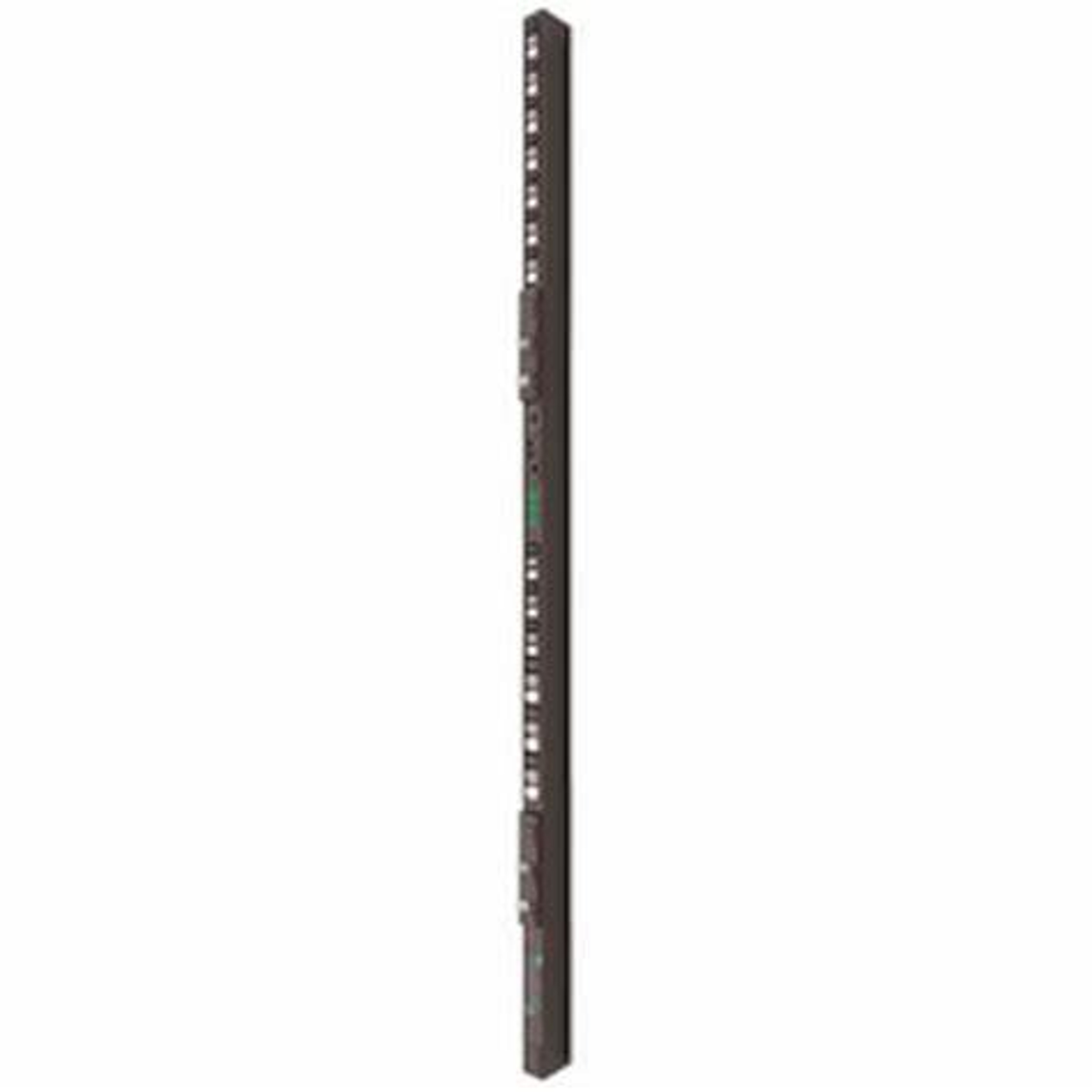

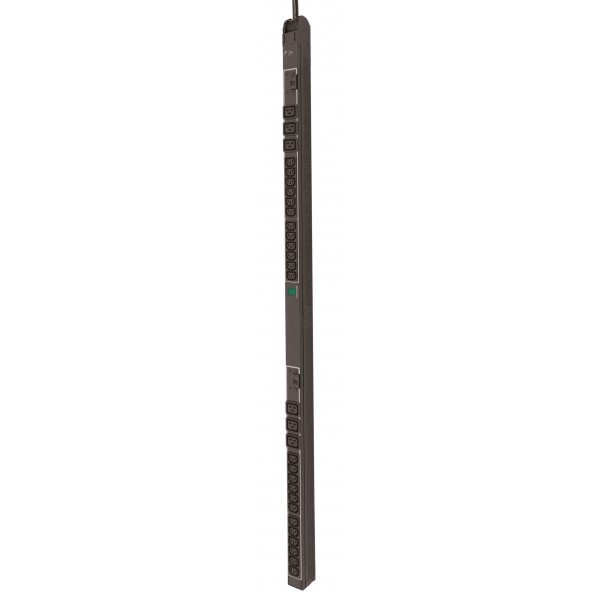

Switched POPS PRO2 Expansion with PIPS (Per Inlet Power Sensing), 0U, 48x IEC C13 Outlets
Switched POPS PRO2 Expansion with PIPS (Per Inlet Power Sensing), 0U, 48x IEC C13 Outlets, 3 x LED Amp Meters, 3 Phase Wye, 20A w/ NEMA L21-20P Plug, 10 ft (3 m) Cord, Top Cord Entry, Middle Display to side of outlets, (2) Temperature/Humidity Sensor Capable, Circuit Breakers to side of outlets
60C; Auto-flip LED; Branch Current Monitoring; Branch Fault Detection; High Retention Outlets; Locking Outlets; PRO2; Reverse Sequencing; Reversible LED; T/H On Link
Specifications:
Input s
Input Voltage (V): 208
Frequency 50/60 Hz
Input Plug: NEMA L21-20P
Input Current (A): 20
Input Current Rated (A): 16
Input Power Capacity (kW): 5.7
Output s
Connect or Rating
(48) x IEC 60320/C13 North AmericanRating: ≤ 12A @208V L-L (15A Peak)
Branch Ci r cuit Protecti on
UL 489, CSA C22.2 No. 5 & IEC/EN60947-2 Compliant 2-pole, 20A trip circuit breakers, three (3) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating
Physi cal
Dimensions: 69.0in tall x 3.25in wide x 2.95in deep [1753mmx 83mmx 75mm]
Envi ronmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RHto 90%RHnon-condensing | 6,500ft/2kmelevation
St orage Environment: -40°F to 185°F / -40°C to 85°C | 8%RHto 90%RHnon-condensing | 50,000ft/15kmelevation
Quiescent/ Unloaded Power Draw: < 10W for all configurations
Communi cati ons & Secur it y
10/100 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6,
LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
Cer tifi cati ons
Nor t h Amer ican:
Safety (TUVR certified, cTUVus mark)
UL Std. 62368-1
CAN/CSA-C22.2 No. 62368-1
EMC
FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
CANICES-003, Class A
M easurement Accuracy
Input Meas urement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUICurrent = ± 1% at 0.01 amp resolution (above 0.25 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution
Out put Meas urement Accuracy
GUICurrent = ± 1% at 0.01 amp resolution (above 0.15 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 1 watt-hour resolution
Branch Meas urement Accuracy
Current = ± 3% at 0.01 amp resolution (above 0.5 amp)
Opti onal Accessor i es
EMTH-2-10 Combination Temperature/Humidity Probe, 10ft (3m)
EMCU-1-1C Environmental Monitor adding:
- Two (2) EMTH-2-10 temperature/humidity ports (one probe included)
- One (1) EMWS-1-1 water sensor port (probe sold separately)
- Four (4) dry contact (NO/NC) monitoring points
- One (1) 8-bit analog-to-digital converter (0 to 5VDC)
KIT-PRO2LINK-01M or -01D provides ability to link (2) additional PRO2 units
KIT-SUS-01 StartUp Stick™ for rapid configurationMounting Brackets
- Buttons (KIT-0020) included for tool-less mounting (see diagram)
- See the Mounting Bracket Guide for further suggestions
- Custommounting options available. Contact your local Server Technology representative
Cable RetentionDevices for non-locking cords
- EZip
- Cable Sleeve
