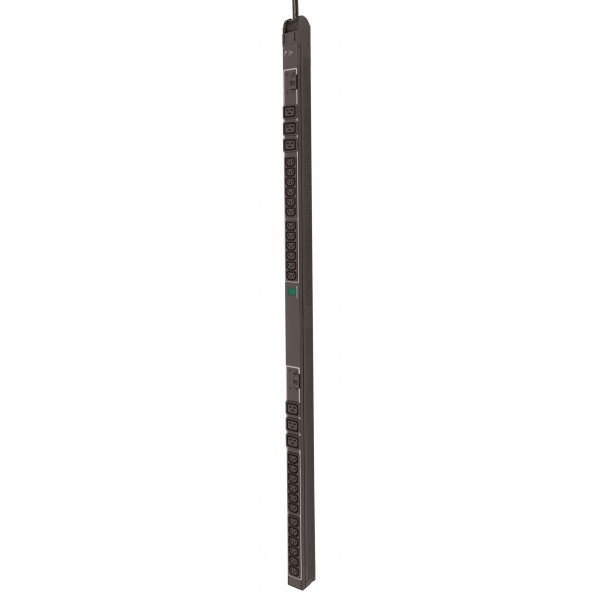

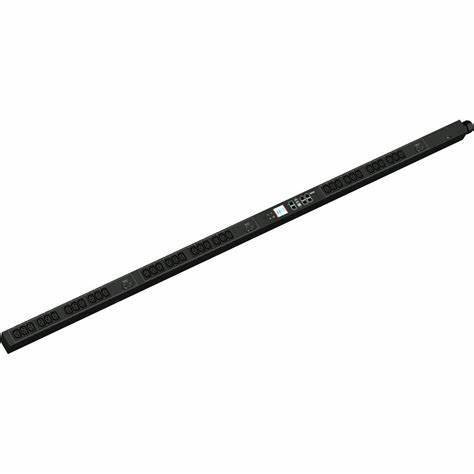

Server Technology STV-6541G 24-Outlets PDU - Switched POPS

Description:

The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Specifications:

Basic
Product Type:	PDU
Input Voltage:	230 V AC
Form Factor:	Hot-swappable
Input Receptacles:	C20 Inlet
Input Current:	16 A
Output Receptacles:	18 x IEC 60320 C13
	6 x IEC 60320 C19
Protection Type:	Circuit Protection
	Overload Protection
	Double Pole
Rack Height:	0U
Brand Name:	Server Technology
Phase:	Three Phase
Product Family:	PRO2
PDU Type:	Switched POPS
Power Rating (Watt):	3300 W

General Information
Product Type:	PDU
Manufacturer Part Number:	STV-6541G
Manufacturer Website Address:	http://www.servertech.com
Manufacturer:	Server Technology, Inc
Product Model:	STV-6541G
Product Name:	PRO2 STV-6541G 24-Outlets PDU
Product Series:	PRO2
Brand Name:	Server Technology

Interfaces/Ports
Network (RJ-45):	Yes

Management
Management:	HTTP/HTTPS TLSv1.2 SSHv2 Telnet SNMPv2c IPv4 IPv6 LDAPv3/LDAPS TACACS+ RADIUS FTP/SFTP v3: GET SET Traps

Miscellaneous
Package Contents:	PRO2 STV-6541G 24-Outlets PDU Button Mounts Mounting Brackets
Environmentally Friendly:	Yes
Environmental Certification:	WEEE
	RoHS

Physical Characteristics
Form Factor:	Hot-swappable
Mount Type:	Rack-mountable
	Cabinet-mountable
Rack Height:	0U
Height:	64"
Width:	1.8"
Depth:	3.5"

Power Description
Input Voltage:	230 V AC
Input Current:	16 A
Power Rating (Watt):	3300 W

Technical Information
Input Receptacles:	C20 Inlet
Output Receptacles:	6 x IEC 60320 C19
	18 x IEC 60320 C13
Protection Type:	Overload Protection
	Double Pole
	Circuit Protection
Phase:	Three Phase
PDU Type:	Switched POPS

Warranty
Limited Warranty:	2 Year
