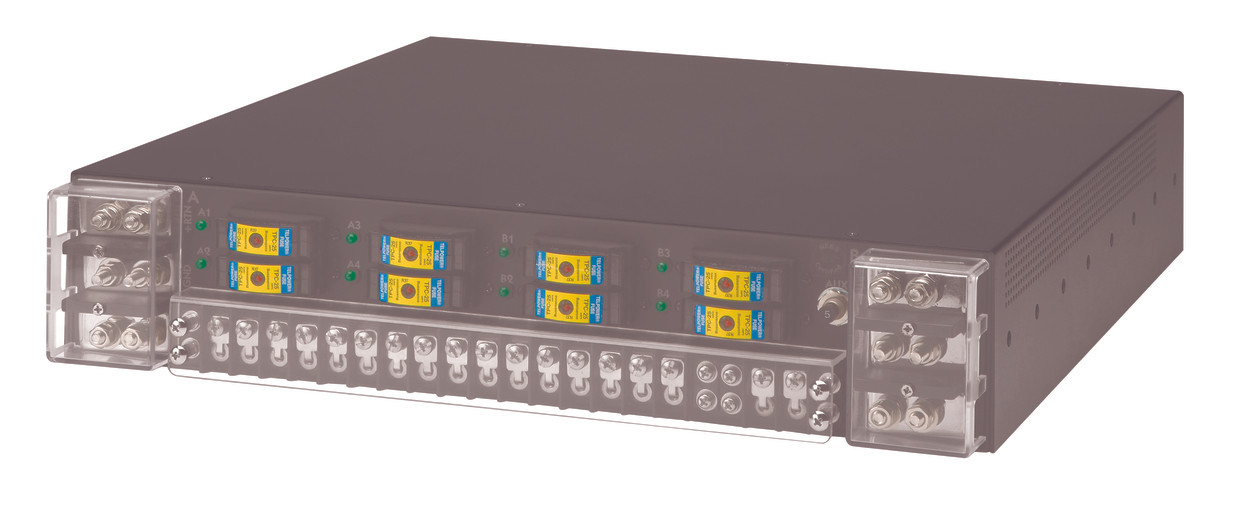

Server Technology 48DCWC-08-2X100-B0NB Remote Power Mgr

Server Technology 48DCWC-08-2X100-B0NB Remote Power Mgr

Server Technology

Regular Price $4,007.00
Discount Price: $3,406.00
Shipping:
Free Shipping
Product Overview:

PRO1 -48 VDC Remote Power Manager, eight (8) switched outputs @ 20A (fused up-to 25A max) w/ Load-Sense, dual 100A input blocks

MFG#:
48DCWC-08-2X100-B0NB
Product Category:
PDU
Platform:
PRO1
Metering and Switching:
-48 VDC
Total Outlets:
8
Plug Type:
Terminals
Input Phase:
DC
Power Capacity:
9.6 kW
Input Monitoring:
none
Input Current:
200
Input Current Rating:
200
Form Factor:
2U
Rack Mounting Style:
Horizontal
Branch Monitoring:
None
Alt Phase:
FALSE
Adding to cart… The item has been added

Description:

PRO1 -48 VDC Remote Power Manager, eight (8) switched outputs @ 20A (fused up-to 25A max) w/ Load-Sense, dual 100A input blocks, (8) TPC fuses supplied at no charge but must be specified at time of order, two (2) temperature/humidity sensor support, STI Black Paint, NEBS certified

Specifications

Inputs
Input Voltage(V) -48
Input Terminal (2) x 1/4-20 dual-studs on 5/8 in. centers (100A max)
Input Current(A) 200
Input Current Rated(A) 200
Input Power Capacity (kW) 9.6
Outputs
Terminals (8) x #10 ring lug terminals (20A max) and (1) AUX #10 ring lug terminal (5A)
Physical
Dimensions 3.5in tall x 17.0in wide x 17.6in deep [89mm x 432mm x 448mm]
Environmental
Operating Environment 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Communications & Security
Communications & Security
  • 10/100 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
  • Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
  • Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
Certifications
North American
  • cTUVus Mark to UL 60950-1:2007 R10.14
  • CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014
  • FCC Part 15 Subpart B Sections 15.107 and 15.109, Class A
Global
  • TUV T-Mark to EN 60950-1:2006+A11+A1+A12+A2
  • EMC to EN55024 (2010) and EN55032 (2012)
  • CE Compliant
  • RoHS, European Hazardous Materials Directive (Recast) 2011/65/EU
  • WEEE Compliant
  • NEBS Level 3
  • GR-1089-Core: Sections 1-4, 7, 9, and 10
  • GR-63-Core: Sections 4.1, 4.2, 4.3, 4.4, 4.5, and 4.7
Measurement Accuracy
Input Measurement Accuracy:
  • LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
  • GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)
Optional Accessories
EMTH-2-10 Combination Temperature/Humidity Probe, 10ft (3m)
EMCU-1-1C Environmental Monitor adding:
  • Two (2) EMTH-2-10 temperature/humidity ports (one probe included)
  • One (1) EMWS-1-1 water sensor port (probe sold separately)
  • Four (4) dry contact (NO/NC) monitoring points
  • One (1) 8-bit analog-to-digital converter (0 to 5VDC)
KIT-SUS-01 StartUp Stick™ for rapid configuration. Mounting Brackets
  • Mounting brackets included
  • Custom mounting options available.
!
