Description:

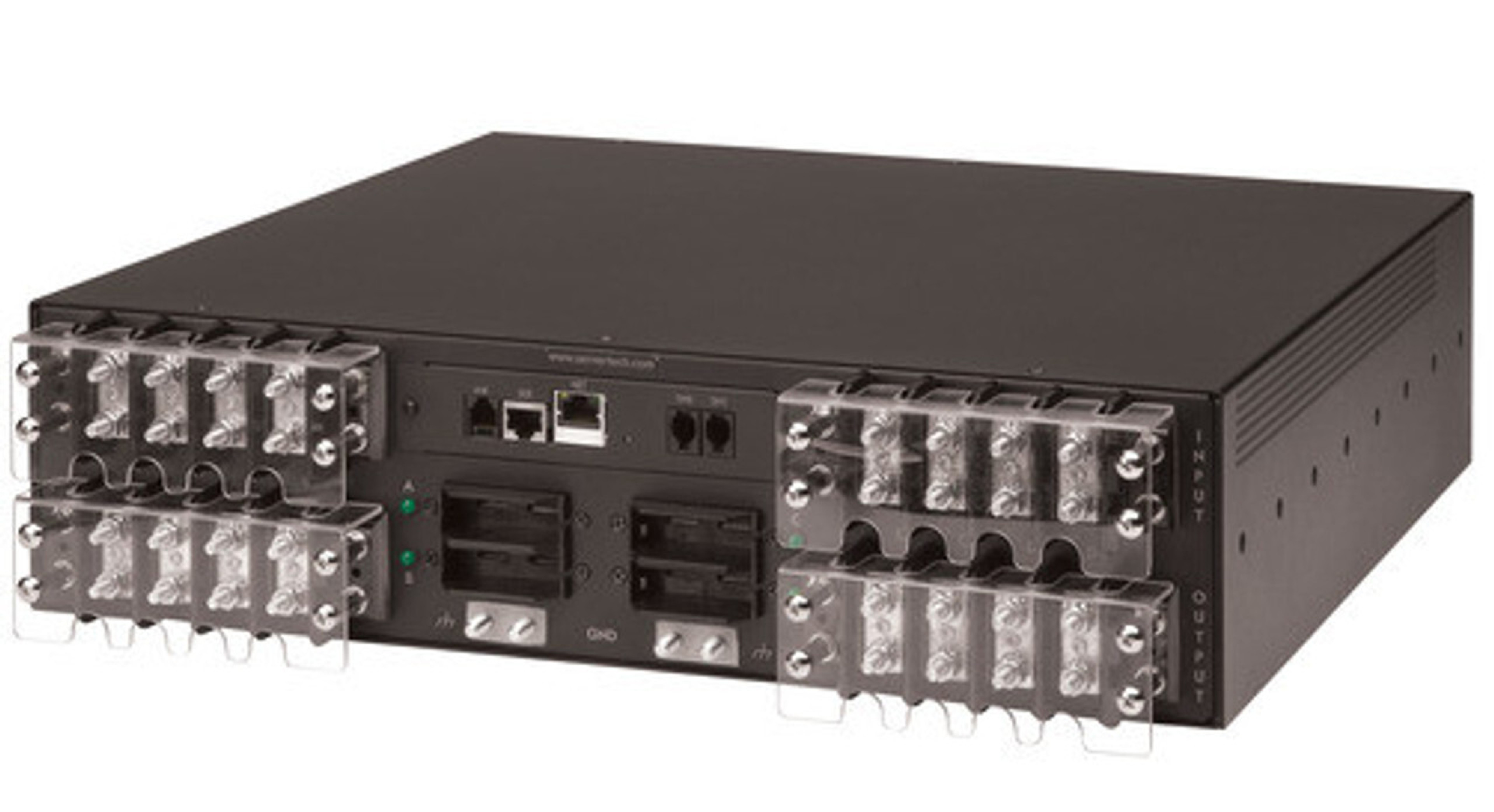

PRO1 -48 VDC Remote Power Manager, 2.5U, (4) Switched Outputs @ 70A (Fused up-to 75A max) w/ Load-Sense, (4) 70A Inputs, (4) TPC fuses supplied at no charge but must be specified at time of order, (2) Temperature/Humidity Sensor Capable, NEBS certified
Network Monitoring
- Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Hot-Swap Network Card
- Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
Star Multi-Linking
- Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
Temperature/Humidity Monitoring
- Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
Branch Circuit Protection
- This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through the use of user specified TPC fuses.
Technical Specifications For The 48DCWC-04-4X070-D0NB:
| Inputs | |
|---|---|
| Input Voltage (V) | -48 |
| Input Terminal | (4) x #10-32 dual-studs on 3/4 in. centers (70A max) |
| Input Current (A) | 280 |
| Input Current Rated (A) | 280 |
| Input Power Capacity (kW) | 13.4 |
| Outputs | |
|
Terminals: (4) x #10-32 dual-studs on 3/4 in. center (70A max)
|
|
| Branch Circuit Protection | |
|
No Data Available
|
|
| Physical | |
|
|
|
| Environmental | |
| Operating Environment | 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation |
| Storage Environment | -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation |
| Communications & Security | |
|
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU} Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP |
|
| Certifications | |
|
North American :
cTUVus Mark to UL 60950-1:2007 R10.14 CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 FCC Part 15 Subpart B Sections 15.107 and 15.109, Class A NEBS Level 3 GR-1089-Core: Sections 1-4, 7, 9, and 10 GR-63-Core: Sections 4.1, 4.2, 4.3, 4.4, 4.5, and 4.7 |
|
| Measurement Accuracy | |
| Input Measurement Accuracy | LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution |
| Optional Accessories | |
|
EMTH-1-1 Combination Temperature/Humidity Probe, 10ft (3m)
EMCU-1-1B Environmental Monitor adding: - Two (2) EMTH-1-1 temperature/humidity ports (one probe included) - One (1) EMWS-1-1 water sensor port (probe sold separately) - Four (4) dry contact (NO/NC) monitoring points - One (1) 8-bit analog-to-digital converter (0 to 5VDC) KIT-SUS-01 StartUp Stick™ for rapid configurationMounting Brackets - mounting brackets included - See the Mounting Bracket Guide for further suggestions - Custom mounting options available. Contact your local Server Technology representative |
|
| Additional Information | |
| Warranty | Server Technology offers a standard 2-year limited parts & labor warranty. Extended support is available at the time of purchase |
