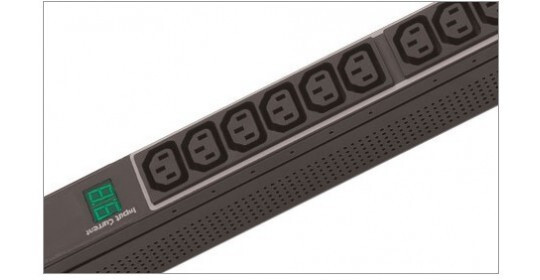

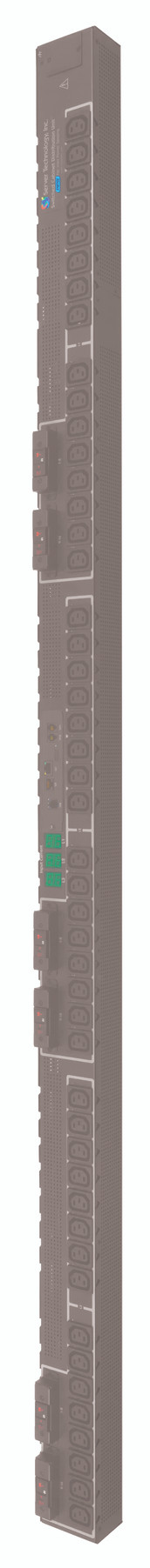

Server Technology STV-2001C Power Metered PDU 30 Outlets

Description:

The Server Technology® Metered PDU provides reliable power distribution with local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet

Specifications:

• nput Power Capacity (kW):	3.3
  Input Plug Type:	IEC C20 100-240V Inlet
  Input Current (A):	16
  Input Current Rated (A):	16
  Input Nominal Voltage (V):	208
  Input Phase:	1-Phase (L-L)
  Input Cord Location:	Bottom/Pivot
  Outlet Form Factor:	Conventional
  Total Outlets:	30
  IEC C13 Count:	24
  IEC C19 Count:	6
  Utility Outlet:	0

• Input Power Capacity (kW):	5.0
  Input Plug Type:	NEMA L6-30P
  Input Current (A):	30
  Input Current Rated (A):	24
  Input Nominal Voltage (V):	208
  Input Phase:	1-Phase (L-L)
  Input Cord Location:	Bottom/Pivot
  Outlet Form Factor:	Conventional
  Total Outlets:	30
  IEC C13 Count:	24
  IEC C19 Count:	6
  Utility Outlet:	0

• Input Power Capacity (kW):	7.3
  Input Plug Type:	IEC 230V/32A 2P+PE 6Hr
  Input Current (A):	32
  Input Current Rated (A):	32
  Input Nominal Voltage (V):	230
  Input Phase:	1-Phase (L-N)
  Input Cord Location:	Bottom/Pivot
  Outlet Form Factor:	Conventional
  Total Outlets:	30
  IEC C13 Count:	24
  IEC C19 Count:	6
  Utility Outlet:	0
