Description:

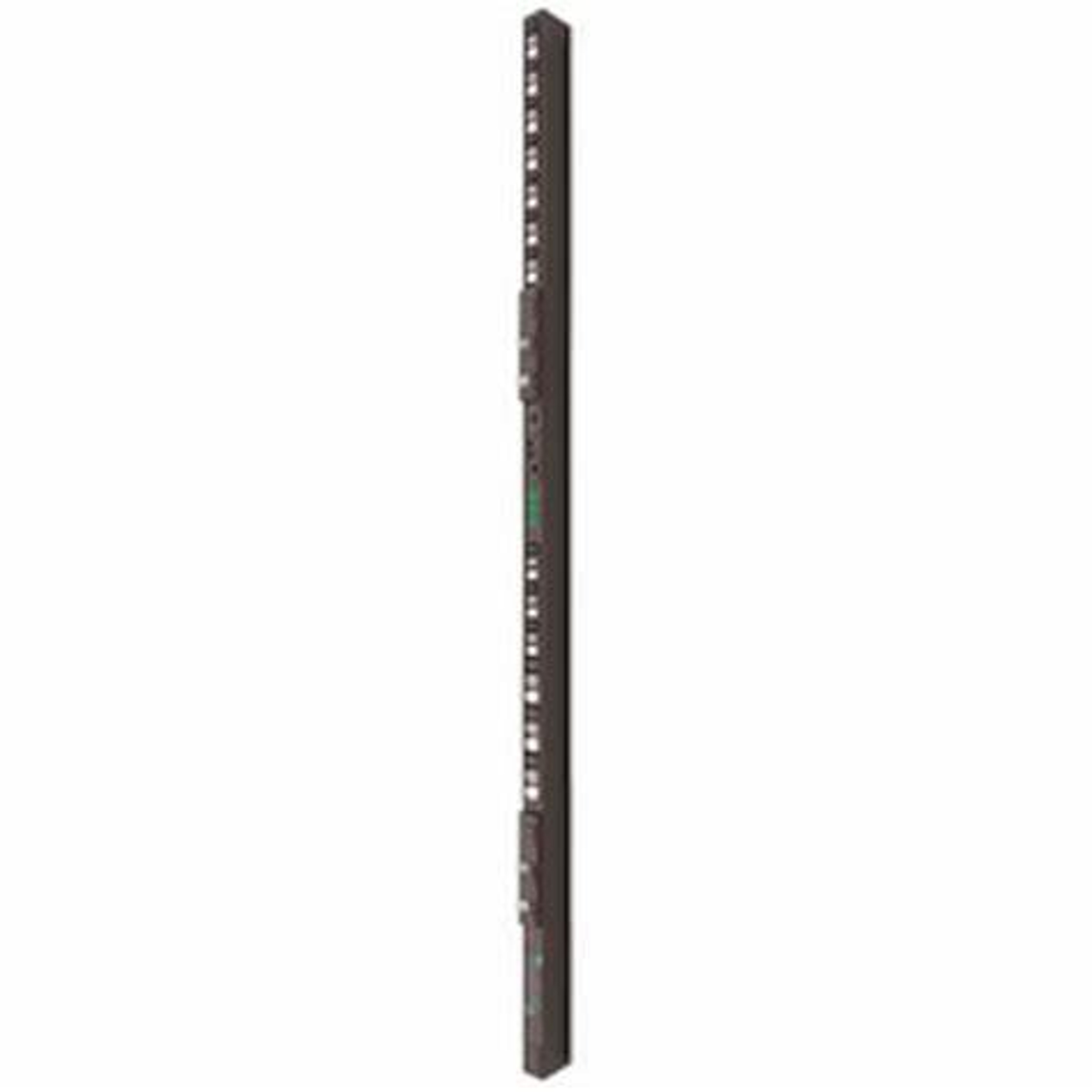

This all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet.
Specifications:
- Branch Monitoring:None
- Branch Overcurrent Protection:10 kAIC (North America) / (5 kAIC ROW)
- Branch Overcurrent Protection Type:Circuit Breaker: 2-pole
- Dual Input:No
- High Retention Outlets:Yes
- Input Current Display:None
- Input Monitoring:None
- Locking Outlets:Yes
- Max Operating Temperature:60 °C
- Fast Movers:No
- Mounting:0U Vertical
- Outlet Monitoring:None
- PDU Platform:PRO3X
- Power Pivot Input:No
- Product Height (inch):70.0
- Product Height (mm):1778
- Product Max Depth (inch):3.19
- Product Max Depth (mm):82
- Product Nominal Depth (inch):2.5
- Product Nominal Depth (mm):64
- Product Width (inch):2.2
- Product Width (mm):56
