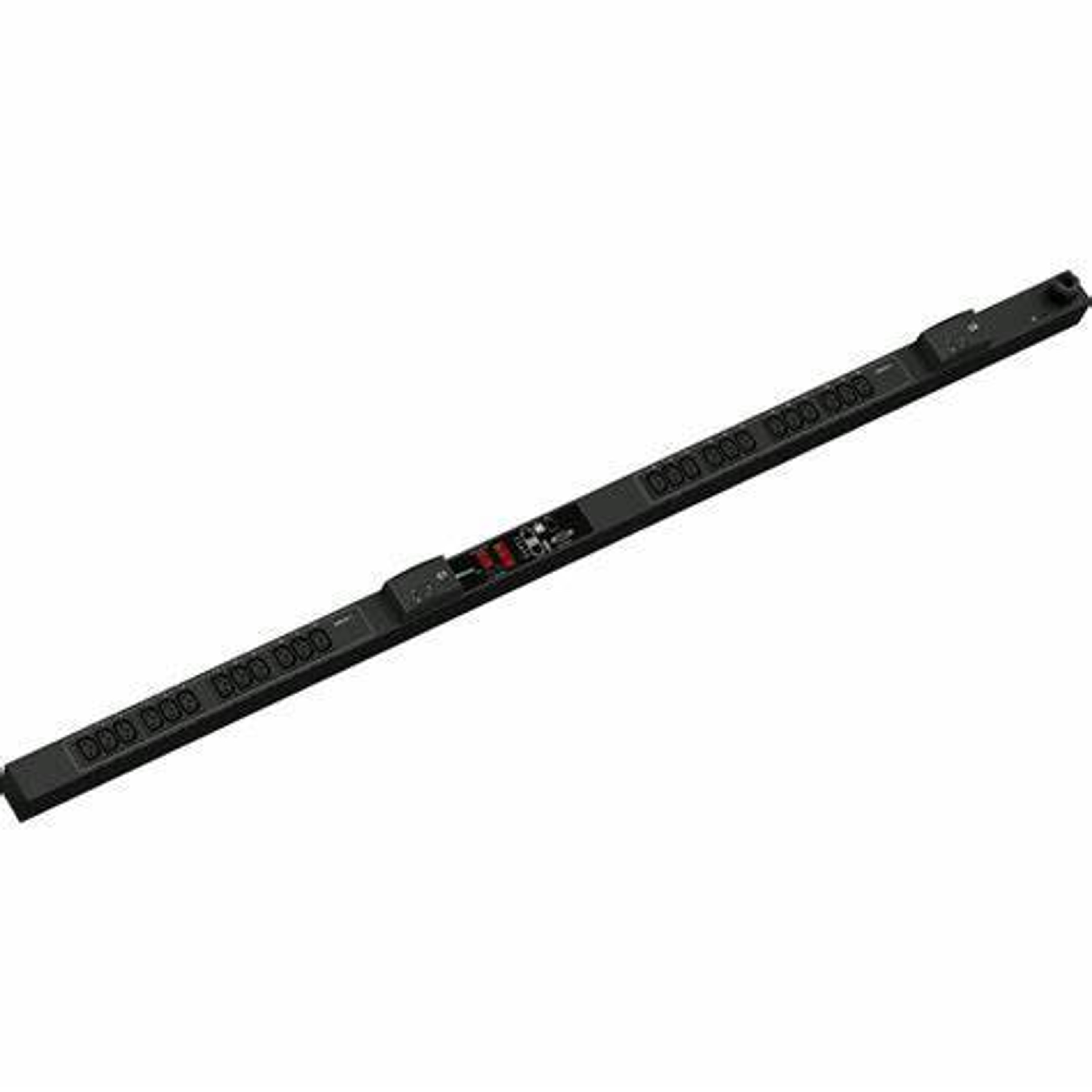

Server Technology C2WG36TE-YCMFAM66 PRO2 PDU 208 Volt 36 Outlets 0U

Server Technology

Regular Price $3,471.00
Discount Price: $2,950.00
Shipping:
Free Shipping
MFG#:
C2WG36TE-YCMFAM66
Product Category:
PDU
Platform:
PRO2
Metering and Switching:
Switched POPS
Total Outlets:
36
Plug Type:
NEMA L21-30P
Input Phase:
3 Phase Wye (L-L)
Power Capacity:
8.6 kW
Input Voltage:
208 V
Input Monitoring:
PIPS
Input Current:
30
Input Current Rating:
24
Form Factor:
0U
Rack Mounting Style:
Vertical
Branch Monitoring:
Current (A)
Alt Phase:
TRUE
Adding to cart… The item has been added

Description:

The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • NEMA L21-30P plug/connector type for better, dependable connectivity and desired power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 230 V AC input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for better reliance and maximum usability

Specifications:

Interfaces/Ports
Network (RJ-45)Yes
Management
ManagementProtocols:
  • HTTP/HTTPS
  • TLSv1.2
  • SSHv2
  • Telnet
  • SNMPv2c
  • IPv4
  • IPv6
  • LDAPv3/LDAPS
  • TACACS+
  • RADIUS
  • FTP/SFTP
V3:
  • GET
  • SET
  • Traps
Power Description
Input Current30 A
Power Rating (Watt)8600 W
Miscellaneous
Country of OriginUnited States
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Height70"
Width2.2"
Depth2.5"
General Information
Product TypePDU
Manufacturer Part NumberC2WG36TE-YCMFAM66
Manufacturer Website Addresshttp://www.servertech.com
ManufacturerServer Technology, Inc
Product Name39-Outlets PDU
Brand NameServer Technology
Technical Information
Protection TypeOverload Protection
Circuit Protection
Plug/Connector TypeNEMA L21-30P
PhaseThree Phase
Receptacle TypeIEC 60320 C13
NEMA 5-20R
CX
Receptacle Detail12 x CX
24 x IEC 60320 C13
3 x NEMA 5-20R
