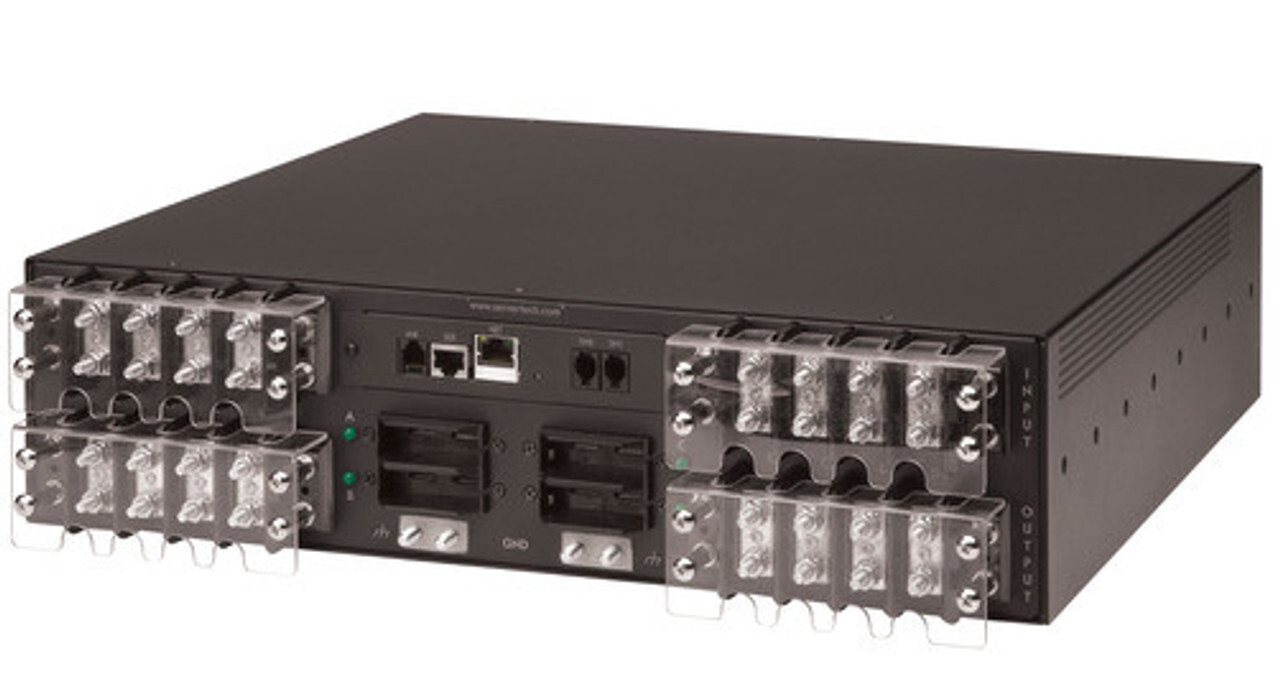

-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0

Key Features

NETWORK MONITORING

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
HOT-SWAP NETWORK CARD

Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
STAR MULTI-LINKING

Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
TEMPERATURE/HUMIDITY MONITORING

Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
OUTLET CONTROL

On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.

Description

No description available.

Inputs

Input Voltage (V):	-48
Input Current (A):	200
Input Current Rated (A):	200
Input Power Capacity (kW):	9.6

Outputs

Terminals: (16) x Screw-down terminals (10A max)

Branch Circuit Protection

GMT Fuses Included

Physical

Dimensions: 3.5in tall x 17.0in wide x 12.0in deep [89mm x 432mm x 305mm]

Environmental

Operating Environment: 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations

Communications & Security

10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP

Certifications

North American:
Safety (TUVR certified, cTUVus mark)

UL Std. 60950-1, 62368-1
CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
CAN ICES-003, Class A

Global:
Safety

EN 62368-1 (TUVR certified, T-mark)
IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

EMC

EN 55032 / IEC 55032 / CISPR 32
EN 55024 / CISPR 24
EN 55035 / IEC 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3

RoHS, European Hazardous Materials Directive, 2011/65/EU
WEEE Compliant
CE Mark
UK Legislation
RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)

Good company to do business with, they respond quickly and really commit to serve.

Very good pricing, and the item arrived within a reasonable time frame undamaged.

Delivery was a little slow, but it got there in time for the installation. Turned out to be the wrong part. Katie was easy to work with to get an RMA number and return it.

Communication is excellent. They confirmed what might be an atypical order. Carried it out, in less time than advertised. (The advertised lead time was long, but written; their actual time to deliver was much less than that.) Their website search function worked well, though they did have an error on one of their website on the pictures, but the description was correct. I pointed this out to them, and they fixed it immediately, and the correction was live on their site the next day, that is responsive (and errors happen). For people, it’s how it goes after a nit that matters, these people seem to get that and work hard and professionally to do business. I am buying again.

-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0

Key Features

NETWORK MONITORING

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
HOT-SWAP NETWORK CARD

Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
STAR MULTI-LINKING

Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
TEMPERATURE/HUMIDITY MONITORING

Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
OUTLET CONTROL

On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.

Description

No description available.

Inputs

Input Voltage (V):	-48
Input Current (A):	200
Input Current Rated (A):	200
Input Power Capacity (kW):	9.6

Outputs

Terminals: (16) x Screw-down terminals (10A max)

Branch Circuit Protection

GMT Fuses Included

Physical

Dimensions: 3.5in tall x 17.0in wide x 12.0in deep [89mm x 432mm x 305mm]

Environmental

Communications & Security

Certifications

North American:
Safety (TUVR certified, cTUVus mark)

UL Std. 60950-1, 62368-1
CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
CAN ICES-003, Class A

Global:
Safety

EN 62368-1 (TUVR certified, T-mark)
IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

EMC

EN 55032 / IEC 55032 / CISPR 32
EN 55024 / CISPR 24
EN 55035 / IEC 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3

RoHS, European Hazardous Materials Directive, 2011/65/EU
WEEE Compliant
CE Mark
UK Legislation
RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)

Good company to do business with, they respond quickly and really commit to serve.

Very good pricing, and the item arrived within a reasonable time frame undamaged.

Delivery was a little slow, but it got there in time for the installation. Turned out to be the wrong part. Katie was easy to work with to get an RMA number and return it.

-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0

Key Features

NETWORK MONITORING

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
HOT-SWAP NETWORK CARD

Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
STAR MULTI-LINKING

Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
TEMPERATURE/HUMIDITY MONITORING

Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
OUTLET CONTROL

On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.

Description

No description available.

Inputs

Input Voltage (V):	-48
Input Current (A):	200
Input Current Rated (A):	200
Input Power Capacity (kW):	9.6

Outputs

Terminals: (16) x Screw-down terminals (10A max)

Branch Circuit Protection

GMT Fuses Included

Physical

Dimensions: 3.5in tall x 17.0in wide x 12.0in deep [89mm x 432mm x 305mm]

Environmental

Communications & Security

Certifications

North American:
Safety (TUVR certified, cTUVus mark)

UL Std. 60950-1, 62368-1
CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
CAN ICES-003, Class A

Global:
Safety

EN 62368-1 (TUVR certified, T-mark)
IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

EMC

EN 55032 / IEC 55032 / CISPR 32
EN 55024 / CISPR 24
EN 55035 / IEC 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3

RoHS, European Hazardous Materials Directive, 2011/65/EU
WEEE Compliant
CE Mark
UK Legislation
RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)

-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0

Key Features

NETWORK MONITORING

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
HOT-SWAP NETWORK CARD

Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
STAR MULTI-LINKING

Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
TEMPERATURE/HUMIDITY MONITORING

Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
OUTLET CONTROL

On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.

Description

No description available.

Inputs

Input Voltage (V):	-48
Input Current (A):	200
Input Current Rated (A):	200
Input Power Capacity (kW):	9.6

Outputs

Terminals: (16) x Screw-down terminals (10A max)

Branch Circuit Protection

GMT Fuses Included

Physical

Dimensions: 3.5in tall x 17.0in wide x 12.0in deep [89mm x 432mm x 305mm]

Environmental

Communications & Security

Certifications

North American:
Safety (TUVR certified, cTUVus mark)

UL Std. 60950-1, 62368-1
CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
CAN ICES-003, Class A

Global:
Safety

EN 62368-1 (TUVR certified, T-mark)
IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)

EMC

EN 55032 / IEC 55032 / CISPR 32
EN 55024 / CISPR 24
EN 55035 / IEC 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3

RoHS, European Hazardous Materials Directive, 2011/65/EU
WEEE Compliant
CE Mark
UK Legislation
RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility

Measurement Accuracy

Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)

Additional information

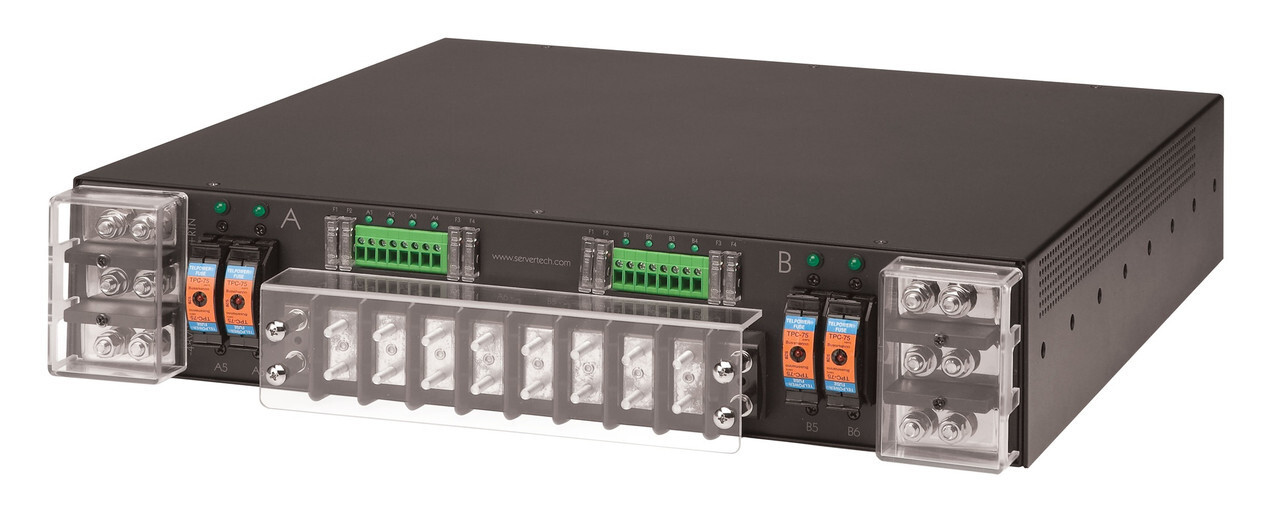

Server Technology 48DCXC-16-2X100-A0 48VDC
