Description:

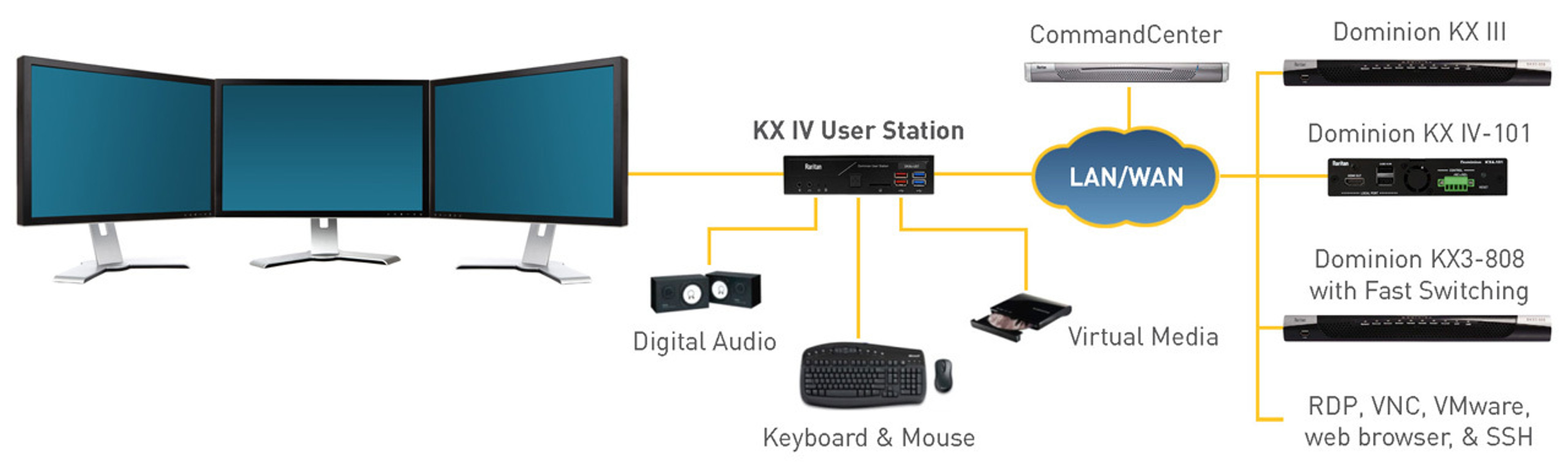

The Raritan Ultra High Performance User Station is ideal for command center and broadcast applications. It supports single, dual and triple-display applications with resolutions up to 4K UHD. This self-contained appliance provides IP access to servers connected to a Dominion KX IV Gateway or Dominion KX III switch.
Specifications:
| Description | Ultra high performance user station provides access for KX3 & KX4, 4K resolution, larger numbers of IP sessions and up to 3 monitors. 3X higher performance than DKX3-UST. |
|---|---|
| Hardware | Intel Core i5-8400, 4GB RAM, 128GB Solid State Disk |
| Video | (1) HDMI 2.0 + (2) DisplayPort; Single, Dual, or Triple video output; 4K Resolution playback |
| Power | Input: 100-240V AC, Output: 19V 4.47A DC, 90W Max |
| USB | 4 USB 3.1 Gen1, 4 USB 3.1 Gen2 for keyboard, mouse, audio & virtual media |
| Audio | Microphone In, Speakers Out |
| Certifications | FCC/CE/VCCI/cUL/CB |
| Dimensions (L x W x H) | 7.48 x 6.5 x 1.69 in (190 x 165 x 43 mm) |
| Weight | 2.86 Lbs (1.3 Kg) |
| Shipping Weight | 4.63 Lbs (2.1 Kg) |
| Mounting | Desktop, VESA & Optional 1U Rack Mount bracket |
| Temperatures | 32-104 degrees Farenheit (0-40 degrees Celsius) |
| Humidity | Non-condensing 10-90% humidity |
| Vibration | 1-200Hz, 1.146 Grms random vibration |
| Altitude | Max altitude 2,000 meters. |
